j5create - USB-C Dual HDMI Mini Dock - Gold
More Buying Options
About This Item
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p), Full HD (1080p)
- Number of DisplayPort Outputs (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: j5create
- Model Number: JCD381
- Product Name: USB-C Dual HDMI Mini Dock
- Color: Gold
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p), Full HD (1080p)
- Ports
- Display Connector(s): 2 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 3
- USB Ports: 1 x USB-C 2.0, 2 x USB-A 3.0 (The number and type of USB ports the product has.)
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Power
- Powered: true
- Power Supply Included: false
- Power Supply Input: USB-C
- Maximum Input Power: 60 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB-C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 60 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- System Requirements: Windows 10 or later, macOS X 10.8 or later. Available USB-C port that supports USB Power Delivery 2.0 or 3.0. (USB 3.0 is recommended) (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Universal
- Model Compatibility: Available USB-C port that supports USB Power Delivery 2.0 or 3.0. (USB 3.0 is recommended)
- Features
- Cable Lock Slot: None
- Indicator Light(s): false
- Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 0.6 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 5.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 847626002335
The USB-C Dual HDMI Mini Dock provides extra connectivity for your USB-C computer, featuring data transfer, power delivery and video displays. Easily add two additional USB computer peripherals, two HDMI monitors, and a Gigabit Ethernet connection through your USB-C port. When connected to a power source, the USB-C input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.
- Dual Display HDMI 4K + 2K: Easily add a 4K or two 2K displays via HDMI to increase your efficiency at work through your USB-C port. Extend your visual workplace with excellent dual-video HDMI.
- Power Delivery: USB-C power delivery 2.0 provides charging power up to 60W to the connected devices.
- Extra Connectivity for Your Computer: USB 3.0, Ethernet, Power Delivery and 2 HDMI video ports over a single USB-C connection. Connect to a computer or tablet with a USB-C port.
- 5 Gbps Transfer Speed: 2-Port USB 3.0 supports transfer speeds at 5 Gbps.
- Gigabit Ethernet Port: Reliable 10/100/1000 Mbps high speed transfer network connectivity via the Gigabit Ethernet port.
Whats Included
- 1 - JCD381 USB-C Dual HDMI Mini Dock
- 1 - Quick Installation Guide
Product Manuals
Q: How many HDMI ports does this dock have?
A: This dock is equipped with two HDMI ports.
Q: Can I use this dock to connect to a wired network?
A: Yes, you can connect to a wired network using the Gigabit Ethernet port.
Q: Does this dock have an integrated charger?
A: Yes, the dock has an integrated charger.
Q: What is the maximum resolution supported by this dock?
A: The maximum resolution supported is 4K (2160p).
Q: What is the maximum data speed this dock supports?
A: This dock supports a maximum data speed of 5 Gigabits per second.
A: Unfortunately, this device does require drivers in order to work.
A: You would need two HDMI cables to connect to the HDMI ports on this device, and to the HDMI port on your monitors.
A: No, the JCD381 only has 1 4K capable HDMI port and the other is only 1080P (Please look underneath JCD381 in order to determine which is which).
Reviews
Customers are saying
Customers appreciate the USB-C Dual HDMI Mini Dock for its ease of use, HDMI connectivity, overall performance, and compact size. Many find the price point appealing and value the multiple ports and monitor support it offers. However, some customers have reported compatibility issues and concerns about the device's heat generation. A few have also mentioned connectivity problems and expressed dissatisfaction with the cable length.

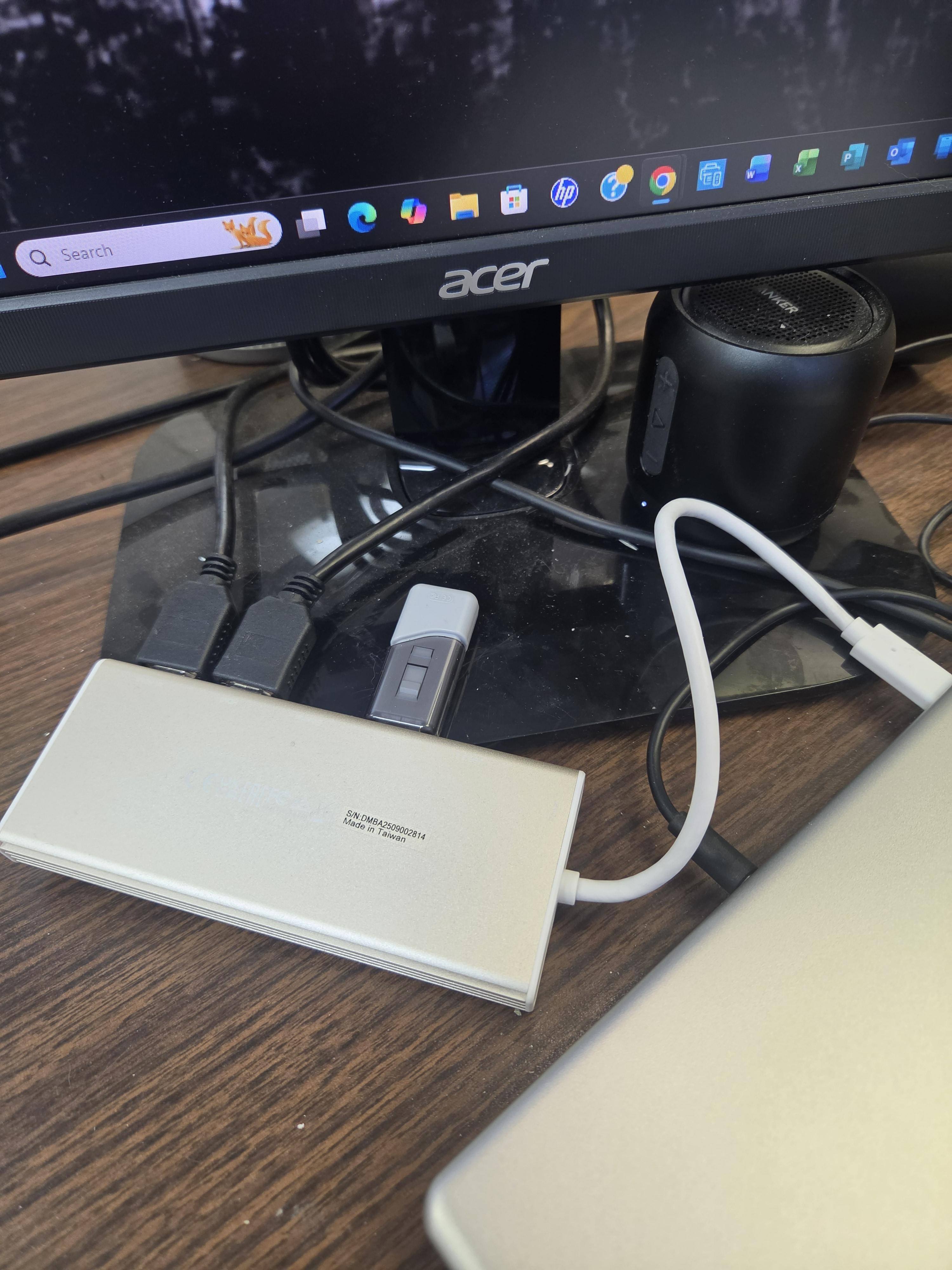

Customer Images
