j5create - USB4 Triple 4K Multi-Port Docking Station - Space Gray & Black
FREE shipping to
More Buying Options
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 3
- Number of DisplayPort Outputs (Total): 1
- Number of Thunderbolt Ports (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: j5create
- Model Number: JCD554

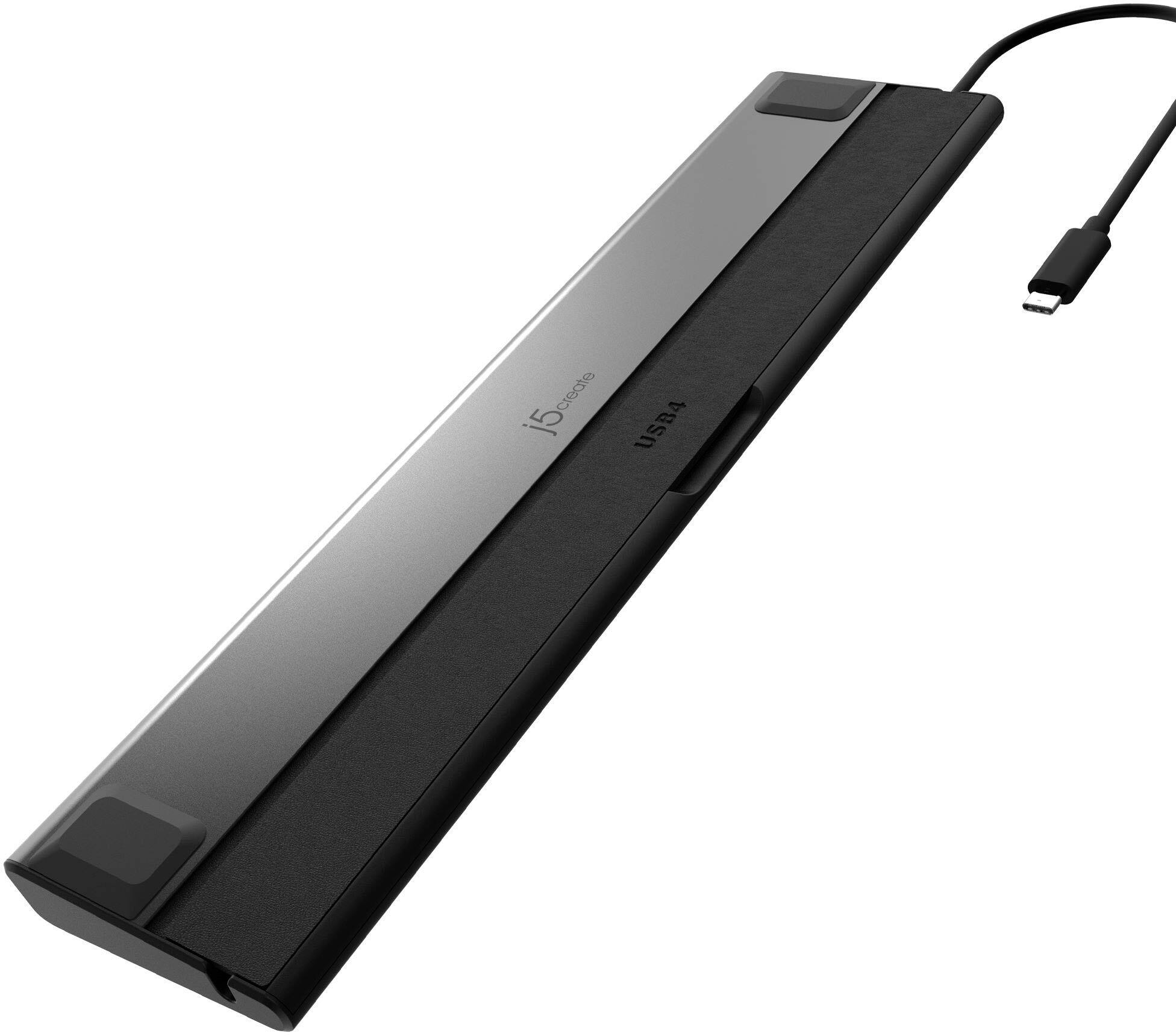

- Product Name: USB4 Triple 4K Multi-Port Docking Station
- Color: Space Gray & Black
- Display
- Maximum Number of Displays Supported: 3
- Ports

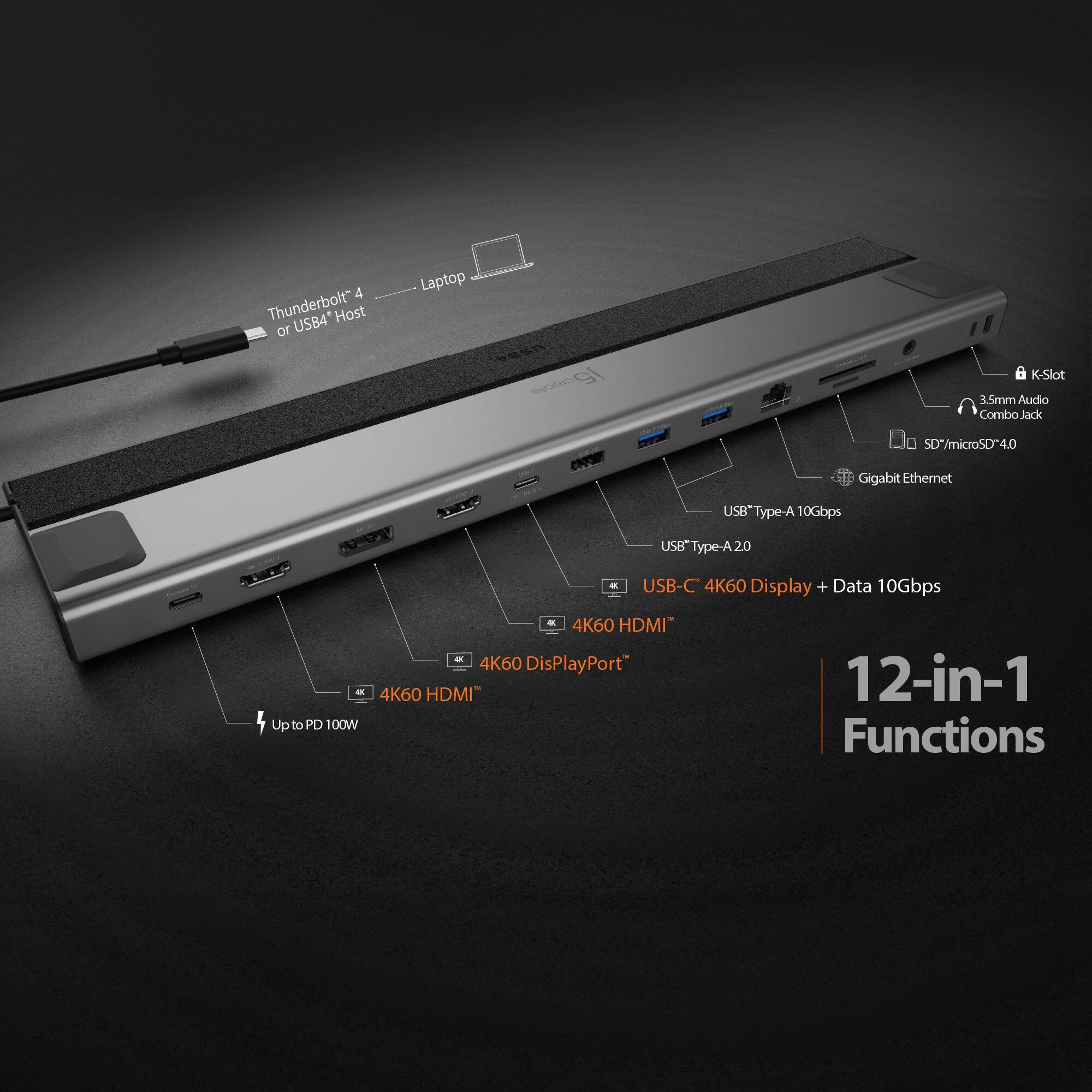

- Display Connector(s): Display connection via USB port, 1 x DisplayPort 1.4, 2 x HDMI 2.0 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 1
- Number of HDMI Ports (Total): 2
- Number of Thunderbolt Ports (Total): 0
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 4
- USB Ports: 1 x USB-A 3.2, 1 x USB-A 2.0, 1 x USB-C 4, 1 x USB-C (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Memory Card Slot: true
- Memory Card Type: Secure Digital, microSD
- Power
- Powered: true
- Power Supply Input: USB-C
- Maximum Input Power: 100 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB-C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 100 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Brand Compatibility: Available USB4 or Thunderbolt 4 port on host.
- Model Compatibility: Available USB4 or Thunderbolt 4 port on host.
- Features
- Cable Lock Slot: None
- Material: Aluminum
- Indicator Light(s): false
- Dimensions
- Product Height: 0.93 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 13.54 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.02 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 847626007101

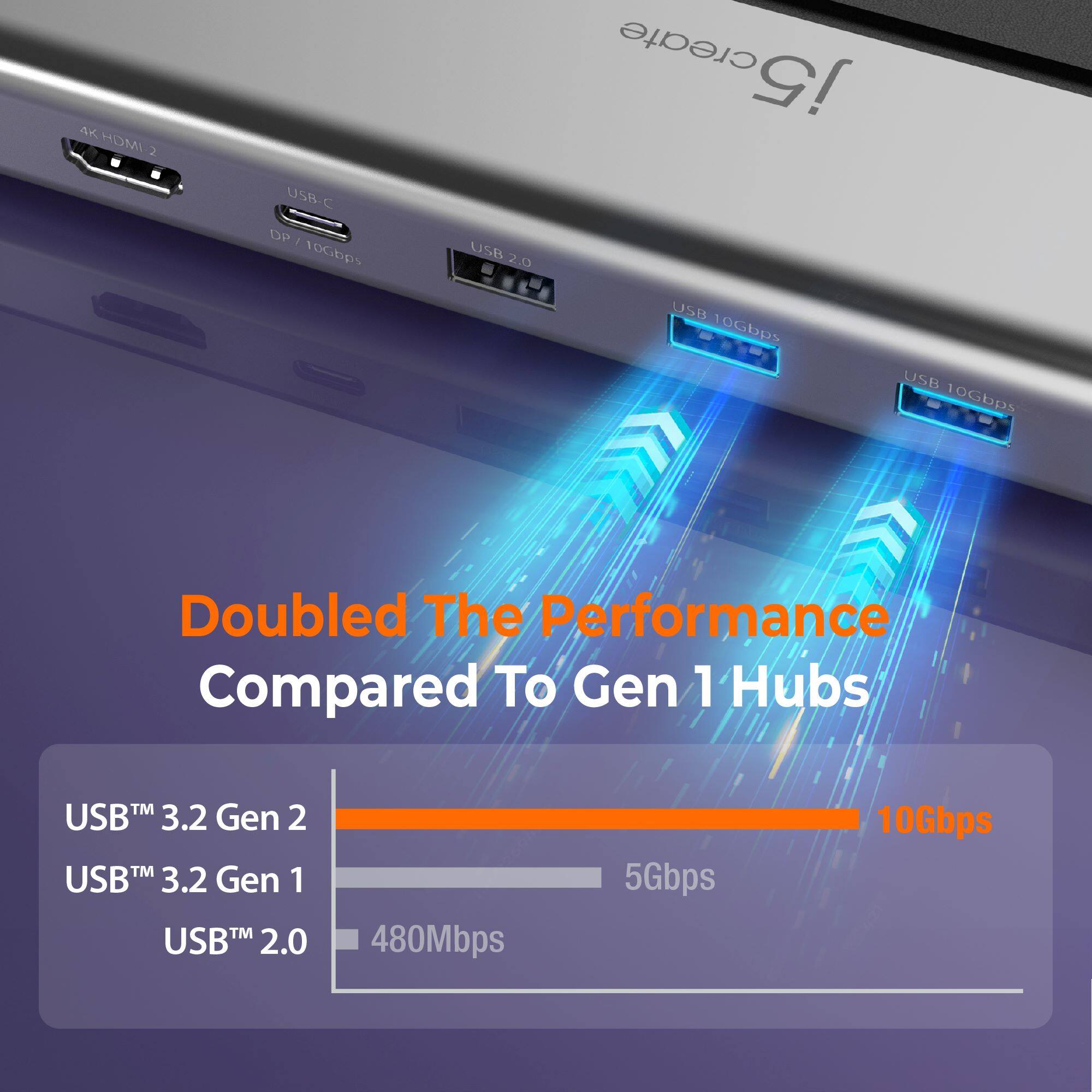

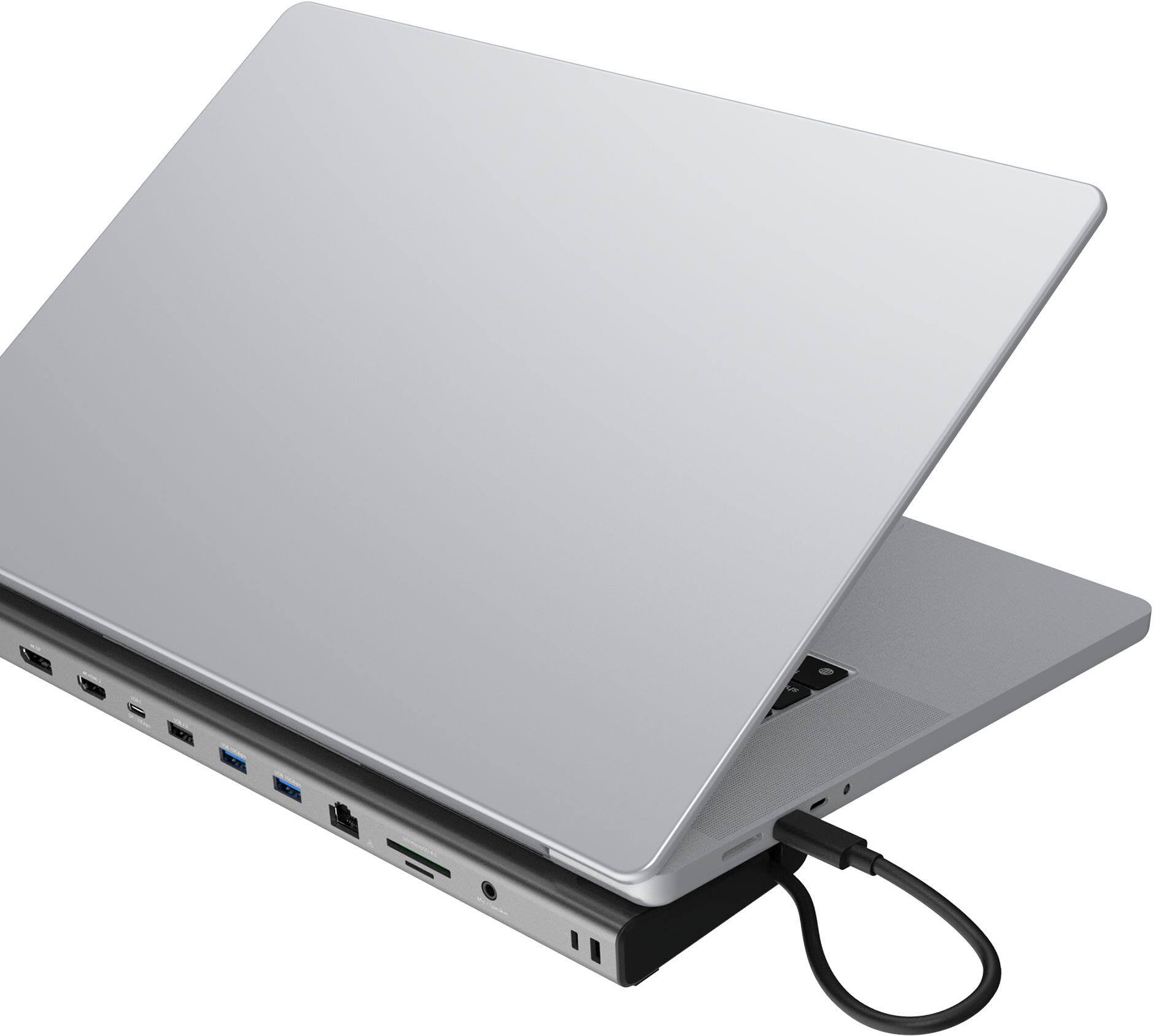

This high-performance USB4 Triple 4K Display Docking Station is the first USB-C docking to incorporate a USB4 controller from Intel, offering compatibility with Thunderbolt 4 and USB4 laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPortTM, HDMI or USB-C and access data faster without affecting system performance. Additionally, it has three USB 3.2 10Gbps ports (1 USB-C and 2 Type-A) for charging or connecting peripherals, as well as a USB-C Power Delivery port to charge your laptop and power your connected devices with up to 85W pass- through power. A USBTM 2.0 port is also included for connecting your wireless USB mouse or keyboard with reduced latency.
- Intel USB4: Includes the latest Intel USB4 controller.

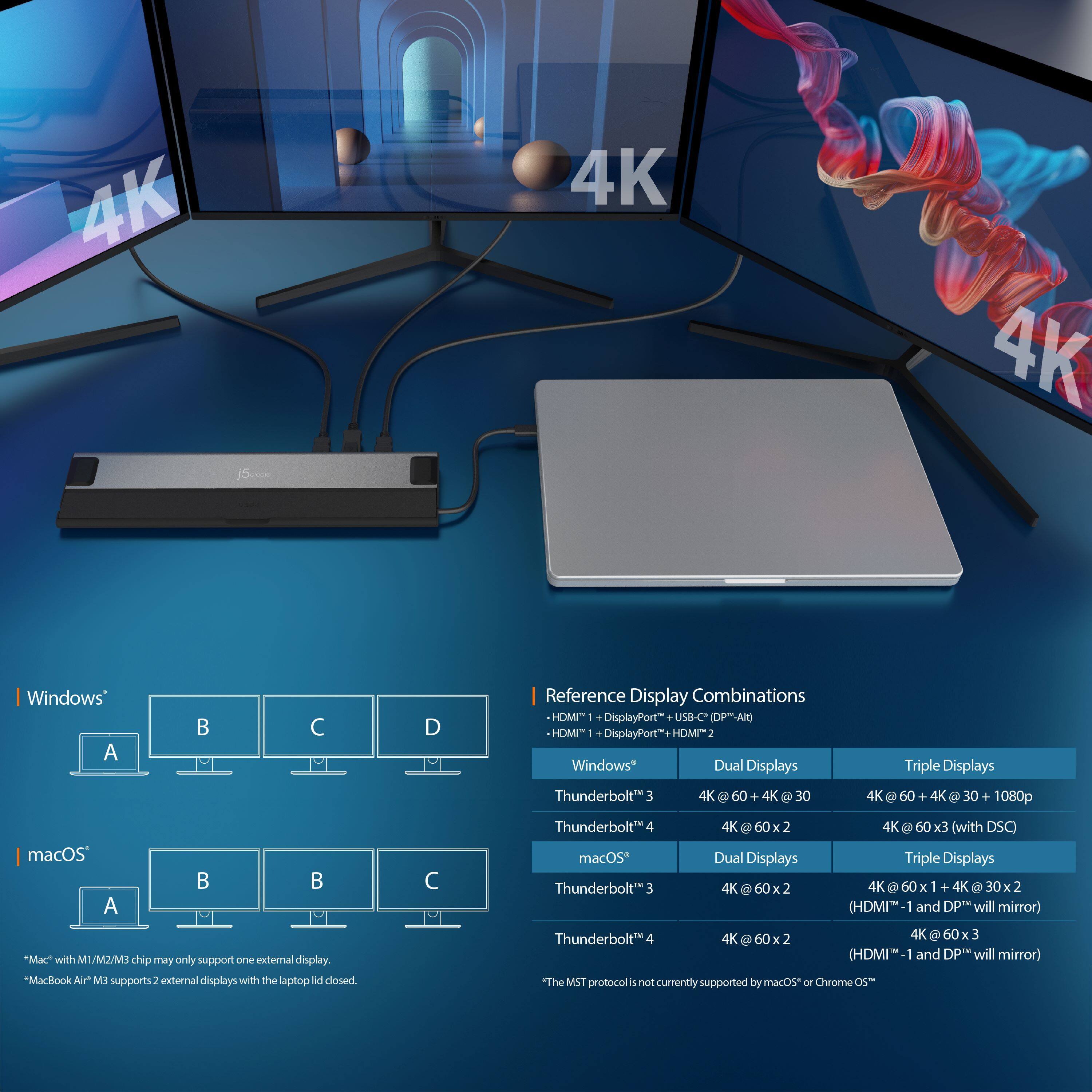

- HDMI compatible: Supports triple 4K displays (4K@60Hz + 4K@60 Hz + 4K@60 Hz ).
- Flexible: Provides 3 USB ports and a USB-C port to offer ultimate connectivity and performance. Offers up to 85W of pass-through charging.

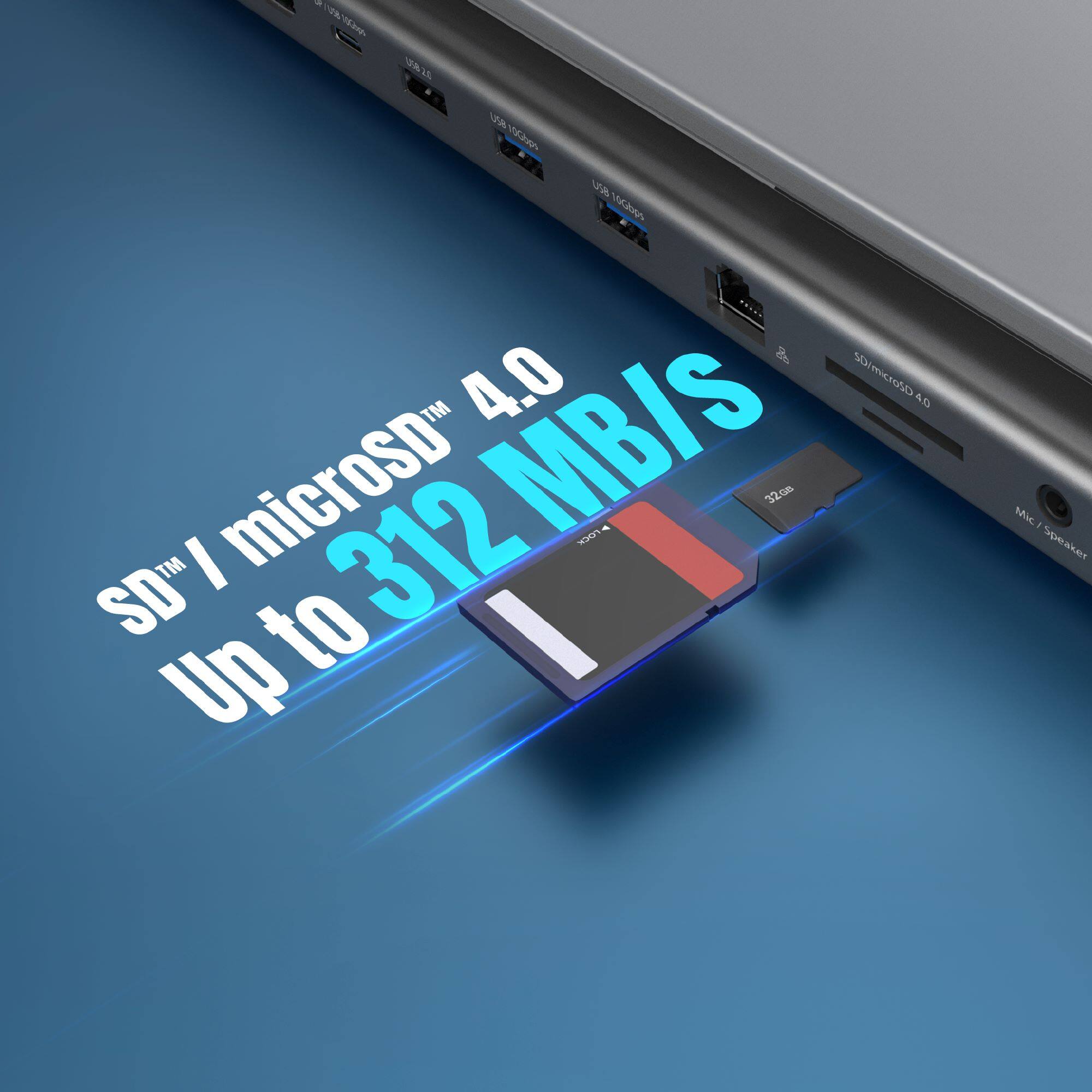

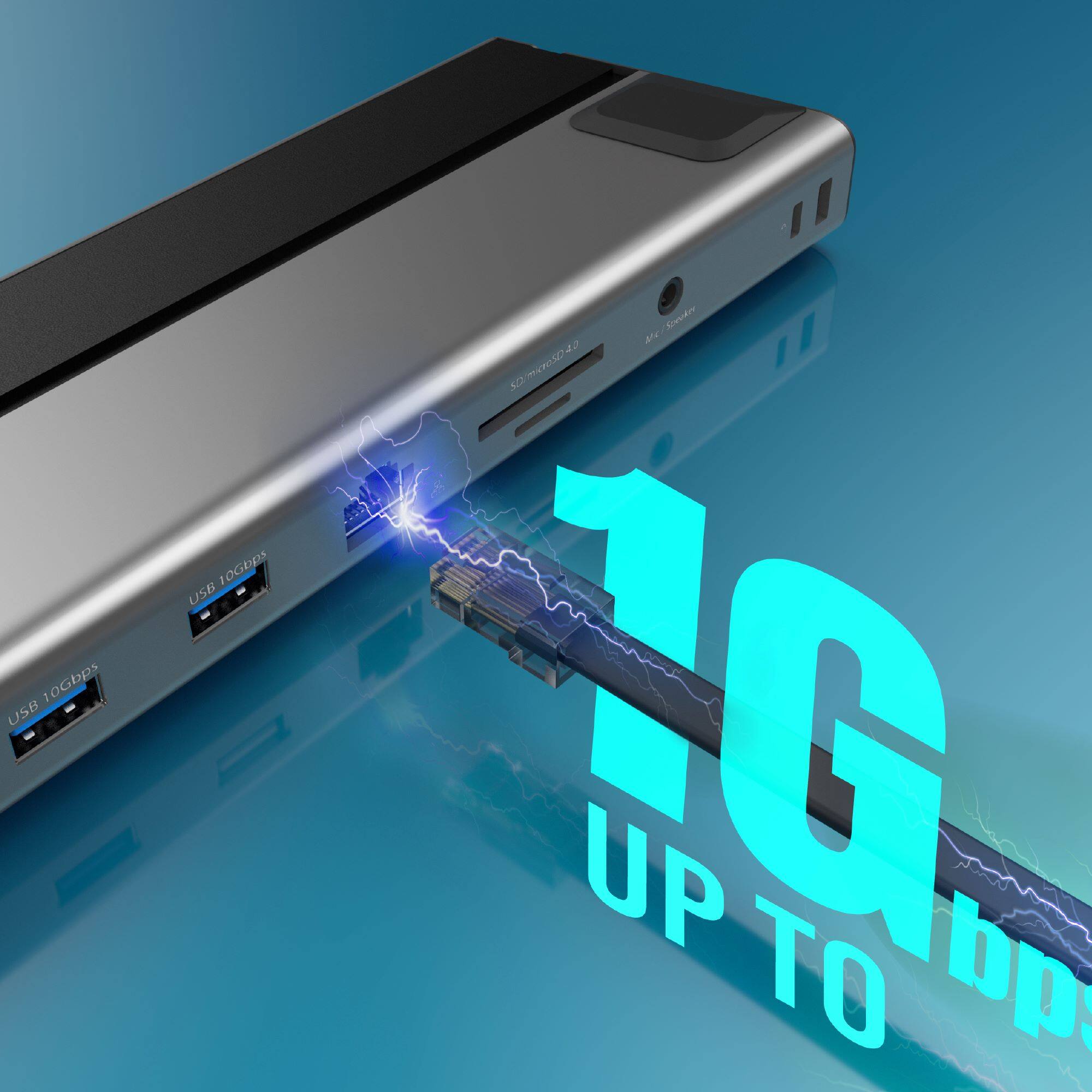

- Integration: Integrates a Gigabit Ethernet port, SD / microSD 4.0 card reader, and audio combo.
- Plug & Play: Compatible with Windows and macOS.
- Intel USB4: Includes the latest Intel USB4 controller.
- HDMI compatible: Supports triple 4K displays (4K@60Hz + 4K@60 Hz + 4K@60 Hz ).
- Flexible: Provides 3 USB ports and a USB-C port to offer ultimate connectivity and performance. Offers up to 85W of pass-through charging.
- Integration: Integrates a Gigabit Ethernet port, SD / microSD 4.0 card reader, and audio combo.
- Plug & Play: Compatible with Windows and macOS.
Q: What operating systems is this docking station compatible with?
A: It is compatible with both Windows and macOS.
Q: What kind of data transfer speeds can I expect with this docking station?
A: This docking station uses the latest Intel USB4 controller, which ensures lightning-fast data transfers.
Q: Does this docking station have an ethernet port?
A: Yes, it has a Gigabit Ethernet port.
Q: What is the maximum power output of this docking station?
A: The maximum output power is 100 watts.
Q: How many displays does this docking station support?
A: This docking station supports up to three 4K displays.
Q: Does the j5create USB4 Triple 4K Multi-Port Docking Station have an audio jack?
A: Yes, the docking station includes an audio combo jack for audio input and output.
Q: Is the USB 4 a thunderbolt connection?
A: The USB4 Triple 4K Display Docking Station is not a Thunderbolt dock, but it is compatible with Thunderbolt 3 and Thunderbolt 4 ports. You can connect it to a Thunderbolt laptop, and it will function properly, leveraging high-speed data, video, and power delivery. It won’t provide Thunderbolt-exclusive features, like daisy-chaining Thunderbolt displays or ultra-low latency native PCIe data transfer.
Q: Can I use this to switch between my laptop and PC?
A: The JCD554 USB4 Triple 4K Display Docking Station is not designed to function as a KVM switch (keyboard, video, mouse switch). That means you can’t use it to toggle between a laptop and a desktop PC with one set of monitors, keyboard, and mouse. The dock is meant to connect one host computer at a time via USB-C/USB4/Thunderbolt, and then expand that connection to multiple displays and peripherals.
