JBL - Conceal C83 8-inch (200mm) 3-element Invisible Loudspeaker - Gray
Specifications
- Speaker TypeIn-Wall
- Key Specs
- Speaker Type: In-Wall
- General
- Brand: JBL
- Model Number: JBLC83
- Product Name: Conceal C83 8-inch (200mm) 3-element Invisible Loudspeaker
- Color: Gray
- Audio
- Speaker Type: In-Wall
- Enclosure Type: Sealed
- Peak Power Handling: 160 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 45 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 84 decibels
- Number of Speakers: 1
- Number of Tweeters: 2
- Tweeter Size: 1.18 inches
- Number of Woofers: 1
- Woofer Size: 8 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: 1 x Analog audio
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 22 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 21.6 pounds (The out of box weight of the item.)
- Included
- Speaker Wire Included: false
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 050036378802

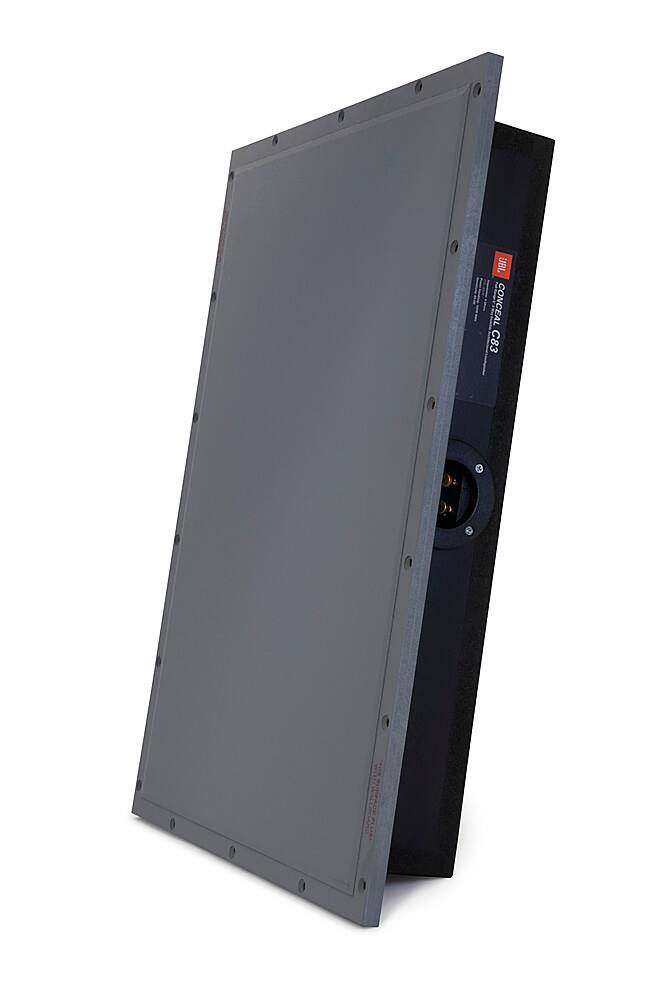

Conceal C83 Invisible In-Wall Speaker

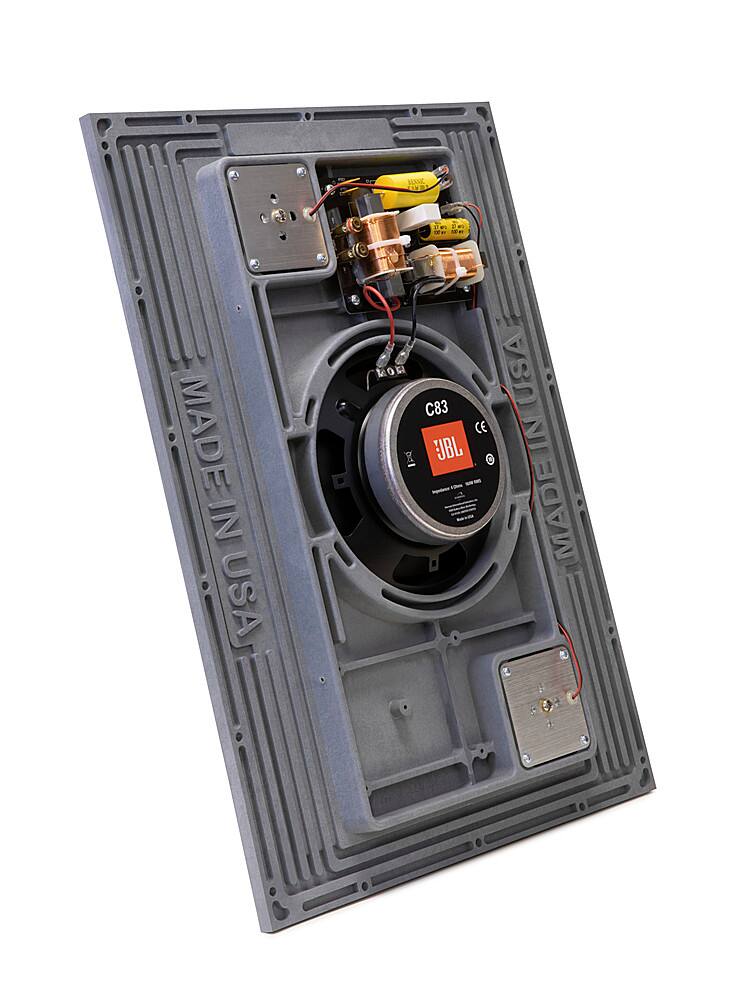

- One-piece design with 8-inch (200mm) LF driver and Dual-element MF/HF drivers.: High Performance Architectural Audio in a compact build
- Proprietary FidelityGlass acoustic panel and compression molded baffle.: Paintable and custom finishable surface disappears into décor, providing high quality sound without detracting from interior design.

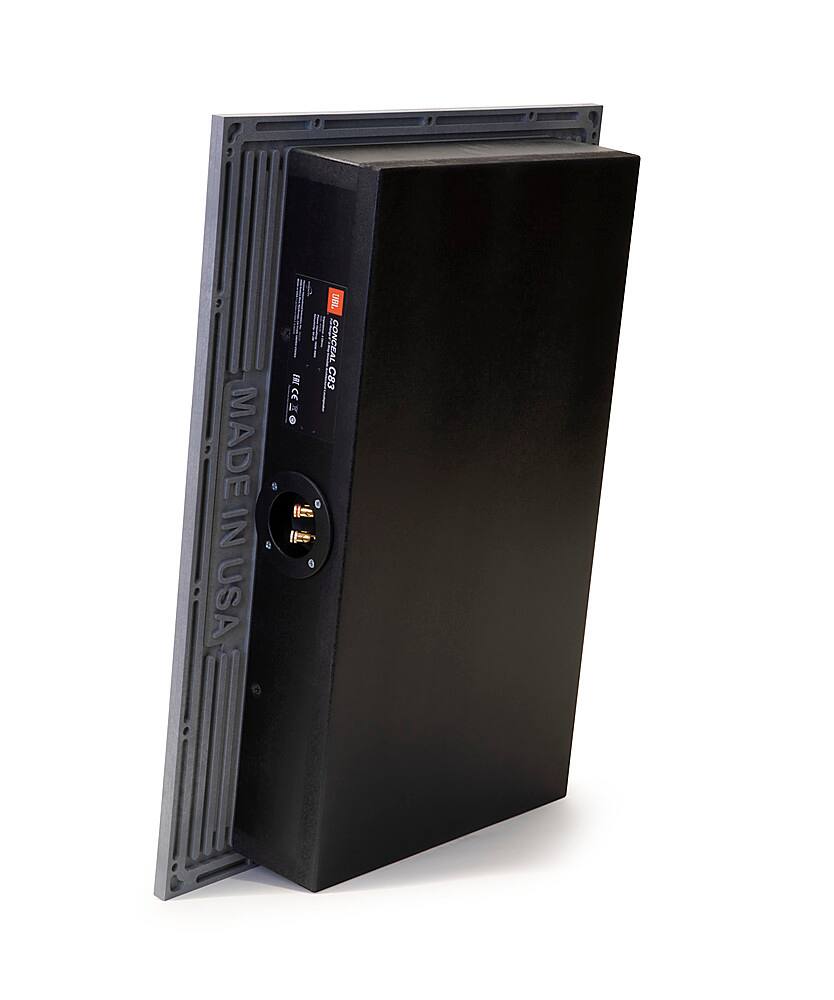

- Integrated wooden back box enclosure: Reduces acoustic intrusion into adjacent spaces

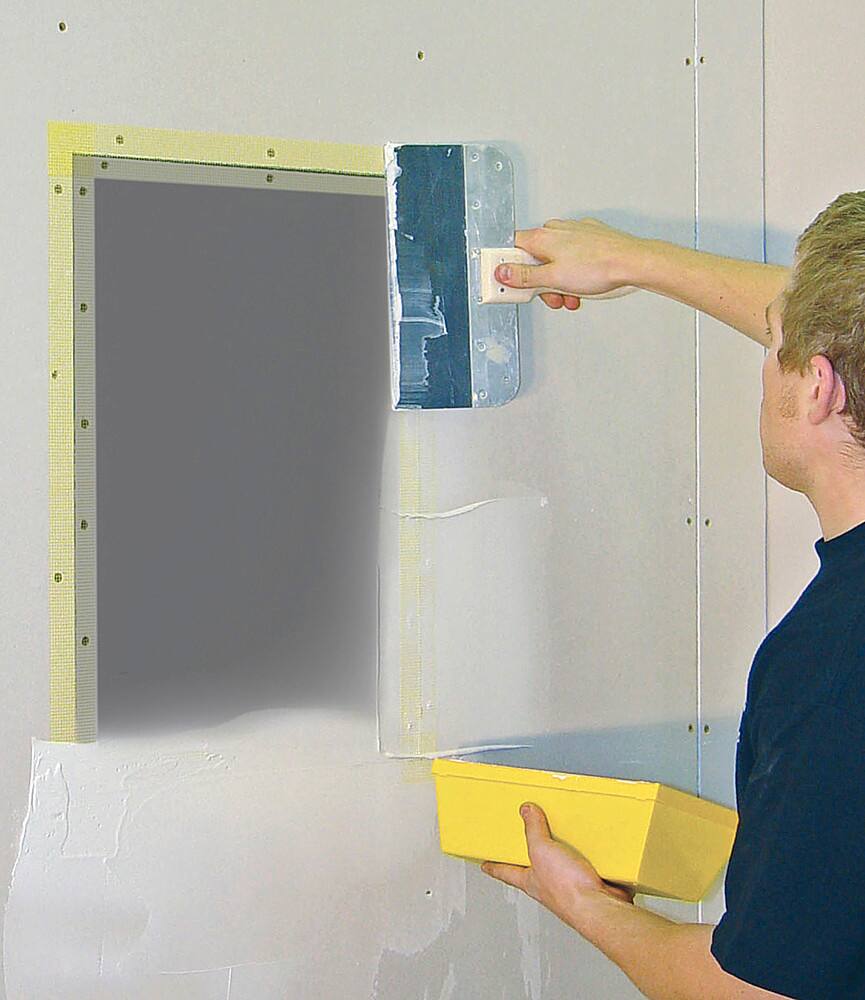

- Simple Installation: Installs like a standard drywayll patch
- Two independent self-resetting devices: Ensures that speaker does not have to be removed for repair.
Whats Included
- 1 x JBL Conceal C83 Invisible In-Wall Loudspeaker
- 1 x Owner’s Manual
- 8 x Drywall Shims
- 19 x Drywall Screws
Product Manuals
Q: What is the minimum frequency response of the speaker?
A: The minimum frequency response of the speaker is 45 hertz.
Q: What are the dimensions of the speaker?
A: The Conceal C83 speaker has a width of 16 inches, a height of 22 inches, and a depth of 4 inches.
Q: What is the peak power handling of the speaker?
A: The peak power handling of the speaker is 160 watts.
Q: How many tweeters are included in the speaker?
A: This speaker includes two tweeters.
Q: Does the speaker have a sealed enclosure?
A: This speaker has a sealed enclosure.
