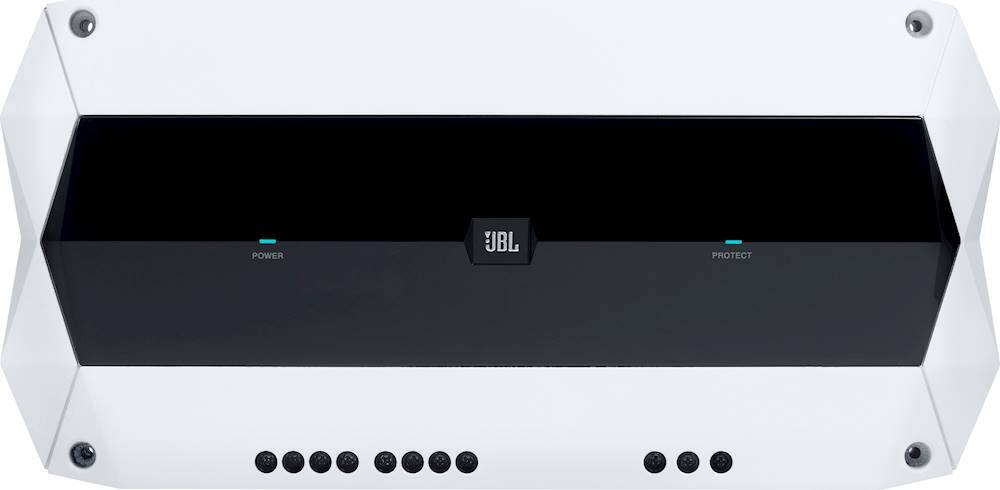

JBL - Multichannel Marine Amplifier - White/Black
Model: MA704
SKU: 6404979
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 70 W x 4 @ 4 Ohms
- Maximum Watts x Channel @ Ohms: 100 x 4 x 2 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Selectable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: JBL
- Model Number: MA704
- Product Name: Multichannel Marine Amplifier
- Color: White/Black
- Audio Power
- Continuous Watts x Channel @ Ohms: 70 W x 4 @ 4 Ohms
- Total Power Handling RMS: 400 watts
- Watts Per Channel RMS: 70 watts
- Maximum Watts x Channel @ Ohms: 100 x 4 x 2 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 1000 watts
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 40 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 85 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Selectable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Marine: true
- Input
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 2.32 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.46 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.96 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 050036346320
Enjoy powerful audio performance on the high seas with this JBL multi-element marine amplifier. High and low-level inputs offer compatibility with a huge range of audio inputs, and selectable crossovers with variable electronic frequency adjustment offer deep fine-tuning options. This JBL multi-element marine amplifier features a compact chassis ideal for installing in space-limited environments.
- Handles up to 1000W peak power: To deliver powerful audio. Up to 280W RMS @ 4 ohms (70 x 4).
- Variable ajustment crossovers: Selectable all-, high-, or low-pass crossovers with variable electronic frequency adjustment to allow for fine-tuning multiple system configurations.
- High- and low-level inputs: Help integrate with just about any audio input.
- Conformal-coated PCB: Engineered to withstand harsh marine conditions.
- Compact size: Slim chassis and small footprint allow installation in tight spaces.
Whats Included
- JBL Multichannel Marine Amplifier
- High-level input wiring harness
- Two spare fuses
- Two 2-color brand stickers
- Owner's manual
Product Manuals
Q: I want to know what wires go with this, I only need the ground cable if that’s possible
A: Our JBL Marine MA704 includes the following in the box. - JBL Multichannel Marine Amplifier - High-level input wiring harness - Two spare fuses - Two 2-color brand stickers - Owner's manual
