JBL - Stage 220P 12-Inch Powered Subwoofer - Latte
Color
Latte
JBL - Stage 200P 10-Inch Powered Subwoofer - Latte$549.95
More Buying Options
Related Item
Specifications
- RMS Power300 wattsWoofer Size12 inches
- Key Specs
- RMS Power: 300 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 12 inches
- General
- Brand: JBL
- Model Number: JBL220PWHTAM
- Product Name: Stage 220P 12-Inch Powered Subwoofer
- Color: Latte
- Audio
- Minimum Frequency Response: 32 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 150 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Enclosure Type: Bass reflex
- Subwoofer Type: Powered (Passive subwoofers require an external amplifier, such as the one driving the main speakers in the system, for power. Active subwoofers, on the other hand, have a designated amplifier (one that isn't shared with other speakers) for power as well as line-level crossover.)
- Enclosed: true
- Peak Power Handling: 500 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Connectivity
- Network Connector(s): No network connectors
- Subwoofer Connection Type: RCA
- Dimensions
- Product Height: 16.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 15.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 41.2 pounds (The out of box weight of the item.)
- Included
- Cable(s) Included: AC power
- Warranty
- Warranty - Parts: 5 Year Limited
- Warranty - Labor: 5 Year Limited
- Other
- UPC: 050036402040
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 220P is 500W and is the most powerful subwoofer in the Stage Series and delivers the low frequency excitement that customers crave. This subwoofer features a high excursion 12-inch (300mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
- 12-inch (300mm) Polycellulose Ribbed Cone Low-Frequency Woofer: Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
- 300-Watts RMS Amplifier (500 Watts Peak Power): The built-in high-performance 500-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 220P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.

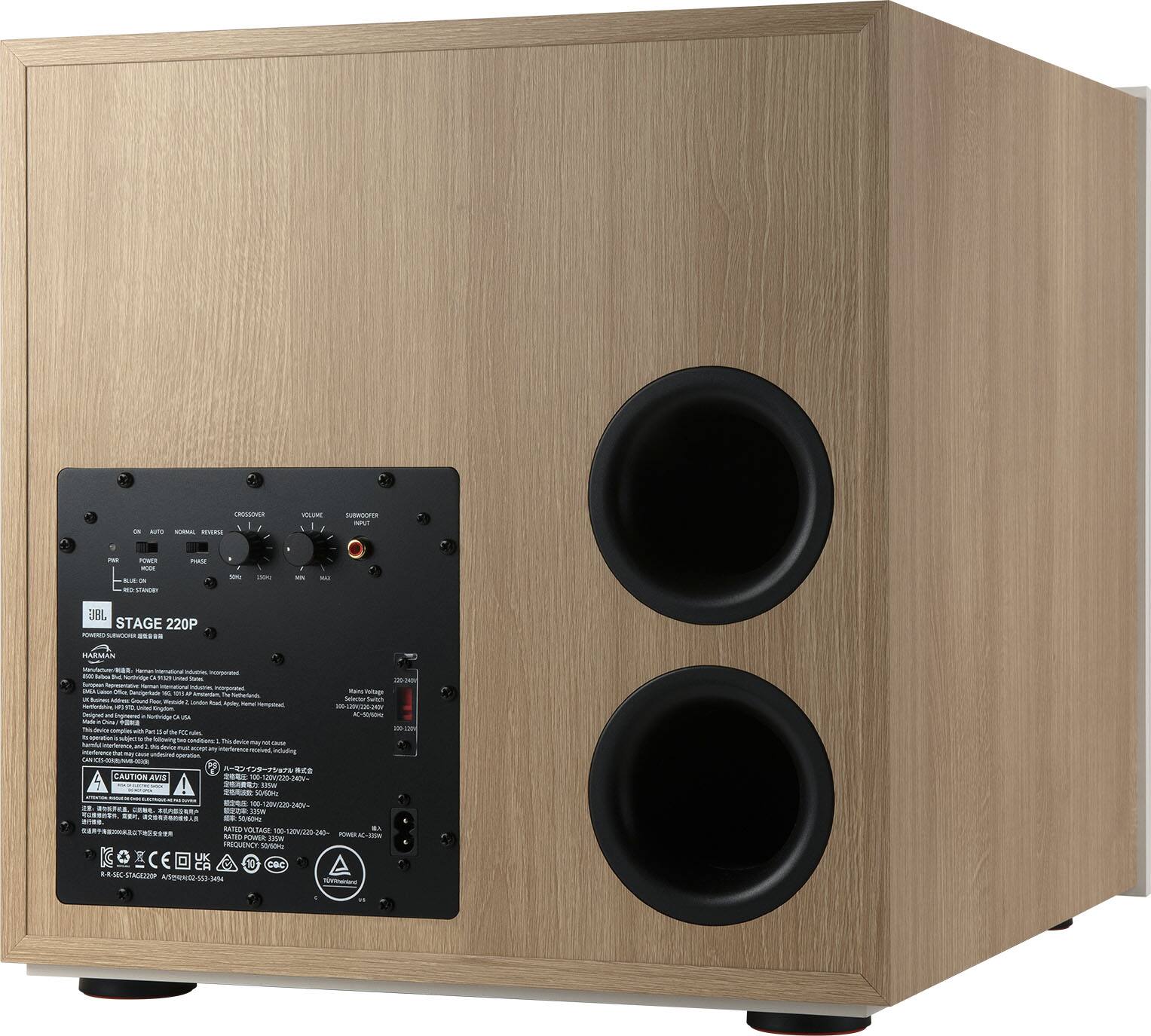

- Bass-Reflex Design with Dual Rear-Firing Flared Ports: The Bass-Reflex design of the 220P use dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.

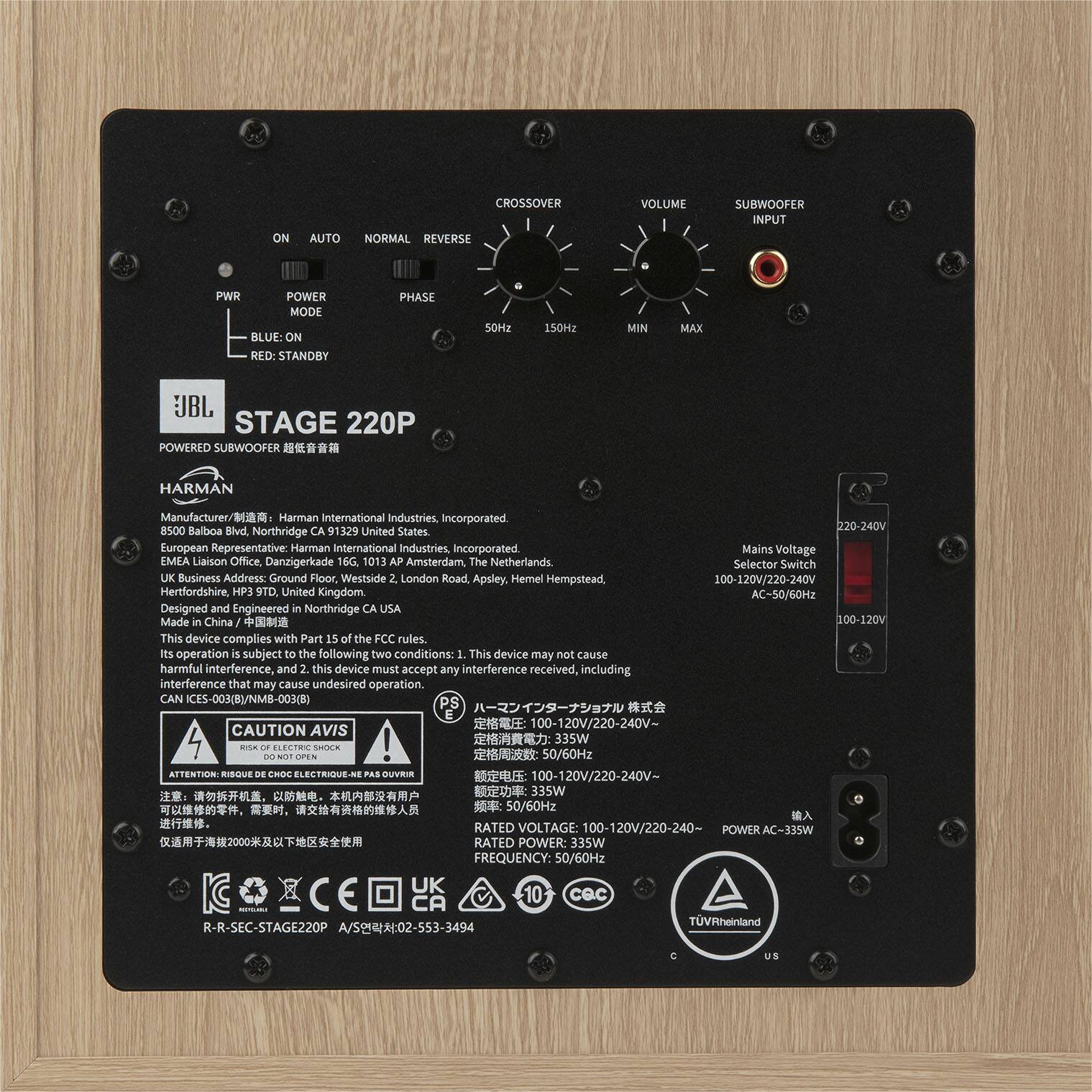

- Rear-Mounted Volume, Crossover, Phase, and Power Controls: The rear mounted controls include a variable low-pass 50-150Hz crossover, so it can be dialed in precisely under the main channels and the power can remain on or be set to Auto to save energy.
- Line-Level LFE Input: The 220P profiles complete integration with and audio system via Line Level I or LFE inputs. The LFE input bypasses the subwoofer's internal low-pass crossover. When you're connecting the subwoofer to the dedicated subwoofer output of a receiver/processor that has its own low-pass crossover network

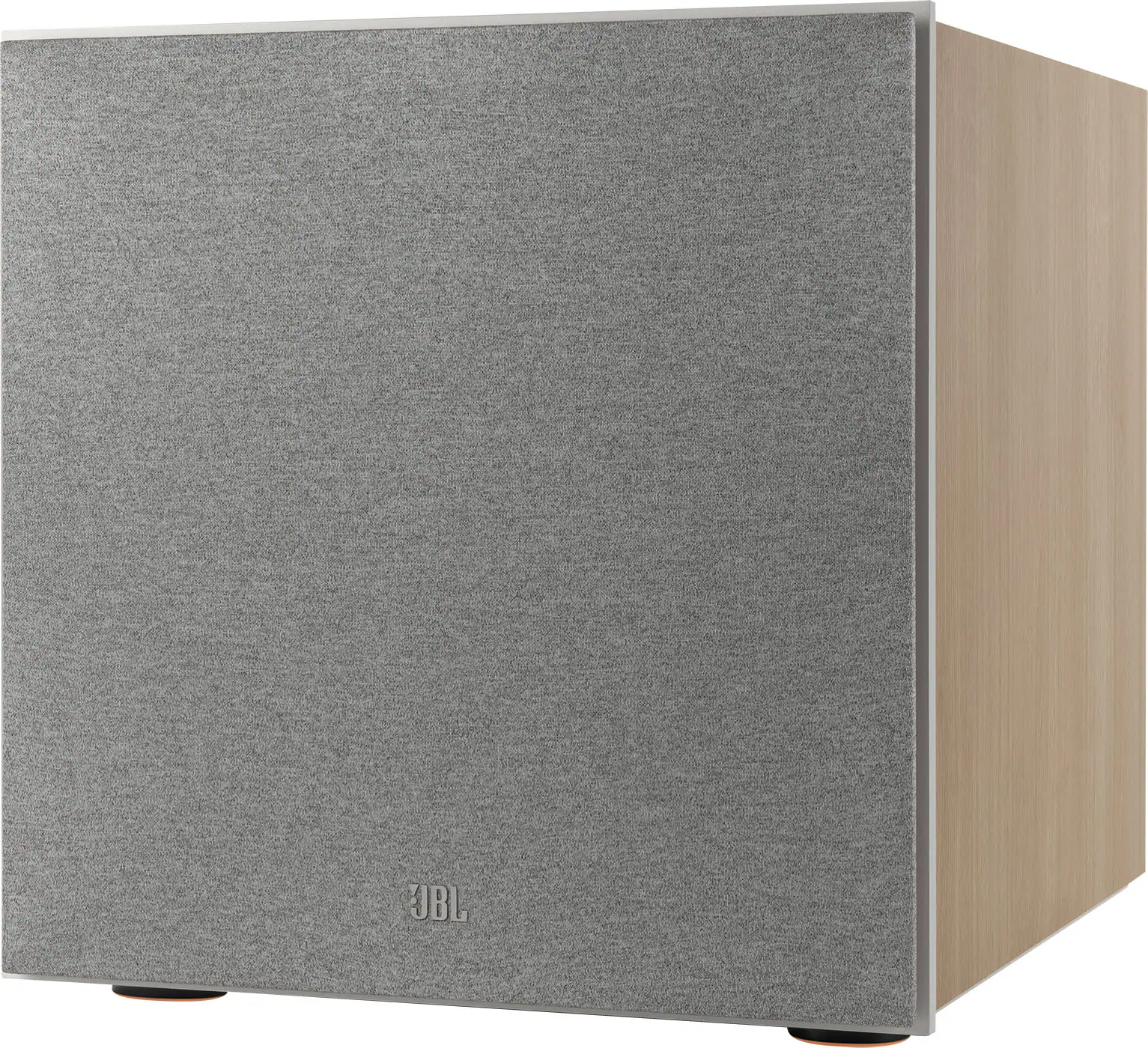

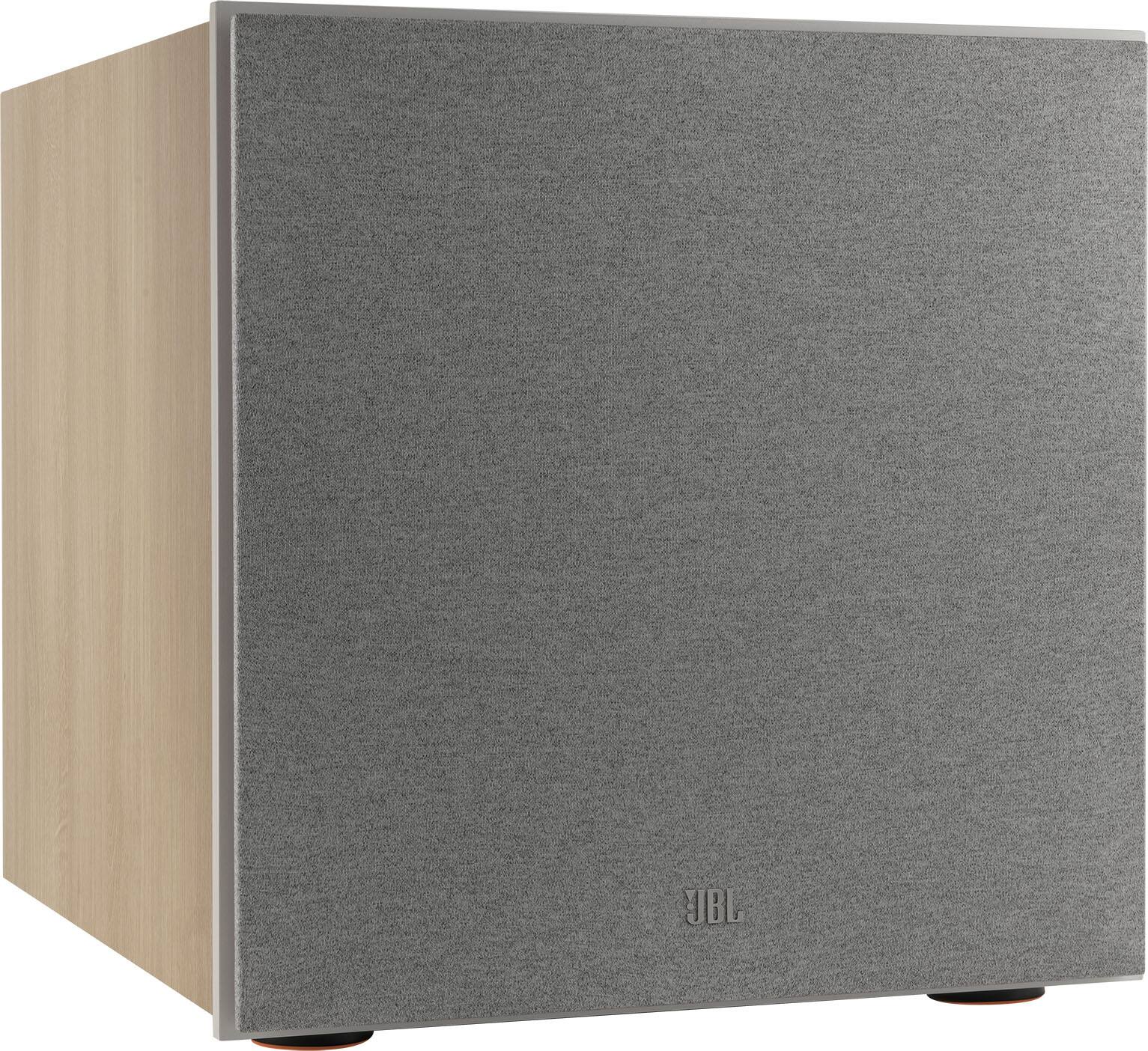

- Magnetically Attached Grilles: Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.
- Adjustable Floor Spikes: The floor spikes on the 220P provide stability when placing your speakers on a thick rug or plush carpeting. The carpet spikes can be manually screwed into each foot on the plinth of the speaker and are easily adjustable from the top.
- 12-inch (300mm) Polycellulose Ribbed Cone Low-Frequency Woofer: Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
- 300-Watts RMS Amplifier (500 Watts Peak Power): The built-in high-performance 500-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 220P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.
- Bass-Reflex Design with Dual Rear-Firing Flared Ports: The Bass-Reflex design of the 220P use dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
- Rear-Mounted Volume, Crossover, Phase, and Power Controls: The rear mounted controls include a variable low-pass 50-150Hz crossover, so it can be dialed in precisely under the main channels and the power can remain on or be set to Auto to save energy.
- Line-Level LFE Input: The 220P profiles complete integration with and audio system via Line Level I or LFE inputs. The LFE input bypasses the subwoofer's internal low-pass crossover. When you're connecting the subwoofer to the dedicated subwoofer output of a receiver/processor that has its own low-pass crossover network
- Magnetically Attached Grilles: Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.
- Adjustable Floor Spikes: The floor spikes on the 220P provide stability when placing your speakers on a thick rug or plush carpeting. The carpet spikes can be manually screwed into each foot on the plinth of the speaker and are easily adjustable from the top.
Whats Included
- 1 x 220P Subwoofer
- 1 x Power Cord
- 4 x Floor Spikes
- 1 x Speaker Grille
- 1 x 220P Subwoofer
- 1 x Power Cord
- 4 x Floor Spikes
- 1 x Speaker Grille
Q: What is the size of the woofer?
A: The woofer size of the JBL Stage 220P subwoofer is 12 inches.
Q: What is the power output of the subwoofer?
A: The Stage 220P subwoofer has a peak power output of 500 watts.
Q: Does the subwoofer come with an AC power cable?
A: The Stage 220P 12-Inch Powered Subwoofer includes an AC power cable.
Q: What are the dimensions of the subwoofer?
A: The subwoofer has a width of 15.9 inches, a height of 16.4 inches, and a depth of 17.5 inches.
Q: What is the minimum frequency response of the subwoofer?
A: The minimum frequency response of this subwoofer is 32 hertz.
A: The subwoofer is enclosed.
Q: Will this subwoofer pair with the JBL 110 party box?
A: undefined
Compare similar products
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 220P is 500W and is the most powerful subwoofer in the Stage Series and delivers the low frequency excitement that customers crave. This subwoofer features a high excursion 12-inch (300mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
Get earthshaking bass with the all new Next Gen Klipsch Reference subwoofer. The 12-inch spun-copper woofer produces rich, detailed base from the top to the bottom of the frequency response range from 28Hz to 120Hz. The all-digital amplifier in this Klipsch Reference II subwoofer provides a peak of 400W for powerful bass with a max output of 118dB.
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series and deliver the low frequency excitement that customers crave. This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
Relish the immersive audio experience created by this Klipsch Reference II subwoofer. The spun-copper injection-molded-graphite subwoofer and built-in digital amplifier provide high-volume bass free of distortion, while its 29 to 120Hz frequency response lets you enjoy an extensive range of sound. The 12-inch height and brushed polymer-veneer finish on this 400W Klipsch Reference II subwoofer enhance the look of your entertainment setup.
| Pros for JBL - Stage 220P 12-Inch Powered Subwoofer - Latte | |||
|---|---|---|---|
| Sound Quality, Bass, Design, Power, Size | Sound Quality, Bass, Power, Size, Ease of use | Sound Quality, Bass, Design, Power, Size | There were no pros for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Solid 12" subs that work great in pairs.
The JBL Stage 220P is part of the Stage 2 set of speakers from JBL. This series is budget friendly, but up-market in looks, with nice veneer, magnetic detachable grilles, and premium overall feel make these a contender in many homes. Is the 220P worth the cash in the mid low-end sub market though? Both units I purchased were open box models, but BestBuy appeared to ship me new units. Neither had been removed from the box and were still factory sealed. Inside the box is pretty basic stuff, including documentation, metal pegs for carpet installation, and the unit itself and grille. My application is paring 2 of these Stage 220p subwoofers with 260F floor standing speakers and a 245c center channel for the front portion of my 7.2.4 Atmos setup. These are placed next to the 260F speakers under my projector screen. The room is an a shape with sloped vaulted ceilings that meet for about 8ft of flat ceiling in the middle. These subwoofers align in the center to help produce even bass in the room. With only one subwoofer, I found large dead spots (not a fault of the 220p, but of the room design). The Stage 220p is easy to work with in most home theater installations. It supports RCA subwoofer level input, which is pretty standard these days. There is a separate volume control, cross over adjust, power mode (On or Auto), Phase (normal or reverse), and a switch for the power supply mode (120v or 220v, which comes locked to 120v unless you remove some screws). Most modern receivers will allow you to adjust the crossover for the subwoofer channel, but it's nice that this unit has an adjustable crossover if you want to tune it w/ a sound bar, or other non-home theater receiver. Installation was a breeze. My Marantz receiver has dual subwoofer outputs, so I'm able to tune individual volumes at the receiver, however each subwoofer has its own volume control. I pushed both of these to about 80% volume on the subwoofers themselves, and my Audeseey calibration put them at -12db. This felt a bit anemic after watching a few scenes and I wonder if it was characteristics of the room that caused this calibration issue (or maybe I just like boomy bass). After calibration, and further 'tweaking' in which I moved the subwoofers to -2db, I set out with some scene watching/calibrations. These speakers may not be high end $1k units, but the dual port design and large 12" driver coupled with a powerful 250w amp make them a force to be reckoned with. I found 25hz just audible, but these subwoofers can produce non-audible frequencies that you want in a home theater. I didn't find them overly boomy, unless I cranked the volume higher. These subwoofers are a dual ported design, and thus can be a bit sloppier than a sealed design. The tradeoff is great volume, and decent frequency response. The 12" drivers are definitely capable. Again, I found them quite responsive and complementary to the rest of the Stage 2 equipment I've purchased. They sound quite nice, and I found them excellent for both music and movies (with a definite lean towards movies). I'm certainly no audiophile, but I felt like for the price these definitely filled my room with the bass I crave for a home theater. I have a dedicated room for media watching, so their size is no problem for me. The fact they match the Stage 2 260F speakers so well means ascetically they match quite well. The espresso color with black grilles matches the rest of the room's vibe quite well. I received my floor standing Stage 2 260F speakers as part of a promotion/review program, but the 245c and both 220p's I purchased out of pocket. Overall while some reviewers have panned this series, properly powered, and calibrated I've been quite happy. They offer a lot more power and volume of sound compared to my old speakers. Overall I won't say they're five stars. I feel like these compete with a lot of other budget units, and while they have some more control, and a bit higher quality than some competitors in this range, they're also quite a bit more expensive. These are mid-way to a higher end sub - which for my budget theater application are perfect. I need loud, responsive, big boom speakers, and two of these completely cover my movie listening area with ease.
This review is from JBL - Stage 220P 12-Inch Powered Subwoofer - Espresso
Posted by aarondr
- Rated 4 out of 5 stars
Great sound for the price
At under $400, the subwoofer has a nice boom and punchy feel in the seat. Not so much in love with the front cover not the fabric one but the actual subwoofer lip.
This review is from JBL - Stage 220P 12-Inch Powered Subwoofer - Espresso
Posted by Hotrodhemi04
- Rated 5 out of 5 stars
Powerful Subwoofer
JBL’s Stage 220P subwoofer is great looking, includes useful controls, and packs an amazing punch. Description The Stage 220P has a 12-inch ribbed cone low frequency woofer driven by an internal power amplifier that provides 300 watts RMS, 500 watts peak. The speaker’s +/- 6dB frequency response is from 26 Hz to 150 Hz, with a variable crossover control from 50 Hz to 150 Hz. There is also a volume control, as well as phase and auto-power selections. The enclosure features bass reflex tuning via dual rear-firing flared tuned ports. The cabinet is 16.4 inches high, 15.9 inches wide, 17.5 inches deep and weighs 41.2 lbs. The grill cover is held to the front plate with magnets that do a great job properly positioning the grill cover and hold it securely in place. The subwoofer has a line-level LFE (Low Frequency Effect) input intended to be driven from an AVR (Audio/Video Receiver) subwoofer pre-amp output through a single-ended RCA subwoofer cable. It requires AC power. Impressions The subwoofer cabinet has a beautiful and expensive looking finish and grill cover, which is nice because subwoofers are generally difficult to tuck away somewhere! The Stage 220P produces an amazing home theater experience. It can absolutely shake the house, producing the kind of movie theater low-frequency experience that you feel as well as hear. The subwoofer power switch has two settings, ON and STANDBY. The auto-power STANDBY setting is great, the subwoofer stays in a low-power standby mode until it gets signal from the AVR, at which point it automatically transitions to ON. Part of my AVR setup includes speaker level balancing where a test tone is played through each speaker individually. Sound level is measured with a dB meter, and an AVR gain setting for each speaker is adjusted to obtain the same dB meter sound level from each. In the case of the subwoofer, its crossover frequency setting and volume setting also affect the measured dB level. I found that setting the subwoofer crossover frequency to 110 Hz and volume to 80% worked well. Using those settings I get balanced dB meter sound levels with the AVR subwoofer gain set to +6dB. I need to put in a good word for JBL support here. Being new to setting up a subwoofer and balancing sound levels, I was curious if there is anything unusual about my subwoofer settings with +6dB gain in the AVR. In less than 24 hours after contacting support, I got an excellent technical response via email from an experienced audio person. I learned that what I am seeing is well within normal parameters for subwoofer setup, and they also agreed that with a second subwoofer I should require less AVR gain to each. I am incredibly impressed with the speed and technical quality of the response from JBL support. This isn’t what I’ve come to expect when I contact a manufacturer with a technical question. Bravo JBL! With speaker levels balanced and AVR room EQ completed, the home theater experience is truly wonderful. Subwoofer controls made it easy to set up and adjust to my particular room, speaker and AVR requirements, and the low-frequency contribution makes an enormous difference. JBL’s Stage 220P subwoofer really delivers and is an extremely welcome addition to my home theater setup.
This review is from JBL - Stage 220P 12-Inch Powered Subwoofer - Espresso
Posted by
