JBL - Studio 6 Dual-8" 2-Way In-Wall Speaker - Black
Related Item
Specifications
- Speaker TypeIn-WallRMS Power120 watts
- Key Specs
- Speaker Type: In-Wall
- RMS Power: 120 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: JBLS688LCR
- Product Name: Studio 6 Dual-8" 2-Way In-Wall Speaker
- Color: Black
- Audio
- Speaker Type: In-Wall
- RMS Power: 120 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 500 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 6 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 47 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 96 decibels
- Tweeter Type: Horn
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Woofers: 2
- Woofer Size: 8 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: 1 x Analog audio
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 20.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 12.52 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: [Teonex]
- Woofer Material: [Polymer, Polymer]
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 050036388757
Let your walls breathe with powerful JBL cinematic sound with JBL Studio 6 architectural speakers. Your sound will stand out, while your speakers blend in. Easy to install and designed with no-frame magnetic, zero-bezel grilles that fit snug with the wall, they let powerful JBL signature sound fill the space, rather than your speakers. With a JBL compression driver straight from the professional world, and integrated treble and bass control, these professional quality, high-performance speakers can be easily adjusted to fit your home.

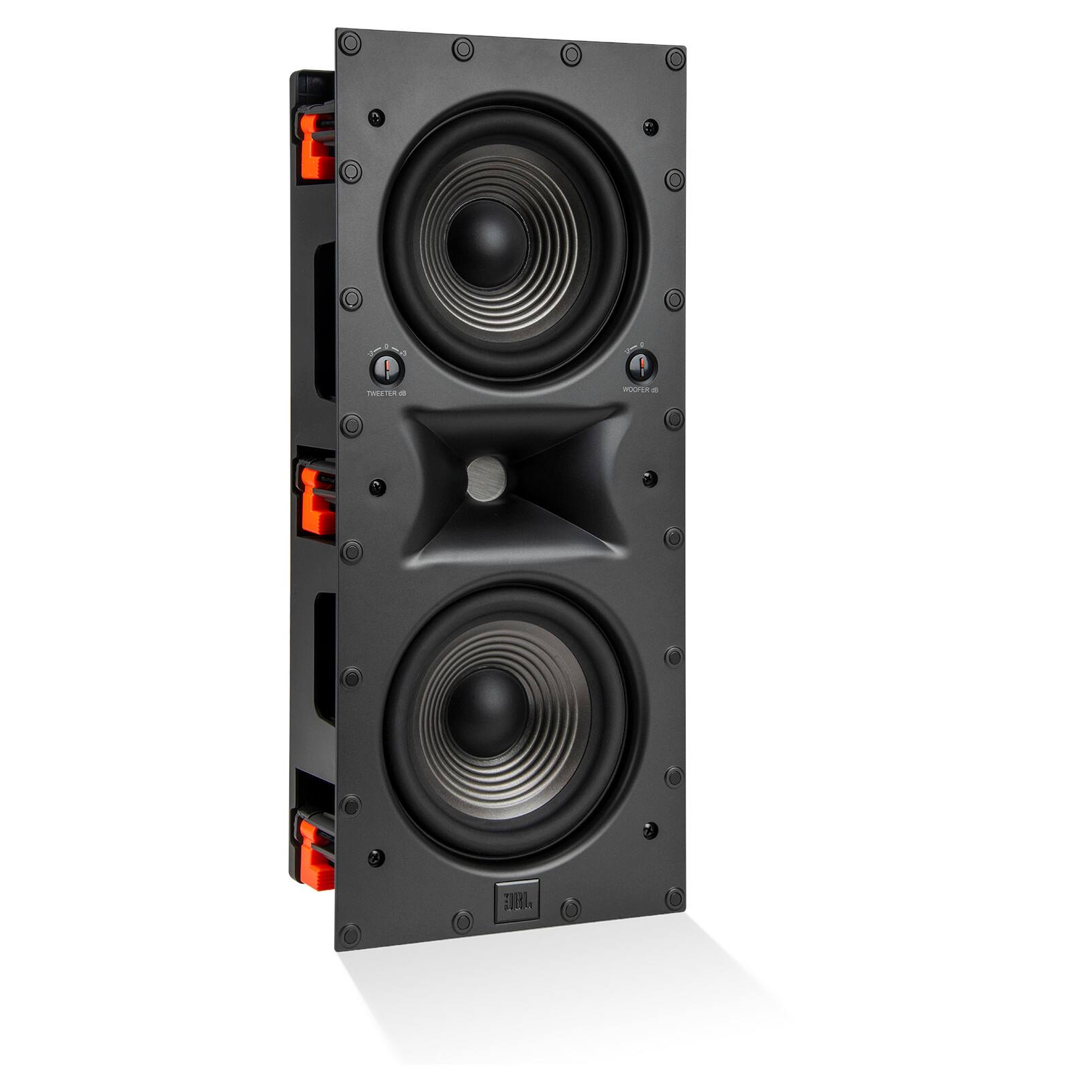

- JBL Compression Driver: JBL high output low distortion professional compression drivers deliver impactful performance just like the at the cinema or concert. Feel like you are in the front row, wherever you, or your speakers, are in the room.
- High Definition Imaging (HDI) waveguide: The patented JBL HDI waveguide delivers crisp and precise sound with low distortion and broad dispersion. This means that dialog will be clear and accurate, and all listeners, regardless of seating location, will receive even, balanced sound.

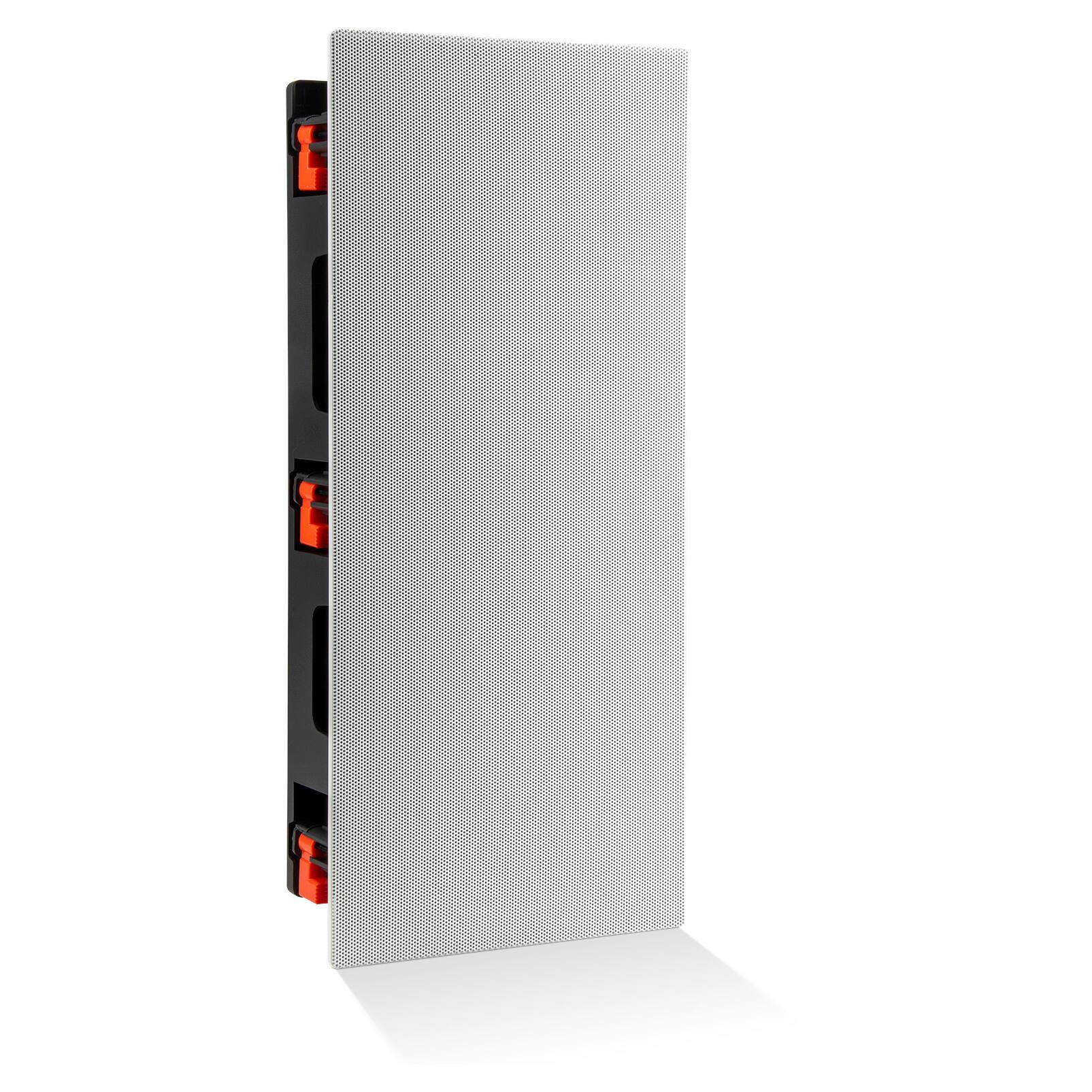

- Paintable, zero-bezel magnetic grilles: JBL Studio 6 speakers are designed to blend into your walls. You will hardly even know they are there, until you turn them on, of course. Perfect for those that love both sound and style.
- Polyplas woofer: JBL’s woofer design uses the most rigid and lightweight materials to produce accurate mid-bass and deep low frequencies for balanced sound no matter the content or placement. Easy to install with a sturdy design that minimize vibration, and fit seamlessly into your space.
- Treble and Bass EQ control: JBL Studio 6 speakers have integrated treble and bass control, so you can make subtle adjustments of the sound to suit your room or your listening taste.
- JBL Compression Driver: JBL high output low distortion professional compression drivers deliver impactful performance just like the at the cinema or concert. Feel like you are in the front row, wherever you, or your speakers, are in the room.
- High Definition Imaging (HDI) waveguide: The patented JBL HDI waveguide delivers crisp and precise sound with low distortion and broad dispersion. This means that dialog will be clear and accurate, and all listeners, regardless of seating location, will receive even, balanced sound.
- Paintable, zero-bezel magnetic grilles: JBL Studio 6 speakers are designed to blend into your walls. You will hardly even know they are there, until you turn them on, of course. Perfect for those that love both sound and style.
- Polyplas woofer: JBL’s woofer design uses the most rigid and lightweight materials to produce accurate mid-bass and deep low frequencies for balanced sound no matter the content or placement. Easy to install with a sturdy design that minimize vibration, and fit seamlessly into your space.
- Treble and Bass EQ control: JBL Studio 6 speakers have integrated treble and bass control, so you can make subtle adjustments of the sound to suit your room or your listening taste.
Whats Included
- dual-8" speaker
- manual
- magnetic grille
- cutout template
- warranty card
- dual-8" speaker
- manual
- magnetic grille
- cutout template
- warranty card
Q: What is the peak power handling of these JBL speakers?
A: These JBL speakers have a peak power handling of 500 watts.
Q: What type of tweeter is used in the JBL Studio 6 speakers?
A: The JBL Studio 6 speakers use a horn-type tweeter.
Q: Do these speakers have a magnetic grill?
A: Yes, the JBL Studio 6 speakers have paintable, zero-bezel magnetic grilles.
Q: How are the JBL Studio 6 speakers designed to be installed?
A: These speakers are designed for easy installation and have a sturdy design that minimizes vibration.
Q: What is the minimum frequency response of the JBL Studio 6 speakers?
A: The minimum frequency response of these speakers is 47 hertz.
Q: does these inwall speakers are Bluetooth connected ?
A: No. They need amplifier to work.
Compare similar products
Let your walls breathe with powerful JBL cinematic sound with JBL Studio 6 architectural speakers. Your sound will stand out, while your speakers blend in. Easy to install and designed with no-frame magnetic, zero-bezel grilles that fit snug with the wall, they let powerful JBL signature sound fill the space, rather than your speakers. With a JBL compression driver straight from the professional world, and integrated treble and bass control, these professional quality, high-performance speakers can be easily adjusted to fit your home.
The Klipsch R-5502-W II maintains the core technology use of a premium 1” Titanium compression driver (tweeter) mated to an exclusive Tractrix Horn combined with dual 5.25” Cerametallic woofers in a 2-way design. The R-5502-W II is perfect as a very powerful front right, left or center channel speaker and can fill the largest rooms with sound. Now with a new low profile, more elegant grille and refinements to both high frequency and low frequency reproduction, it continues as the perfect choice for everything from 2-channel music playback to full, large room surround sound use.
Experience immersive home audio with the Sonance VX62 LCR, a premium in-wall LCR speaker engineered for clean aesthetics and articulate sound. Ideal for TV audio, home theater speaker systems, and media room installations, the VX62 LCR blends seamlessly into any design with its ultra-slim profile and paintable grille options. Dual 6.5" woofers and a 1" cloth dome tweeter deliver clear, detailed performance across music and dialogue, while Sonance’s advanced waveguide technology ensures precise dispersion. Perfectly suited to anchor the soundstage in high-performance AV setups, this home audio speaker elevates your space with sound that’s as beautiful as the design.
The Stage Architectural Series was designed to deliver iconic JBL sound that blends into the environment so that the music stands out. All models are crafted to be visually discrete with zero bezel grilles and easy installation allowing these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDI) horns have been incorporated into the design to ensure that the sound is clear and accurate. A range of eight models are available in various configurations for In-Wall and In-Ceiling installation.
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Look no further! LCR Home Theater Speakers
Recently installed 3 of these on the front wall of the media room. The sound is loud, clear and crisp. Highly recommend!
Posted by Sneha
- Rated 5 out of 5 stars
good speaker! loud and clear.
good speaker! loud and clear. Used as a center speaker and works well.
Posted by Daniel
