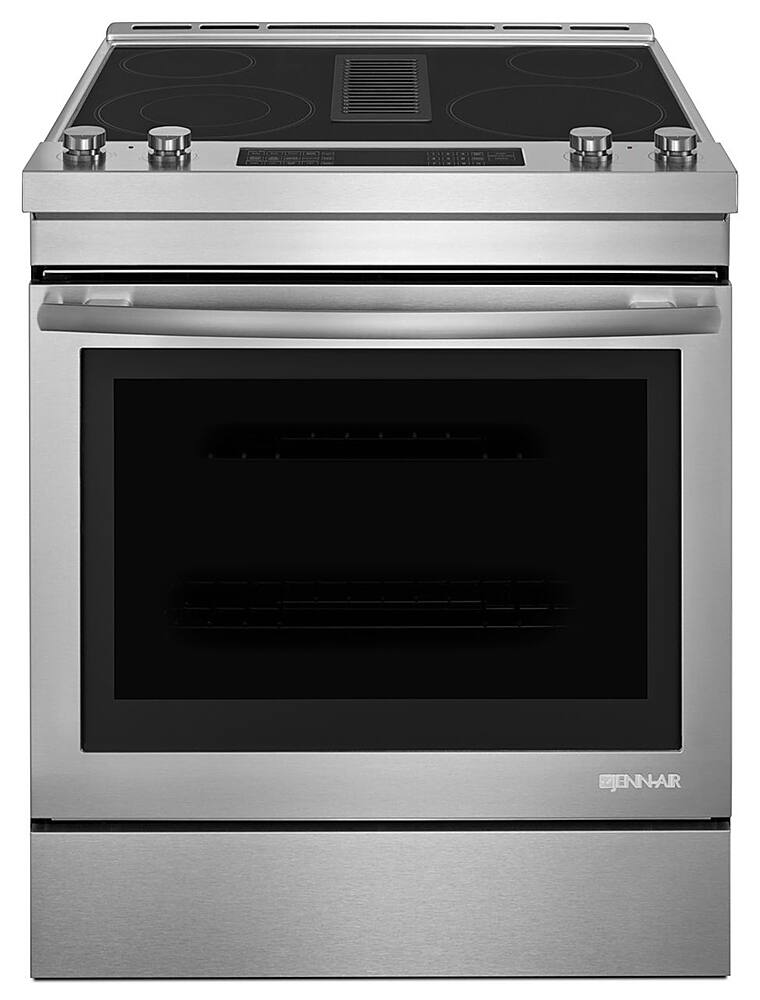

JennAir - 6.4 Cu. Ft. Self-Cleaning Slide-In Electric Convection Range - Silver
Model: JES1750FS
SKU: 5786203
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Silver
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: JennAir
- Model Number: JES1750FS
- Product Name: 6.4 Cu. Ft. Self-Cleaning Slide-In Electric Convection Range
- Color: Silver
- Color Finish: Silver
- Dimensions
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 220 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 6.4 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: true (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Soft Close Door: false
- Control Type: Touchpad
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Power-On Indicator Light(s): true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection
- Oven Settings: Keep Warm Setting, Timer
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 7
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): Rapid Boil, double-ring
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049451428
Featuring downdraft ventilation, the original Jenn-Air® brand innovation, this electric range offers a variety of element sizes, a true convection oven for optimal heat distribution and an optional duct-free filter kit that allows for installation virtually anywhere. Easily installing in a standard opening, this range pairs beautifully with appliances in our Euro-Style and Black Floating Glass suites.
- Downdraft Ventilation: Developed and refined by Jenn-Air®, downdraft ventilation uses proximity ventilation to capture smoke, steam and odors at the cooking surface. whisking them down and out for a fresher, cleaner kitchen.
- Dual Zone Element: Offers the option of two sizes at one position for outstanding flexibility, matching the element to cookware size for more efficient cooking.
- True Convection: True convection uses a heating element behind the convection fan in addition to the bake and broil elements to provide even heat distribution throughout the oven.
- Telescoping Glide Rack: This roll-out rack lets you easily position and remove dishes.
- Aqualift® Self-Cleaning Technology: An oven cleaning technology designed to minimize the time, temperature and odors that typically come from standard self-cleaning ovens.
- Downdraft Ventilation: Developed and refined by Jenn-Air®, downdraft ventilation uses proximity ventilation to capture smoke, steam and odors at the cooking surface. whisking them down and out for a fresher, cleaner kitchen.
- Dual Zone Element: Offers the option of two sizes at one position for outstanding flexibility, matching the element to cookware size for more efficient cooking.
- True Convection: True convection uses a heating element behind the convection fan in addition to the bake and broil elements to provide even heat distribution throughout the oven.
- Telescoping Glide Rack: This roll-out rack lets you easily position and remove dishes.
- Aqualift® Self-Cleaning Technology: An oven cleaning technology designed to minimize the time, temperature and odors that typically come from standard self-cleaning ovens.
Whats Included
- Jenn-Air JES1750FS
- pre-installed with a 4-prong power cord
- 3 x rack
- Jenn-Air JES1750FS
- pre-installed with a 4-prong power cord
- 3 x rack
Q: Does this range have down draft feature?
A: Yes, if it is a Jenn Air model JES1750FS. This and the Kitchenaid KSEG950ESS are the only down draft ranges made.
A: I replaced an old Jennair down draft with a new model. I was able to re- use the air ducting that I had installed under the floor for the first down draft. The good news is that the new fan is stronger.
Q: I purchased a used jenn air and I don’t see how to plug it in. Do I need to purchase a cord?
A: undefined
Q: Does it have the grill cartridges?
A: undefined
A: undefined
A: Please note, the "Duct free" filter is a product sold separately. It does not refer to the range itself, but sounds as if it can be used instead of ducting. That is the purpose of my question, thanks
