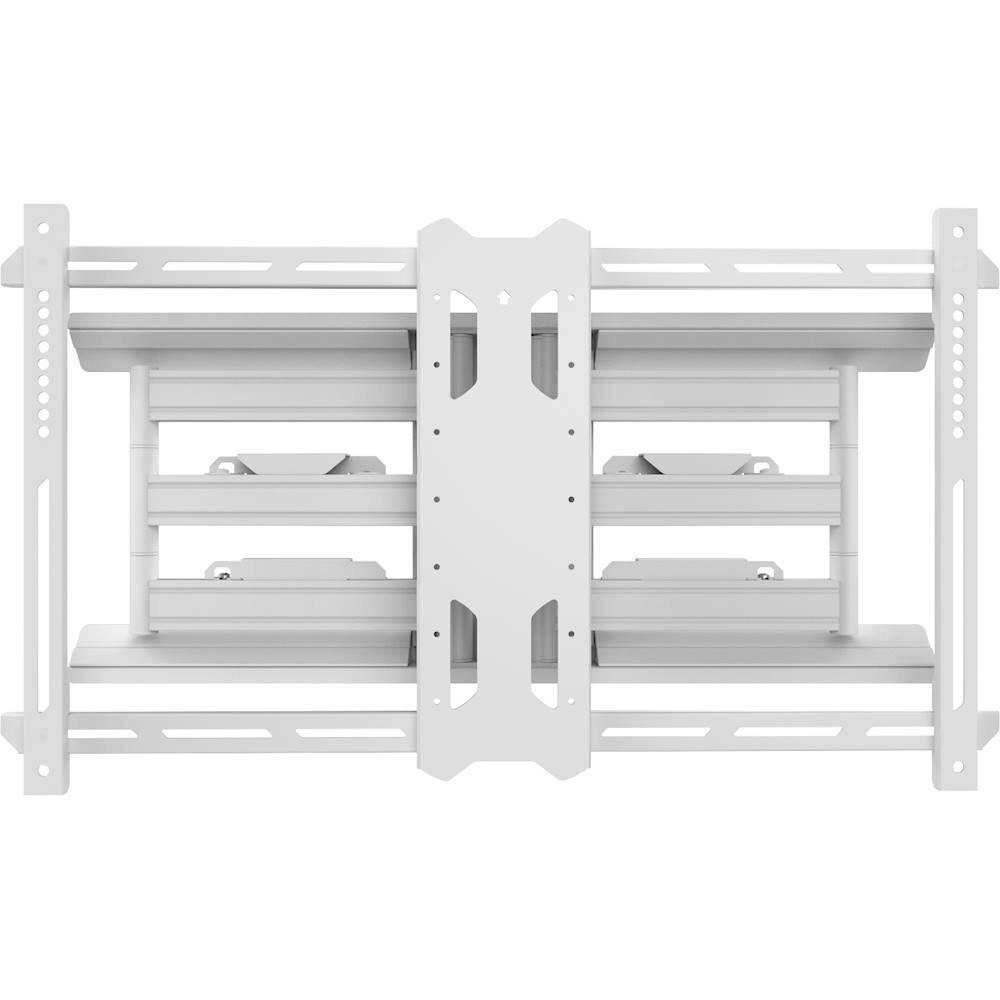

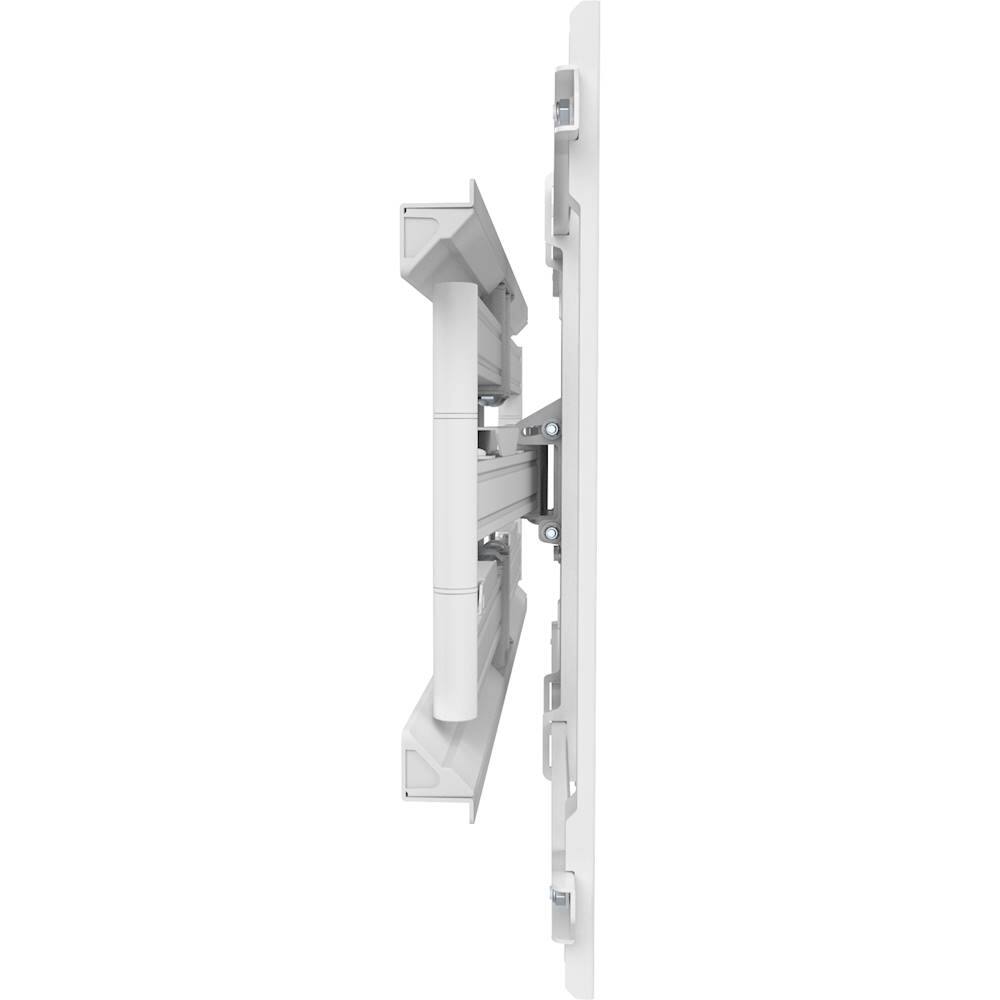

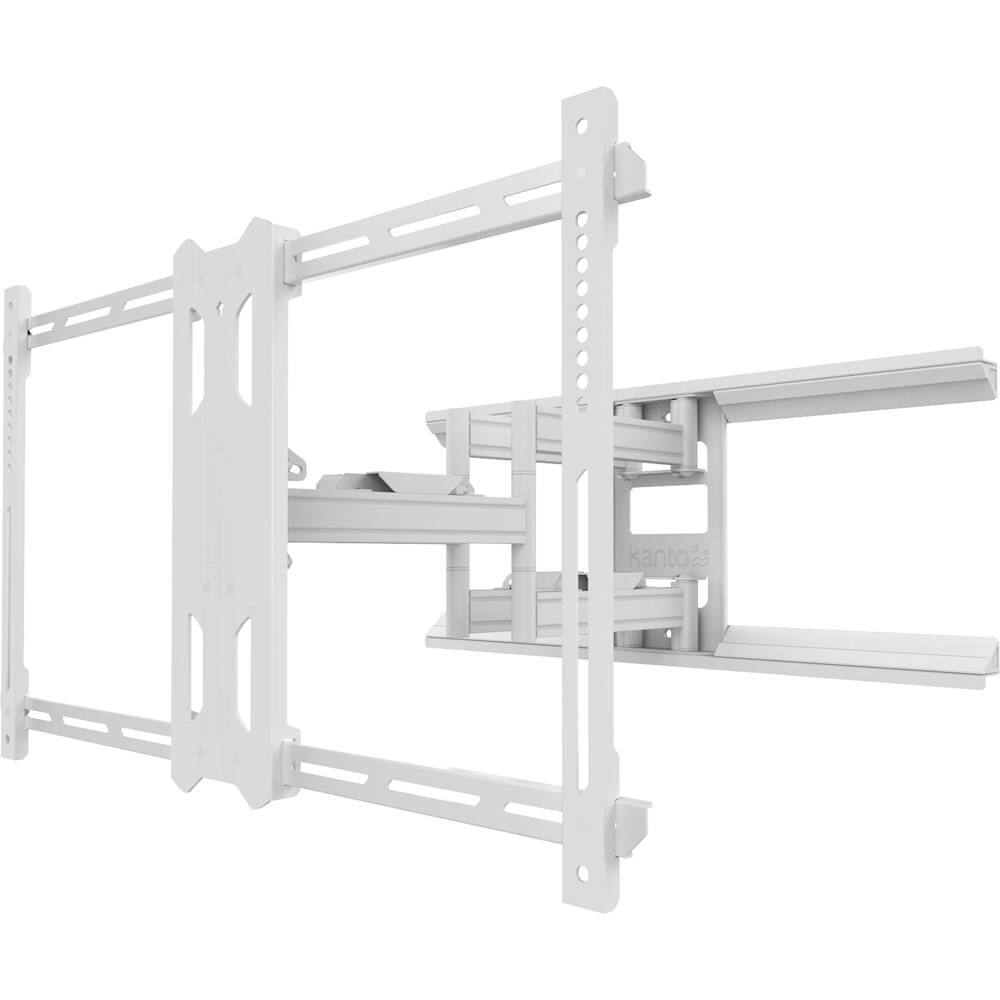

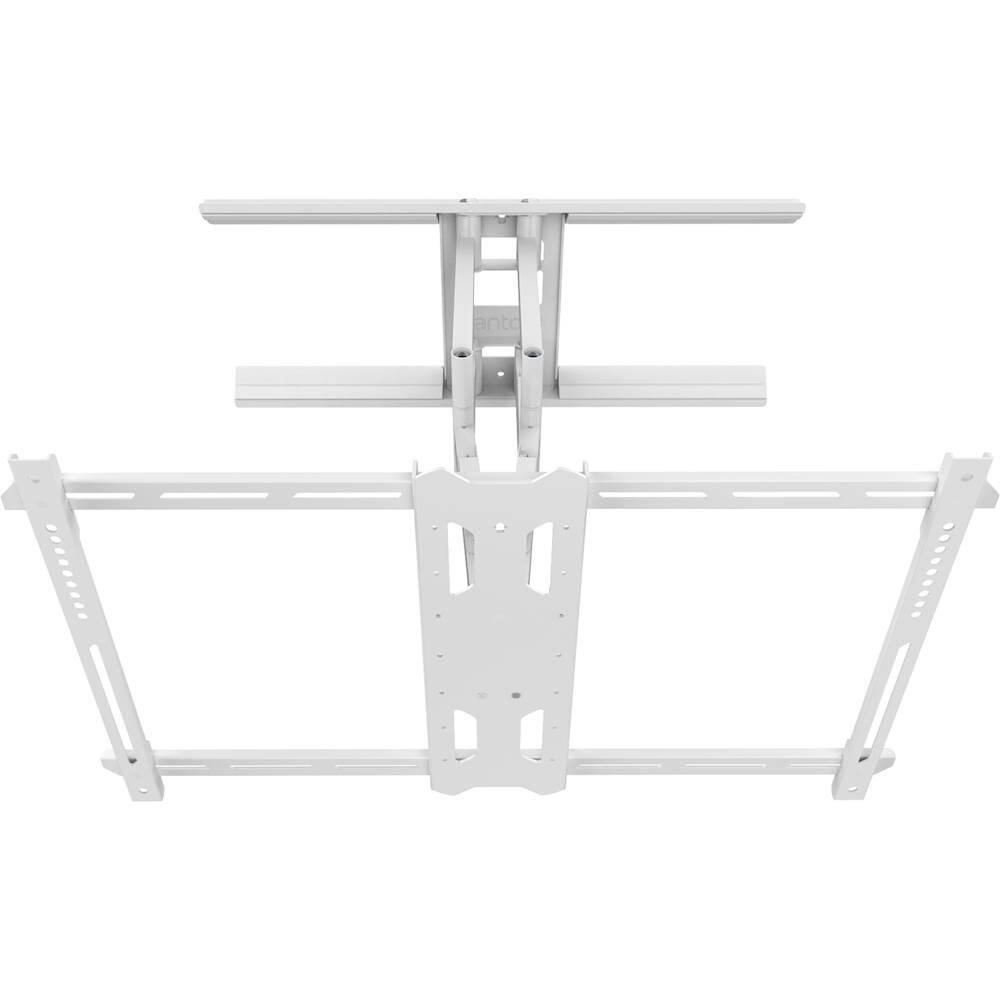

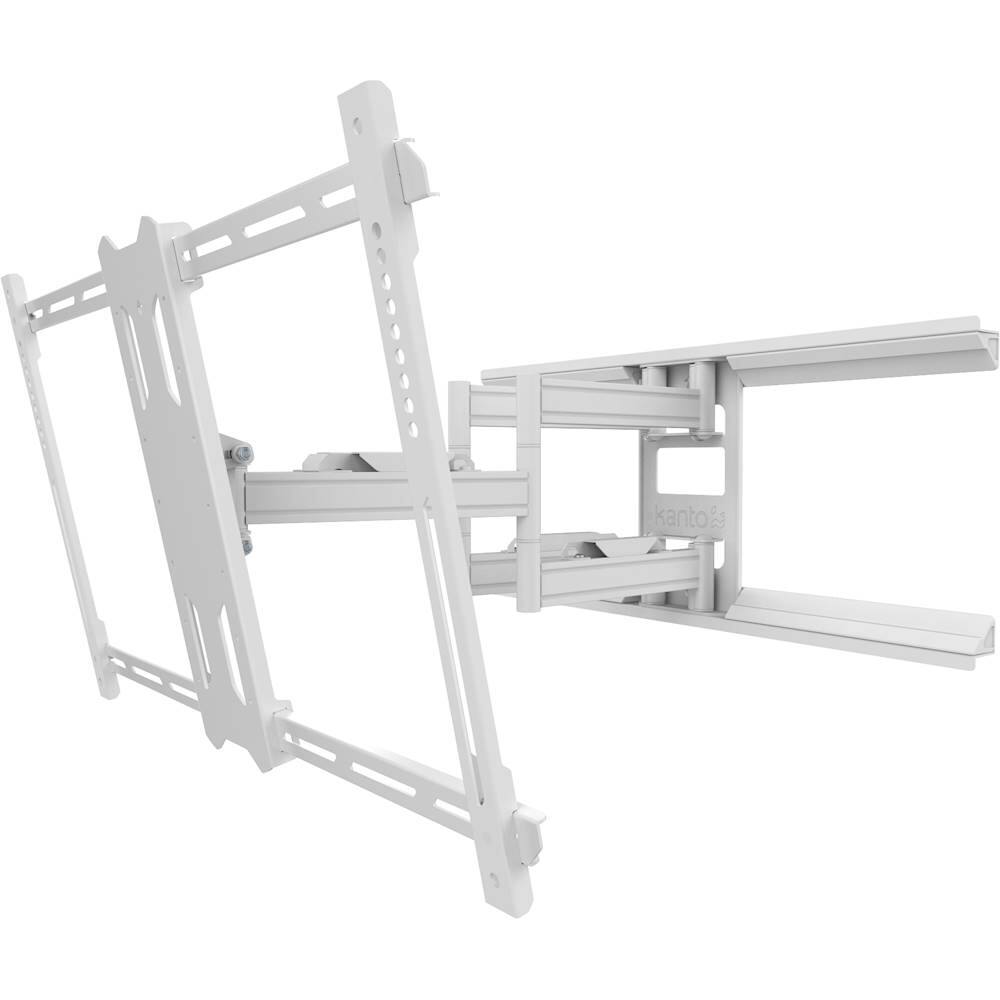

Kanto - Full-Motion TV Wall Mount for Most 39" - 80" TVs - Extends 24" - White
- General
- Brand: Kanto
- Model Number: PDX680W
- Product Name: Full-Motion TV Wall Mount for Most 39" - 80" TVs - Extends 24"
- Color: White
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting, Swiveling, Full Motion
- Tilt: -3° to 15° (Angles upward or downward for customized viewing and/or accessibility.)
- Cord Storage: true
- Compatibility
- Maximum Weight Capacity: 125 pounds (The maximum load that can be supported by the product.)
- Compatibility: 39"-80"
- Mount Location: Wall
- Maximum Television Size: 80 inches
- Minimum Television Size: 39 inches
- VESA Wall Mount Standard: 100mm x 100mm, 700mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 21 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.5 pounds (The out of box weight of the item.)
- Material
- Mount Material: Other
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 800152718200
Mount your television securely to the wall with this Kanto full motion TV mount. The 170-degree swivel and tilt mechanism let you watch comfortably from different angles, while the four cable management raceways offer a neat, clutter-free setup. This Kanto full motion TV mount has a steel frame that handles up to 125 lbs. for strength and stability.
- Full-motion design: Swivels left and right, tilts up to 15° and extends up to 24" to enable custom positioning, so you can enjoy a comfortable view.
- Keep unsightly cables and cords concealed: Built-in wire management makes it easy to achieve a neat, clutter-free TV setup, without visible cable tangles.
- VESA compliant: From VESA 100mm x 100mm to 700mm x 400mm for a variety of mounting options.
- Compatible with most 39" - 80" TVs: Up to 125 lbs. for sturdy support.
- Solid steel material with a white powdercoat finish: Delivers a durable design and provides a sleek appearance that works well with a variety of décor styles.
- Full-motion design: Swivels left and right, tilts up to 15° and extends up to 24" to enable custom positioning, so you can enjoy a comfortable view.
- Keep unsightly cables and cords concealed: Built-in wire management makes it easy to achieve a neat, clutter-free TV setup, without visible cable tangles.
- VESA compliant: From VESA 100mm x 100mm to 700mm x 400mm for a variety of mounting options.
- Compatible with most 39" - 80" TVs: Up to 125 lbs. for sturdy support.
- Solid steel material with a white powdercoat finish: Delivers a durable design and provides a sleek appearance that works well with a variety of décor styles.
Whats Included
- Kanto Full-Motion TV Wall Mount for Most 39" - 80" TVs - Extends 24"
- Kanto Full-Motion TV Wall Mount for Most 39" - 80" TVs - Extends 24"
A: mfiman, The main difference is the lateral adjustment of the PMX series. You can move the articulating arms of the mount left or right and get your TV situated perfectly if your studs aren't in the ideal location. The second difference is tool-less tilt, you need a wrench to adjust the PDX whereas you only need to move a lever on PMX. Feel free to contact us directly using the support button on our website if you have any additional questions, thanks.
Q: Stud spacing
A: Ron, This mount, the PDX680, accommodates up to 24" studs. The smaller version of this mount, the PDX650, can only accommodate up to 16" studs. Contact us directly using the support button on our site if you have any other questions, thanks.
Q: Wall mounts
A: Mountain Girl, The PDX680 has a wall plate that can accommodate 24" stud spacing. The PDX650's wall plate can accommodate 18" spacing at the most. The PDX680 can also pull out 24" from the wall versus 22" on the PDX650. Feel free to contact us directly at [email protected] if you have any other questions, thanks.
A: JFlo, We rate our mounts conservatively so as long as your TV is under the 125 lb weight capacity you should not experience any flex over time. Feel free to contact us directly using the support button on our site if you have any additional questions, thanks.
Q: can this mount be used over a fireplace?
A: As long as there are never flames coming out of it.
Q: Is this compatible with Samsung 75in NU8000 tv?
A: Yes, this mount will work with the Samsung 75 inch NU8000 TV.
Q: Is this TV wall mount made for outdoor use?
A: Unfortunately the PDX680 is not meant for outdoor use. For outdoor use we would recommend either the PDX650G or the PDX700G. If you have any other questions or require additional information, if you could please email us directly at [email protected] and we would be happy to help.
A: No, this mount is not recommended for a corner.
