Kanto - Menu Board Ceiling Mount System with Tilting Arms for 40" - 60" TVs, 4 Screens - Black
Kanto - Menu Board Ceiling Mount System with Tilting Arms for 40" - 60" TVs, 4 Screens - Black
Reviews coming soon
About This Item
- General
- Brand: Kanto
- Model Number: MBC411T
- Product Name: Menu Board Ceiling Mount System with Tilting Arms for 40" - 60" TVs, 4 Screens
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion
- Pan: 360° (Angles to the left or right for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Mounts to: Wood (The material or substance the device can attach to.)
- Motorized: false
- Adjustable Height: true
- Cord Storage: true
- Number of Monitors Supported: 4
- Compatibility
- Maximum Weight Capacity: 264 pounds (The maximum load that can be supported by the product.)
- Compatibility: Supports TVs up to 264 lb
- Mount Location: Ceiling
- Maximum Television Size: 60 inches
- Minimum Television Size: 40 inches
- VESA Wall Mount Standard: 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 39.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 128 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 71 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Aluminum
- Warranty
- Warranty - Parts: 5 Year Manufacturer's Warranty
- Warranty - Labor: 5 Year Manufacturer's Warranty
- Other
- UPC: 800152719153

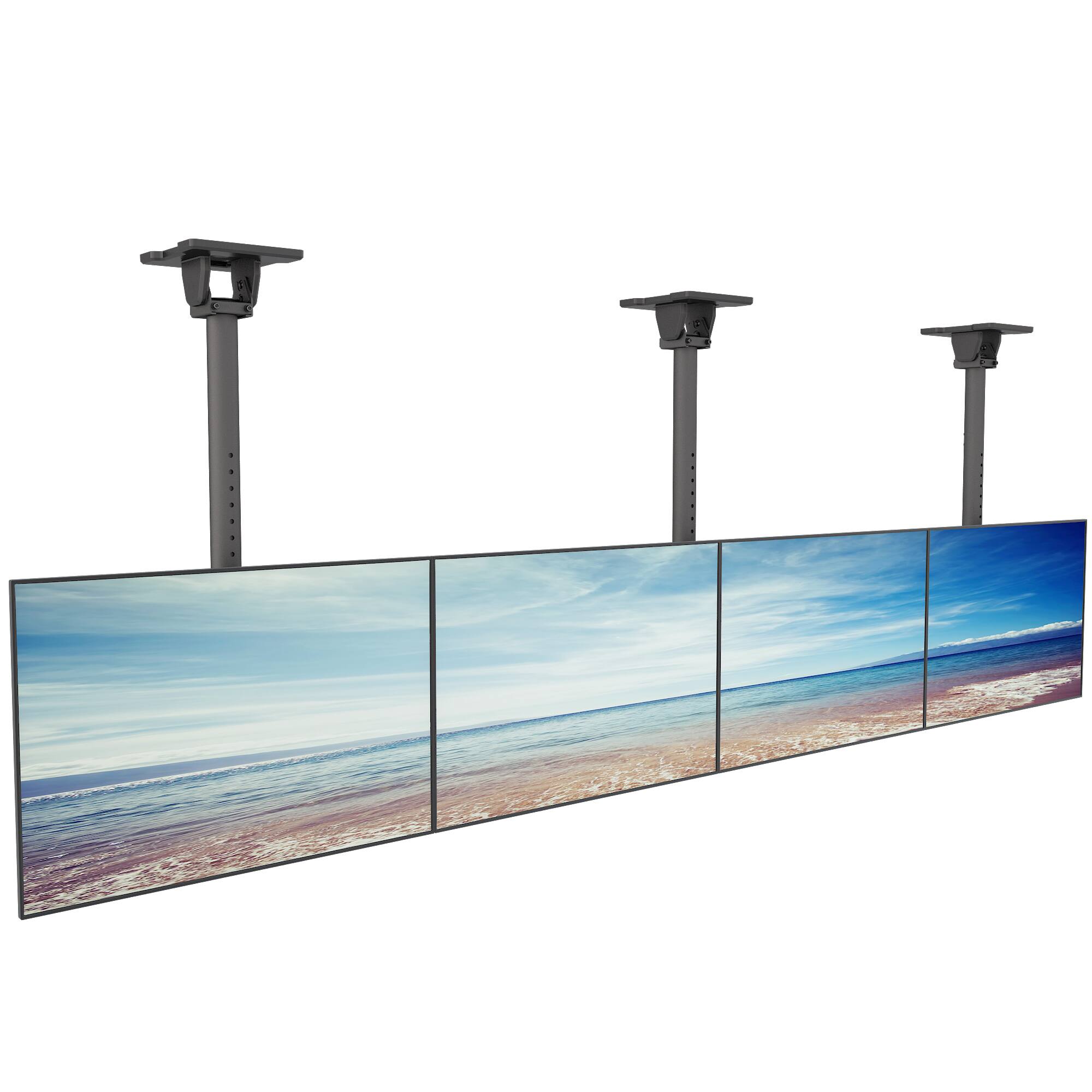

Designed for commercial applications where wall space is limited, the MB Series telescoping ceiling mount system offers a flexible solution for displaying menu boards and other digital signage. Its modular rails allow two to four screens to be placed adjacent to one another in portrait or landscape orientation, while precision leveling screws ensure perfect alignment. Achieve proper line-of-sight with easy height adjustments and four discrete tilt settings. This all-in-one mounting solution includes everything you need for wood and concrete installations and can swing up to 90° to accommodate sloped ceilings and support beams. Product width = 176.4"

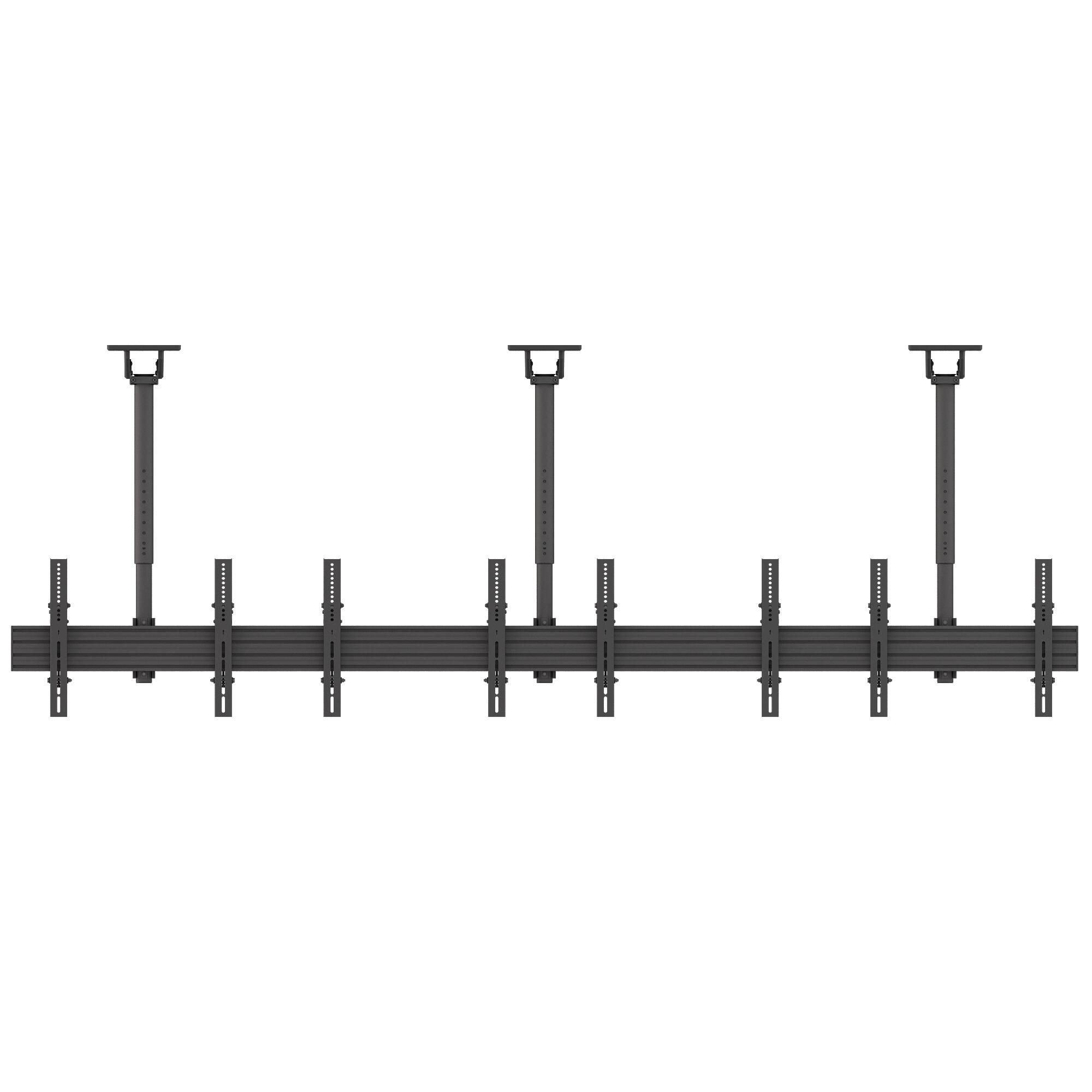

- Modular Design: Available in three models, MB ceiling mounts support two to four screens weighing up to 66 pounds each. Their modular design allows for additional extrusions to be added to accommodate TVs with wider VESA patterns, or to connect multiple units together.

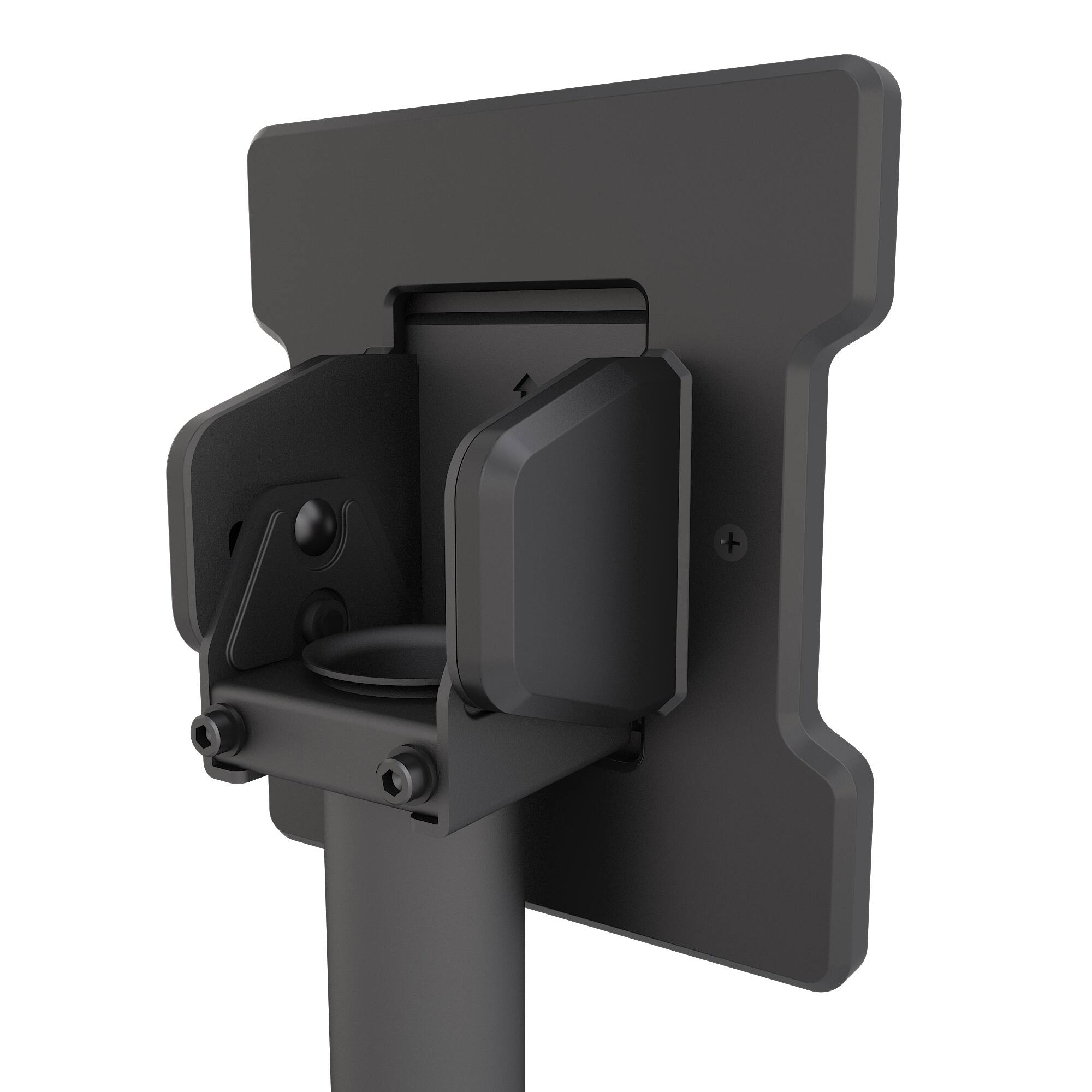

- Easy Installation: To reduce strain, the MB series uses lightweight ceiling plates that are installed independent of the rest of the mounting system. Simply slide each extension pole into place and secure it to complete the installation. The ceiling plates also provide up to 90° of swing to account for sloped ceilings and support beams, or to secure the mount to a wall.

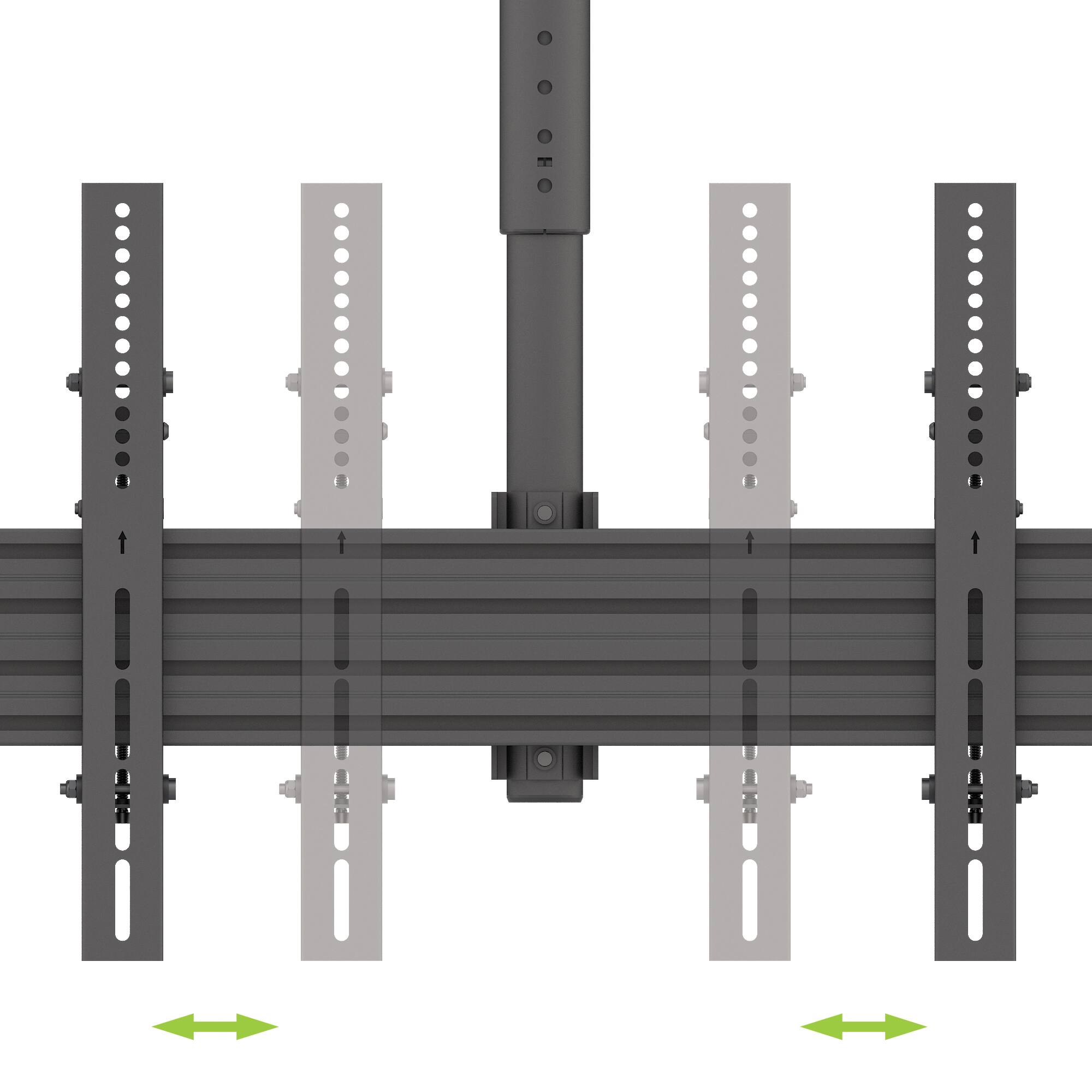

- Precision Leveling: Each mounting bracket allows for micro height adjustments to be made to ensure your TVs are level and perfectly aligned.

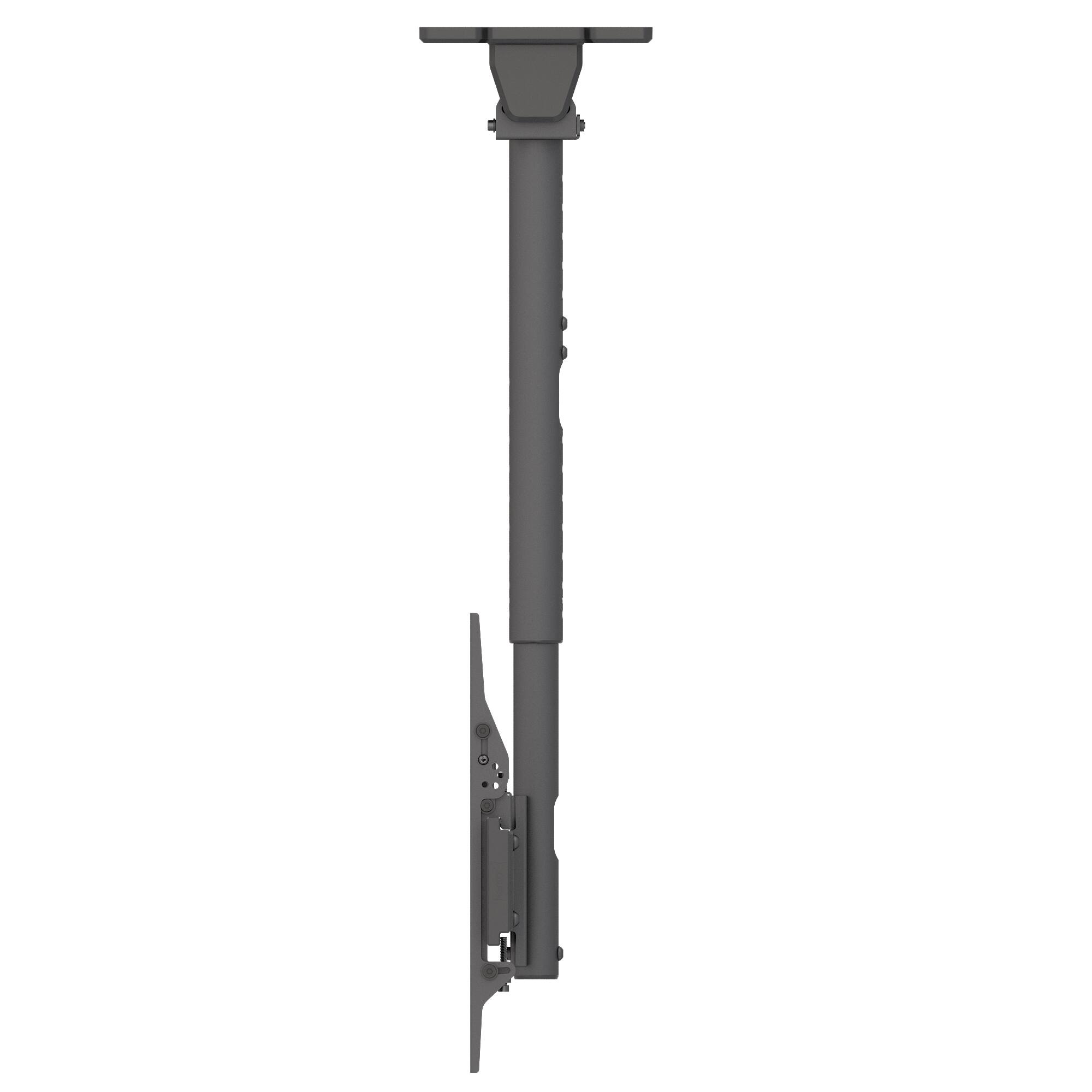

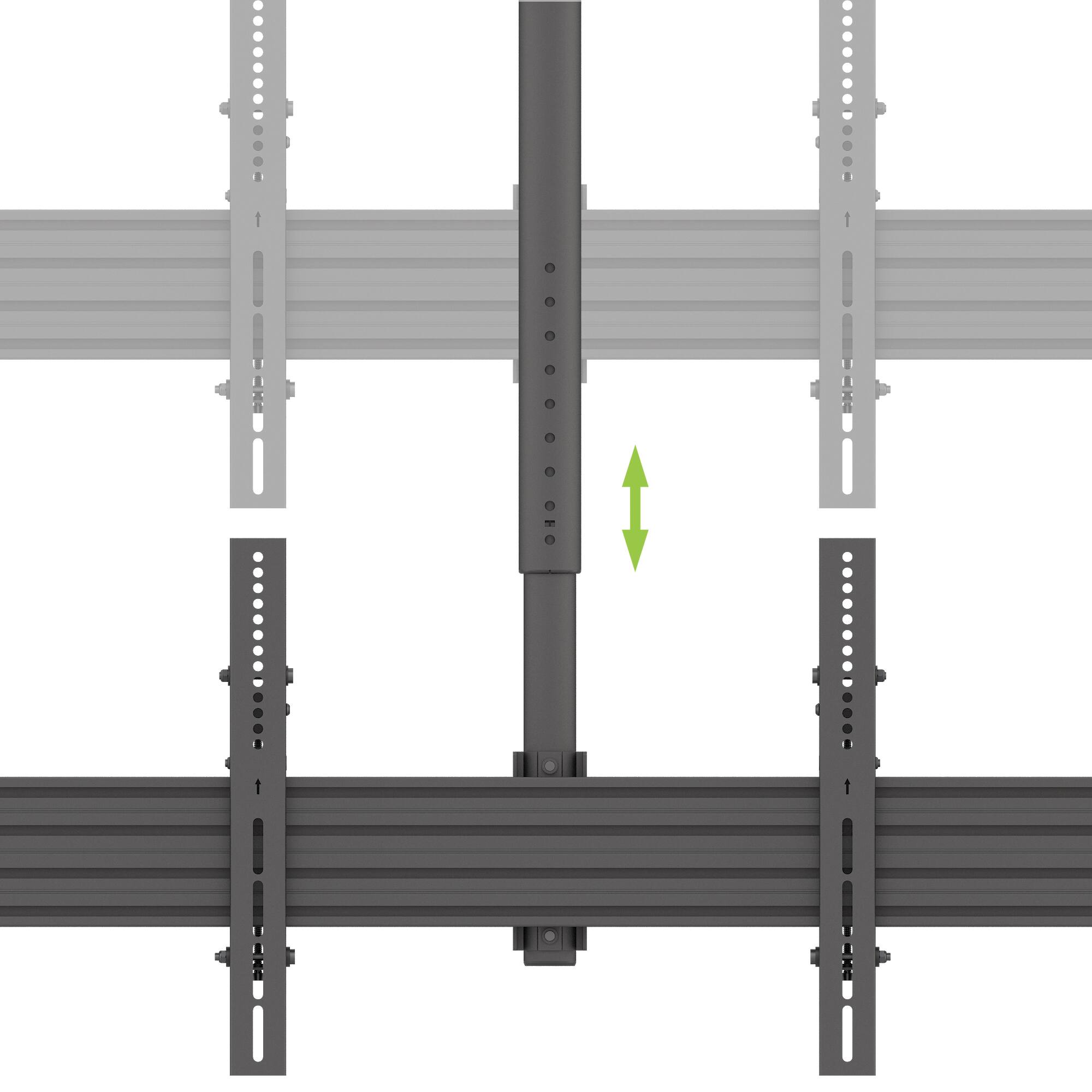

- Adjustable Height: The telescoping extension pole allows you to position the center of the TV mounting plate between 24.3” and 39.3” from the ceiling. For tighter spaces, remove the inner pole to achieve a distance of 12.7" to 17".
- Easy Tilt: Tilt the mounting brackets 5°, 10° or 15° forward to improve line-of-sight while maintaining alignment between your screens. To compensate for potential lean, the brackets can also be angled up to 6° backward.
Whats Included
- 1x 480 mm TV Plate, 4x 1000 mm TV Plate, TV Plate Endcaps, 4x Extension Bars (set of 4), 3x Ceiling Plate
