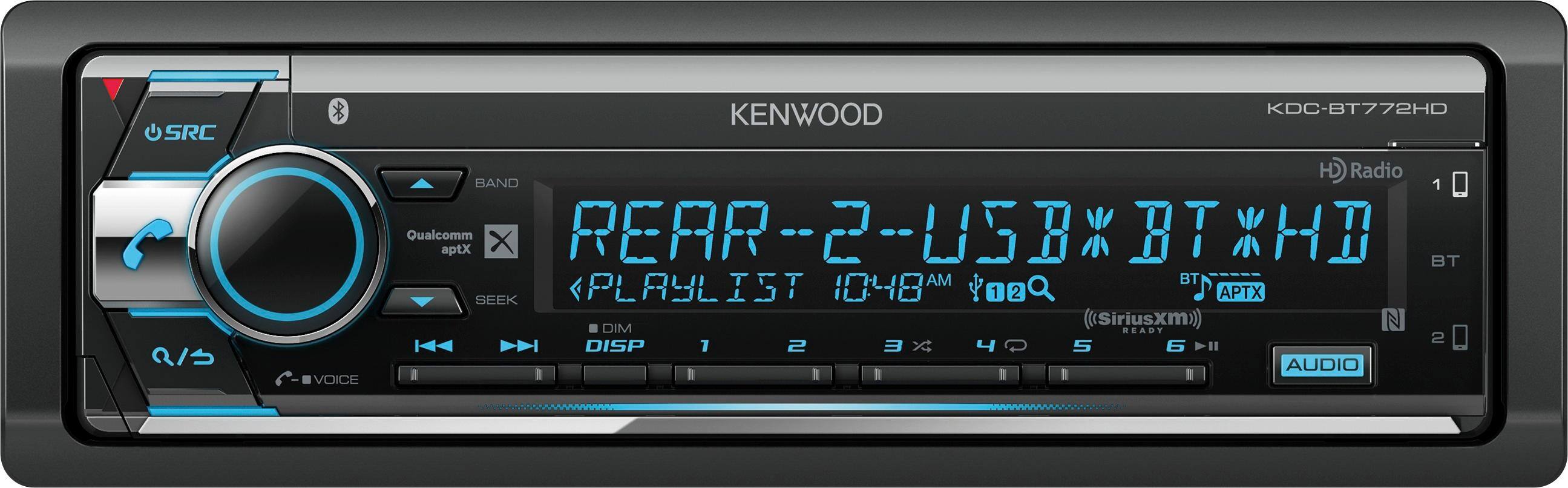

Kenwood - In-Dash CD/DM Receiver - Built-in Bluetooth - Satellite Radio-ready with Detachable Faceplate - Black
- Key Specs
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM, Satellite Ready
- CD Player: true
- Selectable Color Illumination: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Kenwood
- Model Number: KDC-BT772HD
- Product Name: In-Dash CD/DM Receiver - Built-in Bluetooth - Satellite Radio-ready with Detachable Faceplate
- Color: Black
- Audio
- Watts Per Channel: 50 watts
- RMS Power: 22 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Preamp Outputs: Front
- Preamp Output Level: 4 volts
- Compatibility
- Mount Style: Single DIN
- Shortened Depth: false (A depth typically less than 80% less of the standard car stereo or head unit depth of 7".)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Operating System Compatibility: None
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Front Facing Inputs: USB
- Rear Facing Inputs: USB
- Steering Wheel Control Compatible: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Tuner
- Tuner Type(s): AM/FM, Satellite Ready
- Number Of Station Presets: 24
- Satellite Radio: No
- Receivers With HD Radio: true
- Players
- CD Player: true
- DVD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- Number of Calling Presets: 6
- Built-In Microphone: false
- External Microphone: Included
- Remote Control Included: false
- Marine: false
- EQ Presets: true
- Display
- Screen Type: LCD
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Display Color: Variable
- Selectable Color Illumination: true
- Faceplate Style: Detachable
- Dimensions
- Product Height: 2.0625 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.1875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.09 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 019048221216
Enjoy great in-car music from various sources with this Kenwood Bluetooth CD receiver. It lets you access Internet radio stations via a synced smartphone, and its Music Mix feature enables multi-track audio playback from up to five Bluetooth devices. Set the desired color illumination for the 1.5-inch LCD display of this Kenwood Bluetooth CD receiver.
Geek Squad® installation is strongly recommended for this product. Please visit your local Best Buy store for details.
- CD-RW, CD-R, WAV, MP3, FLAC and other playback formats: Offer versatile listening options.
- Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
- You're ready for Satellite Radio: Features the control and display functionality to support SiriusXM Satellite Radio. Tuner and subscription required for activation (not included).
- Tune in to your favorite radio stations: The AM/FM tuner can be preset to 24 different stations (6 AM, 18 FM).
- 13-band digital graphic equalizer: For custom sound.
- Control your favorite music apps: Once you've connected your phone, you can control the Pandora radio app or iHeartRadio app right from your receiver.
- Apple® iPhone®- and iPod®-ready: Lets you connect your compatible cell phone or portable audio device, so you can control music playback.
- Manage music, settings and functions using the LCD display: Clearly displays information. Faceplate detaches for enhanced security.
- Connect your receiver to devices and speakers: Use the 3.5mm auxiliary input or the USB port to connect your device.
- CD-RW, CD-R, WAV, MP3, FLAC and other playback formats: Offer versatile listening options.
- Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
- You're ready for Satellite Radio: Features the control and display functionality to support SiriusXM Satellite Radio. Tuner and subscription required for activation (not included).
- Tune in to your favorite radio stations: The AM/FM tuner can be preset to 24 different stations (6 AM, 18 FM).
- 13-band digital graphic equalizer: For custom sound.
- Control your favorite music apps: Once you've connected your phone, you can control the Pandora radio app or iHeartRadio app right from your receiver.
- Apple® iPhone®- and iPod®-ready: Lets you connect your compatible cell phone or portable audio device, so you can control music playback.
- Manage music, settings and functions using the LCD display: Clearly displays information. Faceplate detaches for enhanced security.
- Connect your receiver to devices and speakers: Use the 3.5mm auxiliary input or the USB port to connect your device.
Whats Included
- Kenwood KDC-BT772HD
- Microphone
- Kenwood KDC-BT772HD
- Microphone
Product Manuals
Q: Does this unit have a USB port, and if so, is it 3.1, 3.0 or 2.1?
A: Yes, this model has both USB 2.0 and USB type A.
Q: Will this radio work with iPhone six
A: Yes it would as long as your device has blotooth and even if it doesn’t it has usb insert on the back of the radio wired to the front
Q: Does this unit lose its fm presets if all power is turned off? (including power to the yellow wire)
A: I do not know. I know that on my Kenwood BT 772HD, shutting off the ignition and withdrawing the key has no effect on the various radio unit presets. I also had the unit back to Best Buy for servicing a week and a half after it was installed. Tech did the safe and smart thing and oulled the negative battery cable. All presets and programming, stuff from clock / calendar, to every bit of programmed features preferences all disappeared. Also killed the Sirius. Very frustrating. I've never just disconnected a ' 'yellow wire" so I don't know the specific answer to your question. However from the unit behaviour I saw with the disconnection of the negative battery terminal I have to assume that the unit is a "vampire unit"; that neither shutting down the engine and removing the ignition key or using the unit's shut off button interfere with presets and programming so the unit somehow keeps power. It may be the "yellow wire" of which you asked, but I have not observed that directly. Certainly killing all electric power by removing a cable from the battery does mess up the unit's presets. Note you dod not spwcify a manufacturer or model number in your question,: my answer directly applies only to the Kenwood BT772HD. I suspect the same results would happen with other models / manufacturers.

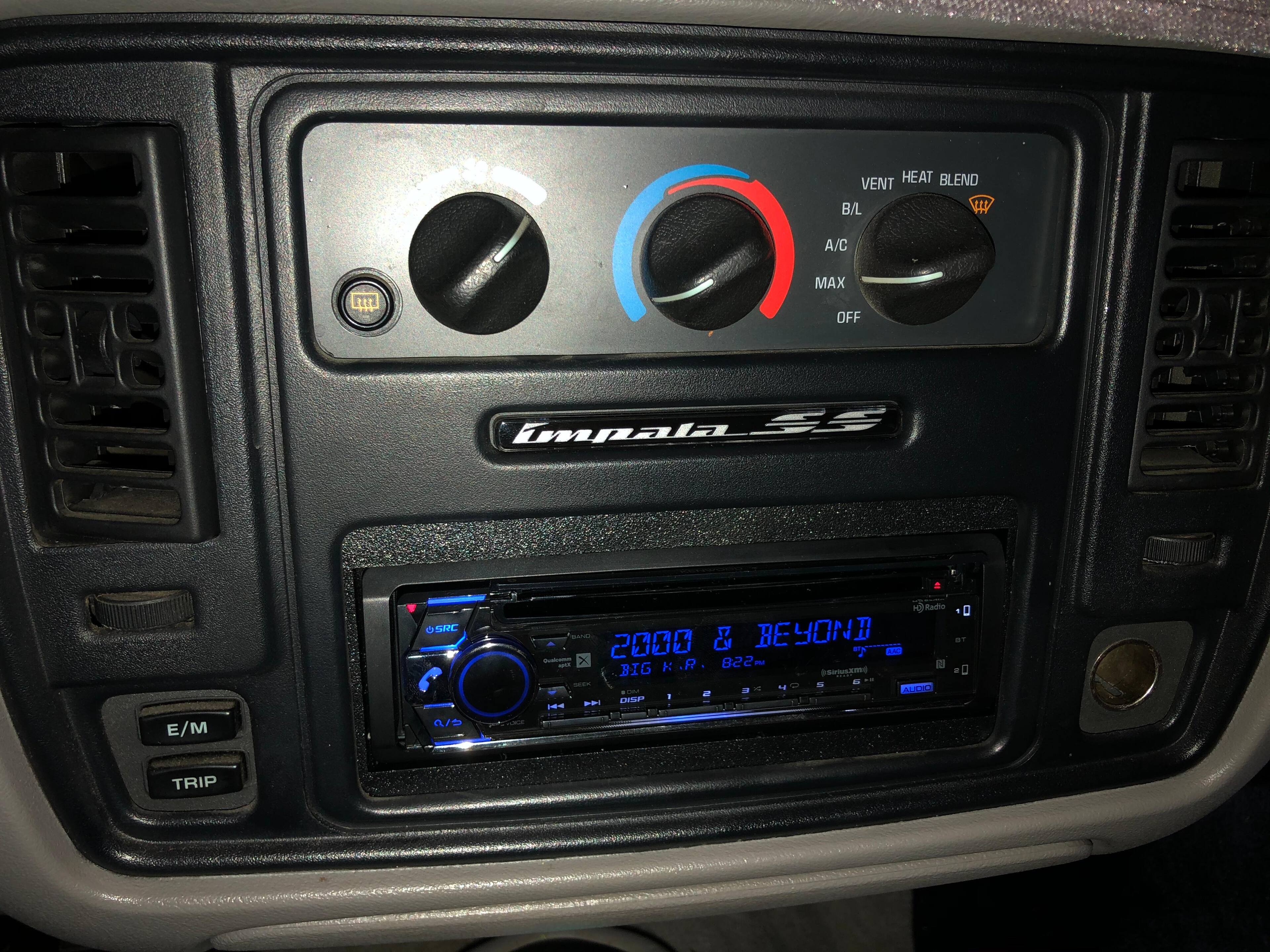

Q: will this unit fit a 2001 chevy impala?
A: Yes, the KDC-BT772HD fits your 2001 Chevrolet Impala.
Q: Is the satellite antenna included?
A: The satellite antenna is not included.
Q: How many different colors can I change the display?
A: undefined
A: https://bigrigstereo.com/ has the custom fit harness connectors for semis. I just ordered the harness for my international. The guy knows his trucks.
