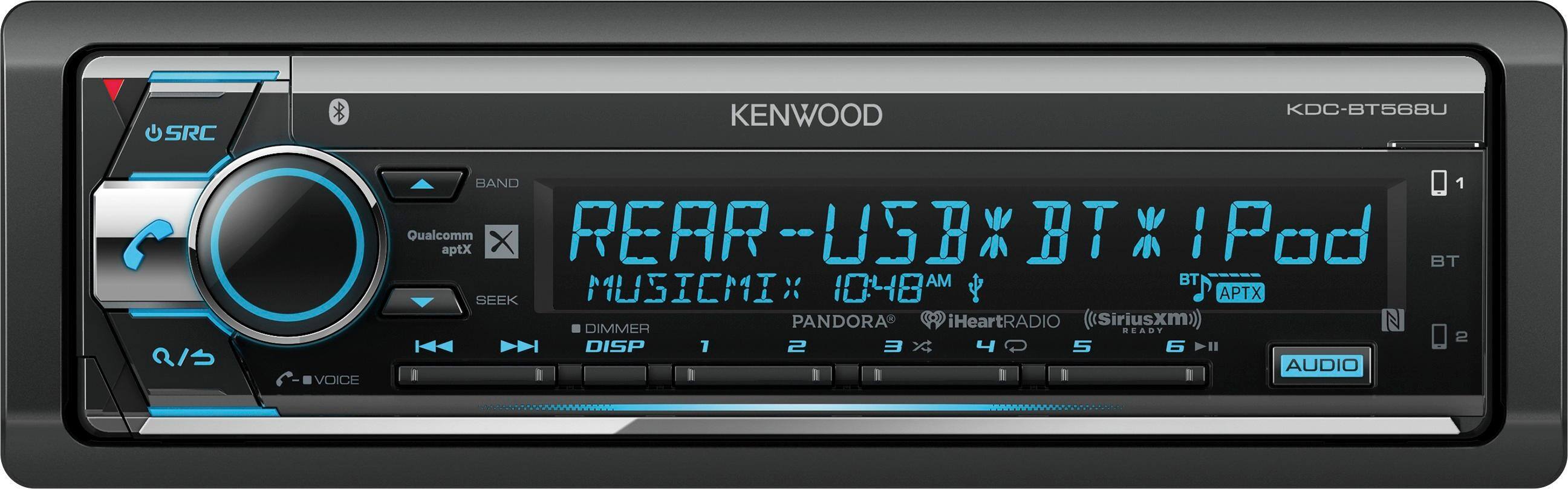

Kenwood - In-Dash CD/DM Receiver - Built-in Bluetooth - Satellite Radio-ready with Detachable Faceplate - Black
- Key Specs
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM, Satellite Ready
- CD Player: true
- Selectable Color Illumination: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Kenwood
- Model Number: KDC-BT568U
- Product Name: In-Dash CD/DM Receiver - Built-in Bluetooth - Satellite Radio-ready with Detachable Faceplate
- Color: Black
- Audio
- Watts Per Channel: 50 watts
- RMS Power: 22 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Preamp Outputs: Front
- Preamp Output Level: 2.5 volts
- Compatibility
- Mount Style: Single DIN
- Shortened Depth: false (A depth typically less than 80% less of the standard car stereo or head unit depth of 7".)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Operating System Compatibility: Apple iOS, Android
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Front Facing Inputs: USB
- Rear Facing Inputs: USB
- Steering Wheel Control Compatible: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Tuner
- Tuner Type(s): AM/FM, Satellite Ready
- Number Of Station Presets: 24
- Satellite Radio: No
- Receivers With HD Radio: false
- Players
- CD Player: true
- DVD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- Number of Calling Presets: 6
- Built-In Microphone: false
- External Microphone: Included
- Remote Control Included: false
- Marine: false
- EQ Presets: true
- Display
- Screen Type: LED
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Display Color: Variable
- Selectable Color Illumination: true
- Faceplate Style: Detachable
- Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.87 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 019048217790
Improve your vehicle's audio system with this Kenwood car stereo. It offers a variety of options for playing music, including CDs, iPod/iPhone or Android connectivity and multiple internet radio stations, and it provides sound reconstruction for enhanced play. This Kenwood car stereo can be controlled wirelessly via Bluetooth by installing the remote app.
Geek Squad® installation is strongly recommended for this product. Please visit your local Best Buy store for details.
- CD-RW, CD-R, WAV, WMA, AAC, and more playback formats: Offer versatile listening options.
- Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
- You're ready for Satellite Radio: Features the control and display functionality to support SiriusXM Satellite Radio. Tuner and subscription required for activation (not included).
- Customize how your audio sounds: Use the customizable EQ and EQ presets to get the perfect audio quality for your music.
- Control your favorite music apps: Once you've connected your phone, you can control the Pandora radio app or iHeartRadio app right from your receiver.
- Apple iPhone- and iPod-ready: Lets you connect your compatible cell phone or portable audio device, so you can control music playback.
- Connect your receiver to devices and speakers: Use the 3.5mm auxiliary input or the USB port to connect your device. It also has subwoofer output.
Whats Included
- Kenwood KDC-BT568U
- Microphone
A: It does both Bluetooth hands free calls and Bluetooth A2DP music streaming with both Android and iPhones.
Q: Which wire is the amp trigger wire. On the harness
A: P CON (Blue with White Stripe)
Q: What does it mean when the radio is on but I can’t see anything on the screen?
A: This could mean a faulty faceplate.
Q: Is your Kenwood in dash cd/dm receiver what we call a CB radio? If not do you carry them?
A: No, this is not a citizen's band radio. There is no additional information to answer the remaining question.
Q: Will this work with a 1998 Chevy Malibu. If not what Kenwood model would and do I need accessories.
A: Yes it will any aftermarket stereo will work u just need to buy the wire harness adapter and din installation kit to make it fit and work
Q: Is the bluetooth microphone internal?
A: It is an external microphone.
A: For my Ford F350 I had to purchase an adaptor wire harness and a mounting bracket specifically designed for my vehicle.
A: You will need an amp to push a subwoofer set up, it is just a signal even though it is powerful.
