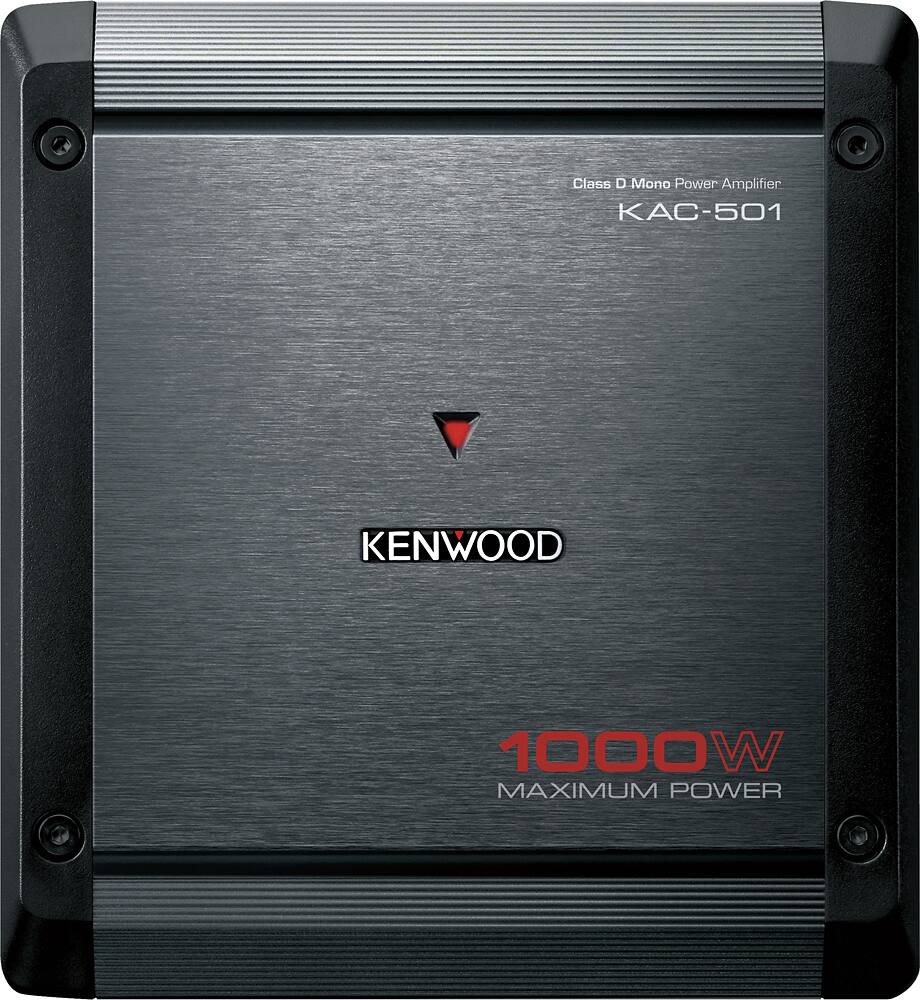

Kenwood - KAC 1000W Class D Digital Mono MOSFET Amplifier with Variable Low-Pass Crossover - Black/Dark silver
Model: KAC-501
SKU: 5577926
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 300 W x 1 x 4 Ohms; 500 W x 1 x 2 Ohms
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Kenwood
- Model Number: KAC-501
- Product Name: KAC 1000W Class D Digital Mono MOSFET Amplifier with Variable Low-Pass Crossover
- Color: Black/Dark silver
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 300 W x 1 x 4 Ohms; 500 W x 1 x 2 Ohms
- Total Power Handling RMS: 500 watts
- Watts Per Channel RMS: 500 watts
- Total Power Handling Maximum: 1000 watts
- Watts Per Channel Maximum: 1000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.2 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: false
- Dimensions
- Product Height: 2.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.31 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 019048216618
Upgrade your car audio system with this Kenwood power amplifier. It has a peak power of 1000W and a thermal management system to control amplitude and support continuous sound reproduction when temperatures rise due to high output. The negative feedback circuit increases sound quality, and this compact Kenwood power amplifier doesn't take much space.
- 1000W total power: RMS rating of 500W x 1 @ 2 ohms, 20 - 200 Hz, for robust audio.
- Variable low-pass-filter crossover: Lets you easily adjust the audio frequency from 50 Hz to 200 Hz for flexible sonic customization.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 0.5% THD (Total Harmonic Distortion): Provides clean sound.
- 100dB signal-to-noise ratio: Offers crisp audio.
- 0-18dB bass boost: Lets you add punchy bass to your music.
- MOSFET power supply: Delivers efficient performance.
- 1-channel output: Allows easy system expansion.
- Class D circuitry: Ensures reliable power handling.
- 1000W total power: RMS rating of 500W x 1 @ 2 ohms, 20 - 200 Hz, for robust audio.
- Variable low-pass-filter crossover: Lets you easily adjust the audio frequency from 50 Hz to 200 Hz for flexible sonic customization.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 0.5% THD (Total Harmonic Distortion): Provides clean sound.
- 100dB signal-to-noise ratio: Offers crisp audio.
- 0-18dB bass boost: Lets you add punchy bass to your music.
- MOSFET power supply: Delivers efficient performance.
- 1-channel output: Allows easy system expansion.
- Class D circuitry: Ensures reliable power handling.
Whats Included
- Kenwood KAC 1000W Class D Digital Mono MOSFET Amplifier with Variable Low-Pass Crossover
- Kenwood KAC 1000W Class D Digital Mono MOSFET Amplifier with Variable Low-Pass Crossover
Q: What is the "RMS" wattage on this amp?
A: I believe its 300 RMS into 4 ohm speaker
Q: Will this amp work on 1 solar baric L7 kicker 12
A: It would work but I think this amplifier is way under powered for a Solo Baric 12". I would recommend and amp with 750 watts.
A: Connect the amp in Parallel. I also reccommend an external crossover. I have two 12” Kenwood subs connected to the Kenwood Kac-501 and it hits pretty well.
Q: How many channels is this KAC-501 amplifier.
A: It is only 1 channel. I bought it as a spare, it works just as good as a 2 channel and for the price it's worth it. If you crank it up while running 2 subs it will heat up if vehicle is stationary and shut down until it cools off.
Q: Will this amp work well with a JL Audio Stealthbox 2 ohm Subwoofer?
A: Yes it will!!
Q: Can a remote be added to this amp?
A: No. A remote cannot be added
Q: This came in a package deal with two 12" kenwood 4 ohm single coil subs is it enough?
A: Can’t speak specifically to the Kenwokd subs, but I’m pushing 2 12” Kicker CompC’s and this amp is plenty.
A: I don't have the specs for your speakers. Just make sure not to overpower them with this amp
