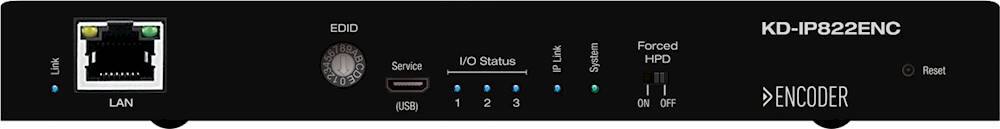

Key Digital - 4K UHD AV Over IP Encoder - Black Metal

Control a commercial video distribution system with this Key Digital 4K UHD AV over IP encoder. The managed Gigabit network switch enables matrix switching functions and signal extensions up to 330 feet, and the two multifunction ports support master controller configurations for versatility. Use this Key Digital 4K UHD AV over IP encoder with compatible decoders for multiple displays and video wall setups.

• Enterprise A/V over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension.
• Inter-system compatibility: Compatible with KD-IP922 ENC and DEC units or connected systems.
• Video wall processing: Allows you to create video walls with up to 16 vertical and 16 horizontal monitors.
• Flexible control: Two multifunction ports may be used as a third-party control interface, Compass Control Pro master controller, control extension via IP, or callable via KeyCode open API.
• Key Digital app-ready: Network scan and detect populates pre-built GUI, including image preview.
• 4K Ultra HD resolution: Offers support for 4096 x 2160 or 3840 x 2160 24/25/30Hz at 4:4:4/8-bit or 60Hz at 4:2:0/8-bit.
• 4K down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p, enabling monitors to display content at optimal resolution at all times.
• Signal extension: Up to 330' at 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or point-to-point.
• Power over Ethernet: Does not require power supply when integrated with a compatible PoE network switch.
• Redundant power connection: Added reliability for non-PoE integration. Power supply sold separately.
• Low latency: Offers less than 40 ms at 4K and less at lower resolutions. Less than 900 Mbps data stream bandwidth.
• Flexible installation: You can install up to 12 units in a rack with the optional KD-SMS16 shelf mounting system.
• HDMI and HDCP licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology, such as 4K/UHD 4:2:0/8-bit at 60 fps.
• Hot-plug detection control: Enables the integrator to choose if active signal voltage is forced to connected input devices.
• Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication with source and display, and hot-plug control.
• IR sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without an external IR connecting block.
• Up/down IR: Two channels of IR enable control to/from devices connected to the unit.
• RS-232: Bidirectional control to/from the unit on Phoenix connector.
• RS-232/TCP-IP Control mode: Provides control of the unit as well as connectivity status.
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio.
• Enterprise A/V over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension.
• Inter-system compatibility: Compatible with KD-IP922 ENC and DEC units or connected systems.
• Video wall processing: Allows you to create video walls with up to 16 vertical and 16 horizontal monitors.
• Flexible control: Two multifunction ports may be used as a third-party control interface, Compass Control Pro master controller, control extension via IP, or callable via KeyCode open API.
• Key Digital app-ready: Network scan and detect populates pre-built GUI, including image preview.
• 4K Ultra HD resolution: Offers support for 4096 x 2160 or 3840 x 2160 24/25/30Hz at 4:4:4/8-bit or 60Hz at 4:2:0/8-bit.
• 4K down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p, enabling monitors to display content at optimal resolution at all times.
• Signal extension: Up to 330' at 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or point-to-point.
• Power over Ethernet: Does not require power supply when integrated with a compatible PoE network switch.
• Redundant power connection: Added reliability for non-PoE integration. Power supply sold separately.
• Low latency: Offers less than 40 ms at 4K and less at lower resolutions. Less than 900 Mbps data stream bandwidth.
• Flexible installation: You can install up to 12 units in a rack with the optional KD-SMS16 shelf mounting system.
• HDMI and HDCP licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology, such as 4K/UHD 4:2:0/8-bit at 60 fps.
• Hot-plug detection control: Enables the integrator to choose if active signal voltage is forced to connected input devices.
• Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication with source and display, and hot-plug control.
• IR sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without an external IR connecting block.
• Up/down IR: Two channels of IR enable control to/from devices connected to the unit.
• RS-232: Bidirectional control to/from the unit on Phoenix connector.
• RS-232/TCP-IP Control mode: Provides control of the unit as well as connectivity status.
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio.
