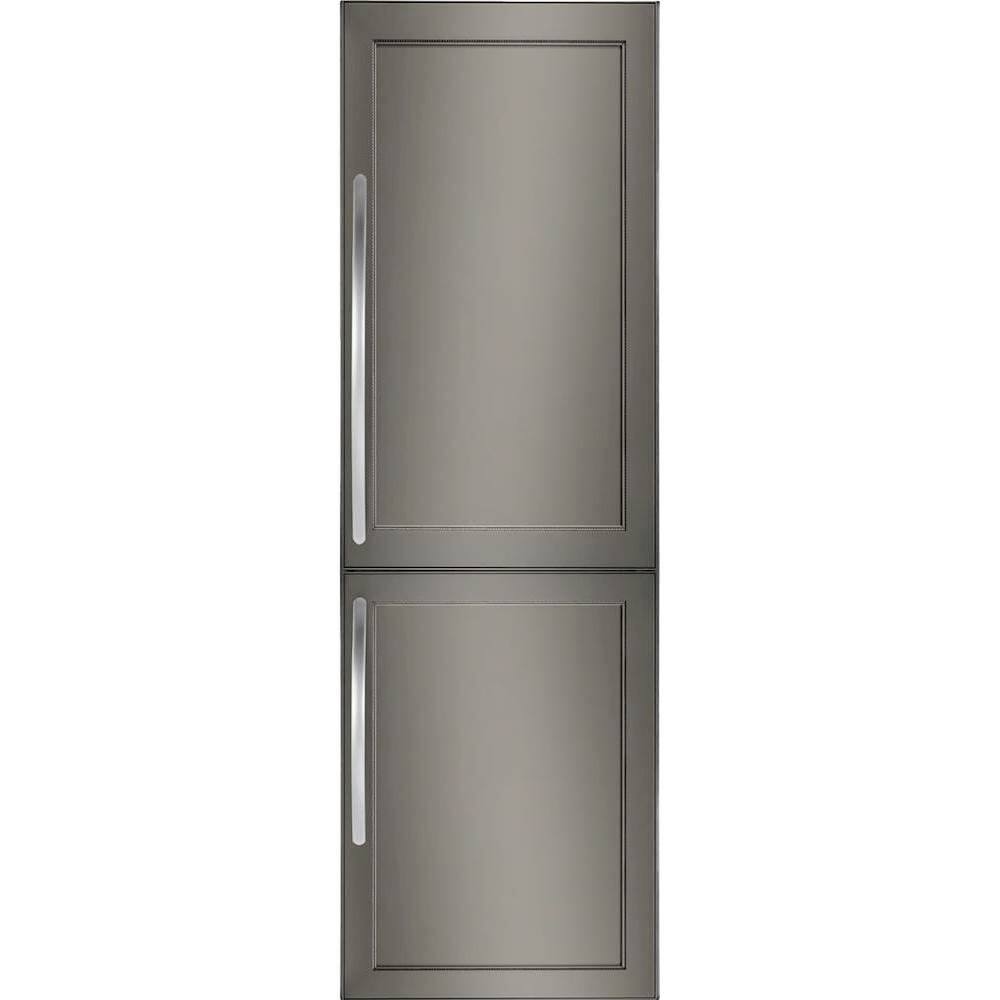

Name: KitchenAid - 10 Cu. Ft. Bottom-Freezer Built-In Refrigerator - Custom Panel Ready
Brand: KitchenAid
SKU: 6292015
Rating: 0 (0 reviews)

Key Specs
- Color Finish: Custom
- Product Height: 69 9/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 69 1/2 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 4/7 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 21 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 21 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 9.95 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
General
- Brand: KitchenAid
- Model Number: KBBX104EPA
- Product Name: 10 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Color: Custom Panel Ready
- Color Finish: Custom
Dimensions
- Product Height: 69 9/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 69 1/2 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 4/7 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 42 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 21 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 21 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 19 1/2 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 21 3/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 625 pounds (The out of box weight of the item.)
Capacity
- Total Capacity: 9.95 cubic feet
- Refrigerator Capacity: 7.2 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 2.75 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Fingerprint Resistant: false
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Reversible left/right
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Ice & Water
- Ice Maker: No
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice and Water Dispenser: None
Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 5
- Refrigerator Shelf Style: Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Refrigerator Shelf Material: Glass
Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Swing Door
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
Filter Info
- Water Filtration: false
Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Estimated Annual Electricity Use: 394 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 47 United States dollars (Predicted cost of operating the product under average conditions for one year.)
Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory.html. Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.html. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
Warranty
- Warranty - Parts: 5 Year
- Warranty - Labor: 5 Year
Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
Other
- UPC: 883049366906

Enjoy sleek kitchen storage with this 24-inch KitchenAid refrigerator. Its dual evaporator system lets you assign individual temperature settings to the fridge and freezer, and the energy-efficient operation helps lower utility bills while promoting environmentally friendly habits. This built-in KitchenAid refrigerator has LED lighting for maximum visibility and low maintenance.

Dual evaporator: Offers two independent cooling systems that provide a dedicated refrigeration unit to help keep food fresh longer, and a separate system for frozen food.
Organize contents with ease: This refrigerator includes one fixed full-width glass shelf, four adjustable full-width glass shelves and one non-climate-control drawer.
Makes access to frozen items easy: Features three freezer drawers to create plenty of space to organize frozen food.
LED lighting: Illuminates the inside of the refrigerator and freezer, providing better visibility. Unlike incandescent bulbs, LED lights use less energy, last longer, and require little maintenance.
Door-open alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
Reversible door swing: Creates versatile installation options by allowing the refrigerator door to be adjusted to open from either the right or left side.
