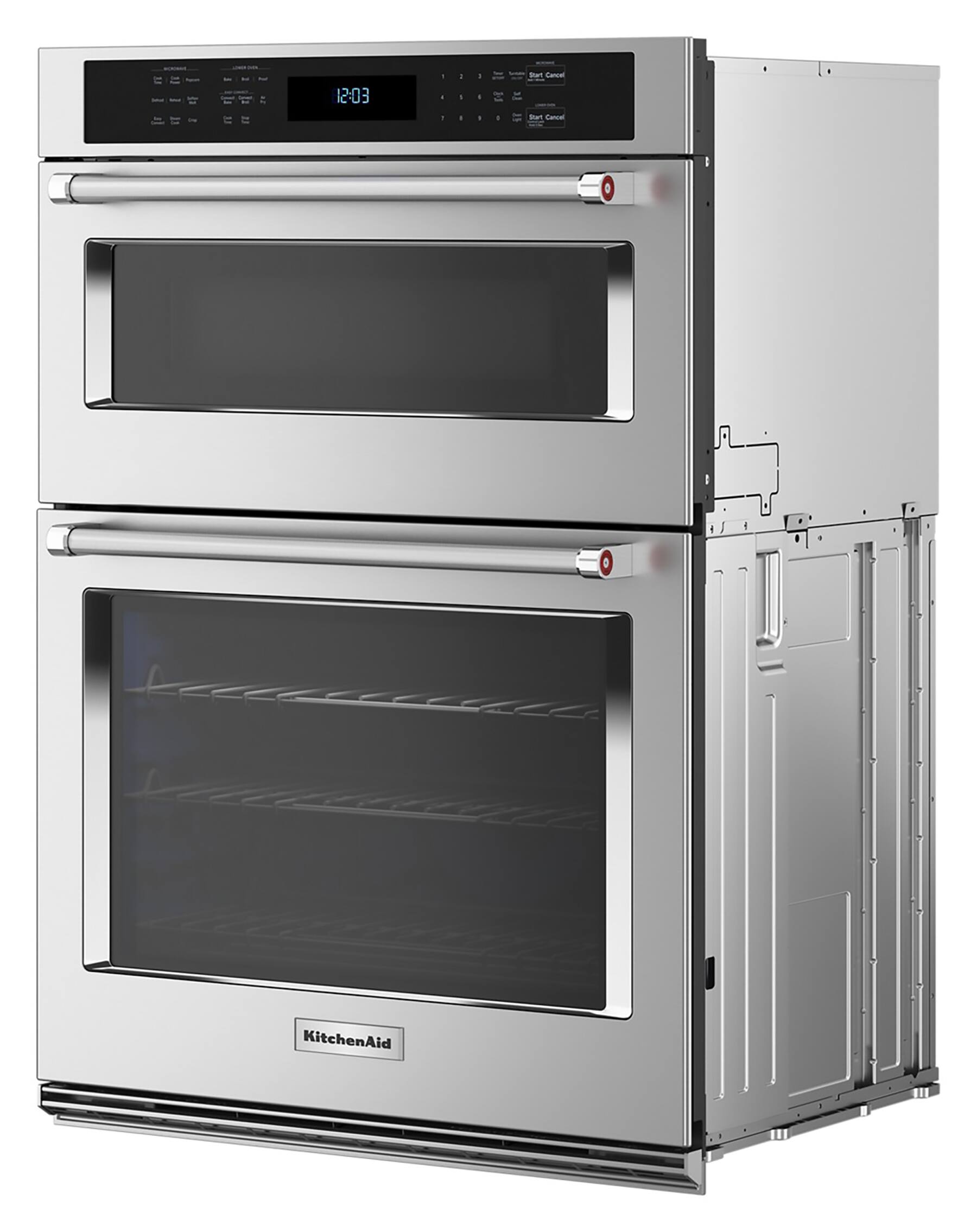

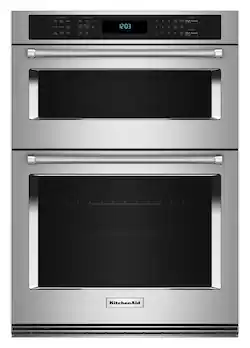

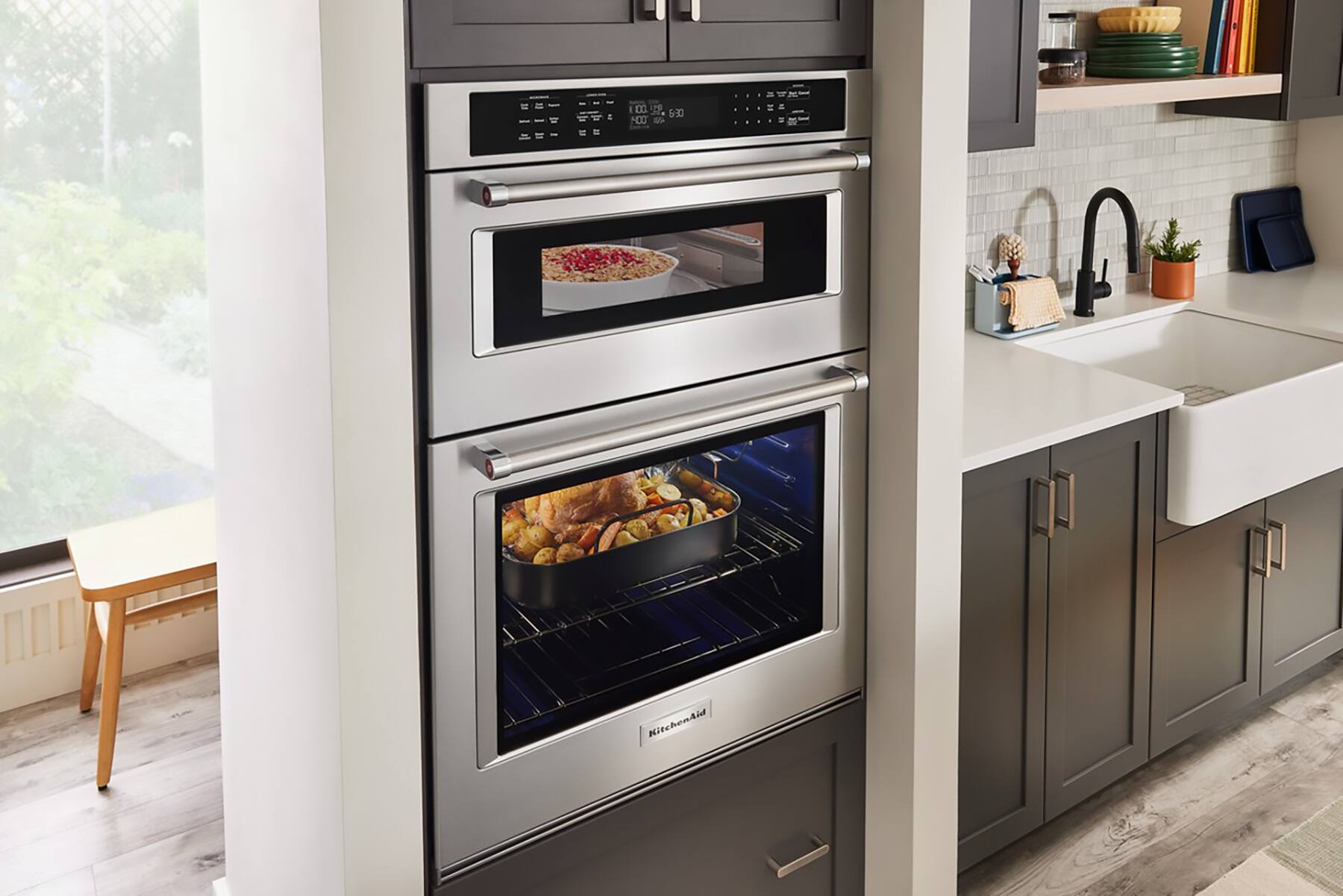

KitchenAid - 30" Built-In Electric Convection Double Wall Combination with Microwave and Air Fry Mode - Stainless Steel
Model: KOEC530PSS
SKU: 6576747
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 42 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- General
- Brand: KitchenAid
- Model Number: KOEC530PSS
- Product Name: 30" Built-In Electric Convection Double Wall Combination with Microwave and Air Fry Mode
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 42 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 46 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 242 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 41 5/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 1.4 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Microwave and wall oven combination
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: true (Feature automatically turns off the product.)

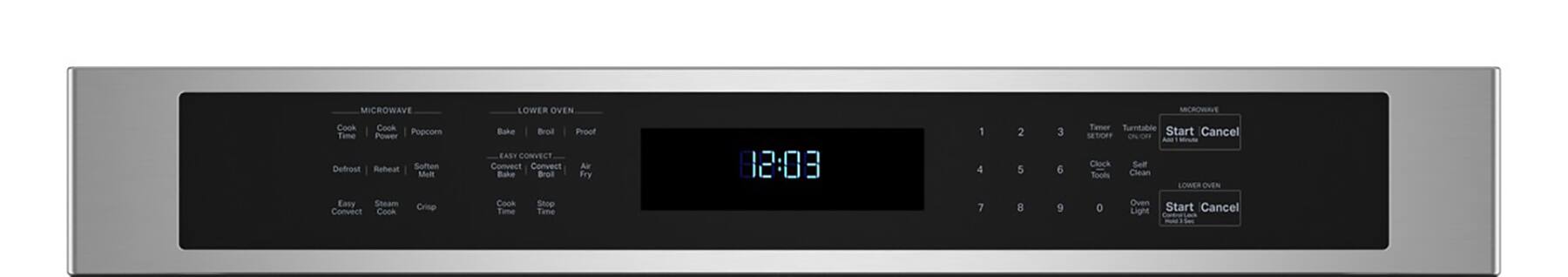

- Control Type: Touchscreen
- Clock Display: true
- Lock Type: Child safety lock
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Oven 1
- Oven 1 Location: Upper, Upper
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Manual, Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2
- Oven 2 Location: Lower, Lower
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Cleaning Method: Self-Steam Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Certifications Listings & Approvals
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049670515
Get the crisp you crave, right from your oven. This 30" Combination Microwave Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil. Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
- Air Fry Mode: Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.
- Dishwasher-Safe Air Fry Basket: Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.

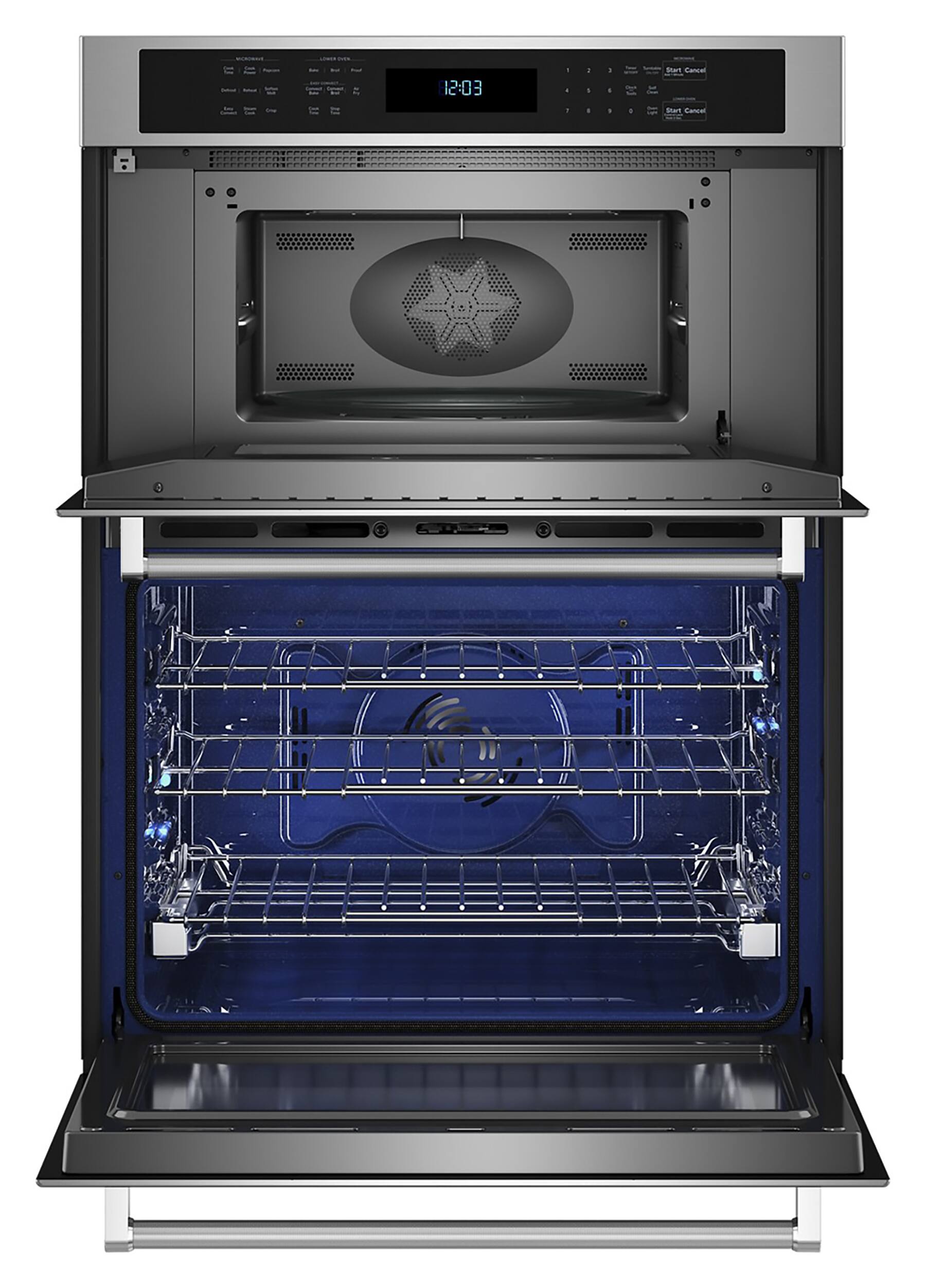

- Even-Heat True Convection: Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

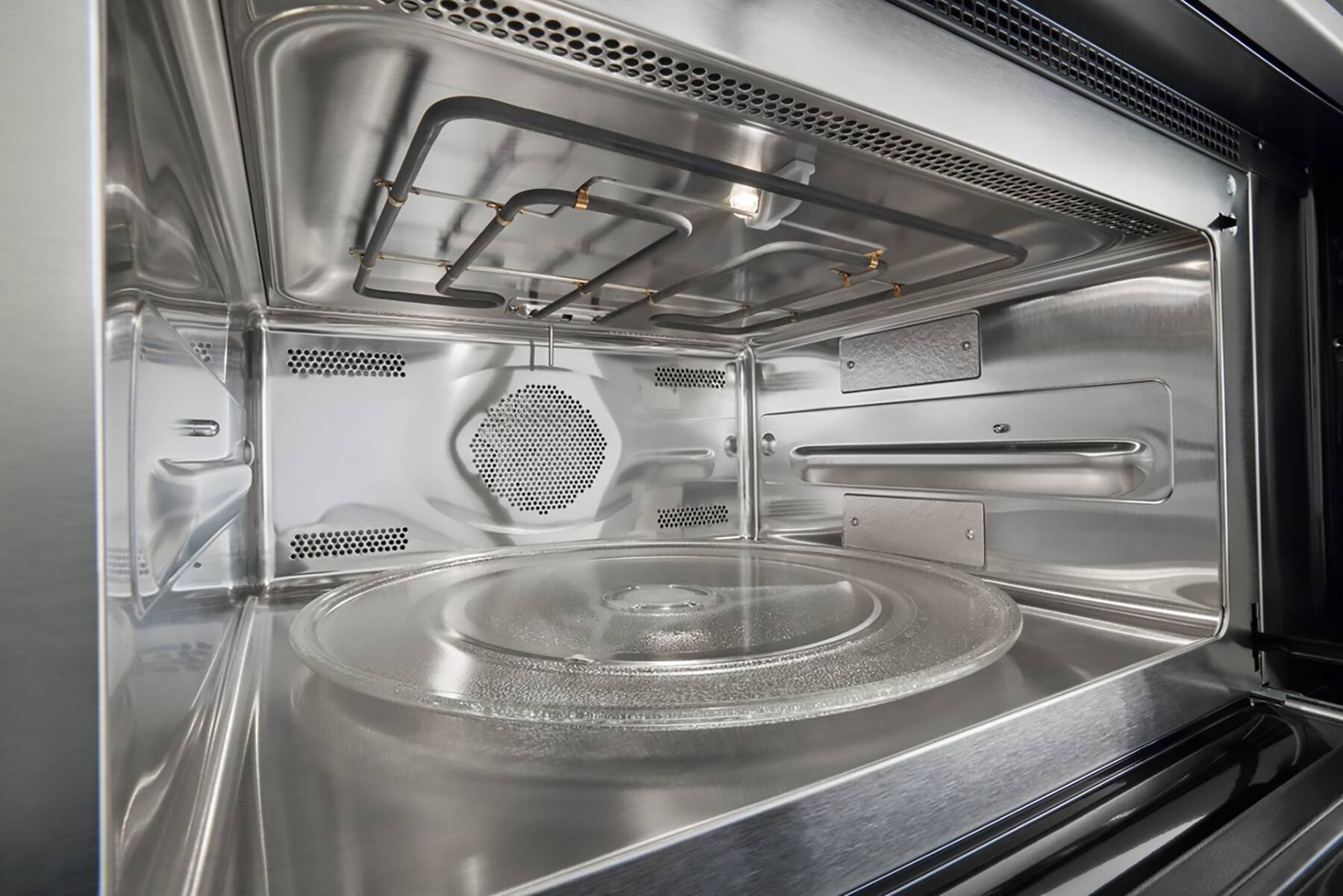

- CrispWave Technology (Microwave Oven): Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.
- Integrated Meat Thermometer: Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
- Microwave Convection Cooking: Uses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
- Self-Close Doors: Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
- Air Fry Mode: Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.
- Dishwasher-Safe Air Fry Basket: Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
- Even-Heat True Convection: Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
- CrispWave Technology (Microwave Oven): Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.
- Integrated Meat Thermometer: Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
- Microwave Convection Cooking: Uses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
- Self-Close Doors: Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
Whats Included
- KitchenAid 30" Built-In Electric Convection Double Wall Combination with Microwave and Air Fry Mode
- Warranty
- Owners Manual
- KitchenAid 30" Built-In Electric Convection Double Wall Combination with Microwave and Air Fry Mode
- Warranty
- Owners Manual
Q: What's the difference between KOCE500ESS and this model (KOEC530PSS)?
A: Hello, model KOCE500ESS has Glass Touch Digital Display, Language conversion: English/French, Number of Microwave Racks 1, and model KOEC530PSS has Electronic Touch, Language conversion: English/French/Spanish, Number of Microwave Racks 2, Air Fry Feature, Star K Certified. We hope this helps.
Q: What AMP is this? 30 or 40?
A: Hello! The electrical requirements for this model are Amps 40, Hz 60, Volts 240, and Watts 900. Thank you for your inquiry on our KitchenAid appliances.

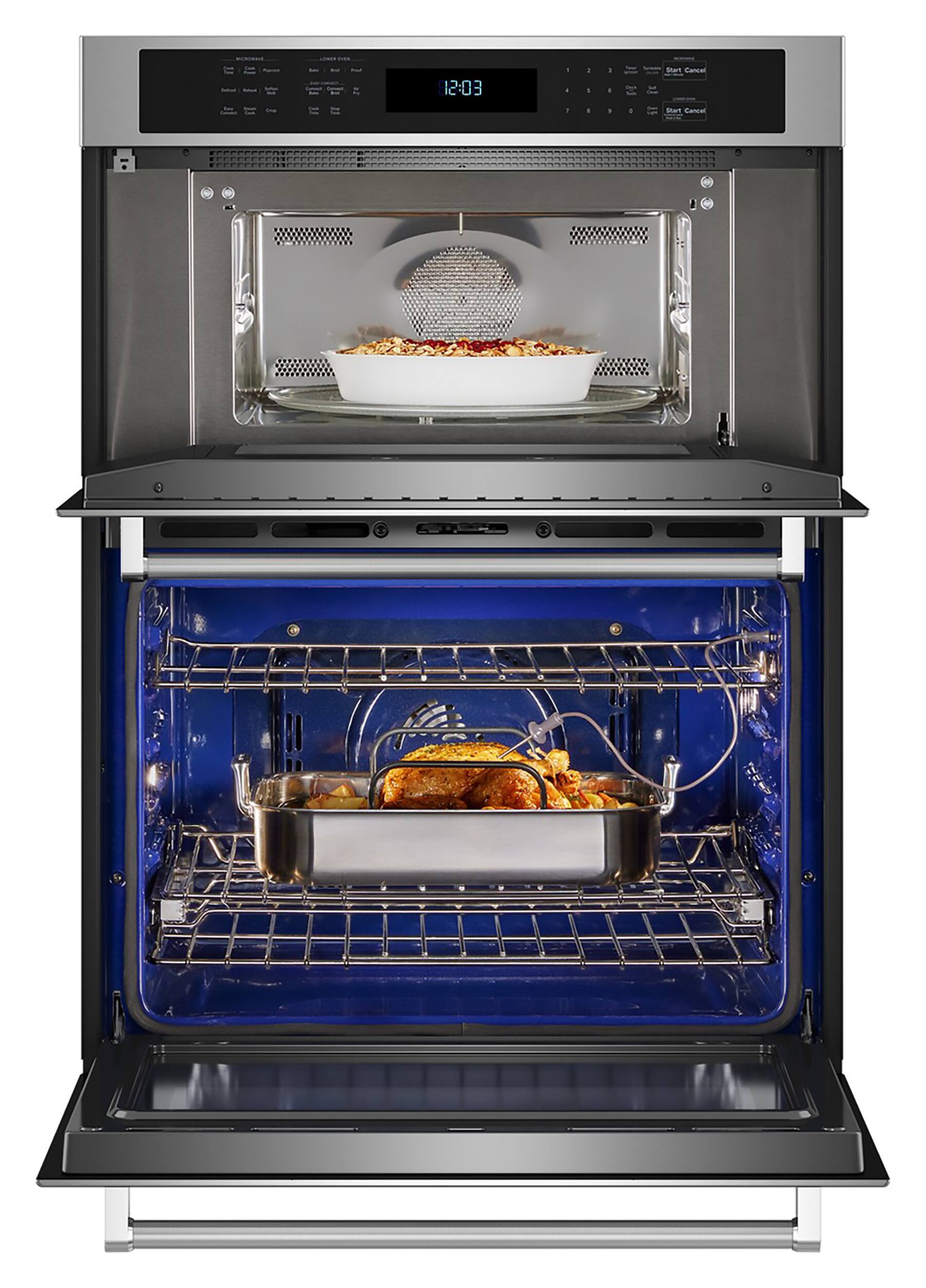

Q: Can the microwave and oven be used at the same time or can you only use one at a time?
A: I have used both at the same time making chicken in the top and casserole in the lower oven. I have steamed veggies in the top and baked in the lower.
A: Hello! The turntable does not need to be removed when cooking. Thank you for your inquiry on our KitchenAid appliances.
A: Hello, Yes, this Combination Microwave Wall Oven, model KOEC530PSS does have a Self-Cleaning feature. Thank you for your inquiry on our KitchenAid® appliances.
Q: Can the unit be split? So they can be mounted side by side? And under an electric cooktop.
A: Hello! No, the wall ovens cannot be separated. Thank you for your inquiry about our KitchenAid® appliances.
Q: What is the difference between the KOEC530 PSS and the KOEC530 SPS?
A: Hello! The only difference is that model KOEC530SPS is a PrintShield™ stainless steel, and model KOEC530PSS is just Stainless Steel. Thank you for your inquiry about our KitchenAid® appliances.
Q: Does the microwave function as an oven as well? For kitchen aid double oven as well.
A: Hello! While the microwave portion on model KOEC530PBS cannot be ran as an oven. You do convection in the Microwave. Thank you for your inquiry about our KitchenAid® appliances.
