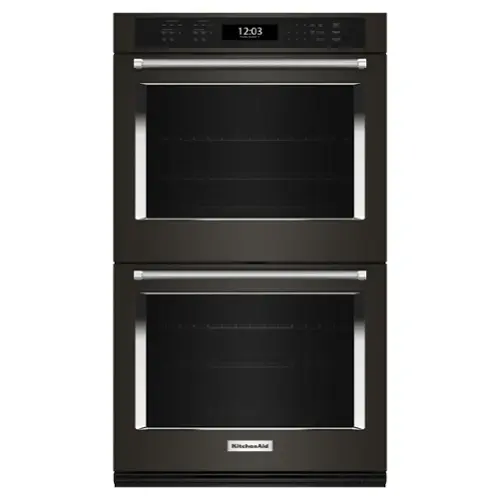

KitchenAid - 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode - Black Stainless Steel
Color
Black Stainless SteelDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlack stainless steelProduct Height50 13/16 inchesProduct Width29 3/4 inchesProduct Depth27 1/8 inchesDepth Without Handle24 1/2 inchesDepth With Handle27 1/8 inches
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 50 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- General
- Brand: KitchenAid
- Model Number: KOED530PBS
- Product Name: 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 50 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 27 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 46 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 286 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchscreen
- Clock Display: true
- Lock Type: Child safety lock
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Oven 1 Specification
- Oven 1 Location: Upper, Upper
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Cleaning Method: Self-Steam Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Specification
- Oven 2 Location: Lower, Lower
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Cleaning Method: Self-Steam Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Certifications Listings & Approvals
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049670478
Get the crisp you crave, right from your oven. This 30" Double Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil. An integrated thermometer takes the guesswork out of roasting meat just the way you like.
- Air Fry Mode: Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
- Dishwasher-Safe Air Fry Basket: Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
- Even-Heat True Convection: Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
- Integrated Meat Thermometer: Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
- SatinGlide Roll-Out Extension Racks (Both Ovens): Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Whats Included
- KitchenAid 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode
- Warranty
- Owners Manual
Product Manuals
A: Hello! Model KOED530PSS is a double oven, so there is no microwave. Please see the link to the Control Guide for more information. https://shorturl.at/6WWbS Thank you for your inquiry about our KitchenAid appliances.
A: Hello, for model KOED530PBS, the Upper/Lower Oven Interior Depth (in) 19, Upper/Lower Oven Interior Height (in) 18, and Upper/Lower Oven Interior Width (in) 25. Thank you for your inquiry on our KitchenAid appliances.
Q: Is the air coming out of rhe vents hot? Will it warm up the room?
A: Hello! Yes, warm air releasing from the heats may heat up the room. We hope this helps.
A: Hello! For this model you can do the following: To Set a Cook Time and Stop Time Before setting, make sure the clock is set to the correct time of day. See “Clock” section. 1. Select a cooking function. Touch the number keys to enter a temperature other than the one displayed. Timed Cooking may also be used with the Bread Proof function, but the temperature is not adjustable. 2. Touch Cook Time. 3. Touch number keys to enter the length of time to cook. 4. Touch Stop Time. 5. Touch the number keys to enter time of day to stop. 6. Touch Start. The start time is automatically calculated and displayed. “DELAY” and the stop time will also appear on the oven display. When the start time is reached, the oven will automatically turn on. The minute time countdown will appear on the oven display. When the stop time is reached, the oven will shut off automatically, and “cooking complete” will appear on the oven display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute. 7. Touch CANCEL for the selected oven, or open and close the oven door to clear the display and/or stop reminder tones.
Q: can you feel the venting air in the room ?
A: Yes on the bottom of the double oven
Q: How many racks in each oven?
A: Hello, for model KOED530PSS there are 3 racks in each oven. Thank you for your inquiry about our KitchenAid appliances.
Q: How long is the power cord? Does it come out the top?
A: Hello, model KOED530PSS does not use a power cord. This model would be hardwired. Please feel free to view page 12 of the Owner's Manual for more information on the electrical requirements for this model. https://shorturl.at/cBmIt Thank you for your inquiry about our KitchenAid appliances.
Compare similar products
Get the crisp you crave, right from your oven. This 30" Double Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil. An integrated thermometer takes the guesswork out of roasting meat just the way you like.
Nothing about your personal style is standard. So why should your appliances be? Cafe redefines the kitchen space with the Customizable Professional Collection, which gives you the ability to pair matte white, matte black or stainless appliance finishes with your choice of six distinct handle and knob options. Cafe curated hardware offerings include brushed bronze, brushed black, brushed copper, and brushed stainless, alongside the latest bold additions, brushed brass and flat black. Get the look that truly reflects your personality with Cafe's unique finishes and exceptional styling.
Stay one step ahead in the kitchen with assistive cooking methods that provide a groundbreaking smart experience and new levels of precision that help bring out the boldness in every flavor. Assisted Cook Cycles recommend the ideal cooking cycle and temperature for common foods like cake, salmon filets, roasted vegetables, and more. Even-Heat™ True Convection for consistent baking and roasting. Temperature Probe provides internal temperature updates on oven screen without opening the door.Backlit knobs twist to navigate cook cycles and customize home screen.
Get the crisp you crave, right from your oven. This 30" Combination Microwave Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil. Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
| Pros for KitchenAid - 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode - Black Stainless Steel | |||
|---|---|---|---|
| Overall Performance, Ease of use, Baking Performance, Air Fry | Ease of use, French Doors, Design, Air Fryer | There were no pros for this product— | Overall Performance, Ease of use, Air Fry Mode |
| Cons for KitchenAid - 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode - Black Stainless Steel | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Oven Door |
Specs
Reviews
Customers are saying
Customers regard the 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode as easy to use and versatile. The air fry and convection features are particularly appreciated, with customers looking forward to using them.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Love my ovens!
I love these ovens! Both contain all the features, which allows for better distribution of cooking tasks. They heat up very quickly and maintain a constant temperature well. If desired, they will automatically adapt settings for convection cooking. My old ovens were noisy, so I have occasionally forgotten to turn my new quiet ones off. I look forward to using some unexpected features - air frying, proofing. The pretty blue interior makes me want to open them up and put something in!
This review is from KitchenAid - 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode - Stainless Steel
Posted by BCdeF
- Rated 5 out of 5 stars
Double oven, delivery, install and removal of old.
It’s sophisticated yet simple to use. The double oven makes it easy to prepare multiple dishes at once with three racks in each oven. The air fry and confection features make it so versatile. It also has a temperature probe in the top oven. It has soft close door hinges so the oven doors so it’s very quiet when the oven doors. The self cleaning is easy to use too. I replaced my 14 year old Kitchen Aid double oven with the newer model and it fit great in the existing space! I paid for the delivery, insulation and removal of my old double oven. I was originally told I had to be home from 7 AM to 7 PM for delivery. Thankfully, they use new Notification system that sent an email in the morning that I could expect them to arrive between 230 and 6:30 PM. Then I received an update by 11:30 stating that they would be at my house by 1:40 PM. They arrived by 12:15 PM. The insulation and cleanup took about an hour in my house, very professional and nice.
This review is from KitchenAid - 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode - Stainless Steel
Posted by ChristianeS
- Rated 5 out of 5 stars
Perfect, even baking and dependability
We have owned an older model of this oven in another home and loved it. So we bought the same thing (latest model) for our current house. This is a fantastic oven for bakers. Does convection baking beautifully and evenly, standard meal baking perfectly, and now comes with a proofing feature and airfry. It's the most versatile and reliable home oven I've ever owned--in five homes across four states!
This review is from KitchenAid - 30" Built-In Electric Convection Double Wall Oven with Air Fry Mode - Stainless Steel
Posted by FlakyPastry
