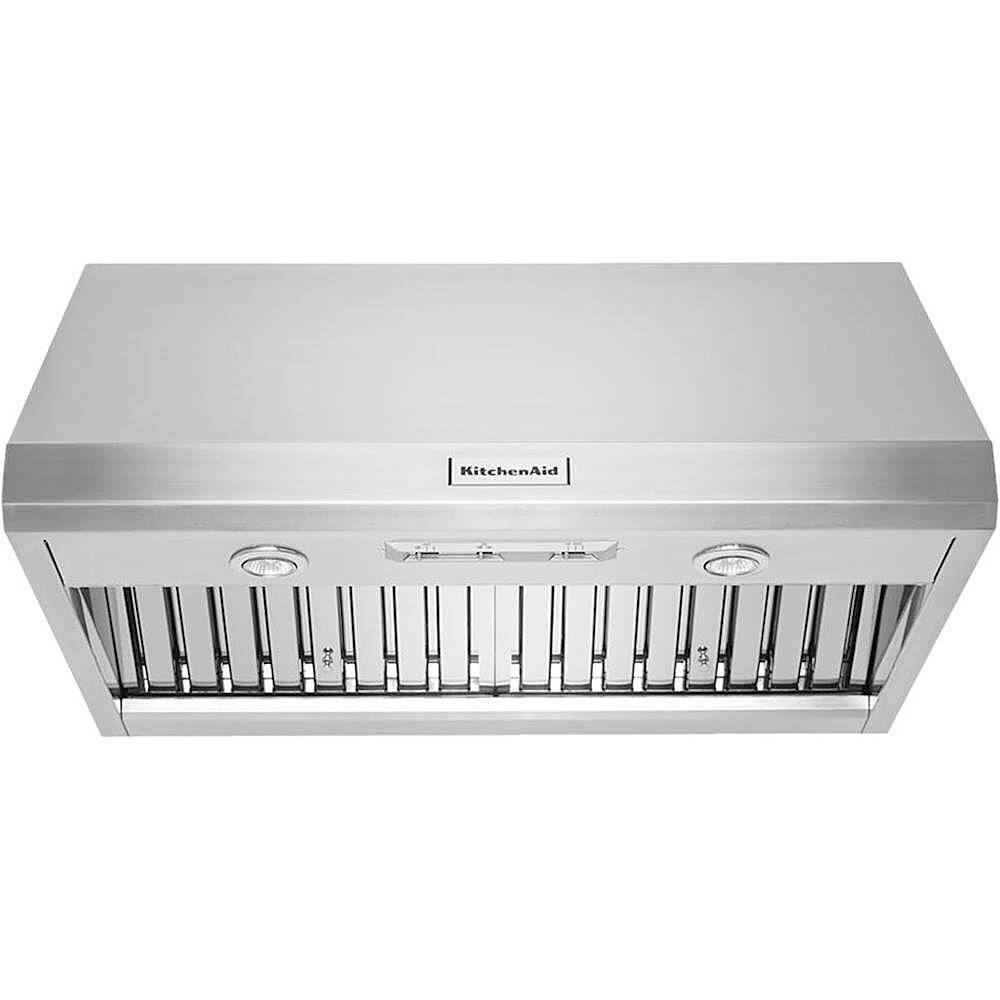

KitchenAid - 36 inches - Externally Vented - Wall Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: KitchenAid
- Model Number: KVWC906JSS
- Product Name: 36" Externally Vented Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 76 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Switch
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Filter Info
- Filter Material: Metal
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 7.2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049569437
Rid the kitchen of grease and fumes with this KitchenAid 36-inch wall-mount canopy hood. Solid stainless steel construction helps ensure longevity even with heavy use, while the user-friendly slide control gives full control over the three fan speeds. This KitchenAid 36-inch wall-mount canopy hood features a heat sensor for automatic power-ups and comes with removable baffle filters for easy cleaning.
How to Measure for a New Appliance
A little measuring now can help you avoid delivery headaches later.
Watch the video ›
- 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- LED light shines down on the cooktop: To illuminate your workspace.
- Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
- Stainless steel finish: Offers a sleek, stylish look.
- Requires 585 or 1170 CFM Motor Class - Sold Separately: This hood requires a 585 or 1170 CFM Motor Class Blower (sold separately). The choice of blower options allows cooks to customize a powerful ventilation system to match the high heat of their commercial-style range or rangetop.
- 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- LED light shines down on the cooktop: To illuminate your workspace.
- Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
- Stainless steel finish: Offers a sleek, stylish look.
- Requires 585 or 1170 CFM Motor Class - Sold Separately: This hood requires a 585 or 1170 CFM Motor Class Blower (sold separately). The choice of blower options allows cooks to customize a powerful ventilation system to match the high heat of their commercial-style range or rangetop.
Whats Included
- KitchenAid 36" Externally Vented Range Hood
- Owner's Manual
- KitchenAid 36" Externally Vented Range Hood
- Owner's Manual
Product Manuals
Q: what is cfm on this hood? why all kitchenaid hood does not tell cfm?
A: Hi, This hood requires a 585 or 1170 CFM Motor Class Blower (sold separately). We hope this helps.
A: MikeH, the blower is not included with this Range Hood and would need to be purchased separately. Hopefully, this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid Appliances!
Q: Can this fan be installed outdoors?
A: Hello Lithia, the product is designed to be installed indoors and we can not recommend that it be installed outside. We hope this helps.
Q: What size/Part Number blower needed for 36" Kitchen Aid Commercial Gas Range?
A: Hello, This would be determined based on the specific model of the range. The Range installation instructions should provide specific details. We hope this helps.
Q: How do the grates come off under the vent hood to clean? . I’m sure they can as other brands do
A: Hello CleaningGuru! Please see page 15 for proper cleaning of this model. https://bit.ly/3BjoYBc We hope this helps.
Q: Does this hood come with a chimney option? Our cabinet guy is asking
A: A chimney option cannot be added to this KitchenAid® Range Hood. We hope this helps!
