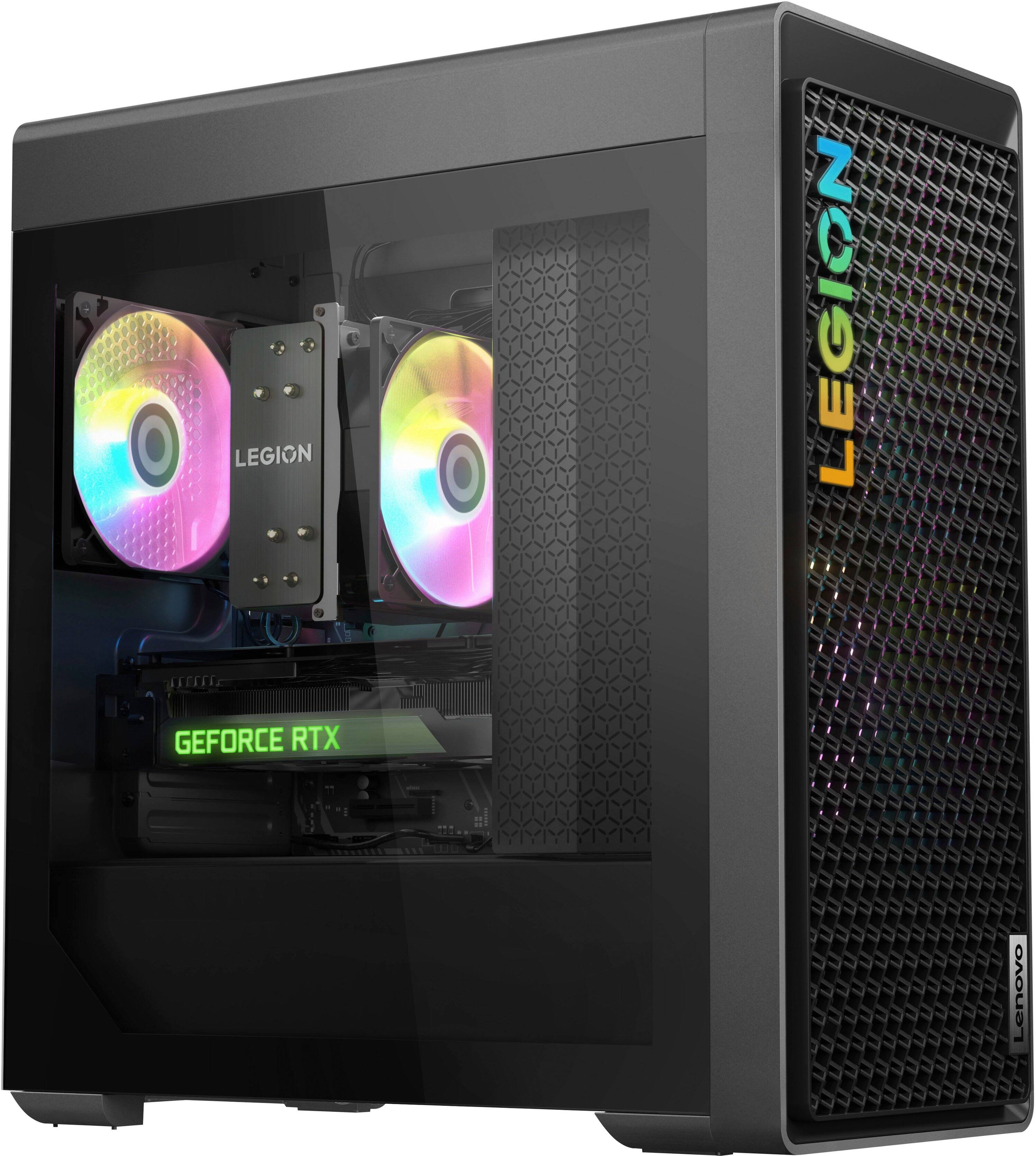

Lenovo - Legion Tower 5i Gaming Desktop - Intel Core i7-13700F - 16GB Memory - NVIDIA GeForce RTX 4070 12GB - 1TB SSD - Storm Grey
Model: 90UT000GUS
SKU: 6535024
This item is no longer available in new condition. See similar items below
- Key Specs
- Processor Model: Intel 13th Generation Core i7 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Dedicated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: NVIDIA GeForce RTX 4070 (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: Lenovo
- Model Number: 90UT000GUS
- Product Name: Legion Tower 5i Gaming Desktop - Intel Core i7-13700F - 16GB Memory - NVIDIA GeForce RTX 4070 12GB - 1TB SSD
- Color: Storm Grey
- Year of Release: 2023
- Processor
- Processor Brand: Intel
- Processor Model: Intel 13th Generation Core i7 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 13700F
- CPU Base Clock Frequency: 2.1 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The average rate at which the processor is able to execute tasks under normal operating conditions as asserted by the manufacturer.)
- CPU Boost Clock Frequency: 5.2 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The maximum rate at which the processor is able to execute tasks, typically only used for a short period of time as needed. This rate may temporarily boost the processor's performance, but may result in overheating, shutdown, or damage to equipment if sustained.)
- Number of CPU Cores: 16-core (A core, or "brain" of a CPU, allows it to receive and execute instructions. Each core can work independently or together to perform parallel operations.)
- Number of CPU Threads: 24 (Generally, the more threads, the faster and more responsive the operating system.)
- CPU Cache Memory Level: L2
- L2 Cache: 24 megabytes (Cache memory, also called CPU memory, is random-access memory (RAM) that a computer microprocessor can access more quickly than it can access regular RAM. This memory is typically integrated directly with the CPU chip or placed on a separate chip that has a separate bus interconnect with the CPU.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- Solid State Drive Capacity: 1000 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Solid State Drive Interface: NVMe (Connects the solid state drive to the host system. PCI and SATA interfaces are the most common; PCI interfaces are typically faster, but SATA interfaces are compatible with a wider range of systems.)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 5600 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 4
- System Memory RAM Expandable To: 64 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Type: Dedicated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: NVIDIA
- Graphics: NVIDIA GeForce RTX 4070 (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- GPU Base Clock Frequency: 1.92 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.48 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Compatibility
- Operating System: Windows 11 Home (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Operating System Architecture: 64-bit (An operating system (OS) manages computer hardware, software resources, and programs in conjunction with the system's processor. 64-bit operating systems can handle more data at once than 32-bit systems, resulting in faster speeds, more effiency, and overall improved performance.)
- Motherboard Form Factor: microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Motherboard Model Number: Intel Raptor Lake B660
- Connectivity
- Display Connector(s): 3 x DisplayPort 1.4, 1 x HDMI 2.1 (The number and type of connectors used to connect to an external display.)
- Number of HDMI Outputs (Total): 1
- Number of DisplayPort Outputs (Total): 3
- USB Ports: 4 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of USB Ports (Total): 9
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Ethernet Ports: 1
- Cooling
- CPU Cooling System: Air
- Power
- Power Supply Maximum Wattage: 500 watts
- Expansion
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 2
- Number Of PCI-E x4 Slots: 1
- Number Of PCI-E x16 Slots: 1
- Features
- Media Card Reader: false (A hardware device that allows for access to data on a memory card and enables the transfer of its files to a computer. These devices may have one or multiple slots for various types of memory cards, and may be integrated into the computer or available as an external device.)
- Audio Technology: High Definition (HD) Audio, Realtek ALC897-Q codec
- Enclosure Type: Full tower
- Size: Standard
- Dimensions
- Product Height: 16.77 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.07 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 30.8644 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- EPEAT Qualified: true (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria.)
- EPEAT Level: Silver (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria. Products are rated Bronze, Silver or Gold based on how many of 28 optional criteria they meet (below 50%, 50%, 75%).)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: true
- Mouse Included: true
- Wireless Keyboard: false
- Wireless Mouse: false
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year Limited
- Other
- UPC: 196804473901
Built for tomorrow’s gaming worlds, Legion Tower 5i delivers blazing-fast performance via 13thGen Intel Core desktop processors and NVIDIA GeForce RTX 40 Series graphics, deeply chilled with up to 180W air cooling that stays whisper-quiet. Balance your battle station looks with the command station function with an enmeshed front bezel for enhanced airflow and an optional toolless glass panel.
- Microsoft Windows 11 operating system: Windows 11 has all the power and security of Windows 10 with a redesigned and refreshed look. It also comes with new tools, sounds, and apps. Every detail has been considered. All of it comes together to bring you a refreshing experience on your PC.
- Copilot in Windows 11 - Get answers, inspiration, and summaries: Find the relevant information and ideas you need to power your own ingenuity. Copilot in Windows 11 can deliver answers that are more relevant to you.
- 13th Gen Intel Core i7-13700F processor: Powerful sixteen-core, twenty four-way processing performance. The Intel Turbo Boost technology delivers dynamic extra power when you need it, while increasing energy efficiency when you don't.
- NVIDIA RTX 4070 graphics: Backed by 12GB GDDR6 dedicated video memory for a fast, advanced GPU to fuel your games. NVIDIA optimizes the computer for both graphics performance and power conservation.
- 16GB system memory for intense multitasking and gaming: Reams of high-bandwidth DDR5 RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs all at once.
- 1TB solid state drive (SSD): While offering less storage space than a hard drive, a flash-based SSD has no moving parts, resulting in faster start-up times and data access, no noise, and reduced heat production and power draw.
- 4 USB 3.2 ports maximizes the latest high-speed devices: Also includes 1 USB C port and 4 USB 2.0 ports to connect more accessories and peripherals, plus sleep-and-charge support. The USB 3.2 port is backward-compatible with USB 2.0 devices (at 2.0 speeds).
- Wireless and wired network connectivity: Built-in high-speed wireless LAN connects to your network on the most common Wi-Fi standards. Gigabit Ethernet LAN port plugs into wired networks.
- Bluetooth interface syncs with compatible devices: Wirelessly transfer photos, music and other media between the desktop and your Bluetooth-enabled cell phone or MP3 player, or connect Bluetooth wireless accessories.
- Basic software package included: 1-month trial of Microsoft Office 365.
- Multidisplay capability: Connect the usual single monitor, or add a second monitor to double your viewing space for work and games. (Monitors sold separately.)
- Additional ports: Microphone and headphone jacks.
- Microsoft Windows 11 operating system: Windows 11 has all the power and security of Windows 10 with a redesigned and refreshed look. It also comes with new tools, sounds, and apps. Every detail has been considered. All of it comes together to bring you a refreshing experience on your PC.
- Copilot in Windows 11 - Get answers, inspiration, and summaries: Find the relevant information and ideas you need to power your own ingenuity. Copilot in Windows 11 can deliver answers that are more relevant to you.
- 13th Gen Intel Core i7-13700F processor: Powerful sixteen-core, twenty four-way processing performance. The Intel Turbo Boost technology delivers dynamic extra power when you need it, while increasing energy efficiency when you don't.
- NVIDIA RTX 4070 graphics: Backed by 12GB GDDR6 dedicated video memory for a fast, advanced GPU to fuel your games. NVIDIA optimizes the computer for both graphics performance and power conservation.
- 16GB system memory for intense multitasking and gaming: Reams of high-bandwidth DDR5 RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs all at once.
- 1TB solid state drive (SSD): While offering less storage space than a hard drive, a flash-based SSD has no moving parts, resulting in faster start-up times and data access, no noise, and reduced heat production and power draw.
- 4 USB 3.2 ports maximizes the latest high-speed devices: Also includes 1 USB C port and 4 USB 2.0 ports to connect more accessories and peripherals, plus sleep-and-charge support. The USB 3.2 port is backward-compatible with USB 2.0 devices (at 2.0 speeds).
- Wireless and wired network connectivity: Built-in high-speed wireless LAN connects to your network on the most common Wi-Fi standards. Gigabit Ethernet LAN port plugs into wired networks.
- Bluetooth interface syncs with compatible devices: Wirelessly transfer photos, music and other media between the desktop and your Bluetooth-enabled cell phone or MP3 player, or connect Bluetooth wireless accessories.
- Basic software package included: 1-month trial of Microsoft Office 365.
- Multidisplay capability: Connect the usual single monitor, or add a second monitor to double your viewing space for work and games. (Monitors sold separately.)
- Additional ports: Microphone and headphone jacks.
Whats Included
- Legion Tower 5i, Wired Keyboard, Wired Mouse, Power Cord, Quick Start User Manual
- Legion Tower 5i, Wired Keyboard, Wired Mouse, Power Cord, Quick Start User Manual
Q: How does upgrading the ram under warranty work? 16 is simply too low.
A: RAM can be upgraded up to 64GB of DDR5-4800 or DDR5-5600. This will not void the warranty unless damage occurs during the upgrade or because of the upgrade. I would recommend always keeping any components that may be removed during upgrades because if service ever needs to occur you'll need to have it be stock. It also could possibly help in troubleshooting if there is a future issue. I hope this helps.
Q: How many watts is the Power Supply Unit?
A: It is a 500 psu. It is not enough for this build, and will need to be replaced.
Q: Is there a way to adjust the color of the LEDs?
A: Launch the Lenovo Vantage toolbar and click customize, but for some reason I can't adjust. change or turn off the GPU lighting. Everything else works fine.
Q: does the motherboard have a two slots for ssd?
A: Two M.2 Slots (one of slots is already occupied with the 1TB reading Legion on it), and One 2.5 SSD Slot. Also behind the Power supply is a 3.5 Bay that seats two. I uploaded two pictures showing the bays. Below the GPU Card is where I install a second M.2 2TB.
Q: does the 16gb of ram on this machine come in 2 sticks of 8gb each, or just 1 stick of 16gb
A: 2 sticks of 8
Q: Can the power supply be replaced? And if so what should the size of the power supply be?
A: I just recently replaced the stocked 500w with a CORSAIR - RMx Series RM1000x 80 PLUS Gold Fully Modular ATX Power Supply. Note: Because of the new power supply length I had to remove the 3.5 HD chassis. I added two pictures showing the original vs the new Corsair.
A: Yes, RAM can be upgraded in this PC up to 64GB of DDR5-4800 or DDR5-5600.
Q: What is the motherboard used? Is the memory only expandable up to 64GB?
A: Lenovo IB660ML motherboard
