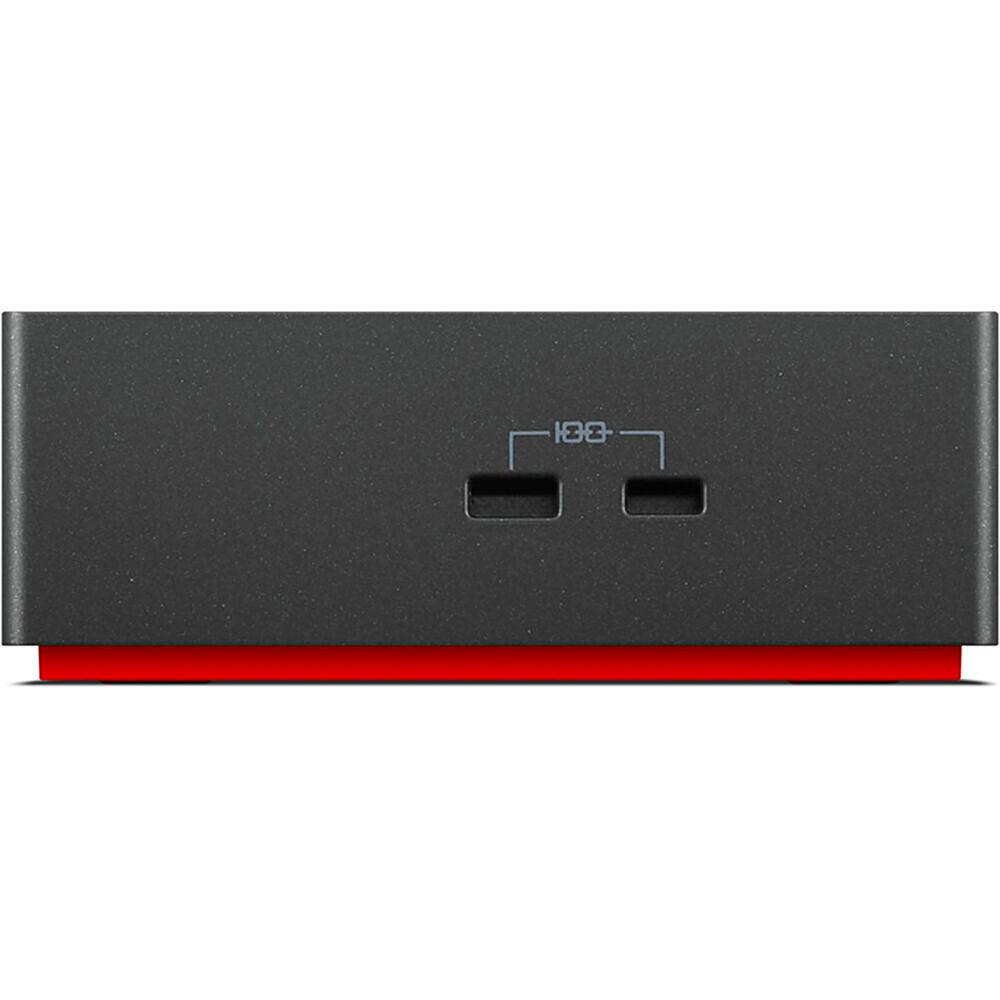

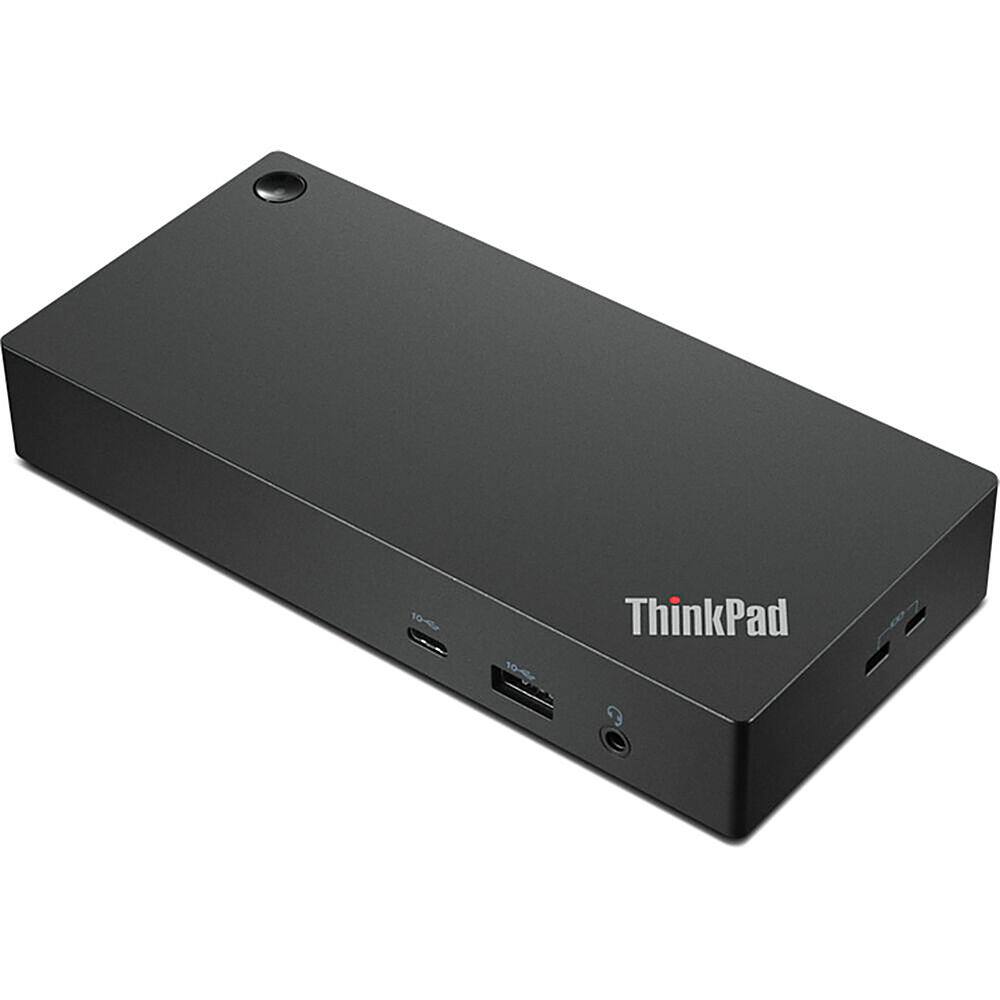

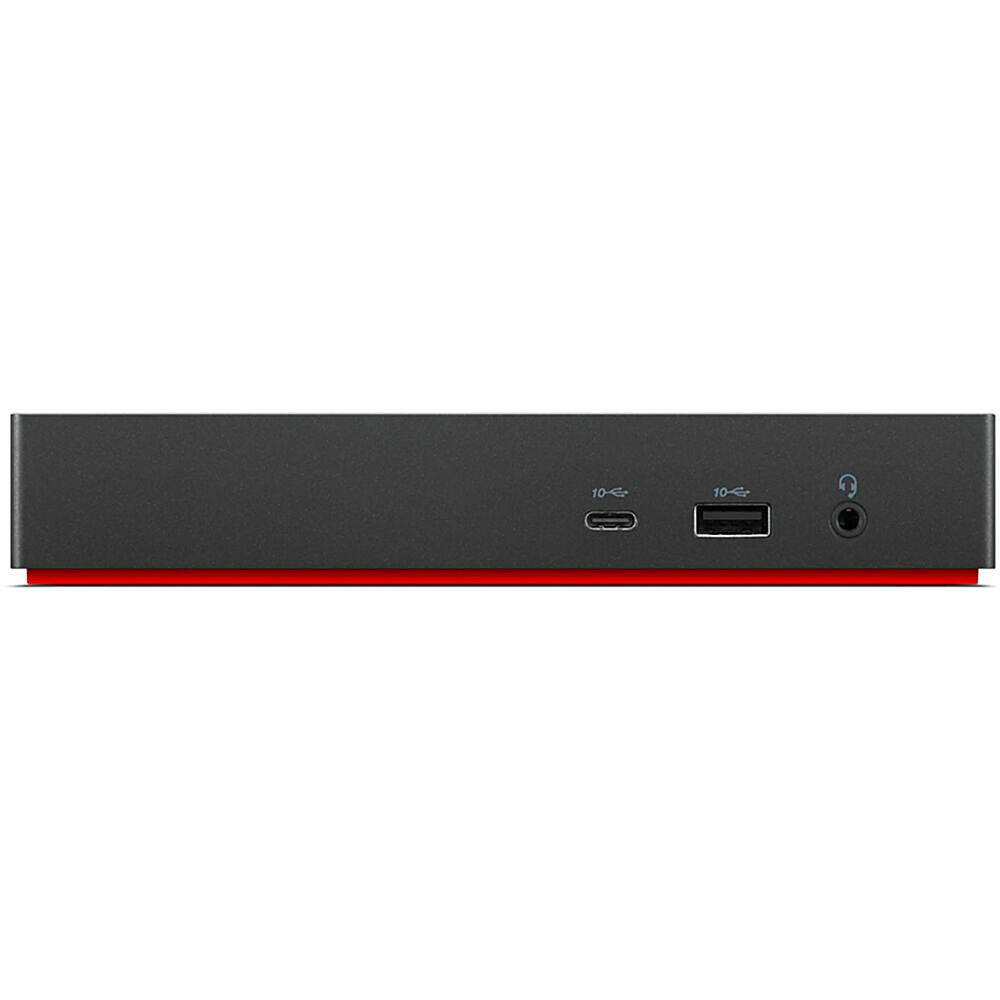

Lenovo - ThinkPad Universal USB-C Smart Docking Station - Black
FREE shipping to
More Buying Options
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 2
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Lenovo
- Model Number: 40B20135US
- Product Name: ThinkPad Universal USB-C Smart Docking Station
- Color: Black
- Display
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports

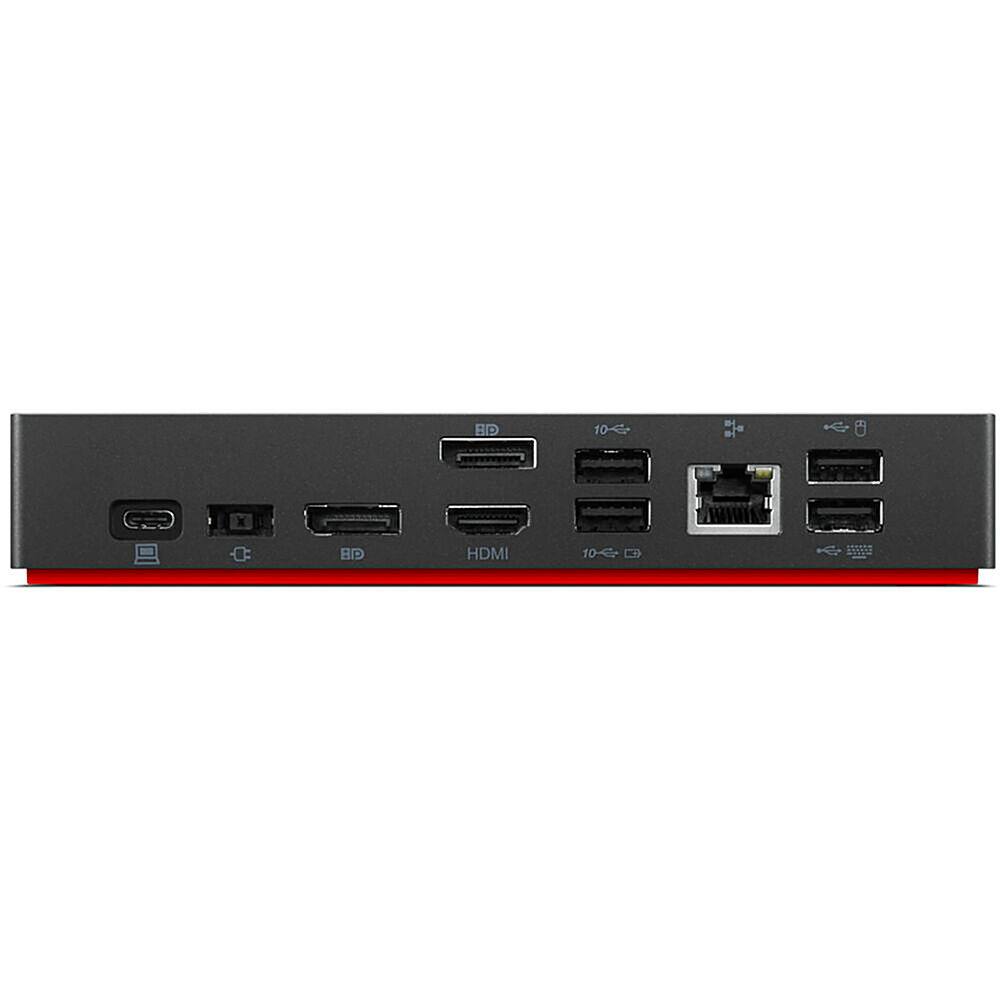

- Display Connector(s): 2 x DisplayPort, 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 5
- USB Ports: 2 x USB-A, 3 x USB-A 3.1 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Included: true
- Cable Length: 1 feet
- Power Supply Input: Ultra-Fit
- Maximum Input Power: 135 watts (The maximum amount of power allowed to come into the device.)
- Maximum Input Voltage: 20 volts
- Maximum Input Amperage: 6.75 amperes (The maximum amount of amperage allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: Ultra-Fit (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 96 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- System Requirements: Windows 11, Windows 10, Windows 7 (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Lenovo ThinkPad
- Model Compatibility: Thunderbolt 3 and 4, USB 4 and USB-C
- Dimensions
- Product Height: 1.21 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.14 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.73 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.85 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited Warranty
- Other
- UPC: 195477286917
Designed to enhance everyday productivity, the Lenovo ThinkPad Universal USB-C Smart Dock is at the cutting edge of our new series of docks offering a smarter way to work. A bridge to a more intelligent future, the dock features a rich array of data, display, and power ports, including universal USB-C compatibility, while driving incredible performance for commercial users and a secure cloud-based management solution for IT managers. And it’s all powered by Microsoft Azure Sphere.
- Connection: USB-C for Device connect
- Ports/connectors: Audio Ports,Charging Port,USB Ports,Video Ports,Ethernet
- Design: Universal USB-C Smart Dock
- Other features: Expand your creative potential with access to multiple 4K monitors, and blazing-fast data transfers with USB-C and USB-A.
- Functionality/technology: Transfer data, Stream up to 4K
- Compatibility: Lenovo ThinkPad Thunderbolt 3 and 4, USB 4 and USB-C
Whats Included
- ThinkPad Universal USB-C Smart Dock
- 135W Power adapter and Power cord
- 1m USB-C Docking Cable
- Warranty
Q: Can this docking station support tow monitors and what cables would be reqired
A: Hi, Harry. Yes, this docking station can support three external displays and features two DisplayPort ports and one HDMI port, so your display cables would need to align with these display port types.
A: Hello, Nino. If referencing the product specifications from the referenced computer's webpage on bestbuy.com (https://www.bestbuy.com/site/hp-envy-17-3-full-hd-touch-screen-laptop-intel-core-i7-16gb-memory-1tb-ssd-natural-silver/6535750.p?skuId=6535750) it should be compatible with your HP laptop.
Q: Lost the power supply cord where can I purchase a replacement?
A: Hey there, Yes, you purchase a replacement 135W AC Power adapter from Lenovo. Please feel free to reach out to us with any other questions!
Q: Does the item come with power cord and connector to connect to laptop
A: Hey, Yes, this ThinkPad Docking Station ships with a 135W AC Power adapter and its USB-C connector will plug into the connected PC. Please feel free to reach out to us with any other questions!
Q: Will this work for my Lenovo ThinkBook 15p Gen2 laptop?
A: Hello, JD. Yes, this universal dock is compatible with your ThinkBook. Here is a link to a Lenovo SmartFind webpage that shows your model listed as a compatible device, as well as a note regarding power delivery: https://smartfind.lenovo.com/accessories/#/products/40B20135US
Q: Is this product compatible with Legion s7 gaming laptop?
A: undefined
Q: Is this the Docking Station compatible with the Lenovo Thinkpad X13 2nd Generation laptop?
A: No. The Lenovo ThinkPad X13 2nd Gen Laptop, model number 20WK00JAUS, ships with 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) ports. You will want a universal docking station that is compatible with Thunderbolt 4.0, like this one: https://www.bestbuy.com/site/lenovo-thinkpad-universal-thunderbolt-4-docking-station-black/6492406.p?skuId=6492406
