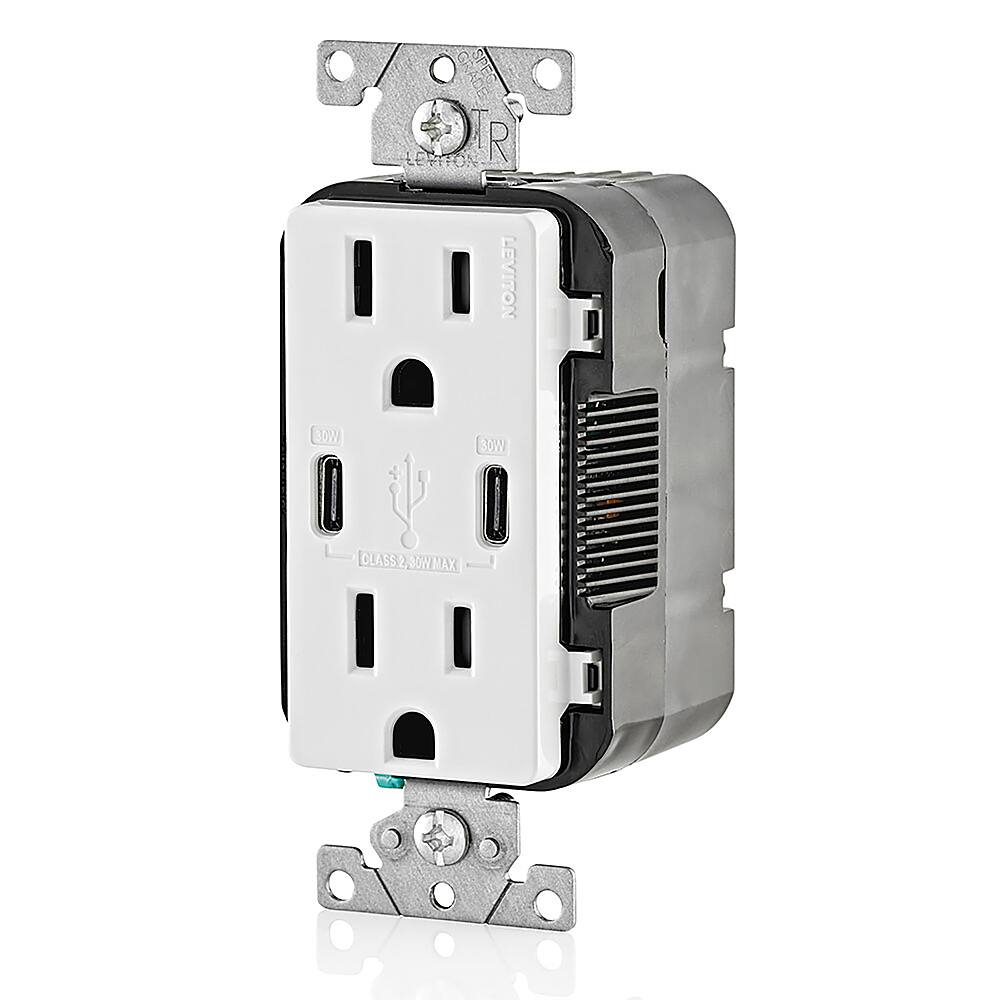

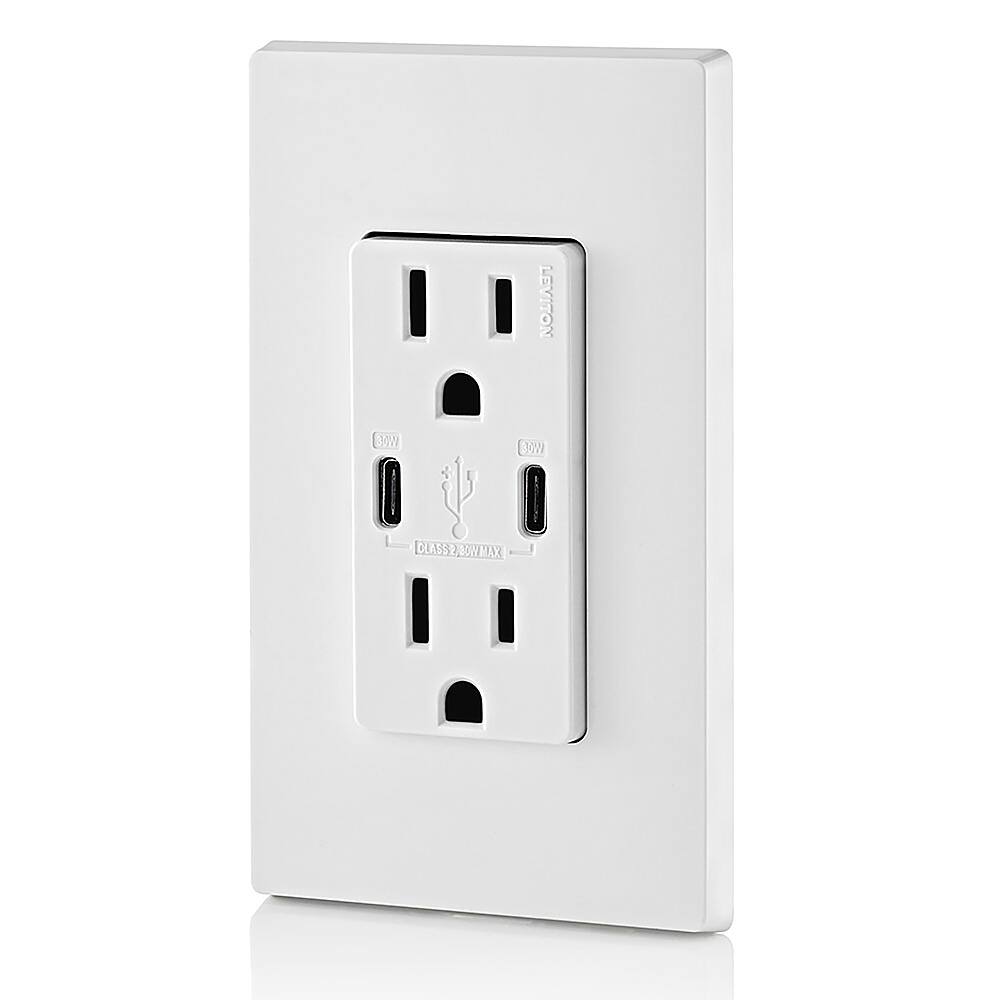

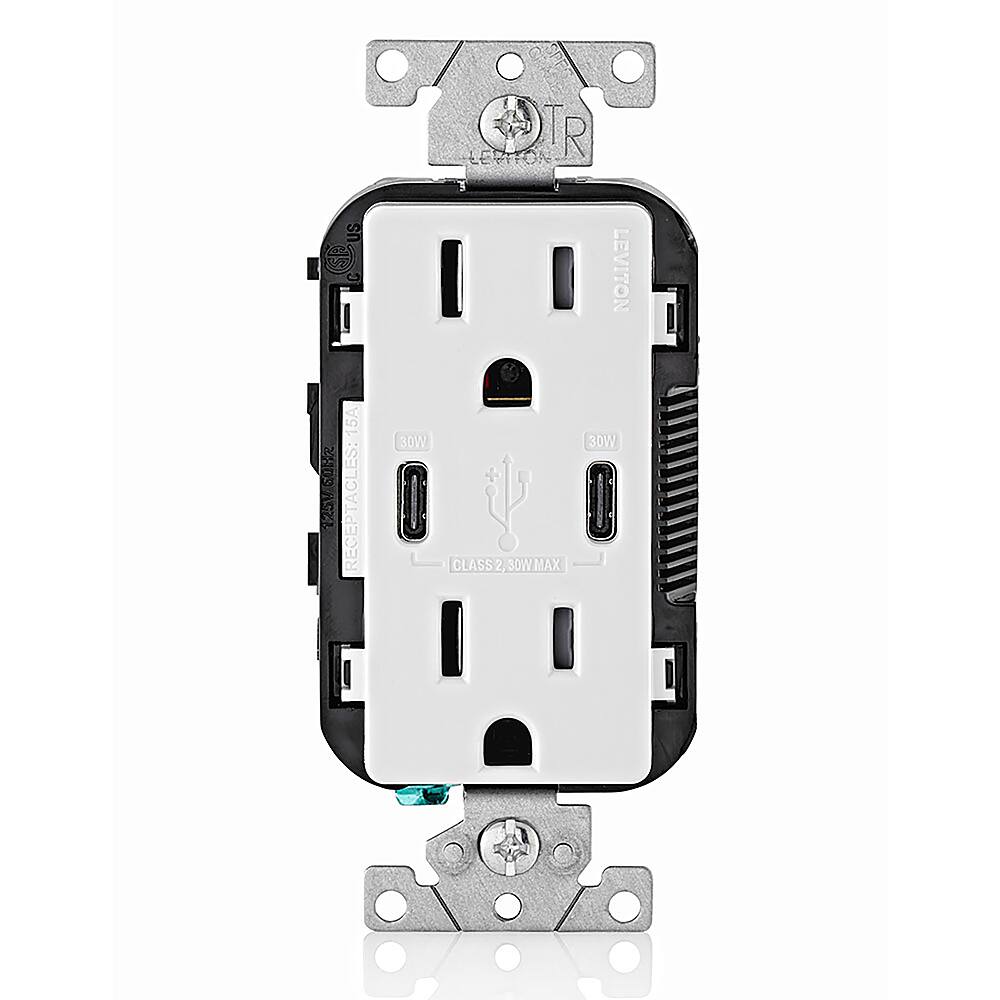

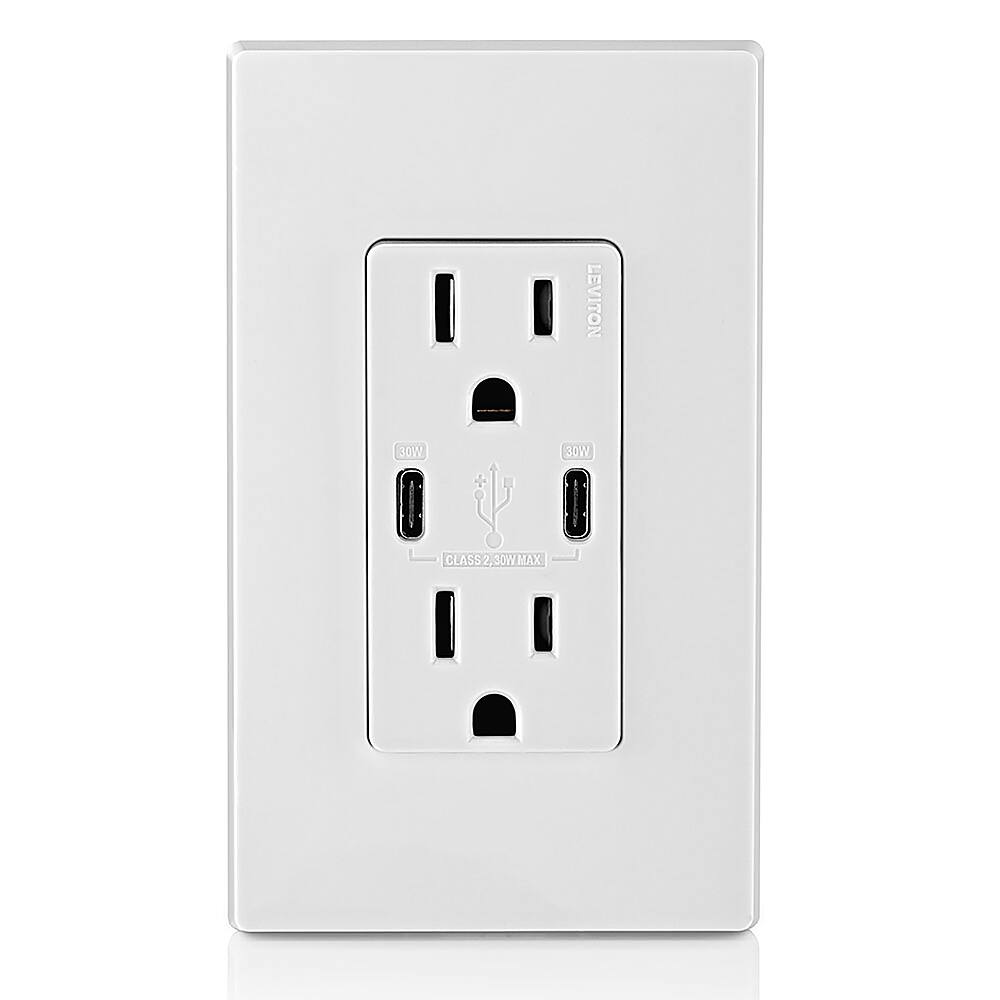

Leviton - 6A/30WT USB DUAL WALL CHARGER - White

Name: Leviton - 6A/30WT USB DUAL WALL CHARGER - White
Brand: Leviton
SKU: 6429549
Rating: 4.8 (35 reviews)

Model: T5635-R02-0BW

SKU: 6429549

This item is no longer available in new condition. See similar items below

Key Specs
- Amperage: 15 amperes (Strength of electrical current.)
General
- Brand: Leviton
- Model Number: T5635-R02-0BW
- Product Name: 6A/30WT USB DUAL WALL CHARGER
- Color: White
Power
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 6 volts (Amount of power needed to support an electrical current.)
- Outlet Type: Combo
- Number Of Outlets: 2
Dimensions
- Product Width: 1.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 1.4 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
Other
- UPC: 078477978573

6A/30WT Duplex Tamper-Resistant Outlets with USB C Dual Wall Chargers- White

Powerful: 30W charge on a single port; Up to 2 times the charging power with PD enabled devices
Innovative: USB Type C or USB C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
Enhanced Safety: Overcurrent protection helps protect electronic devices from over charging/heating and tamper resistant outlets prevent unwanted objects from being inserted into the outlets
Fast Charging: Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Convenient: No more searching for the charging adapter; plug directly into USB port for faster charging: Replaces in wall outlet with a USB
Wallplate Sold Separately: Plate Is NOT Included
Powerful: 30W charge on a single port; Up to 2 times the charging power with PD enabled devices
Innovative: USB Type C or USB C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
Enhanced Safety: Overcurrent protection helps protect electronic devices from over charging/heating and tamper resistant outlets prevent unwanted objects from being inserted into the outlets
Fast Charging: Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Convenient: No more searching for the charging adapter; plug directly into USB port for faster charging: Replaces in wall outlet with a USB
Wallplate Sold Separately: Plate Is NOT Included

Q: Does it have terminals to feed other outlets down the line?

A: Google "pigtail wiring" I installed it over a year ago and can't recall. It's been great for all devices including my laptop. Buying a second and came across your inquiry. I'm sure I made pigtails for this to feed power down line if it has line in only.

Q: I only see one set of screws for LINE but nothing for LOAD, specifically there is wiring going into this outlet and out of the outlet. Is there a version with four screws to wire correctly or how do I install?

A: Google "pigtail wiring"

Q: Is this outlet a gloss white or a satin finish?

A: undefined

Q: Does it include the Screwless Wall Plate shown in the pic? Thank you.

A: Nope, you'll need to pick that up separately.

Customers are saying

Customers are enthusiastic about the fast charging capabilities and compatibility with USB-C devices. The 6A/30WT USB Dual Wall Charger is praised for its ability to quickly charge devices and its convenience for modern devices that use USB-C ports. However, some customers have expressed concerns about the size of the charger, noting that it may not fit well in all electrical boxes.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Best way to add a USB-C plug
Sometimes those power bricks are just not working very well at places like kitchen countertops, bathrooms or maybe at your work desk - they stick out and can be easily knocked out of the outlet, they tend to block you from plugging in stuff you want... Or maybe you have little kids and not comfortable with them plugging in 120V device, but you can allow them to plug USB-C. This outlet is to the rescue! Not only you get 2 standard 125V 15A tamper resistant (it's a code requirement since 2014) but also a 2 USB-C ports with Power Delivery (PD) capability! This allows you to charge devices like phones or tablets at a high speed, much faster than included with some phones white 5W brick. Outlet features 2 USB-C ports, however pay attention at what you plug in - you only get full 30W of power if just a single port is plugged in! It's capable of either 9V at 3A (27W) or 15V at 2A (30W), there is no 20V option (so it won't charge a MacBook for example but it will charge biggest iPad no problem). If both ports are plugged in - all you get is 5V and 3A so 15W per port max, no matter if your devices support Power Delivery. Installation is easy and is no different than any other receptacle, the only note - it's kinda thick and takes extra space in a box, so watch out for that - make sure it fits the box! It also won't work very well if you replacing a switch controlled outlet - you will either loose a switch control capability or will have to keep that switch on all the time. Overall I'm very satisfied with how outlet looks, reduces clutter and charges my iPad! Don't forget to pickup a decora wall plate, outlet does not come with one.
Posted 4 years ago by xKing
Rated 5 out of 5 stars
Two fewer chargers, one suped-up outlet!
Leviton - 6A/30WT USB DUAL WALL CHARGER - White Summary: Two fewer chargers, one suped-up outlet! Pros: * Features two 30 watts/ 6A USB-C ports. * Eliminates the need for two higher-power USB-C chargers. * You get to keep two outlets with unfettered access. Cons: * The enclosure is tight! Metal single gang boxes make for a tight fit with this unit. I was so concerned about inadvertent contact of the terminals, that I wrapped some electrical tape carefully around the exposure points. Note: The contacts are recessed and contact shouldn't happen, but if your box is warped, etc, it could happen. I just used some tape to be sure. * No included plate. I've tried other brands, and some feature included plates, others don't. This one doesn't. So just plan for that. Use: This might be the shortest review I've written. I turned off the breaker to my island. I tested for live voltage. I removed the plate for the existing outlet, I removed the outlet, I removed the wires. Then, I reversed steps to install his new outlet. 5 minutes later, it just works! It took a few hours to charge an iPad Pro from 0% to 100% which is on par with the dedicated larger power bricks (hubs) I own, except without the need for a brick or yet another thing sticking out of the outlet. The distinguishing factor for this unit is this: 30W/6A This unit has enough juice to charge iPad Pros and smaller laptops. But not all laptops. For instance, my Lenovo work laptop will charge while plugged directly into this outlet, however, depending on my usage of the laptop the rate of discharge may exceed the rate of charging. This is because my laptop's USB-C charger is rated at 65 watts. If the laptop was off, this outlet would do the trick. All I need to do is continue replacing outlets in my home at strategic locations.
Posted 4 years ago by Rhostam
Rated 5 out of 5 stars
Convenient USB-C PD Outlet
This is a great little outlet upgrade to give you the latest USB-C outlets, but also provide PD (power delivery) for devices such as laptops. I typically use it for fast charging devices such as my iPhone and Kindle Fire tablet, and dual-15W ports it can fast charge 2 devices simultaneously. Just a word of caution here if you are planning to use it for PD, you only get the 30w output when only using one of the outlets (and I mean you cannot even have anything plugged into the other). If you are getting an electrician to install this it will fit in a regular out, but just a word of warning if like me you are happy to do simple outlet replacements - the back of the outlet is deep (see photo for size comparison with a 9v battery). In my case this means that I just had to be more 'economical' than usual with the wiring in the wall box and it took some careful positioning when I completed the install. I received this item at no cost as part of the technical evaluation program, but all opinions here are my own (in fact I already purchased 2 additional to replace other outlets)
Posted 4 years ago by DickieUK
