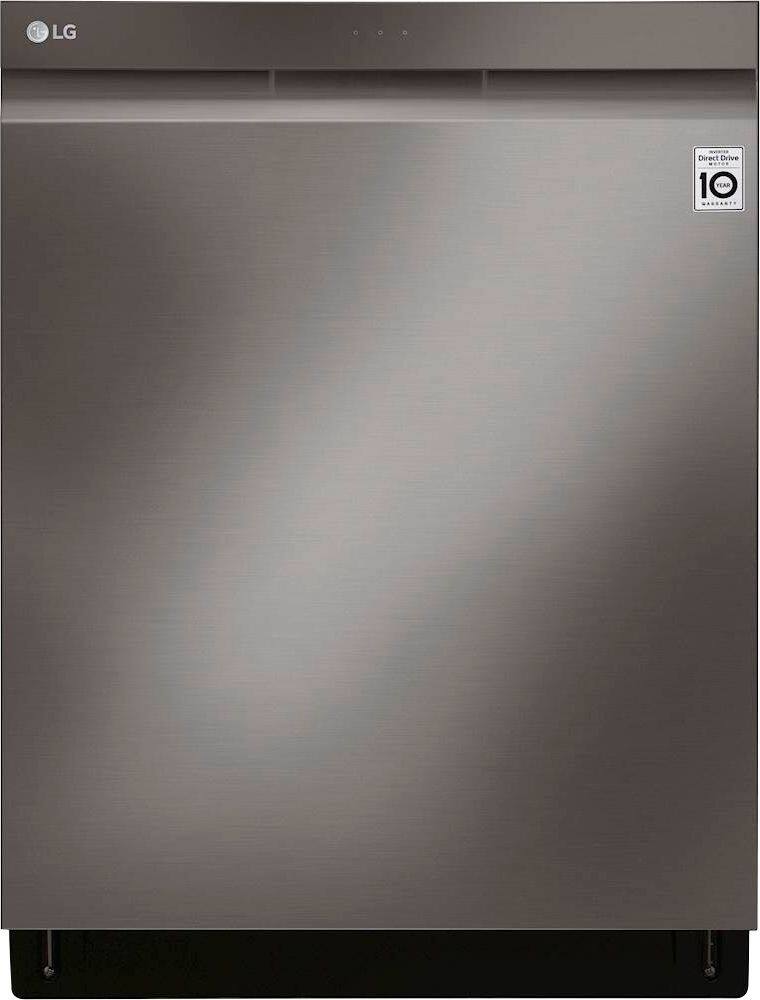

LG - 24" Top Control Built-In Dishwasher with TrueSteam and Third Rack - Black Stainless Steel

Model: LDP6809BD
SKU: 6333075
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Black stainless steel
    • Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
    • Number Of Racks: 3
    • Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
    • Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
  • General
    • Brand: LG
    • Model Number: LDP6809BD
    • Product Name: 24" Top Control Built-In Dishwasher with TrueSteam and Third Rack
    • Color: Black Stainless Steel
    • Color Finish: Black stainless steel
  • Dimensions
    • Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Depth Without Handle: 24 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 24 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Depth With Door Open: 50 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
    • Product Weight: 84.7 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 33 5/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Features
    • Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
    • Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
    • Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
    • Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
    • End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
    • Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
    • Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
    • Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
    • Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
    • Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
  • Cycle Specifications
    • Number of Cycles: 10 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
    • Dishwasher Cycles: Auto, Heavy, Delicate, Refresh, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express
    • Options and Programs: Dual Zone, Half Load, Energy Saver, Steam, High Temp, Extra Dry, Delay Start, Control Lock, Night Dry
    • Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
    • Steam Cleaning: true (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
    • Steam Pre-Wash: true (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
    • NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
    • Water Consumption Per Cycle: 2.8 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
  • Rack Features
    • Number Of Racks: 3
    • Third Rack Features: Glide rail, Removable, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
    • Upper Rack Features: Adjustable height, Adjustable tines, Ball-tipped tines, Cup clips, Cup shelf, Glide rail, Rack handle, Removable (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
    • Lower Rack Features: Adjustable tines, Ball-tipped tines, Removable, Removable silverware basket, Silverware basket, Stemware holders (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
    • Rack Material: Nylon
  • Design
    • Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
    • Dishwasher Type: Built-in dishwashers
    • Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
    • Control Type: Touchpad
    • Control Location: Top control
    • Handle Type: Pocket handle
    • Fingerprint Resistant: true
    • Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
  • Included
    • Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
  • Electrical Specification
    • Estimated Annual Electricity Use: 258 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
    • Estimated Annual Operating Cost: 34 United States dollars (Predicted cost of operating the product under average conditions for one year.)
    • Amperage: 15 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
    • Wattage: 258 watts (Measurement of electrical power.)
  • Certifications Listings & Approvals
    • ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
  • Compatibility
    • Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
  • Other
    • UPC: 048231341158

Post-dinner party cleanup? Let your LG dishwasher do the heavy lifting. LG QuadWash provides maximum cleaning coverage, making it easier to get your dishes clean, and with TrueSteam technology, you get up to 60% less water spots.The third rack gives you more space to fit everything from long flatware to oversize cooking utensils.

  • Dynamic Dry Enhanced with TrueSteam: Heat generated during the final rinse combined with the cooler walls of the tub turn moist air into water droplets that drain away. Dishes dry without using extra energy or extending drying cycles.
  • QuadWash technology: The dishwasher power-cleans dishes from multiple angles for a spotless clean look the first time.
  • LG ThinQ technology: Elevate the power and functionality of your dishwasher to meet your lifestyle. Now, you can monitor the cycle time from your smartphone or get an alert when dishes are clean so the kids can unload the dishwasher before you get home.
  • Wi-Fi enabled: Check on the status of your dishwasher from anywhere using the LG ThinQ app on your smartphone. It even works with your connected Google Assistant.
  • PrintProof finish: Resists fingerprints and smudges to keep your kitchen looking its best. Now, you can have all of the things you love about stainless steel appliances - the premium look, professional-grade durability - without the need for special cleaners or constant attention.
  • LG black stainless steel: Elevates your kitchen with a satin-smooth, warm and sophisticated finish unlike any other.
  • Top control panel with LED display: Makes it easy to select the settings you want, while the LED display provides every detail at a glance.
  • Pocket-style handle: Ensures easy grasping.
  • LoDecibel operation (44dB): Run the dishwasher whenever you want with whisper-quiet operation.
  • Third rack: Gives you more space to fit everything from long flatware to oversize cooking utensils, including spatulas, spoons, tongs, and more.
  • 15-place setting capacity: Provides ample space to accommodate lots of dishes and stemware in a variety of sizes.
  • TrueSteam technology: Two powerful blasts of steam dissolve tough caked-on food and reduce water spots during drying.
  • Dual zone technology: Automatically varies the intensity in the upper and lower racks, accommodating different items in the same load.
  • ENERGY STAR rated: It is one of the most energy-efficient dishwashers in its class.
  • Hybrid Condensing Drying system: Safe and gentle, it gives you dry dishes right out of the dishwasher.
  • 3-stage filter system: LG's advanced filtration system is tough on food residue and dirty dishes even if you don't prewash. Its advanced design makes it extremely efficient and quiet.
  • Auto Cycle mode: Automatically senses the level of dirt on your dishes and sets the wash cycle, so your dishes get optimal cleaning every time.
  • Half Wash mode: Saves water and energy by enabling users to wash only items in either the lower or upper rack.
  • 10-Year Warranty on Inverter Direct Drive Motor: LG's efficient Inverter Direct Drive motor has fewer moving parts and no belts for powerful cleaning that uses less energy and saves your money. It performs reliably and is backed by a 10-year limited warranty for added peace of mind.
  • Dynamic Dry Enhanced with TrueSteam: Heat generated during the final rinse combined with the cooler walls of the tub turn moist air into water droplets that drain away. Dishes dry without using extra energy or extending drying cycles.
  • QuadWash technology: The dishwasher power-cleans dishes from multiple angles for a spotless clean look the first time.
  • LG ThinQ technology: Elevate the power and functionality of your dishwasher to meet your lifestyle. Now, you can monitor the cycle time from your smartphone or get an alert when dishes are clean so the kids can unload the dishwasher before you get home.
  • Wi-Fi enabled: Check on the status of your dishwasher from anywhere using the LG ThinQ app on your smartphone. It even works with your connected Google Assistant.
  • PrintProof finish: Resists fingerprints and smudges to keep your kitchen looking its best. Now, you can have all of the things you love about stainless steel appliances - the premium look, professional-grade durability - without the need for special cleaners or constant attention.
  • LG black stainless steel: Elevates your kitchen with a satin-smooth, warm and sophisticated finish unlike any other.
  • Top control panel with LED display: Makes it easy to select the settings you want, while the LED display provides every detail at a glance.
  • Pocket-style handle: Ensures easy grasping.
  • LoDecibel operation (44dB): Run the dishwasher whenever you want with whisper-quiet operation.
  • Third rack: Gives you more space to fit everything from long flatware to oversize cooking utensils, including spatulas, spoons, tongs, and more.
  • 15-place setting capacity: Provides ample space to accommodate lots of dishes and stemware in a variety of sizes.
  • TrueSteam technology: Two powerful blasts of steam dissolve tough caked-on food and reduce water spots during drying.
  • Dual zone technology: Automatically varies the intensity in the upper and lower racks, accommodating different items in the same load.
  • ENERGY STAR rated: It is one of the most energy-efficient dishwashers in its class.
  • Hybrid Condensing Drying system: Safe and gentle, it gives you dry dishes right out of the dishwasher.
  • 3-stage filter system: LG's advanced filtration system is tough on food residue and dirty dishes even if you don't prewash. Its advanced design makes it extremely efficient and quiet.
  • Auto Cycle mode: Automatically senses the level of dirt on your dishes and sets the wash cycle, so your dishes get optimal cleaning every time.
  • Half Wash mode: Saves water and energy by enabling users to wash only items in either the lower or upper rack.
  • 10-Year Warranty on Inverter Direct Drive Motor: LG's efficient Inverter Direct Drive motor has fewer moving parts and no belts for powerful cleaning that uses less energy and saves your money. It performs reliably and is backed by a 10-year limited warranty for added peace of mind.
Whats Included
  • LG 24" Top Control Built-In Dishwasher with Stainless Steel Tub
  • Installation brackets x2
  • Wood screws x4
  • Hose clamp
  • Owner's manual
  • LG 24" Top Control Built-In Dishwasher with Stainless Steel Tub
  • Installation brackets x2
  • Wood screws x4
  • Hose clamp
  • Owner's manual
Documents
  • Energy_Guide_PDF
  • Energy_Guide_PDF

Q: My sound dampening pad fell out and I didn’t notice where it came from. Do you know where the sound dampening pad goes before you screw in the bottom front panel?

A: Hi Dave, I just installed mine yesterday and had the same question about this insulation piece as I could not remember exactly how it was installed. I believe that I figured it out and am including pictures of it installed. The area with multiple levels of cutouts fits over the water supply line area and the other end with just one large cutout fits in above the electrical junction box. On mine, this means that the side of the insulation pad with "NOISELITE" printed on it is facing outward (visible when installed), but the text is upside down. Hope this helps!

Q: Is this one has auto open door feature?

A: No, this unit does not have an auto-opening door. ^CP

Q: I just got this DW finally installed but I noticed the first time we used it the dishes were quite wet after the final (drying) cycle stops and turns off. Is this normal and how long should I keep door shut after it turns off before removing the dishes?

A: I also just bought this dishwasher. In the instructions it says this dishwasher requires Rinse Aide to dry dishes. My first couple washes without rinse aide were wet. After rinse aide they were much more dry. The rinse aide is put in next to were the soap goes.

Q: does this washer have the side brackets to mount to wood cabinets

A: Yes. There are removable plugs allowing you to screw through the sidewall into the cabinet face.

Q: Where di I find my Serial #?

A: open the door and look on the right side/edge towards the top of the door. I attached a picture for reference.

Q: HOW TO TURN OF CL CODE.IN THIS TYPE OF DISHWASHER. HOLDING ON THE START BUTTON SOMEHOW DOES NOT WORK TO TURN IT OFF. PLEASE HELP CANNOT START DISHWASHER BECAUSE OF THAT CL CODE... THANKS,

A: This is not an error code. This indicates that the Child Lock or Control Lock is activated. Press and hold HALF LOAD and ENERGY SAVER for three (3) seconds to deactivate Control Lock.

Q: Is the top rack removable?

A: Yes, the top rack for model LDP6810BD Top Control Smart Wi-Fi Enabled Dishwasher with QuadWash™ and TrueSteam is removable and adjustable. Please see the below link for specs and product overview for this model: https://www.lg.com/us/dishwashers/lg-ldp6810bd-top-control-dishwasher. ^Nikki
