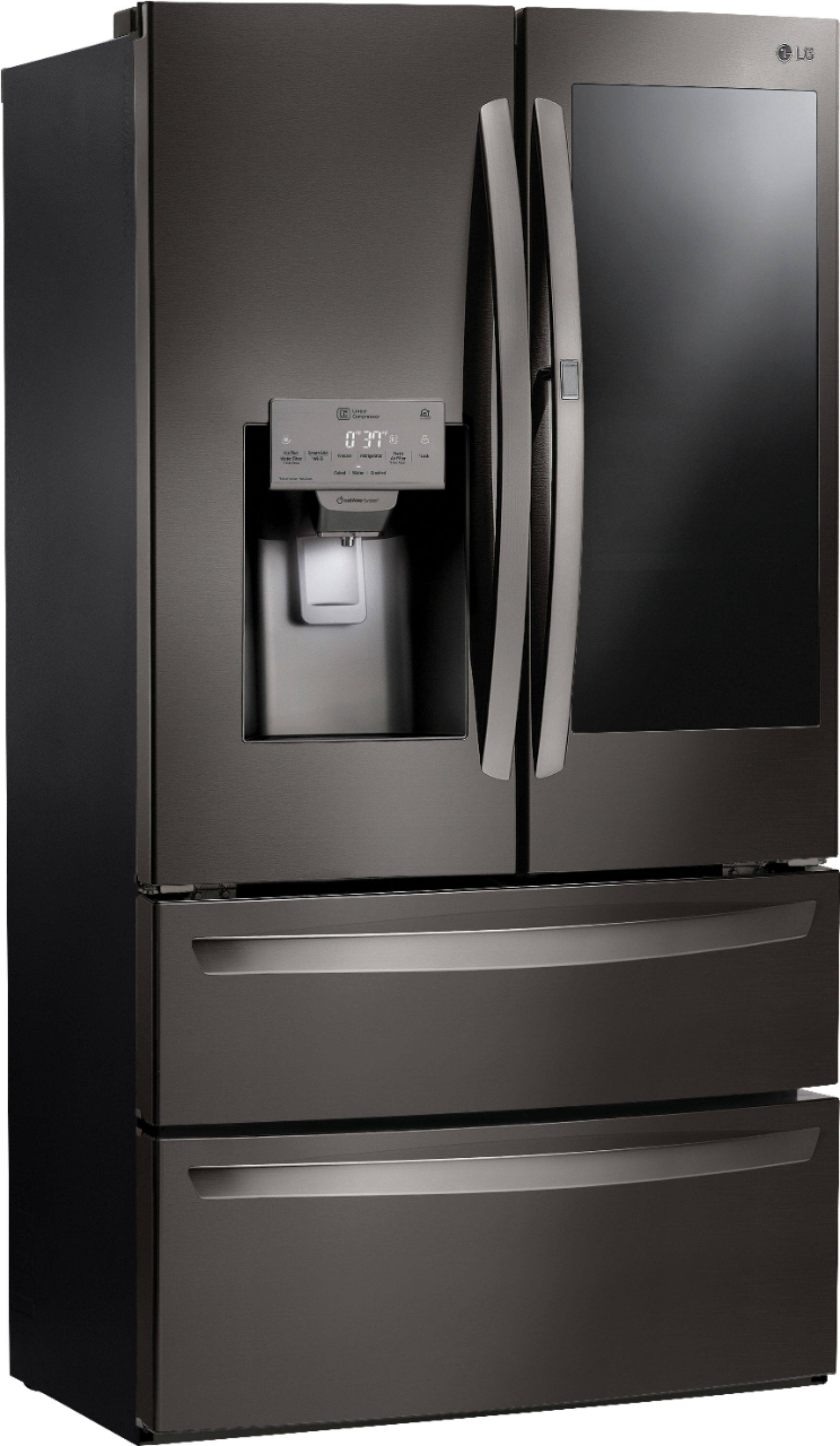

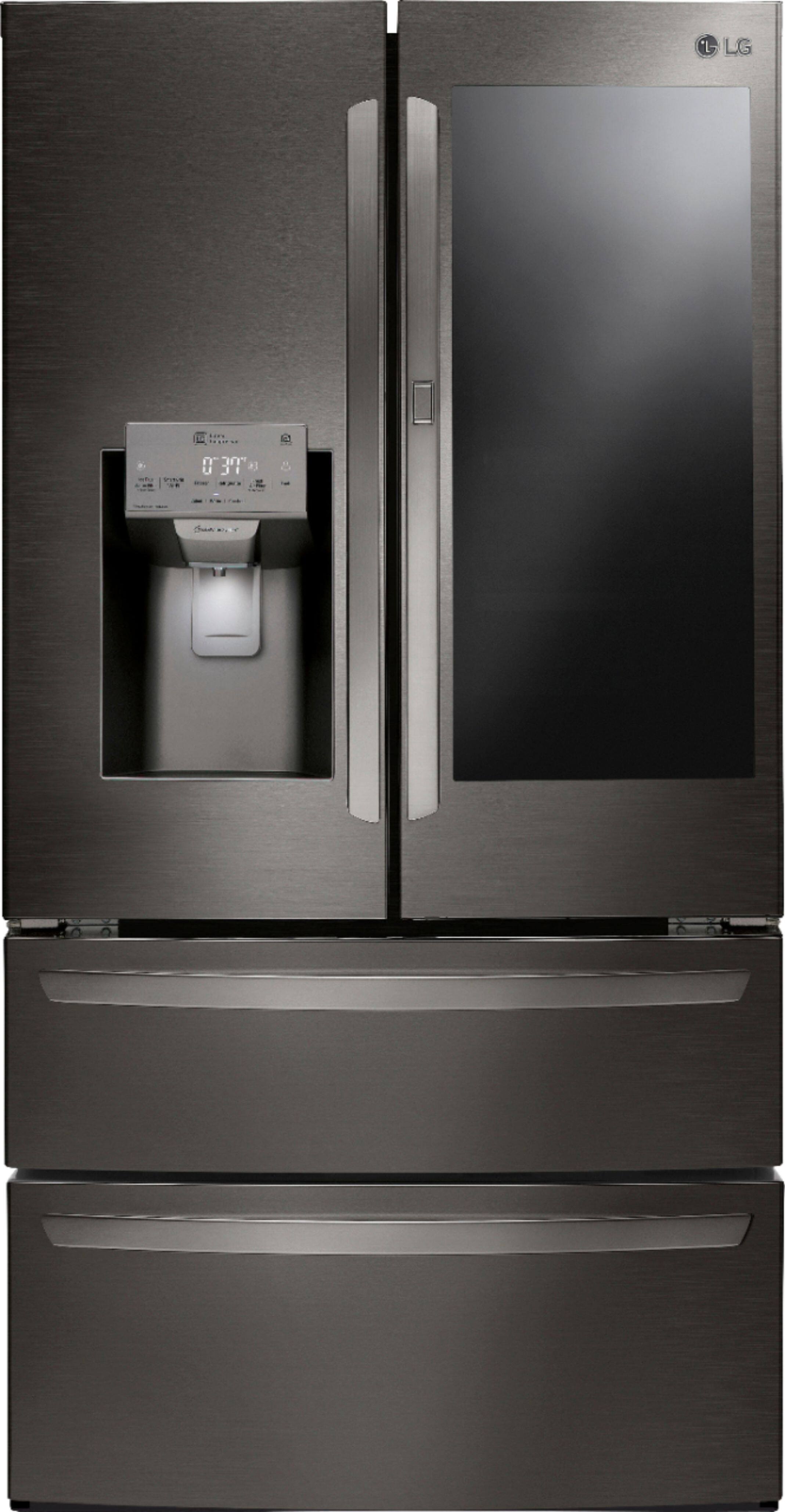

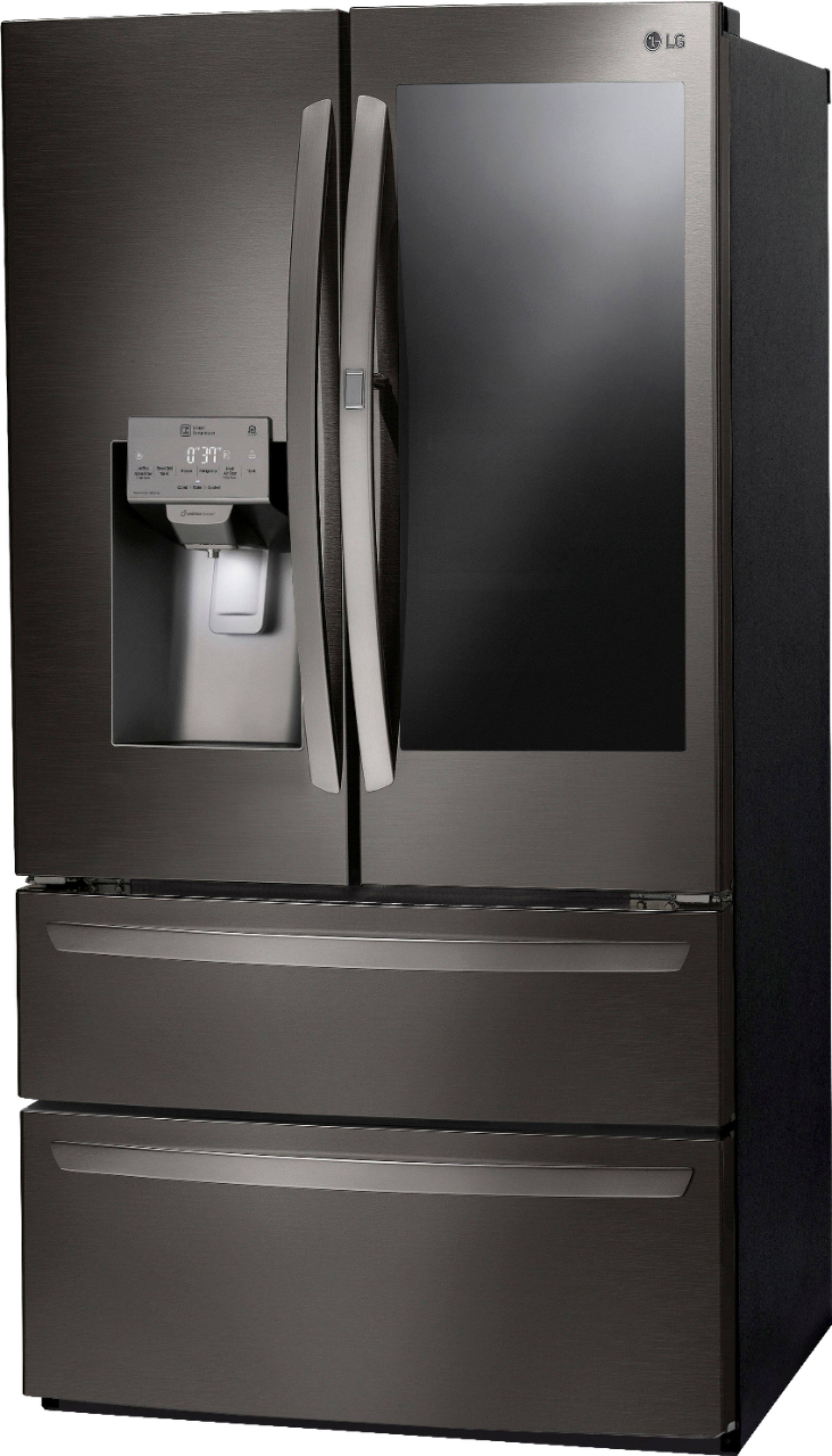

LG - 27.8 Cu. Ft. 4-Door French Door Smart Refrigerator with InstaView - Black Stainless Steel

Name: LG - 27.8 Cu. Ft. 4-Door French Door Smart Refrigerator with InstaView - Black Stainless Steel
Brand: LG
SKU: 6328451
Rating: 4.5 (703 reviews)

Model: LMXS28596D

SKU: 6328451

This item is no longer available in new condition. See similar items below

Key Specs
- Color Finish: Black stainless steel
- Product Height: 69 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 33 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 36 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 27.8 cubic feet
- Refrigerator Style: French Door, Four Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
General
- Brand: LG
- Model Number: LMXS28596D
- Product Name: 27.8 Cu. Ft. 4-Door French Door Smart Refrigerator with InstaView
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Side Panel Color: Black
Dimensions
- Product Height: 69 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 36 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 33 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 36 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 29 1/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 48 1/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 322 pounds (The out of box weight of the item.)
Cut-Out Dimensions
- Cut-Out Height: 70 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 38 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
Capacity
- Total Capacity: 27.8 cubic feet
- Refrigerator Capacity: 18.6 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 9.2 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door, Four Door

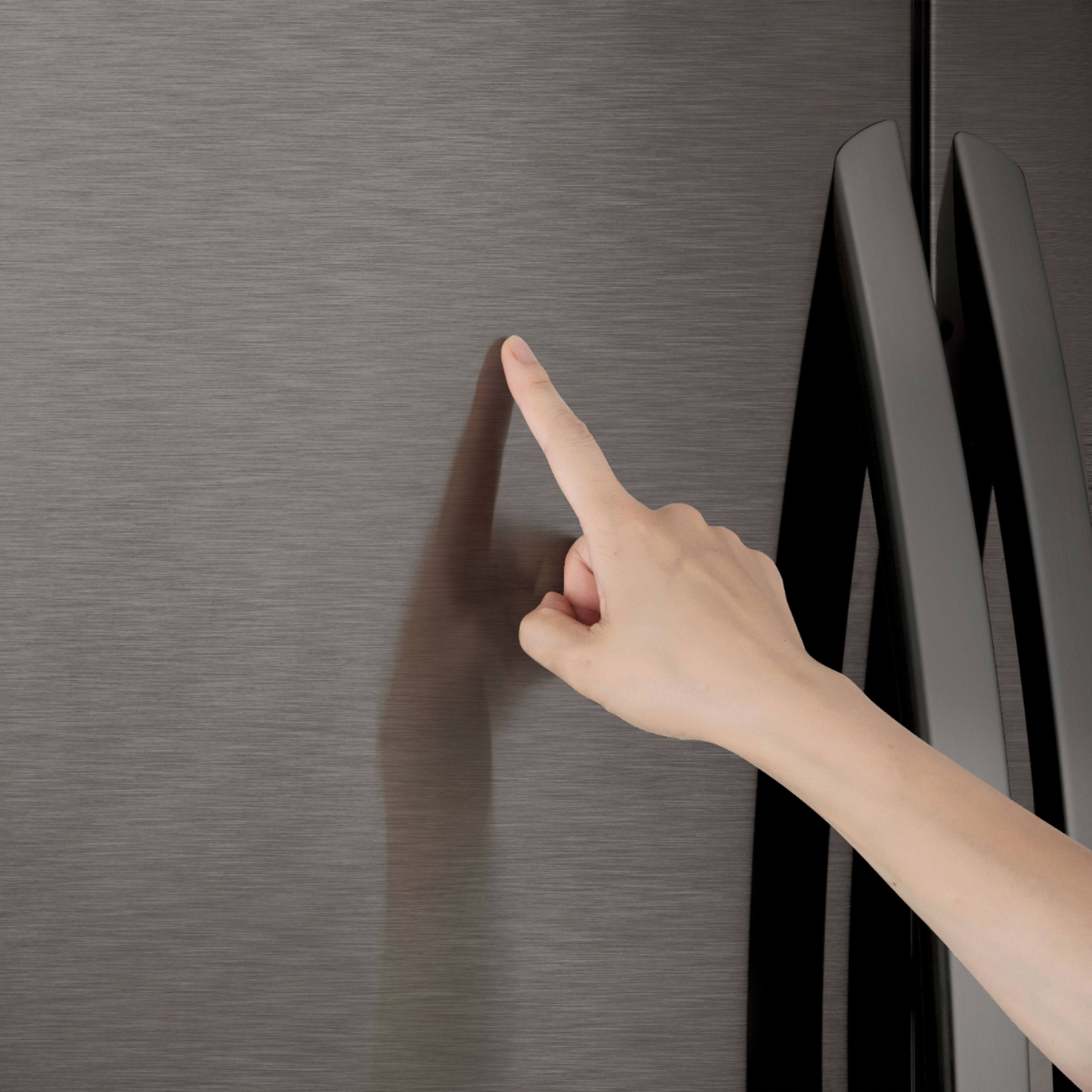

- Fingerprint Resistant: true
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: LED
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Refrigerator
- Ice Dispenser Ice Form: Crushed, Cubed
- Daily Ice Production: 3.8 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice Maker Ice Form: Cubed
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Dispensed Water Type: Cold Water
- Dispenser Features: Auto shut-off, Dispenser control lock-out, Dispenser light, Filtration replacement light, Tall
Storage
- Number of External Doors/Drawers: 4
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Fixed, Folding, Removable, Spill proof
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: false (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: false (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true

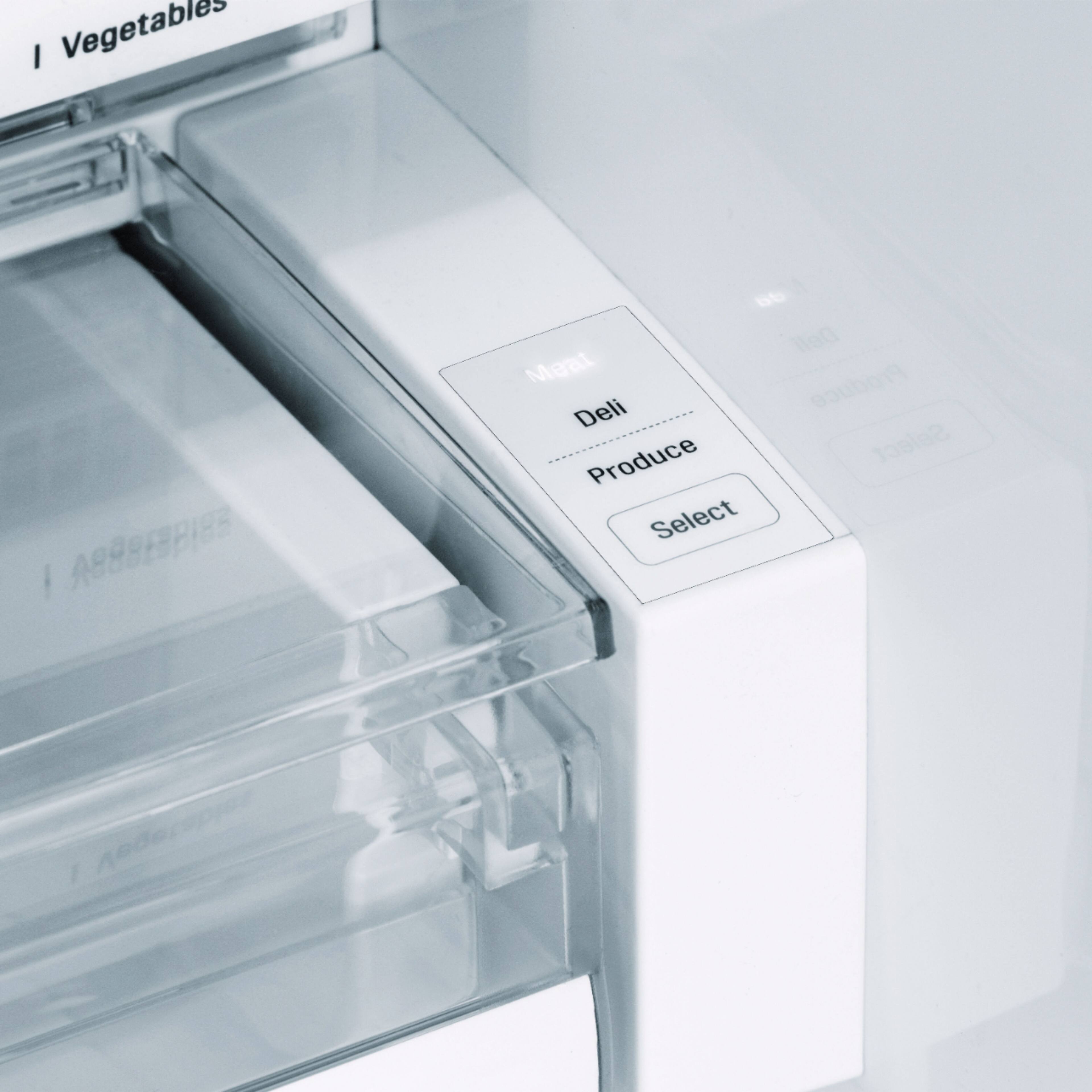

- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Other
- Freezer Interior Light: false
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
Filter Info
- Water Filtration: true
- Water Filter Model Number: LT1000P, LT1000PC (The water filter model(s) recommended for use with the product.)

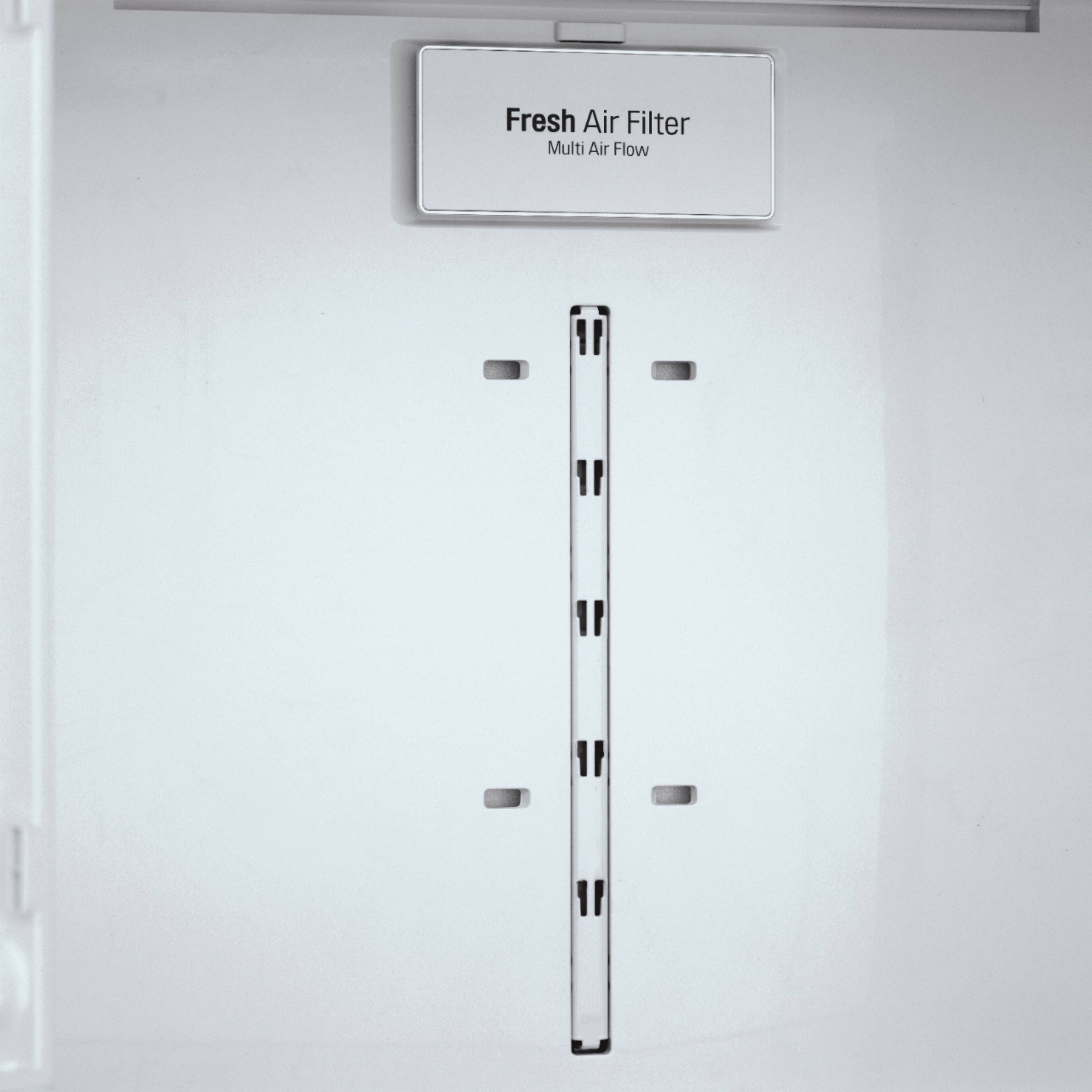

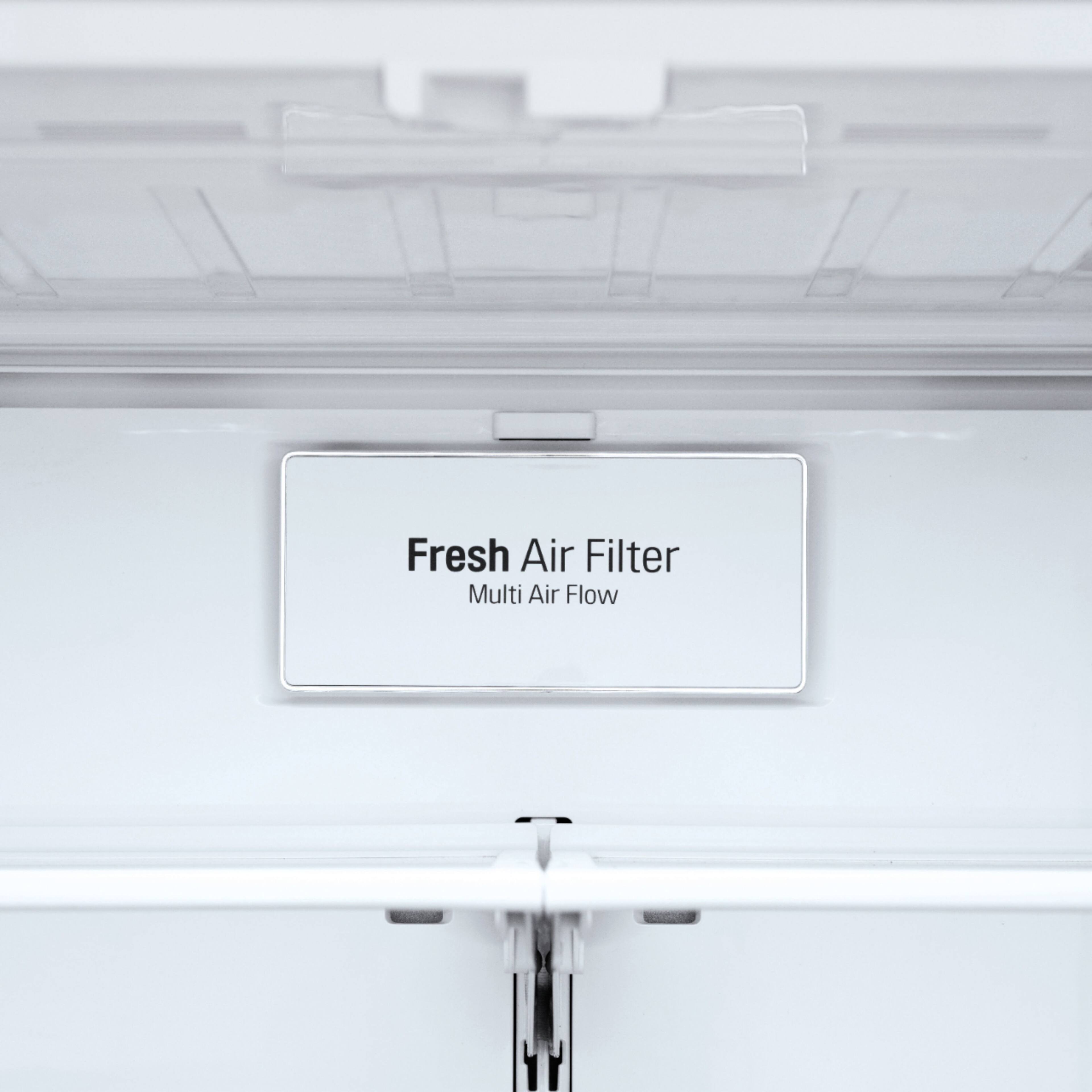

- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: LT120F (The air filter model(s) recommended for use with the product.)
Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 760 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 91 United States dollars (Predicted cost of operating the product under average conditions for one year.)
Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Chemical Disclosures: This product does not contain PFAS. For more information about PFAS chemicals in this product, visit https://www.lg.com/us/cookware-chemical-compliance-information. Este product no contiene PFAS. Para más información sobre químicas PFAS en este producto, visite https://www.lg.com/us/cookware-chemical-compliance-information. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
Other
- UPC: 048231803595

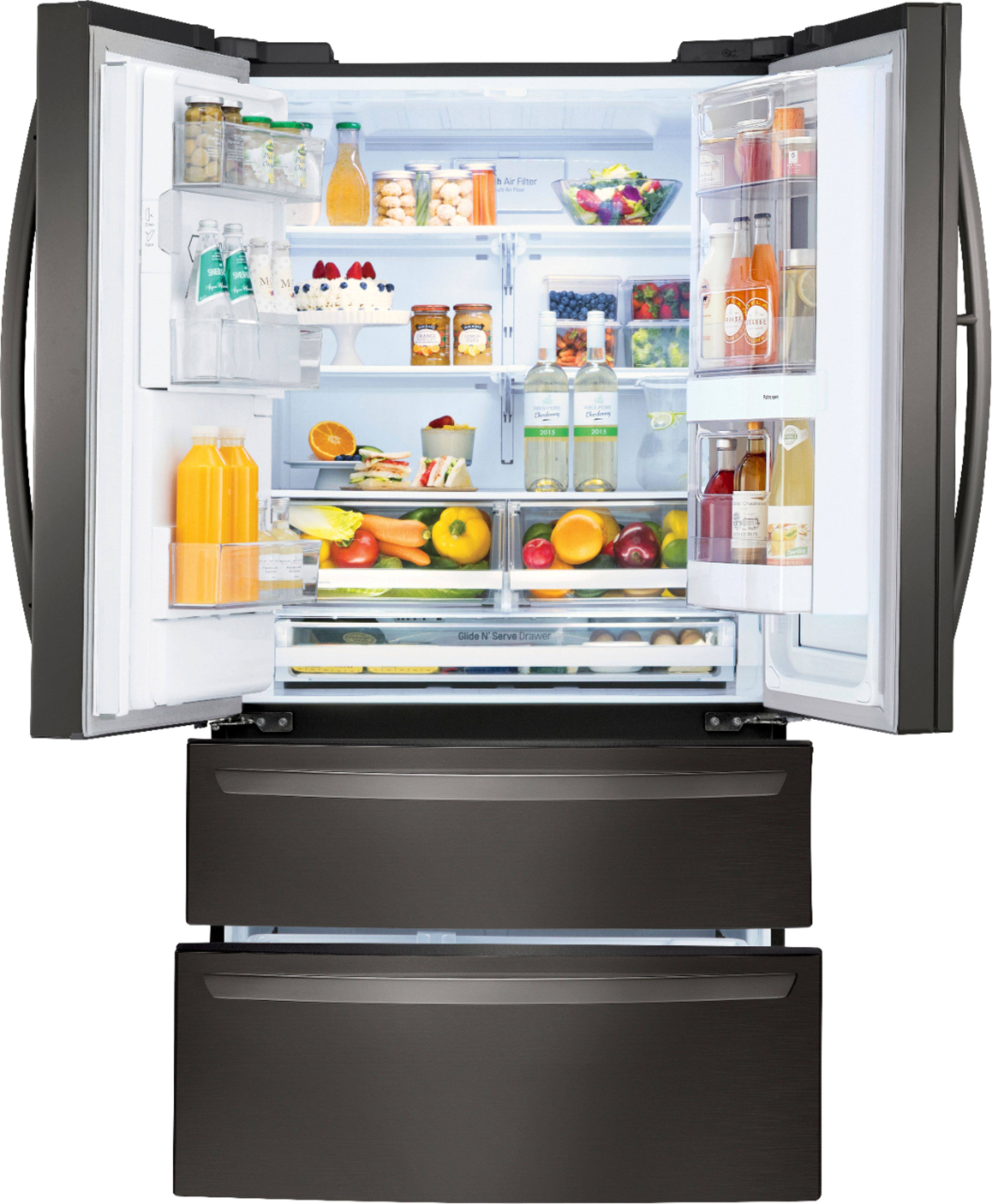

Search for food more efficiently with this LG French door refrigerator. The InstaView feature lets you see food through a glass window to reduce energy waste, and it has 28.0 cu. ft. of storage, so you have plenty of space. This LG French door refrigerator has a freezer with drawers for tidy food organization.

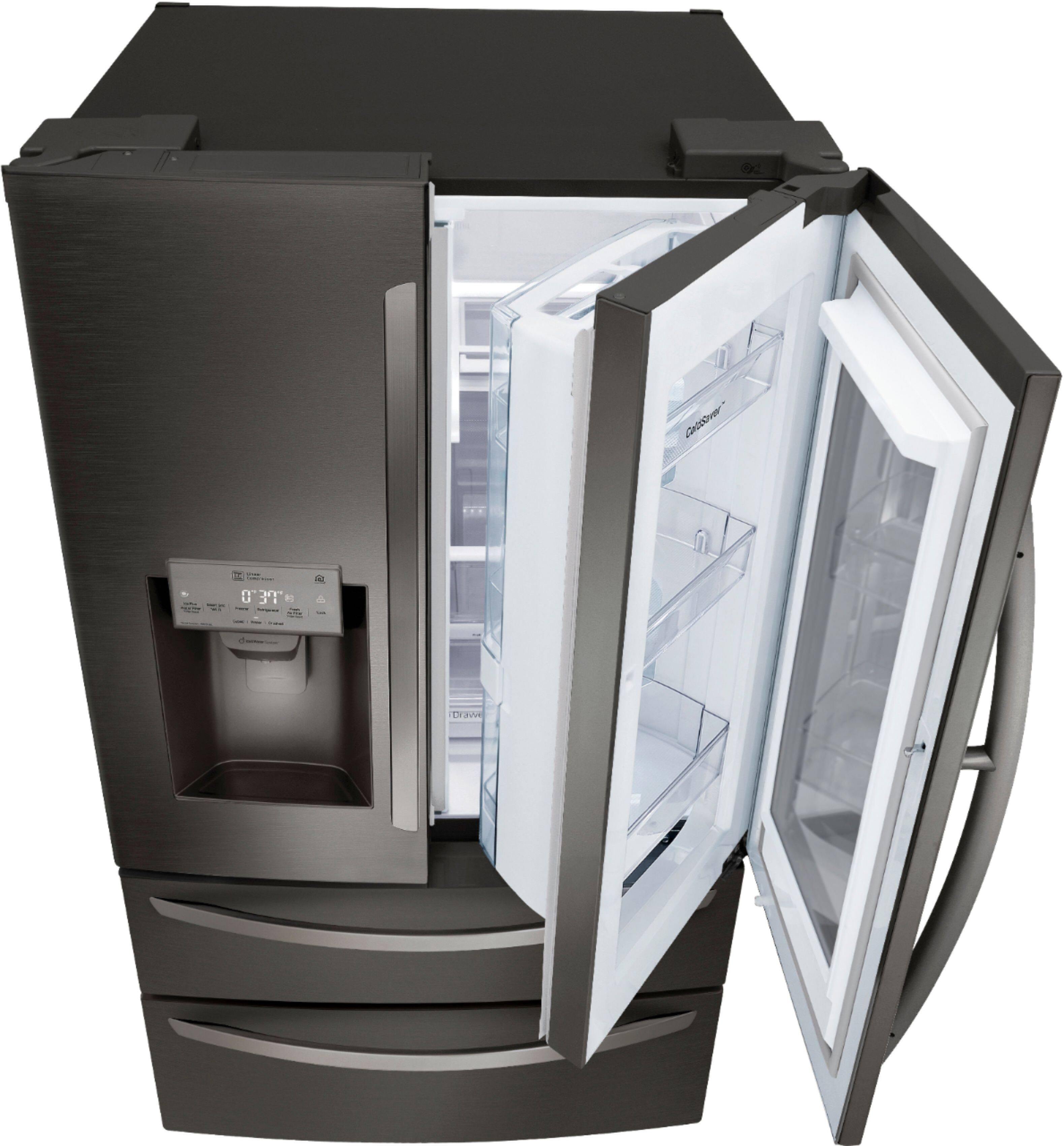

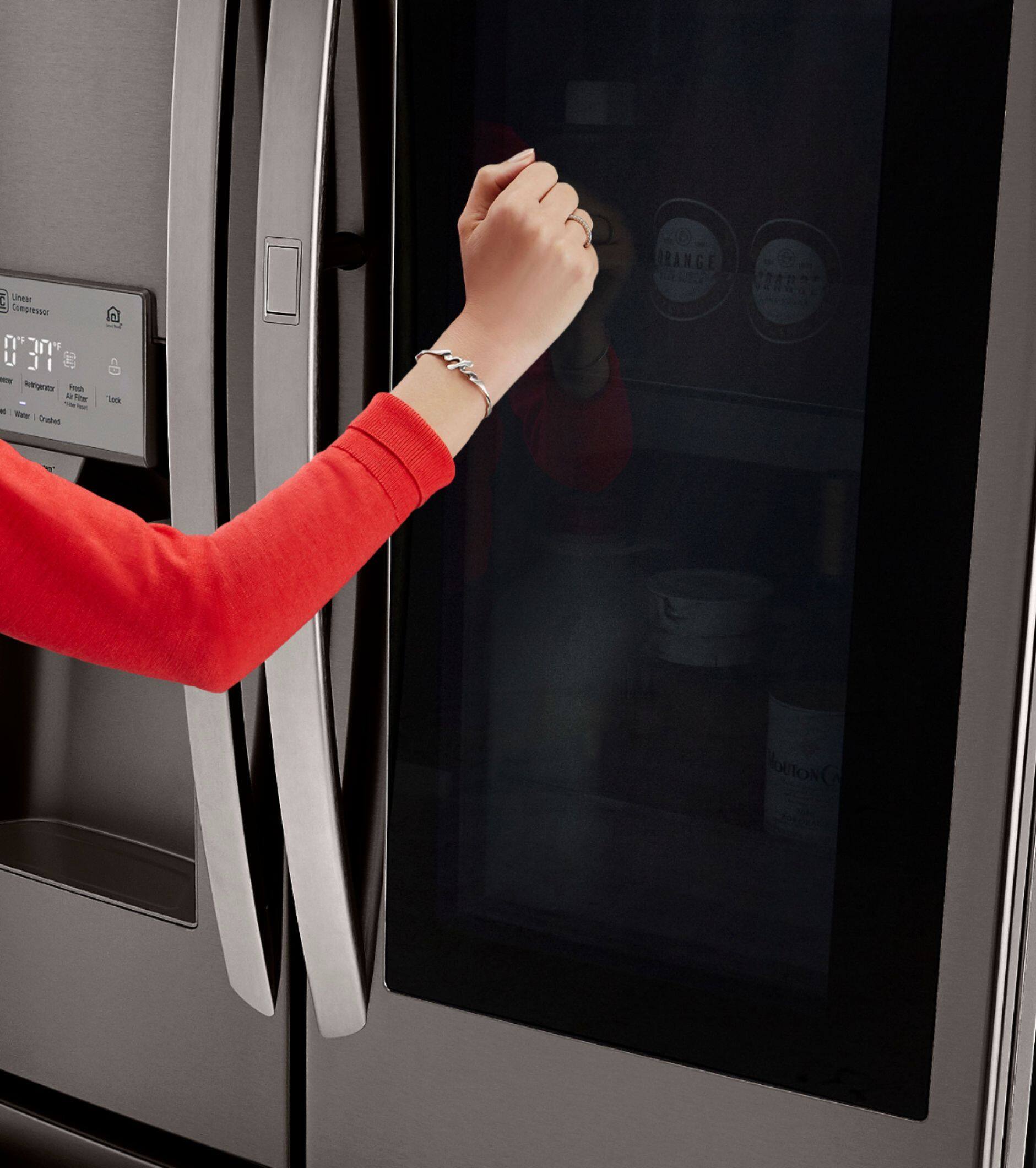

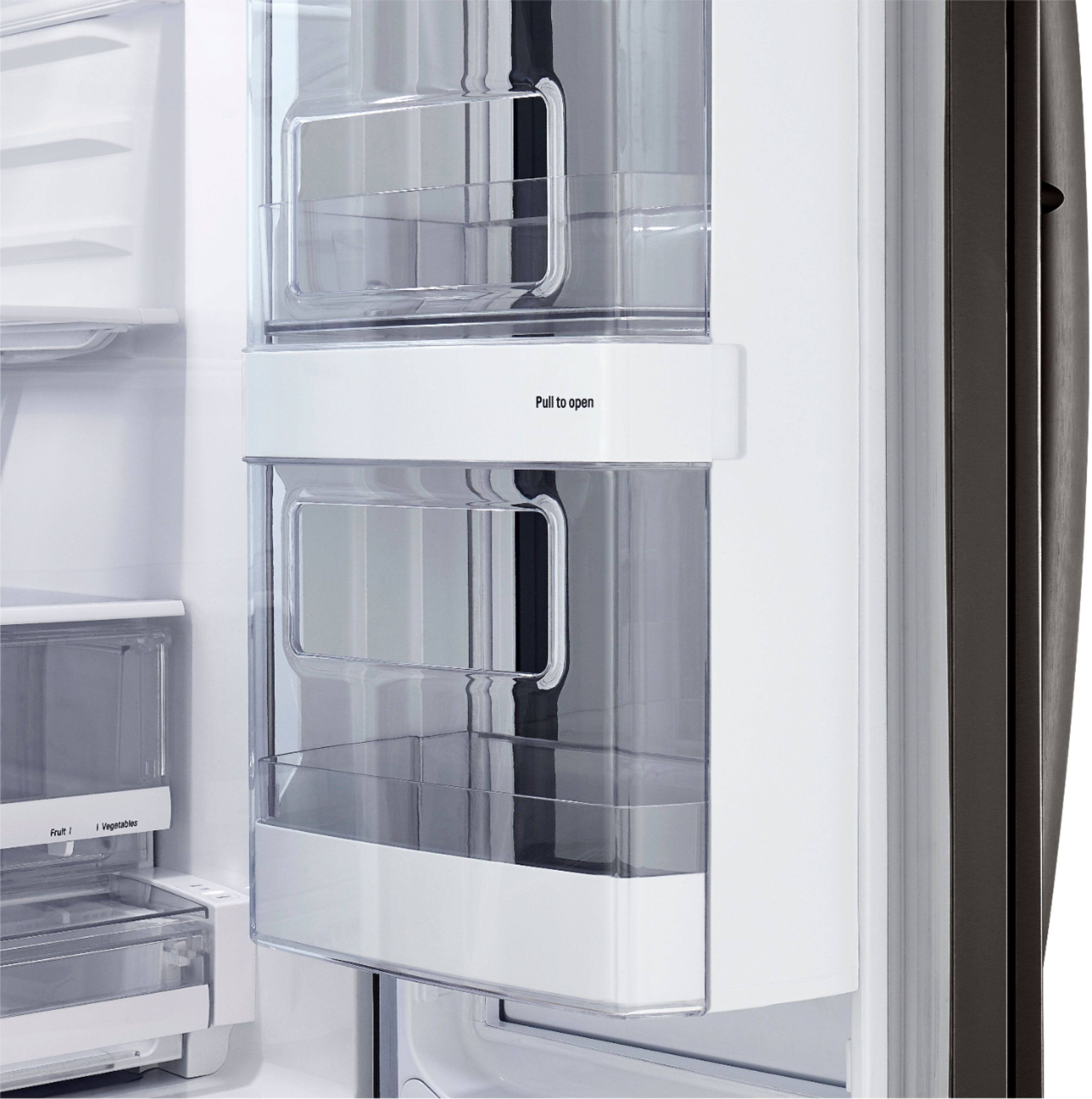

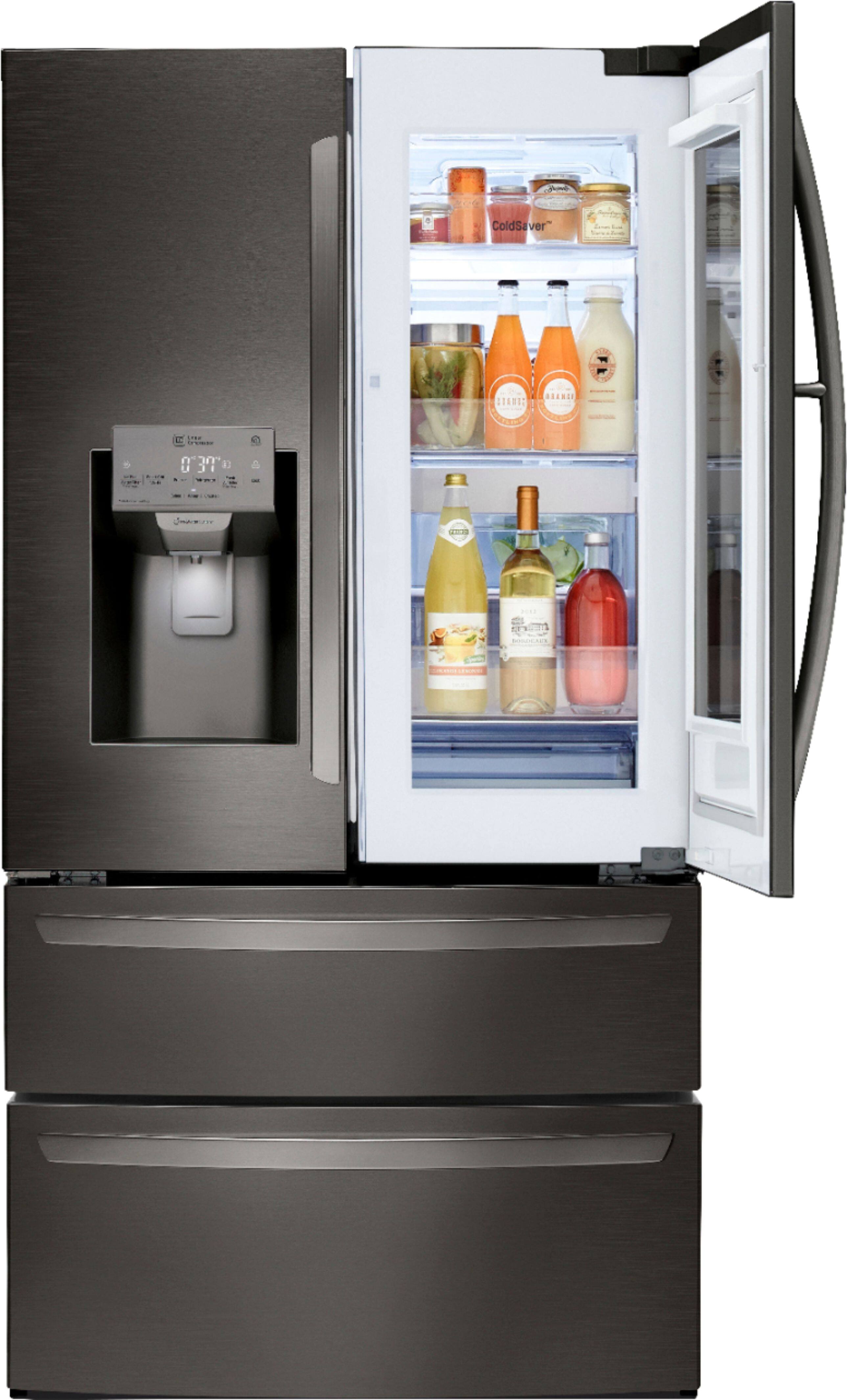

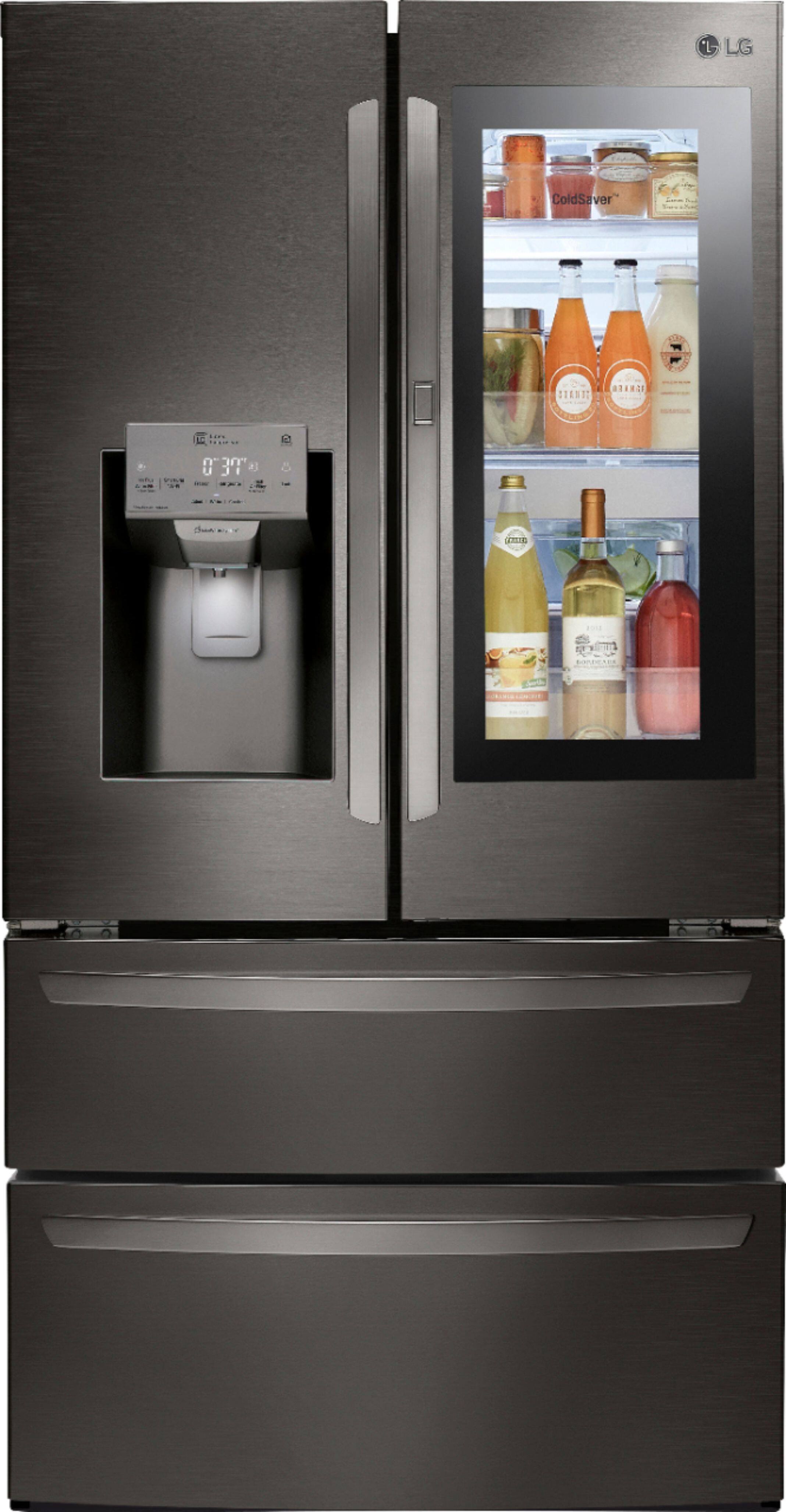

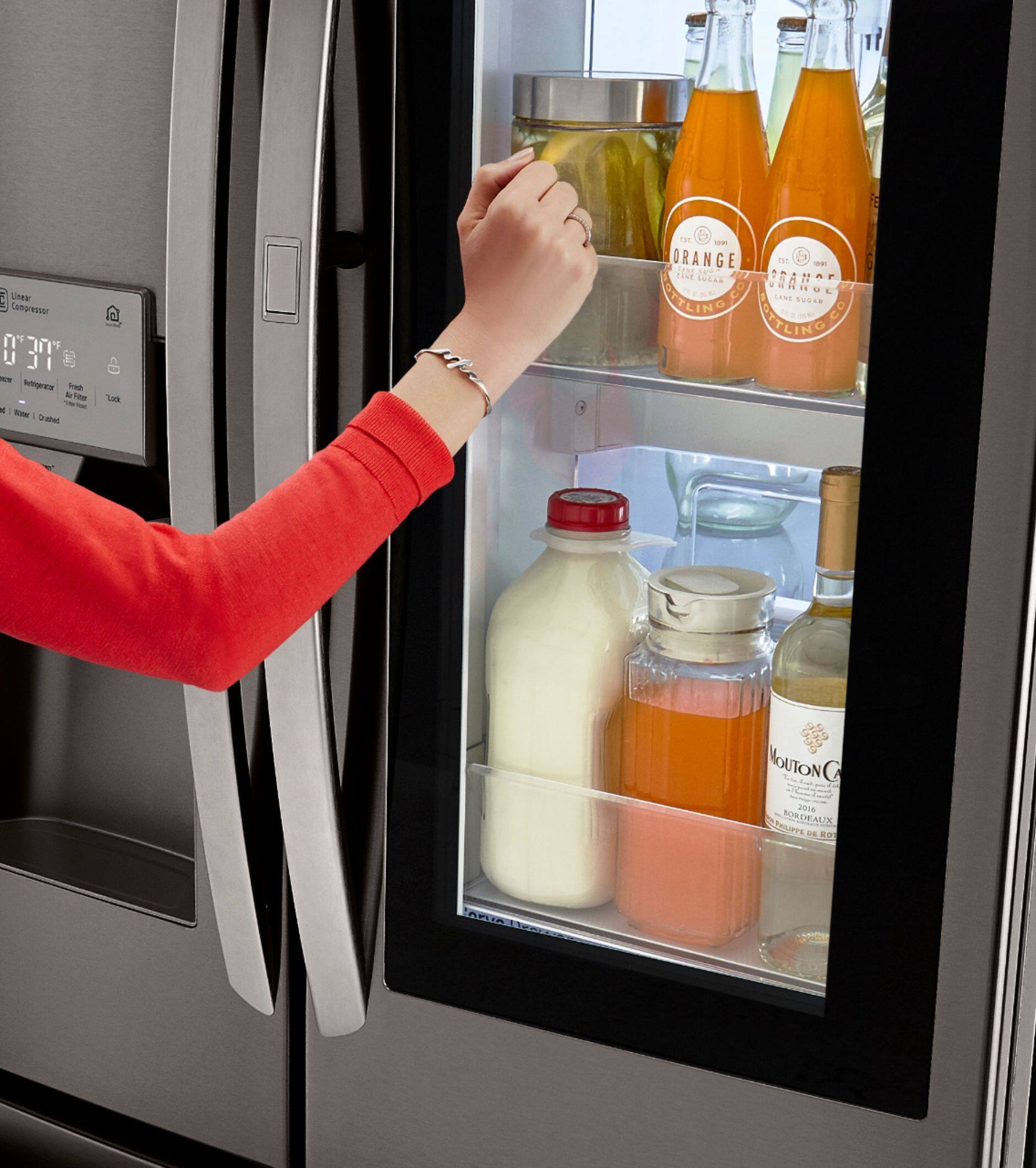

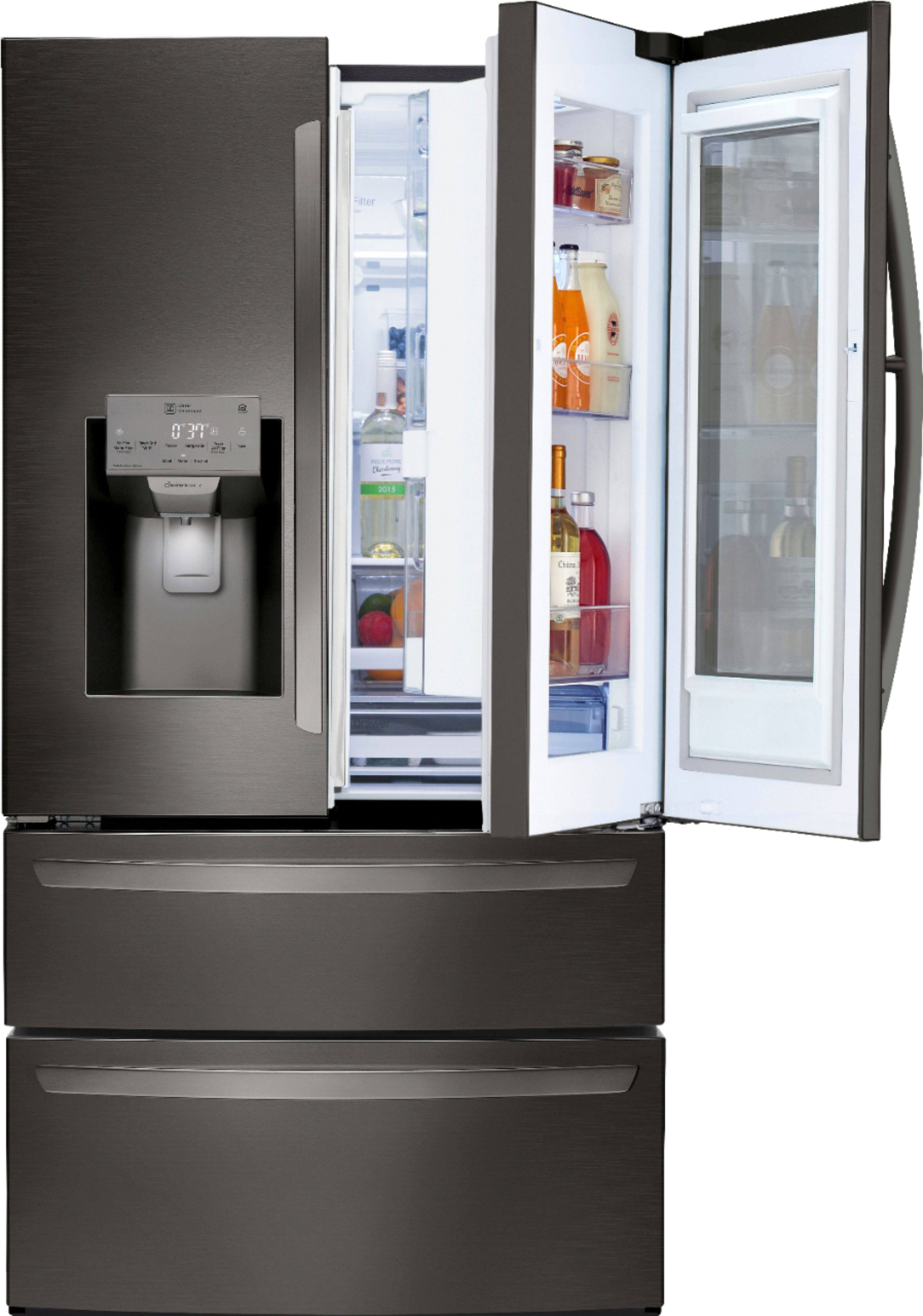

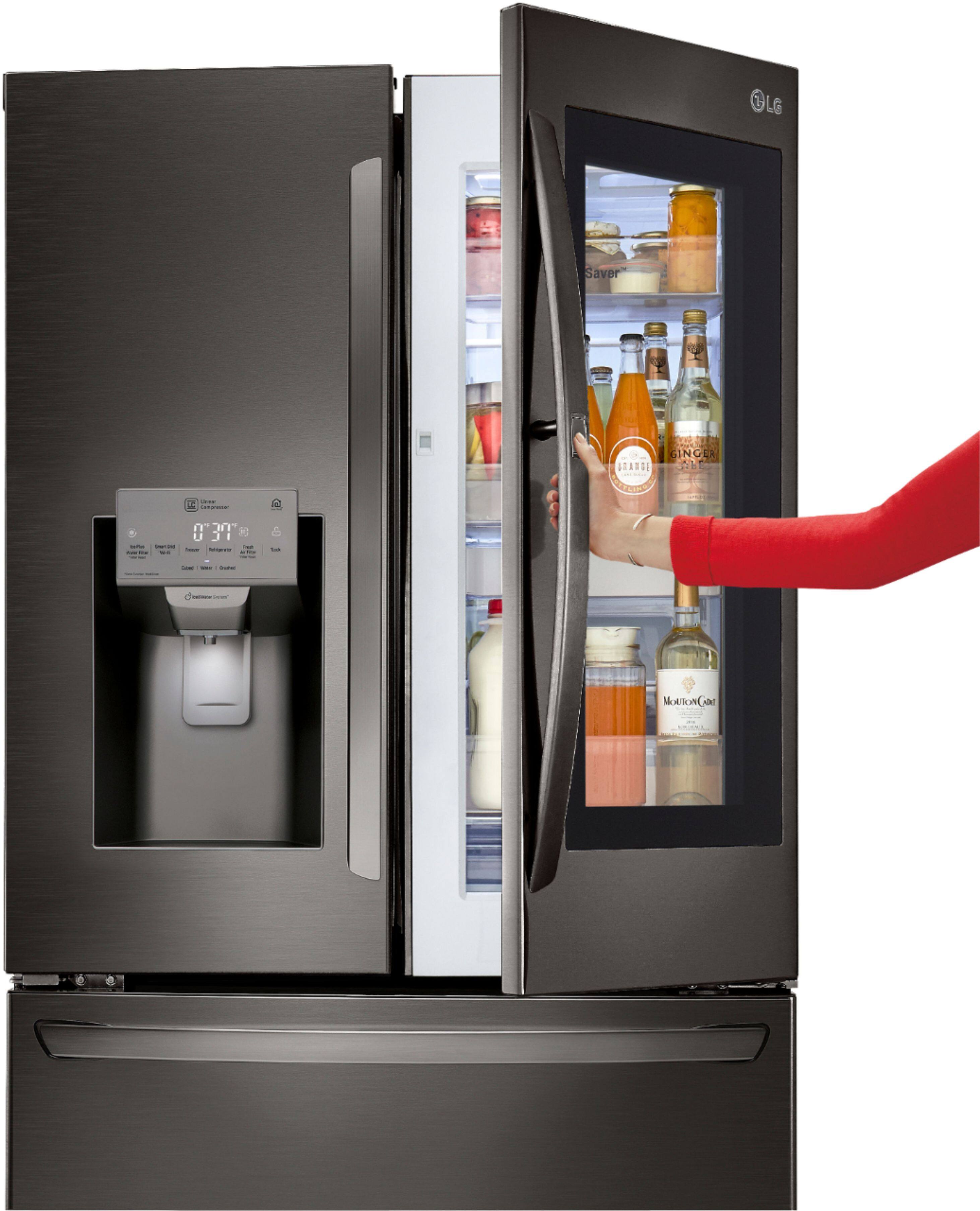

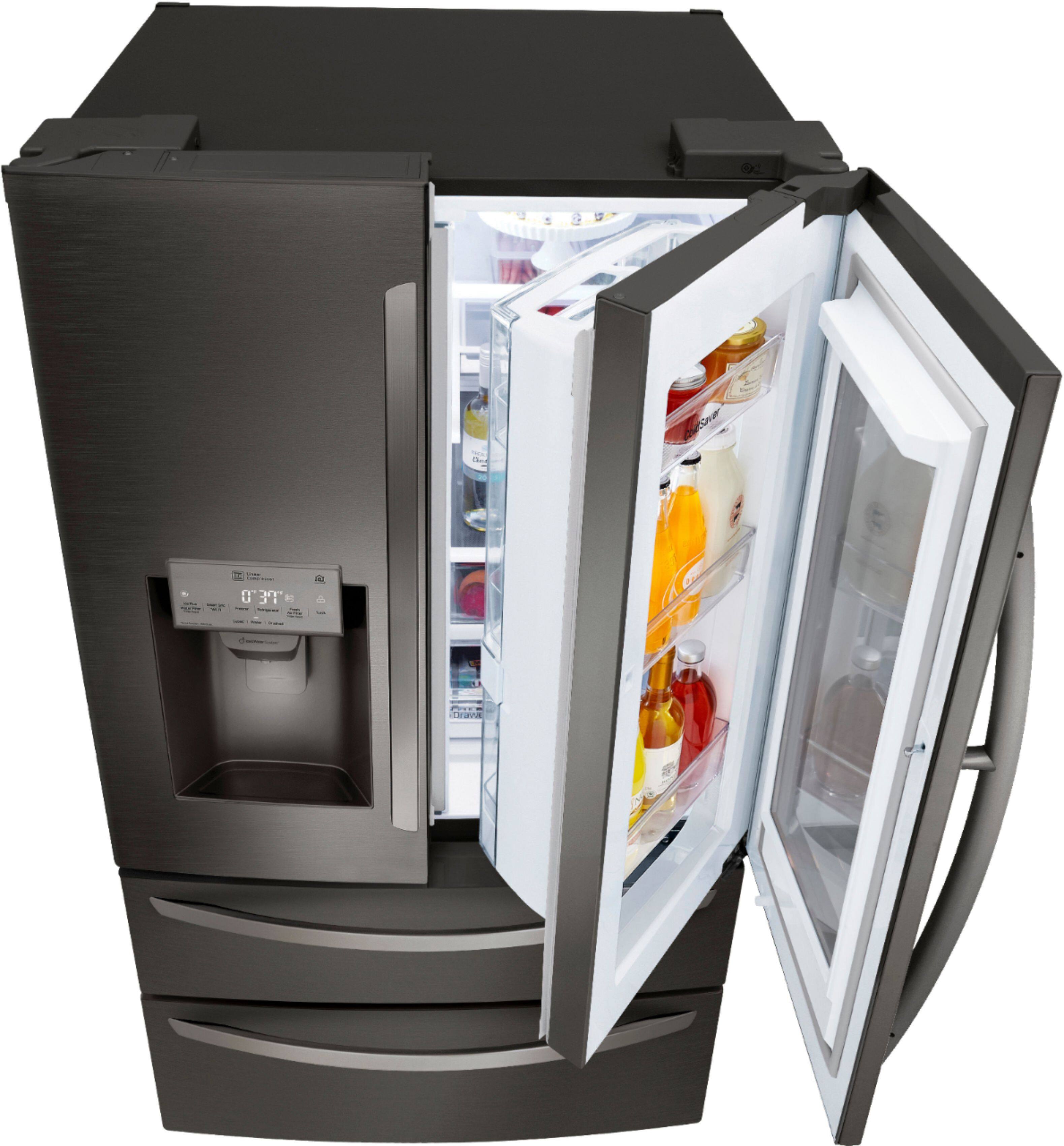

InstaView Door-in-Door: See right through the glass panel door. Access on-the-go items, beverages, condiments, and more without having to open the whole fridge.

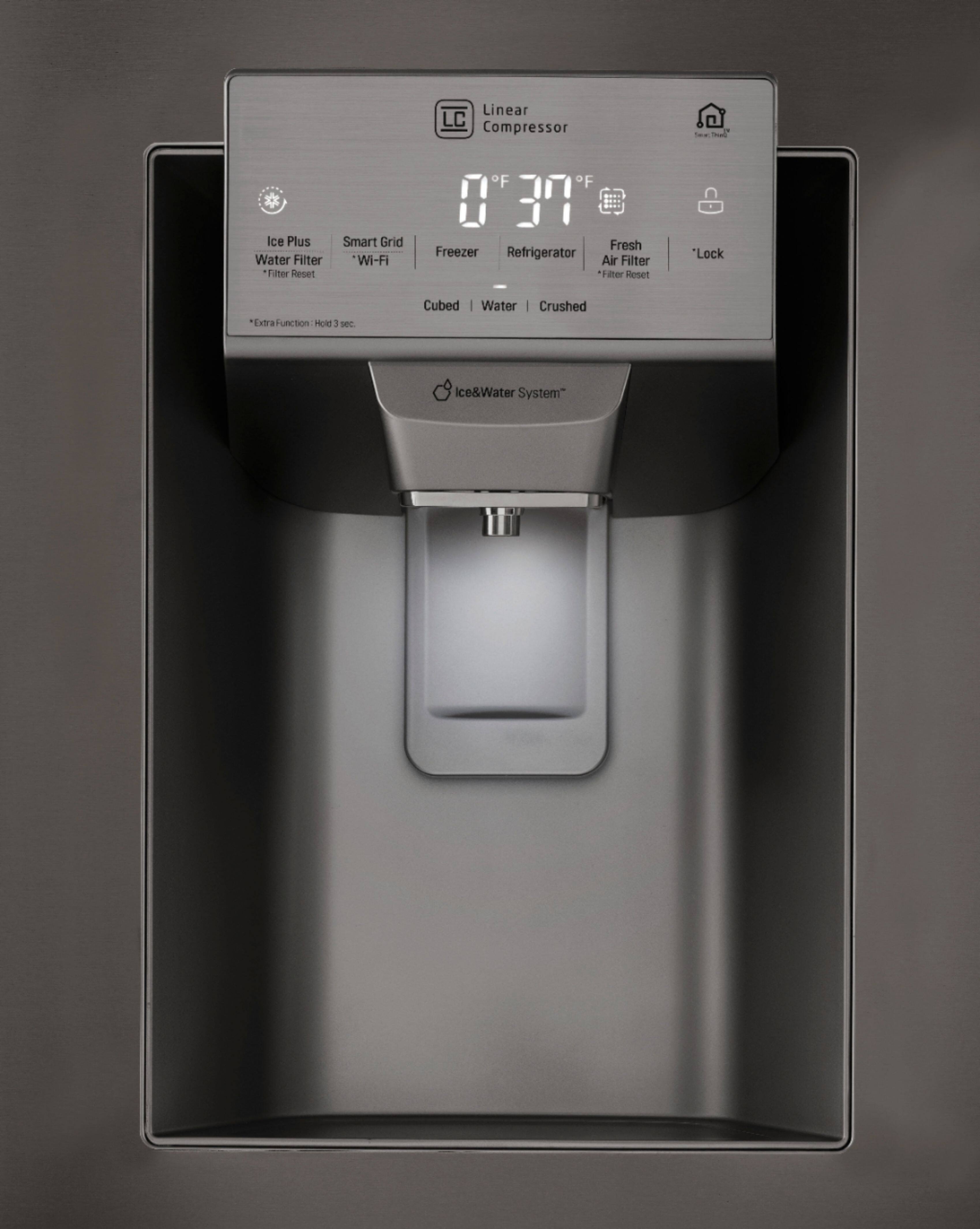

Electronic controls: Make operation simple.
ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.

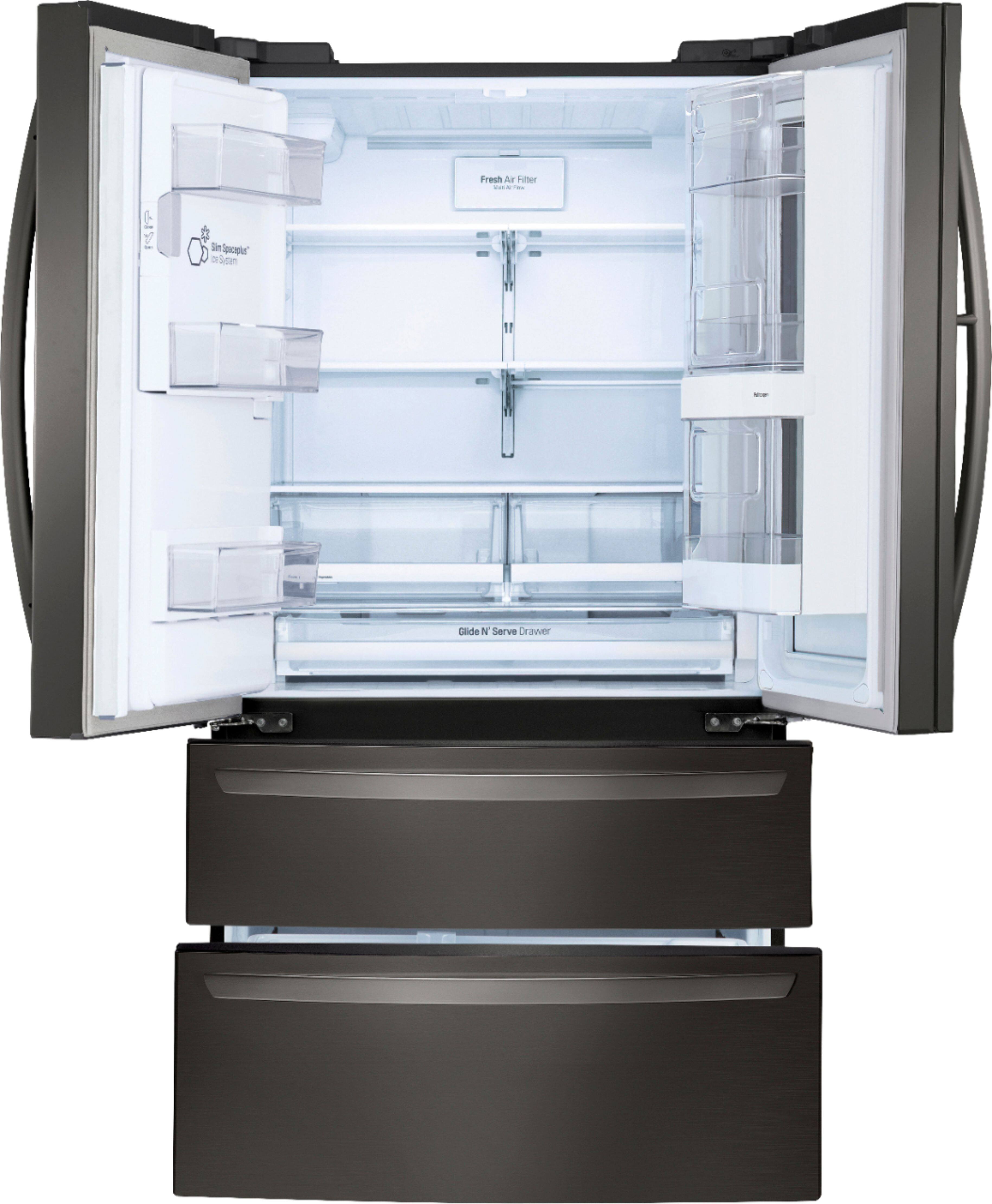

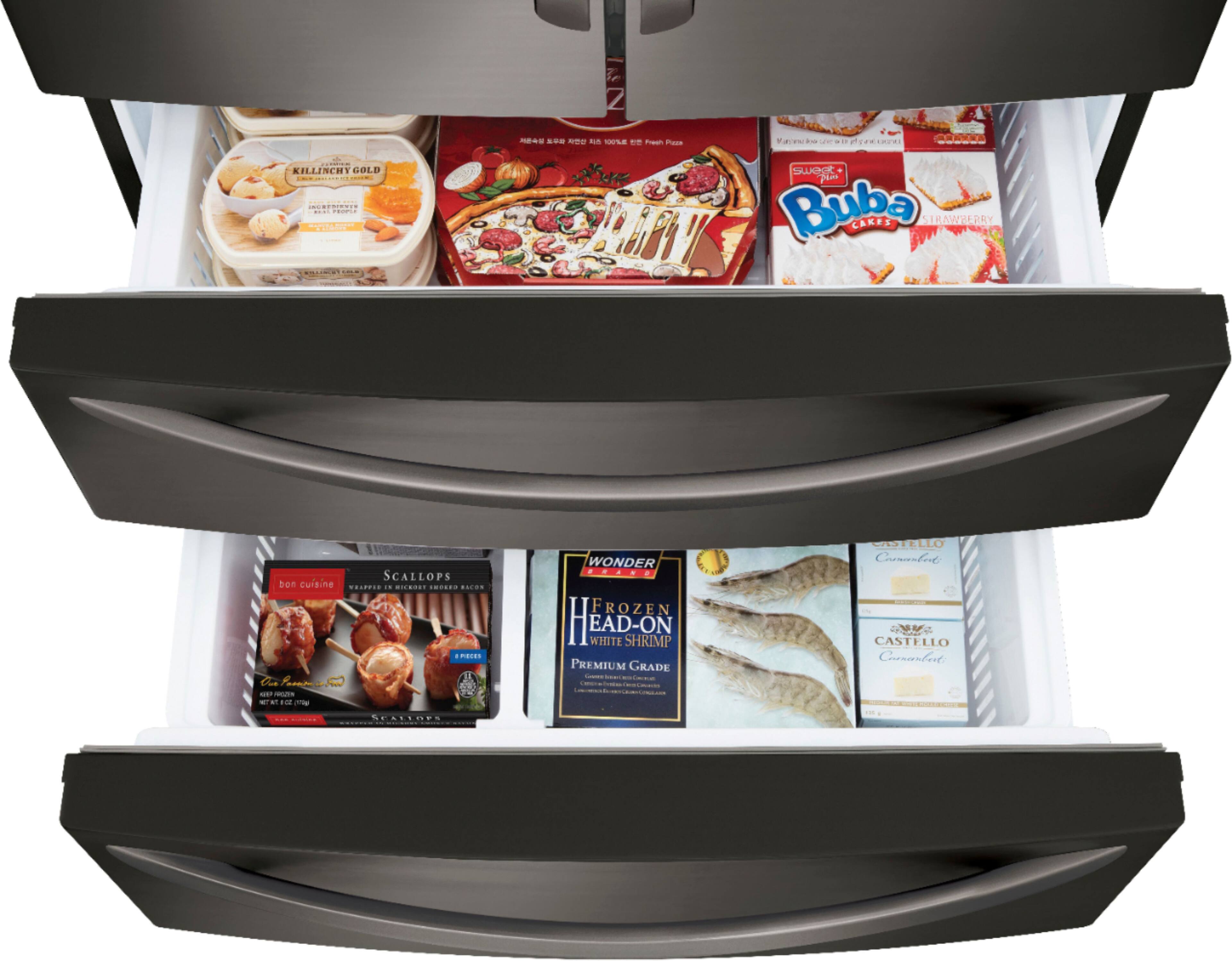

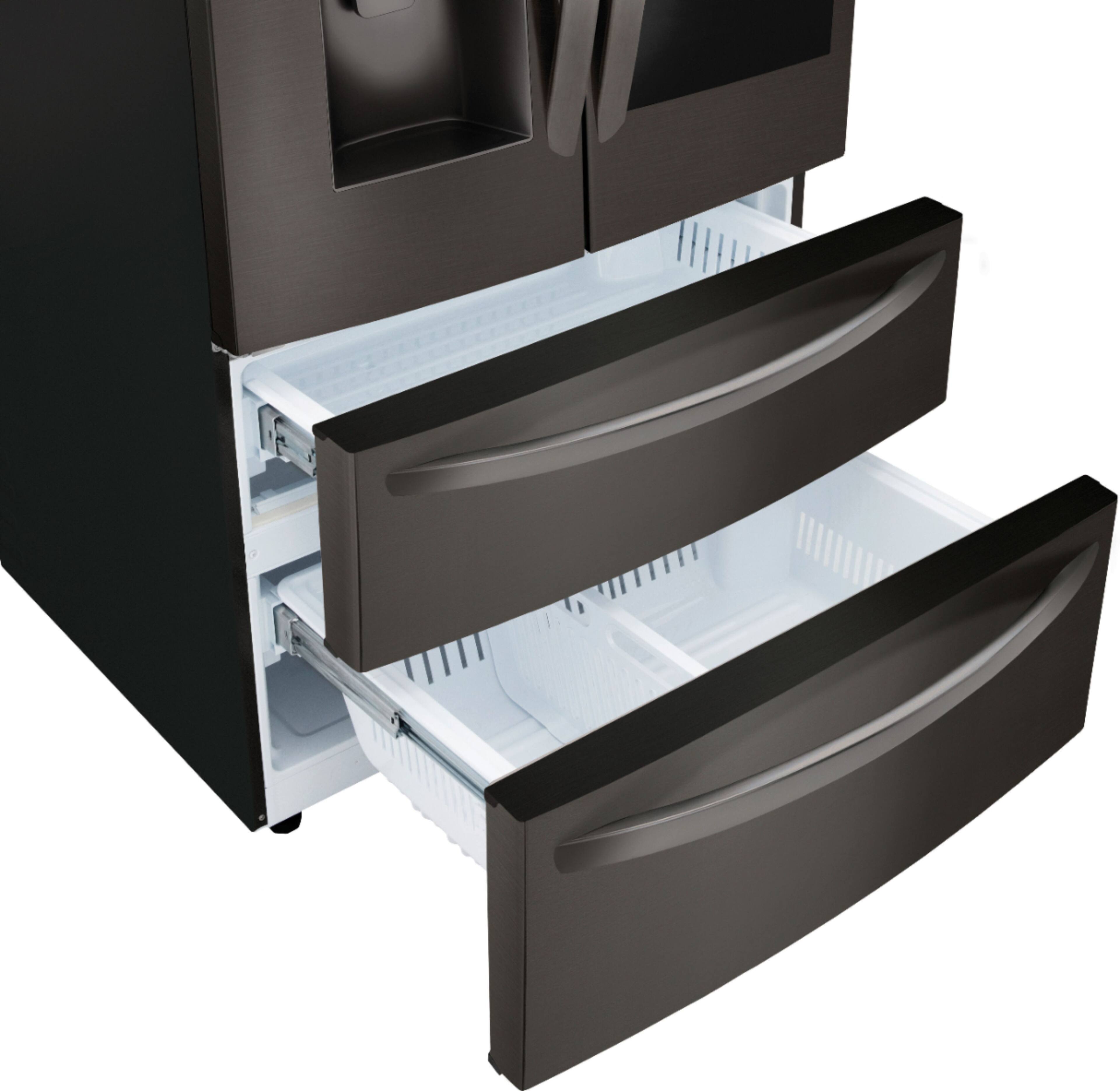

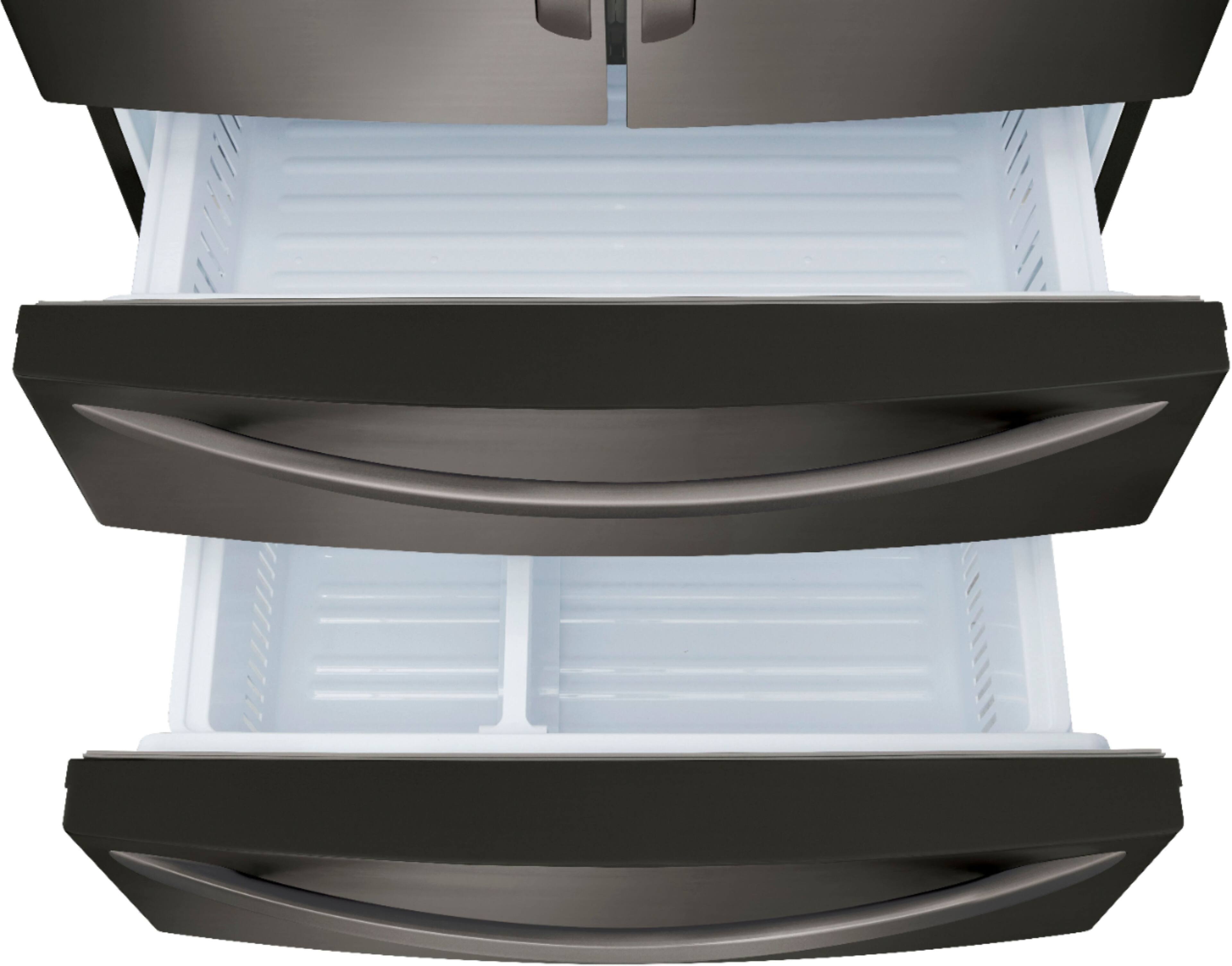

Generous Freezer Storage: Includes 2 pull out drawers and a drawer divider to create plenty of space to organize frozen food.

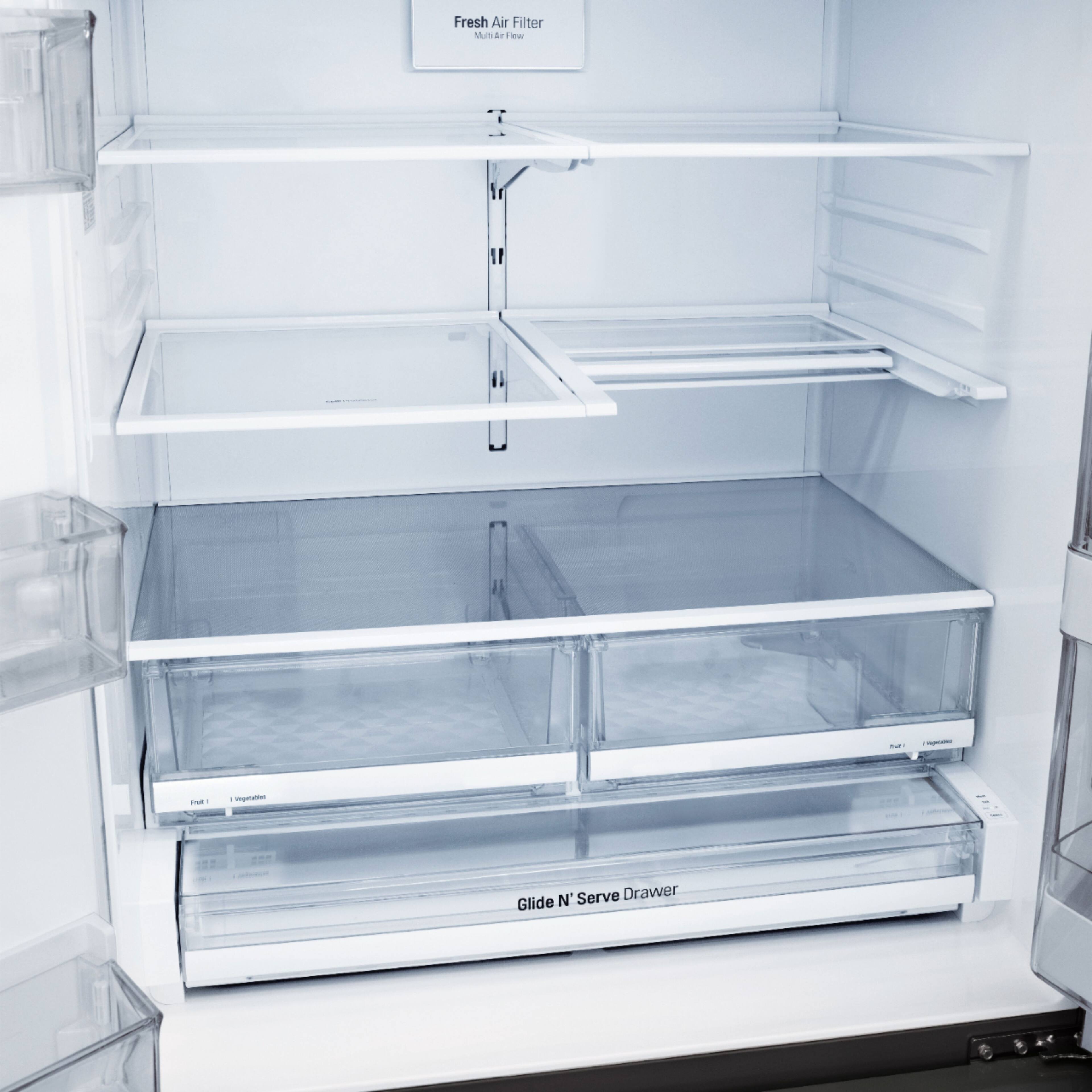

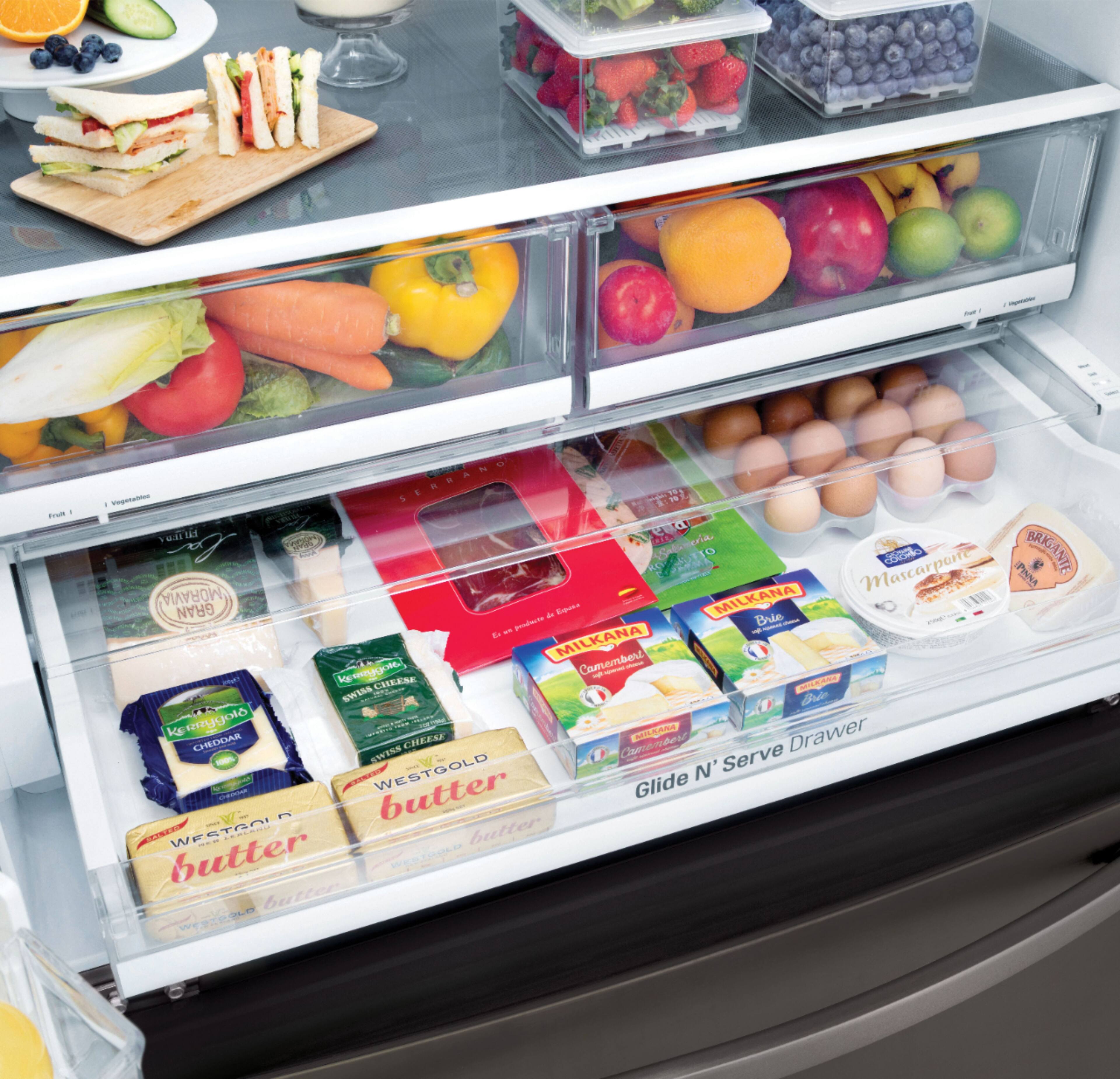

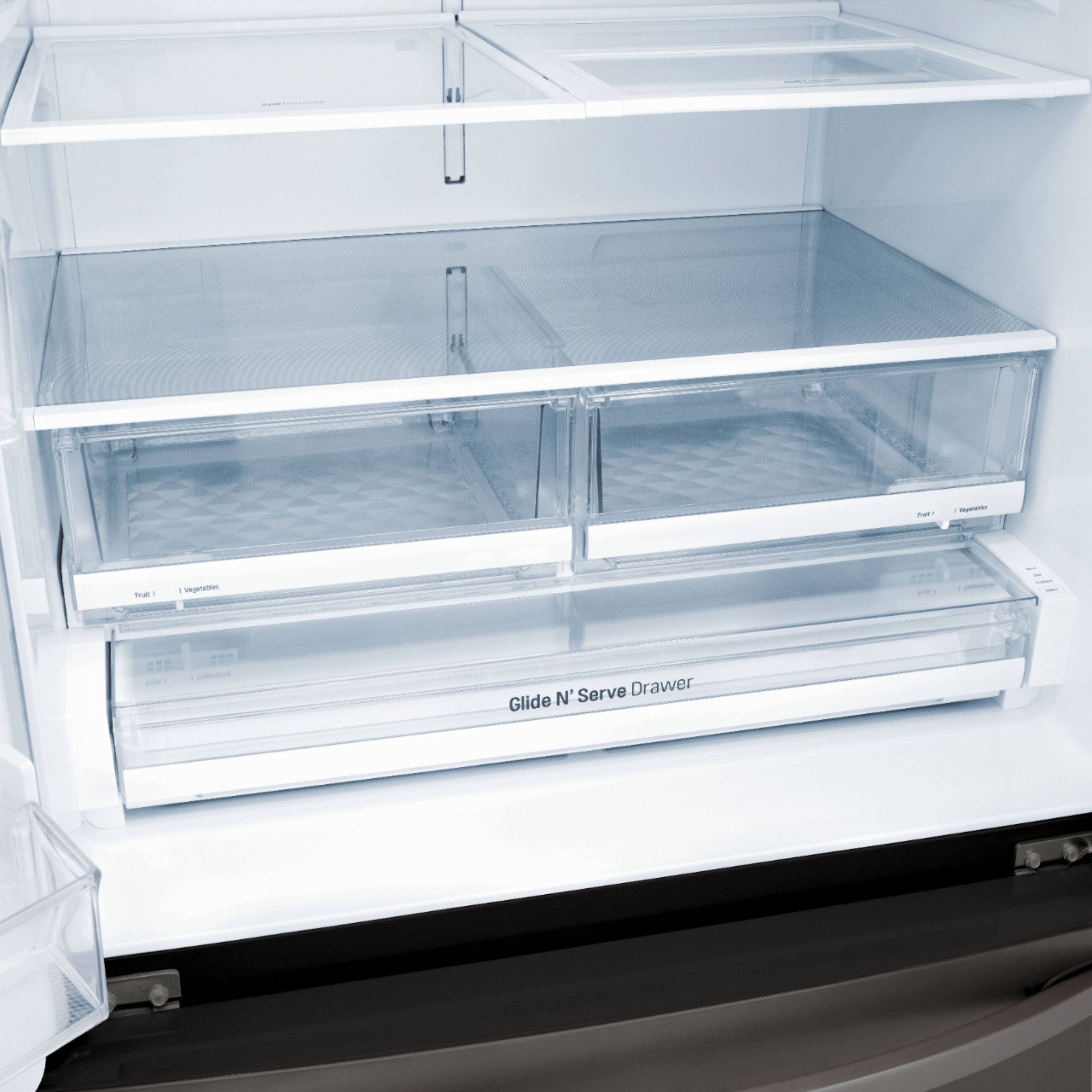

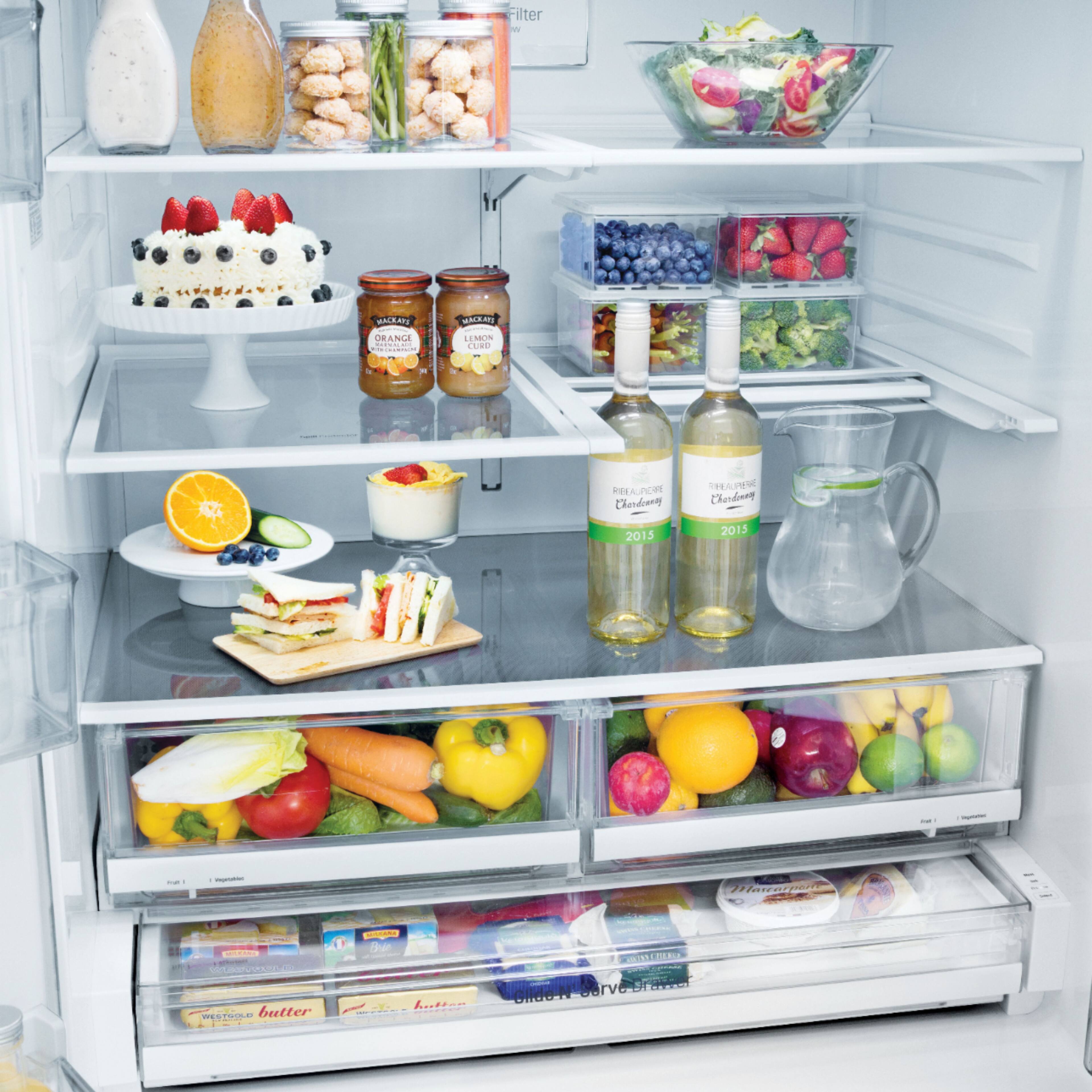

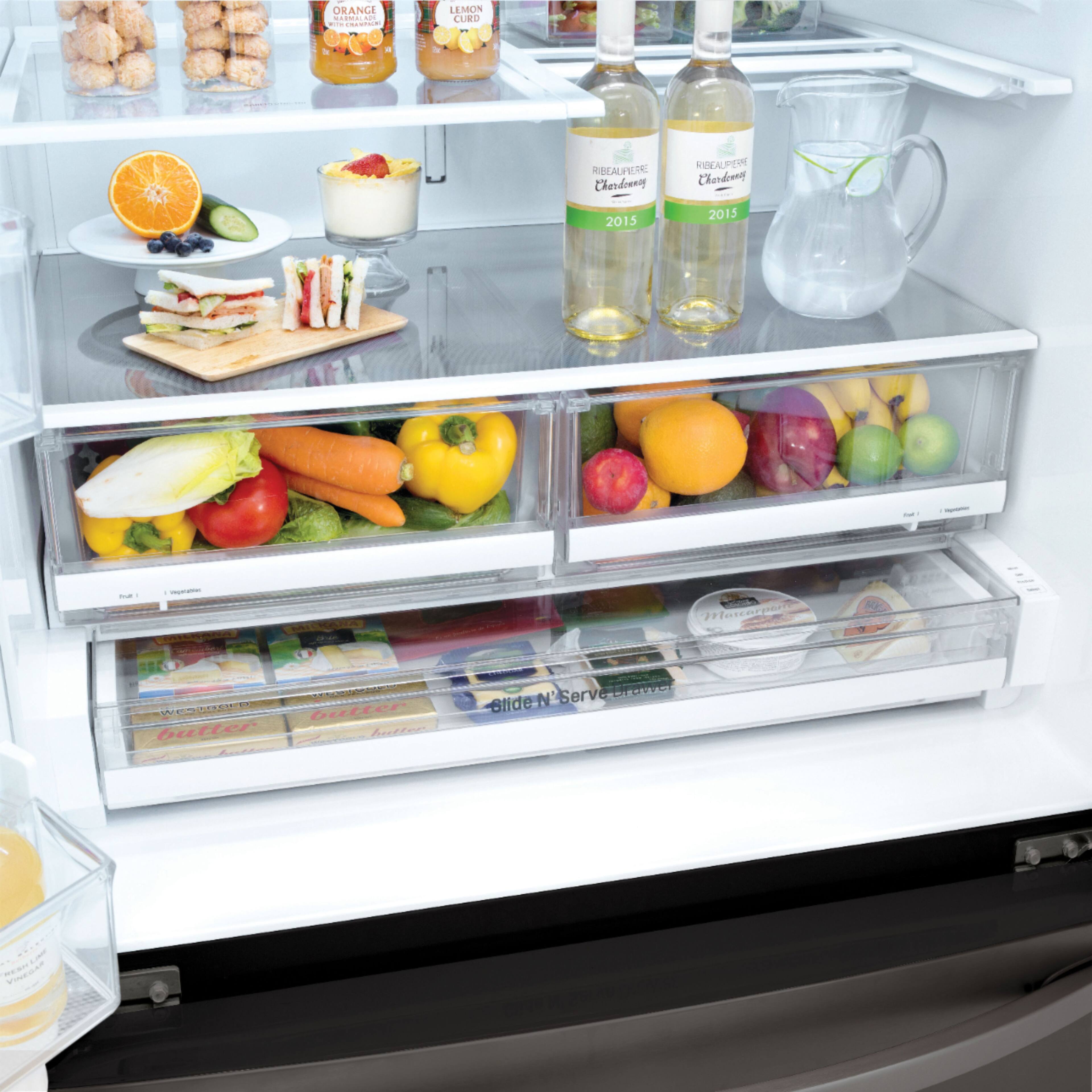

Organize contents with ease: Includes a Glide N' Serve drawer, 4 split shelves, 4 SpillProtector tempered glass shelves and 2 humidity controlled drawers to provide ample space for storing items.

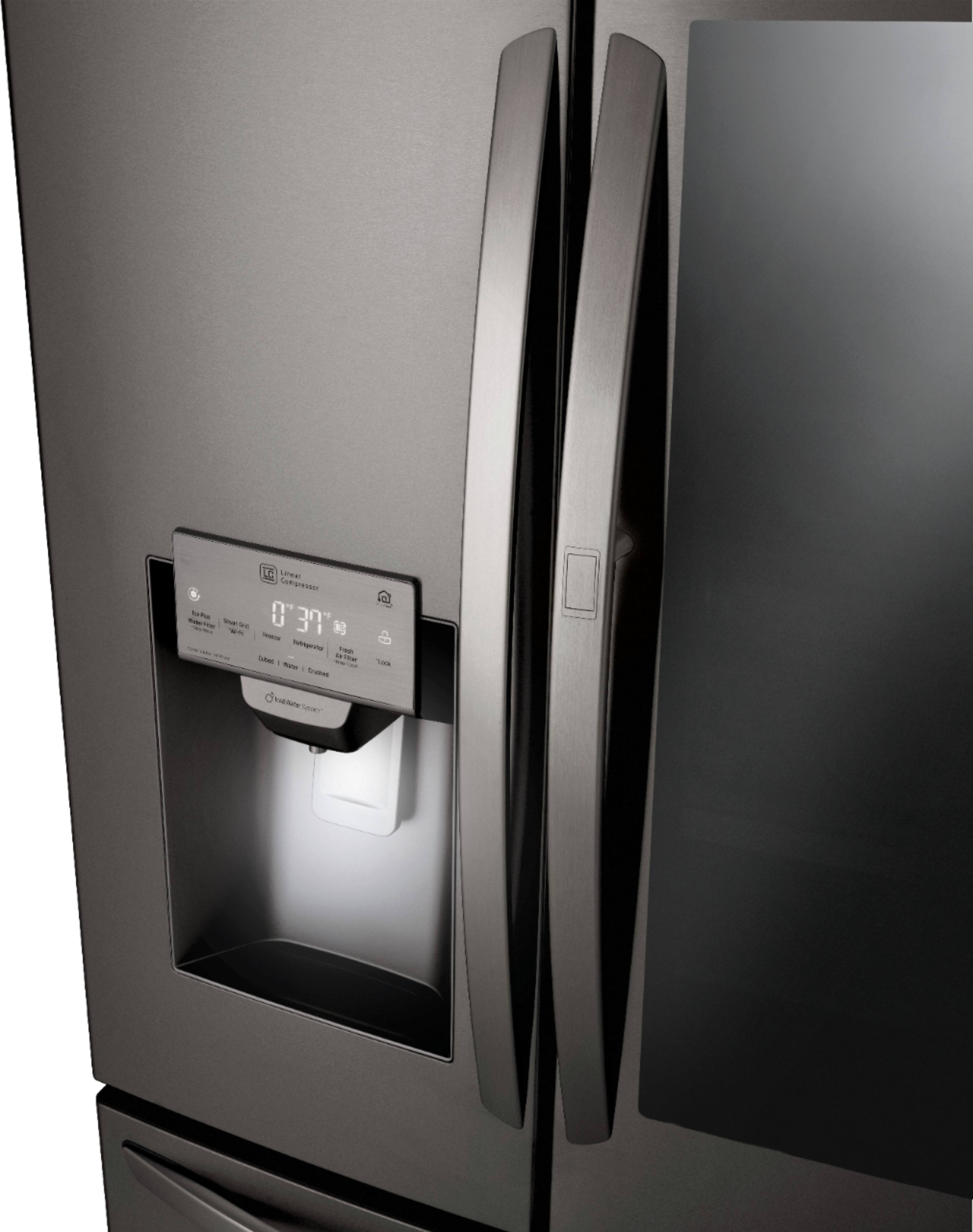

Water dispenser uses LT1000P/PC replacement filter: Delivers filtered water with one touch.

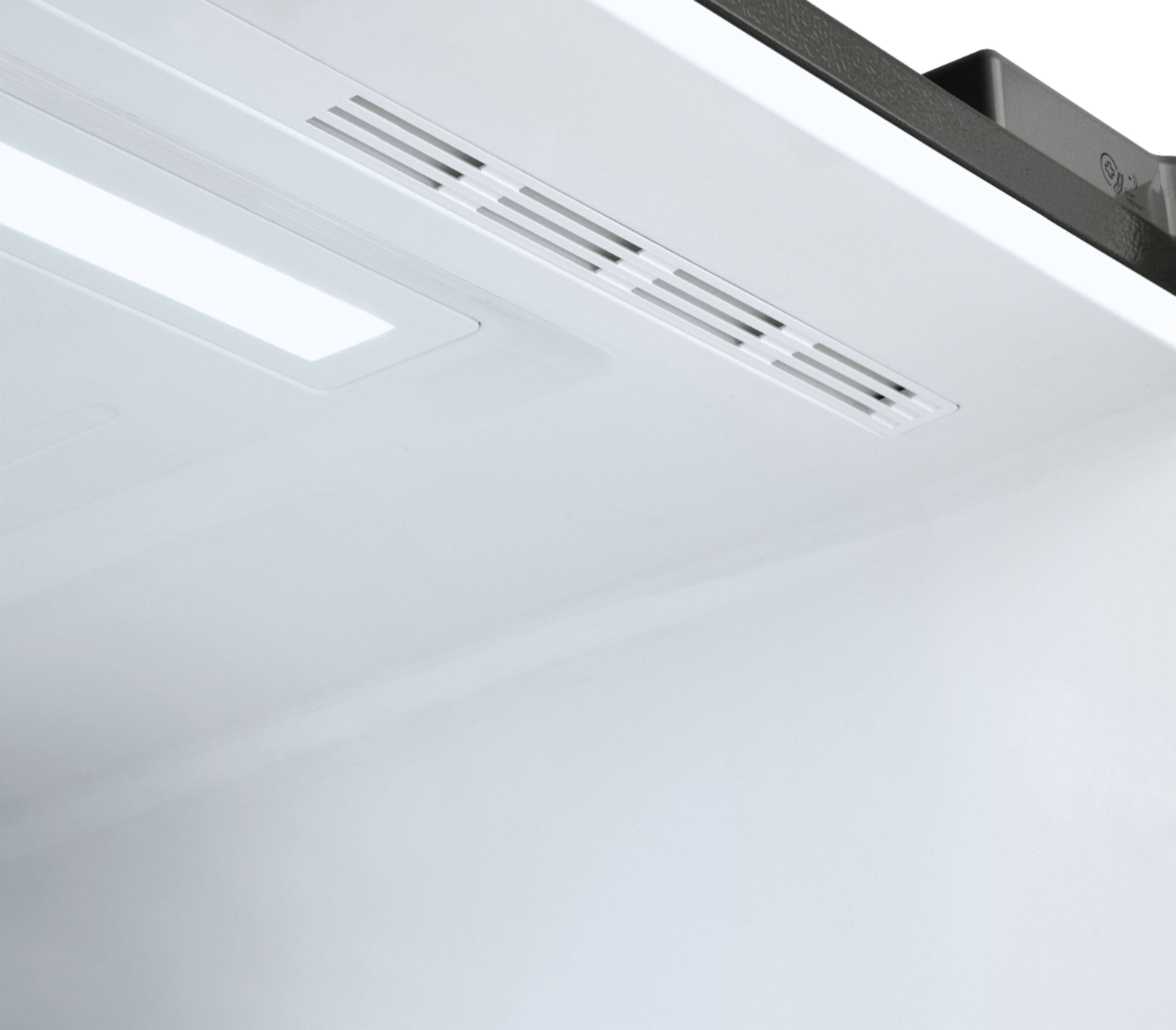

LED Interior Lighting: Bright lights to illuminate interior.
Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
Slim SpacePlus ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
InstaView Door-in-Door: See right through the glass panel door. Access on-the-go items, beverages, condiments, and more without having to open the whole fridge.
Electronic controls: Make operation simple.
ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
Generous Freezer Storage: Includes 2 pull out drawers and a drawer divider to create plenty of space to organize frozen food.
Organize contents with ease: Includes a Glide N' Serve drawer, 4 split shelves, 4 SpillProtector tempered glass shelves and 2 humidity controlled drawers to provide ample space for storing items.
Water dispenser uses LT1000P/PC replacement filter: Delivers filtered water with one touch.
LED Interior Lighting: Bright lights to illuminate interior.
Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
Slim SpacePlus ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
InstaView Door-in-Door: See right through the glass panel door. Access on-the-go items, beverages, condiments, and more without having to open the whole fridge.
Electronic controls: Make operation simple.
ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
Generous Freezer Storage: Includes 2 pull out drawers and a drawer divider to create plenty of space to organize frozen food.
Organize contents with ease: Includes a Glide N' Serve drawer, 4 split shelves, 4 SpillProtector tempered glass shelves and 2 humidity controlled drawers to provide ample space for storing items.
Water dispenser uses LT1000P/PC replacement filter: Delivers filtered water with one touch.
LED Interior Lighting: Bright lights to illuminate interior.
Door alarm: Alerts you when the refrigerator door is accidentally left open to save energy.
Slim SpacePlus ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.

Whats Included

LG InstaView Door-in-Door 27.8 Cu. Ft. 4-Door French Door Refrigerator
Water filter
Air filter
LG InstaView Door-in-Door 27.8 Cu. Ft. 4-Door French Door Refrigerator
Water filter
Air filter
LG InstaView Door-in-Door 27.8 Cu. Ft. 4-Door French Door Refrigerator
Water filter
Air filter

Product Manuals

Documents

Energy_Guide_PDF
Energy_Guide_PDF
Energy_Guide_PDF

Q: Does anyone know if LG has made any modifications to help with the compressor problem. I absolutely love the appearance of this model but after reading about the class action law suite over the LG linear compressor failures I’m really afraid to buy it.

A: We appreciate your interest in our refrigerators. We are always reevaluating the parts used in our products to ensure the standards that are set are achieved. We make changes to not only the parts but to the warranty as well when needed. Our refrigerators now come with a 1 year parts and labor warranty on the entire unit as well as a 5 year parts and labor warranty on the compressor and sealed system and a 10 year parts only warranty on the compressor. ^CP

Q: Does the bottom freezer drawer have a light? Only the top drawer has a light but the one at the bottom doesn’t.

A: top freezer drawer does have a light but the bottom does not

Q: How cold does the spacious, interior fridge compartment get? What is the temperature inside the instaview door? What is ideal fridge temperature? Are the two freezer drawers the same temperatures, since they are both freezers? Should they be the same?

A: We just had this unit installed. It is a surprise to me how warm the instaview door compartment is. It does not keep food at a safe temperature (at or below 40 degrees F). I would not have purchased this unit had I known that this would be an issue. I know that door temps are always higher than interior compartment temps, so I compared the temperatures of our side by side refrigerator door to the instaview door in our new LG. After 30 min without opening our old side by side, its side door temp (with refrigerator temp set at 36F) came in at 38F. After 30 min w/out opening any compartments on our new LG, the instaview door temp (with fridge setting of 34F) comes in at 42F. This is too warm to safely store perishables, especially milk, 1/2 & 1/2 and yogurt. The reason we bought this model was to allow our kids to go in and out of the fridge to grab milk and yogurt without bringing the temperature of the main compartment down. Now we can only safely store non-perishables in the instaview door.

Q: We are thinking of purchasing this refrigerator but we are concerned over the freezer compartment size limit. Is there room in the lower drawer to keep a medium size frozen turkey?

A: Yes

Q: We had this model installed 2 weeks ago, and works great EXCEPT the water temperature from the water dispenser is 60 degrees (F). Is this normal? It’s colder outside right now than the water dispenser temperature.

A: The default temperature for the refrigerator and freezer compartments for LG refrigerators is 37°F for the refrigerator compartment and 0°F for the freezer compartment. The water that is dispensed through the Ice/Water Dispenser for the LG InstaView™ Door-in-Door® 27.8 Cu. Ft. 4-Door French Door Refrigerator - Stainless Steel, Model # LMXS28596S will be at the same temperature as the temperature that you have your refrigerator compartment set at. The water reservoir for the water dispenser is not that big, so when the water runs out, it takes a while for the reservoir to refill and to cool the water down to the temperature that you have your refrigerator compartment set for so if you dispense water before it has had time to cool to that temperature, the water will be warmer...^IFV

Q: Are the articles in the door in door area illuminated as shown in the photo or semi concealed by tinted glass? If concealed, does the light in the door in door only come on when the door is opened and therefore you would not see the articles.

A: InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within. ^CP

Q: This is very very tight to get into our home. Can doors or handles be removed to narrow the depth and make it easier to get in?

A: yes, they removed and reinstalled all four doors to deliver

Q: Does the see-through window fog up? If it does, does air-flow clear it up almost immediately? Is the glass also fingerprint-resistant in some way? What about condensation on the inside or outside of the glass? Is it double/multi-pane to prevent that?

A: Had no issues with fog or condensation thus far. It is also fingerprint resistant.
