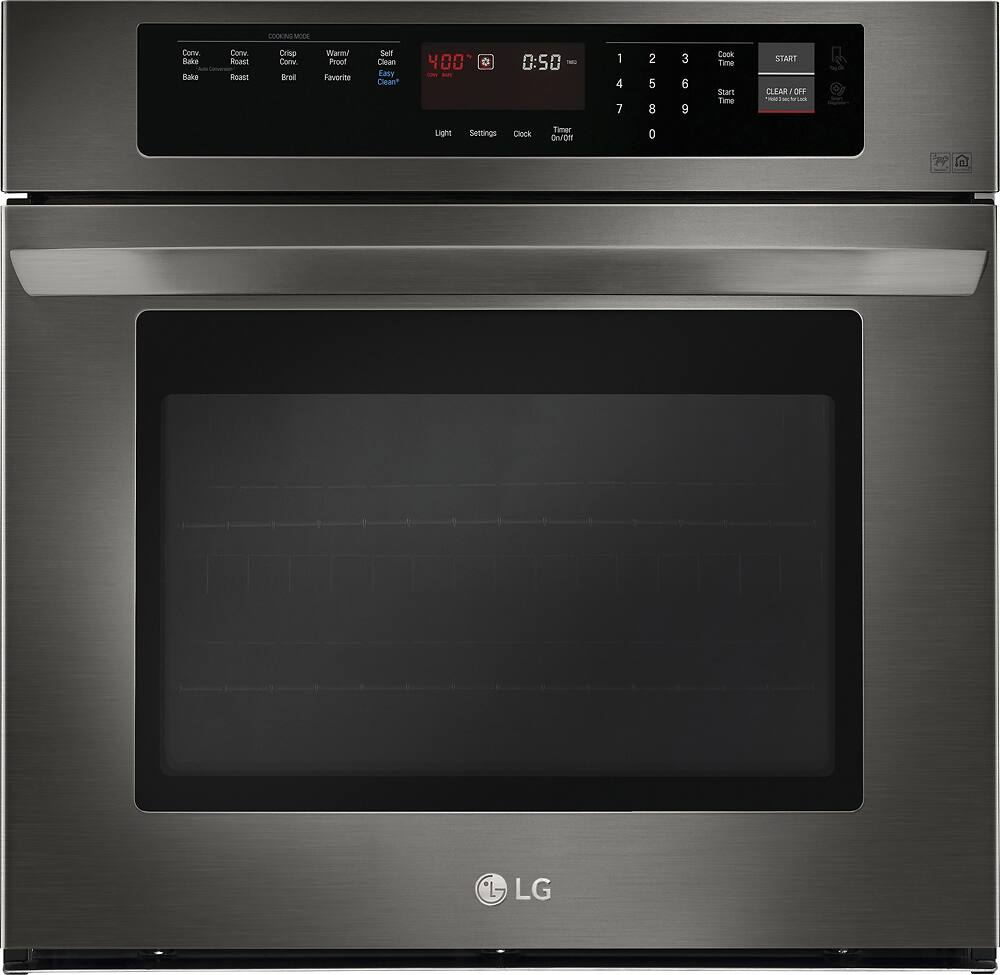

LG - 30" Built-In Single Electric Convection Wall Oven with EasyClean - Black Stainless Steel
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 29 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 24 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: LG
- Model Number: LWS3063BD
- Product Name: 30" Built-In Single Electric Convection Wall Oven with EasyClean
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 29 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 24 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 46 3/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 157 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 29 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 4.7 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Oven Type: Single wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchpad
- Clock Display: true
- Lock Type: Self-cleaning mode lock
- Oven Light: true
- Wireless Connectivity: NFC (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LED
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Bake Element: 2500 watts
- Broil Element: 2500 watts
- Oven Features
- Oven Convection: true (A cooking process that consistently circulates heated air to quickly and evenly cook food.)
- Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-High Heat Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven Window: true
- Number of Oven Racks: 2
- Number of Rack Positions: 5
- Electrical Specification
- Amperage: 17.3 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 4100 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): None (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product contains PFAS. For more information about PFAS chemicals in this product, visit https://www.lg.com/us/cookware-chemical-compliance-information. Este producto contiene PFAS. Para más información sobre químicas PFAS en este producto, visite https://www.lg.com/us/cookware-chemical-compliance-information. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year General
- Warranty - Labor: 1 Year General
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 048232335491
No more trying to juggle and time your large meals. With 6.2 cu. ft. of capacity, you can do it all at once, all the while keeping your dishes hot and ready to serve in the warming drawer below. LG ProBake Convection gives you the confidence of professional-style baking on every rack, every time. Plus, with EasyClean, you can check a clean oven off your list after just 10 minutes and three simple steps.
- True Convection: Bake with the greatest of ease with LG’s True Convection oven. Our convection technology distributes continual precise heat so food is delicious on the inside, and crisp on the outside.
- EasyClean: Simply spray the oven interior with water, press EasyClean and then in 10 minutes, quickly wipe away any leftover grime. And you can still use the traditional self-clean cycle for the occasional deep clean.
- Large Oven Capacity (4.7 cu.ft.): Large enough to handle all your family's cooking needs.
- SmoothTouch Glass Controls: Sleek SmoothTouch glass controls for easy operation and cleaning.
- Brilliant Blue Interior: A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.
- True Convection: Bake with the greatest of ease with LG’s True Convection oven. Our convection technology distributes continual precise heat so food is delicious on the inside, and crisp on the outside.
- EasyClean: Simply spray the oven interior with water, press EasyClean and then in 10 minutes, quickly wipe away any leftover grime. And you can still use the traditional self-clean cycle for the occasional deep clean.
- Large Oven Capacity (4.7 cu.ft.): Large enough to handle all your family's cooking needs.
- SmoothTouch Glass Controls: Sleek SmoothTouch glass controls for easy operation and cleaning.
- Brilliant Blue Interior: A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.
Whats Included
- LWS3063BD 30" Built-In Electric Convection Wall Oven
- Heavy duty rack (2)
- Broiler pan
- Grid
- Owners manual and Installation manual
- Spray bottle
- LWS3063BD 30" Built-In Electric Convection Wall Oven
- Heavy duty rack (2)
- Broiler pan
- Grid
- Owners manual and Installation manual
- Spray bottle
Q: Will this oven fit where a Whirlpool model GBS307PDS11 is currently installed?
A: The recommended cutout dimensions for the LG 30" Built-In Single Electric Convection Wall Oven, Model # LWS3063BD are a minimum depth of 23 1/2" (596.9 mm), a minimum width of 28 1/2" (723.9 mm) and a maximum width of 28 5/8" (727 mm) and a minimum height of 28 15/16" (735 mm) and a maximum height of 29" (736.6 mm)....^IFV
Q: Does this oven’s exterior show fingerprints?
A: The Stainless Steel on this LG 30" Built-In Single Electric Convection Wall Oven - Stainless Steel, Model # LWS3063ST is not Fingerprint proof or smudge resistant Stainless Steel...^IFV
A: When delivery guys first installed oven the racks were not sliding well. Then i realized they were upside down, flipped them over. Only had one instance when rack didn't slide well and was my fault for pulling it out crooked.
Q: Is the digital display green or blue?
A: the display is white and the temperature displays in red
A: The LG 30" Built-In Single Electric Convection Wall Oven - Stainless Steel, Model # LWS3063ST has a Timer ON/Off that serves as an extra timer in the kitchen that will beep when the set time has run out. It does not start or stop cooking. It can be used during any of the other oven control functions. The wall oven also has a Timed Cook function that turns the oven on immediately and cooks for a selected length of time. At the end of the cooking time, the oven turns off automatically. Baking time can be set for any amount of time between 1 minute and 11 hours and 59 minutes.The automatic timer of the Delayed Cook Time function turns the oven ON and OFF at the time selected. When the Delayed Timed Cook finishes, END OF CYCLE and the time of day show in the display. The oven shuts off automatically. The cook end melody repeats every minute until CLEAR OFF is pressed. If the clock is set to 24-hour mode, cooking can be delayed up to 24 hours...^IFV
Q: Is the baking element "hidden?"
A: Yes, under the oven floor. DO NOT line this oven with foil or you may damage it.
A: I took a picture of the sticker on top of our new built in oven Model LWS3063ST. Hope that helps you.
A: The LG - 30" Built-In Single Electric Convection Wall Oven - Black stainless Steel, Model # LWS3063BD can be programmed to bake at any temperature from 170°F (80°C) to 550°F (288°C). Default temperature is 350°F (177°C)...^IFV
