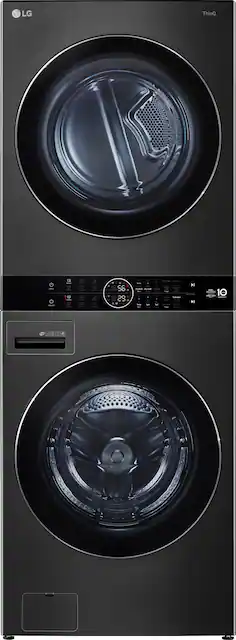

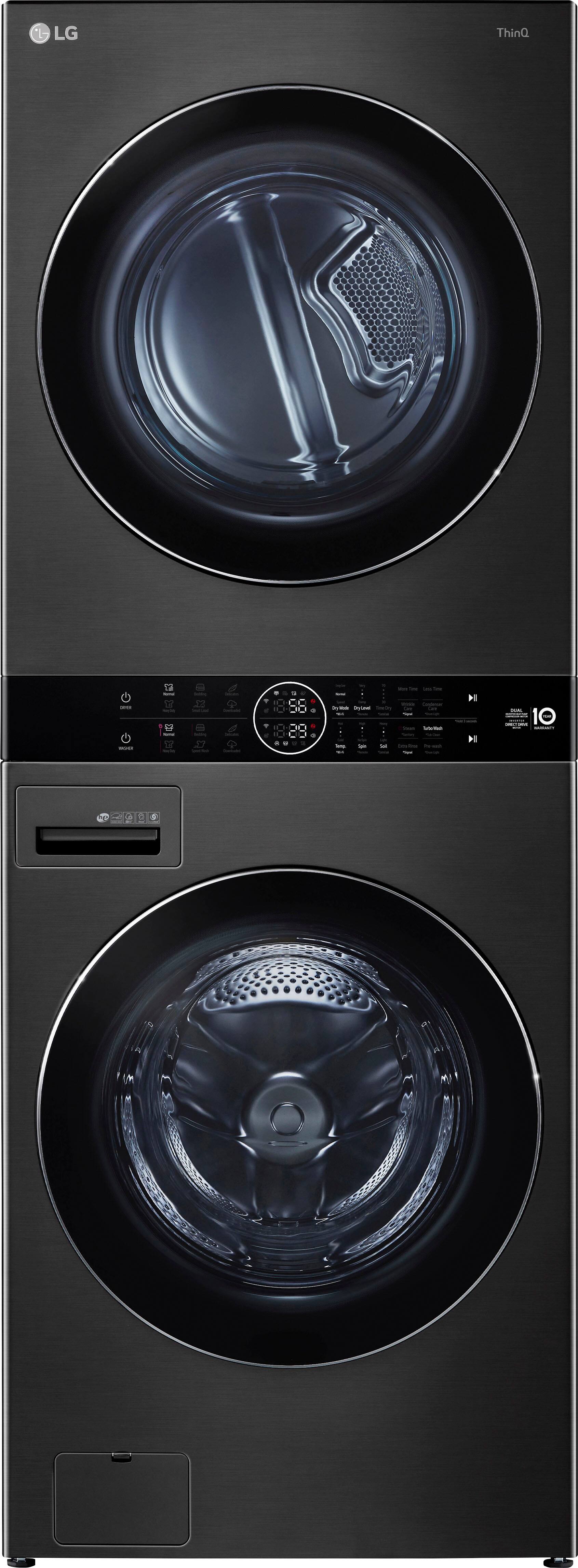

LG - 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Electric Dryer WashTower with Steam and Ventless Dryer - Black Steel

Model: WKHC202HBA
SKU: 6530029
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Black steel
    • Product Height: 74 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 30 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
    • Washer/Dryer Combo Type: Stacked units
    • Washer Load Type: Front load
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
  • General
    • Brand: LG
    • Model Number: WKHC202HBA
    • Product Name: 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Electric Dryer WashTower with Steam and Ventless Dryer
    • Color: Black Steel
    • Color Finish: Black steel
    • Commercial Merchandise: false (Commercial Merchandise refers to major appliances that are officially tested, certified, and labeled for commercial or industrial us, such as those used in restaurants or professional facilities. These products must comply with strict DOE performance standards. Misusing this label or omitting required energy disclosures may result in federal penalties.)
  • Dimensions
    • Product Height: 74 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 30 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Dryer Depth With Door Open: 55 inches (Measurement from the back of the product to its front, with door fully open.)
    • Product Weight: 340 pounds (The out of box weight of the item.)
  • Capacity
    • Washer Capacity: 4.5 cubic feet
    • Dryer Capacity: 7.2 cubic feet
  • Performance
    • High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
    • Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
    • Maximum Spin Speed: 1300 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
  • Features
    • Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
    • Fingerprint Resistant: false
    • Integrated Water Heater: false
    • Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
    • Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
    • Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
    • End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
    • Time-Remaining Display: true
    • Bleach Dispenser: true
    • Fabric Softener Dispenser: true
    • Pre-Wash Detergent Dispenser: true
    • Second Rinse: true
    • Washer Interior Light: true
    • Dryer Heating Source: Electric
    • Sensor Dry: true (Feature that automatically senses the load's moisture level and adjusts the drying cycle time as needed.)
    • Dryer Interior Light: true
  • Design
    • Washer/Dryer Combo Type: Stacked units
    • Washer Load Type: Front load
    • Exhaust Vent Location: Ventless
    • 4-Way Venting: false (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
    • Control Type: Touchpad
    • Display Type: LED
    • Washer Tub/Drum Material: Stainless steel
    • Dryer Drum Material: Stainless steel
    • Dryer Door Style: Left swing
    • Washer Window: true
    • Dryer Window: true
    • Drying Rack: false
  • Cycle
    • Number of Wash/Rinse Cycles: 6
    • Wash/Rinse Cycles: Normal, Bedding, Delicates, Heavy Duty, Small Load, Downloaded, Wrinkle Care, More Time, Less Time, Condenser Care, Wi-Fi / Remote Start
    • Number Of Drying Cycles: 6
    • Drying Cycles: Normal, Bedding, Delicates, Heavy Duty, Small Load, Downloaded (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
    • Options and Programs: WASHER: Normal, Bedding, Delicates, Heavy Duty, Speed Wash, Downloaded, TurboWash, Steam, Extra Rinse, Prewash, Sanitary, Tub Clean, Drum Light, Child Lock, Signal, Wi-Fi/Remote Start -- DRYER: Normal, Bedding, Delicates, Heavy Duty, Speed Wash, Downloaded, Wrinkle Care, TurboSteam, Reduce Static, Energy Saver, Steam Fresh, Drum Light, Child Lock, Signal, Wi-Fi/Remote Start
    • Number of Wash Temperatures: 5
    • Number of Rinse Temperatures: 5
    • Temperature Settings: Hot, Very Warm, Warm, Cool, Cold
    • Number of Spin Speeds: 5
    • Soil Levels: 5 Soil levels from Light to Heavy (Washers with the option to select the soil level will employ different wash cycles to optimally clean the respective load. Most have three options: light, normal, or heavy.)
  • Included
    • Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Fill Hoses Included: false
    • Drain Hose Included: true
  • Filter Info
    • Self-Cleaning Filter: false (Filter that requires little to no cleaning maintenance.)
  • Electrical
    • Estimated Annual Electricity Use (Washer): 105 kilowatt hours (Predicted amount of electricity needed to operate the washing machine under average conditions for one year.)
    • Estimated Annual Electricity Use (Dryer): 105 kilowatt hours (Predicted amount of electricity needed to operate the dyer under average conditions for one year.)
    • Estimated Annual Operating Cost (Washer): 13 United States dollars (Predicted cost of operating the washine machine under average conditions for one year.)
    • Estimated Annual Operating Cost (Dryer): 13 United States dollars (Predicted cost of operating the dryer under average conditions for one year.)
    • Amperage: 10 amperes (Strength of electrical current.)
    • Washer Voltage: 120 volts
    • Dryer Voltage: 240 volts
  • Certifications Listings & Approvals
    • ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • ANSI Certified: false (Meets the requirements of the American National Standards Institute.)
    • Consortium for Energy Efficiency (CEE) Rating: CEE Tier 2
    • NSF Listed: false (Meets the National Sanitation Foundation's standards for public health protection.)
  • Connectivity
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
    • Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
  • Other
    • UPC: 195174022887

The one-of-a-kind LG WashTower now has a ventless dryer for greater energy savings and installation flexibility. But it’s still loaded with all of the features that put it at the top of everyone’s “it” list. The single unit design takes up half the space¹, giving you room to add a sink, a folding table or whatever you like. But unlike conventional stacked pairs, LG’s exclusive Center Control panel is perfectly positioned with both washer and dryer controls at just the right height. Built-in intelligence makes laundry less of a chore by taking out the guesswork, while top-of-the-line innovations put advanced cleaning power within reach.

  • Ultra Large Capacity 4.5 cu. ft. Washer and 7.2 cu. ft. Dryer: Get It All Done In Less Time. Ultra Large Capacity. 4.5 cu. ft. in the washer and 7.2 cu. ft. in the dryer means you have even more room to do laundry in fewer loads.
  • Ventless Design WashTower: This vertical laundry solution puts everything within reach. Full-size capacity and features in half the space¹, and a centralized control panel for the easiest access ever. The ventless design on the dryer, gives you greater flexibility for more installation options.
  • ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
  • DUAL Inverter Heat Pump Drying Technology: Meet a more modern approach to drying. LG's DUAL Inverter Heat Pump technology uses less than half of the energy to dry every load.²
  • AI DD Built-In Intelligence: Forget about endless sorting or toggling through cycles—built-in sensors use AI technology to detect fabric texture and load size, then automatically select the right wash motions and more for advanced fabric care.
  • Advanced Washing: TurboWash 360° and Allergiene Wash Cycle: The LG WashTower delivers the advanced cleaning performance you need. TurboWash 360° powers through larger loads in less time, thanks to five jets with variable sprays that deliver a complete clean in under 30 minutes⁵.
  • Tempered Glass Doors with Rim: LG front load washers and dryers use tempered glass doors for a sleek, stylish look that resists shock and scratches. Chrome rim complements the doors and enhance the premium feel.
  • Direct Drive Motor 10-Year Limited Warranty: With a 10-year limited warranty, LG's Inverter Direct Drive Motor and DUAL Inverter Heat Pump deliver peace of mind with every load. Fewer moving parts means less noise and vibration, greater stability and durable performance you can depend on for years.
  • ENERGY STAR Certified: This high efficiency washer uses far less water and energy than a conventional washer for savings that add up with each load. For drying, efficient sensor drying save energy and money without sacrificing performance.
  • ThinQ Technology: The LG ThinQ app helps you manage your LG Smart appliance and more, all to make your everyday a little easier. Automatically reorder supplies based on actual usage. Start or stop programs on your way home from work.⁷
  • AAFA Certified LG Washer: AAFA certified LG washers with the Allergiene Cycle use the power of steam to remove over 95%⁶ of dust, pet dander and pollen.
  • TubClean System: With the LG TubClean system, you don’t have to worry about mold, mildew or musty odors. Select the Tub Clean cycle, add liquid bleach or other cleaner and let the washer do the work to thoroughly clean and dry the tub, door and gaskets.
Whats Included
  • WKHC202HBA Smart Electric Washtower
  • Water drain hose for dryer
  • 5 band clamps, 3 cable ties, and 10 screws
  • Hole caps
  • Wrench
  • Non-skid pads
  • Elbow bracket
  • Drain hose connector
  • Short drain hose
  • Owner's manual
Documents
  • Energy_Guide_PDF

Q: how far does the unit have to be from the wall when it is installed model number lg wkhc202hba

A: Hi Bigal.Even though the dryer for this ENERGY STAR® Certified LG Wash Tower™ Single Unit Front Load 4.5 cu. ft. Washer and 7.2 cu. ft. Heat Pump Ventless Dryer, Model # WKHC202HBA is ventless, you still need to allow minimum clearances of at least 1'' (2.5 cm) at the sides and 4'' (10 cm) behind the appliance to ensure sufficient clearance for water inlet hoses, drain hose and airflow. Be sure to allow for wall, door, or floor moldings that may increase the required clearances...^Ivan

Q: Is the washing machine low suds? Does the washing machine plug into the dryer?

A: Hello! The LG - 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Electric Dryer WashTower with Steam and Ventless Dryer, Model #WKHC202HBA plugs into separate outlets, the requirements are 120V, 10 Amps for the washer, and 240V, 5 Amps for the dryer. ~Rita

Q: i would like to be notified as soon as item 36530029 a ventless washer dryer unit) becomes available how would i go about to make this happen.

A: Hi there, We would suggest contacting your local retailer and ask if they can order the item for you directly. Going forward you also have the option to order the unit of your choice at lg.com/us. ~ Tanisha

Q: This product is advertised as a ventless dryer, does this mean that it may be used without connecting it to an outside outlet / vent? if yes how effective will the dryer perform without connecting it to an outside vent.

A: The unit requires 2 outlets (1 for washer and 1 for dryer- 1 of the outlets must be a 3 or 4 prong). The dryer does not need to be connected to a vent to vent outside.

Q: What comes with the LG wkhc202hbc for installation and what do I need to purchase for installation?

A: Thank you for your interest in the LG WashTower™ Single Unit Front Load 4.5 cu. ft. Washer and 7.2 cu. ft. Heat Pump Ventless Dryer (WKHC202HBA) model. The LG WKHC202HBA WashTower comes with a user manual and installation guide. Additionally, it includes a 5.2 cu. ft. washer and a 7.2 cu. ft. heat pump ventless dryer in a single unit. You can download its owner's manual through this link for more information: https://www.lg.com/us/support/product/lg-WKHC202HBA.ABLEEUS. ^Cris
