MartinLogan - Helos 22 6-1/2" In-Ceiling Speaker (Each) - Paintable White
Key Accessories:
- AudioQuest - X2 - 30' - Gray with Red Stripes$104.95
More Buying Options
Specifications
- Speaker TypeIn-CeilingRMS Power100 watts
- Key Specs
- Speaker Type: In-Ceiling
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: MartinLogan
- Model Number: HELOS22
- Product Name: Helos 22 6-1/2" In-Ceiling Speaker (Each)
- Color: Paintable White
- Audio
- Speaker Type: In-Ceiling
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 47 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 89 decibels
- Number of Speakers: 1
- Number of Tweeters: 2
- Tweeter Size: 0.75 inches
- Number of Midranges: 0
- Number of Drivers: 3
- Driver Size: 0.75 inches
- Number of Woofers: 1
- Woofer Size: 6.5 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Banana Jack/Screw Terminals
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 9.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.13 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.5 pounds (The out of box weight of the item.)
- Mounting Dimensions: 5.7 Cut out diameter
- Included
- Cable(s) Included: None
- Speaker Wire Included: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 877929007843

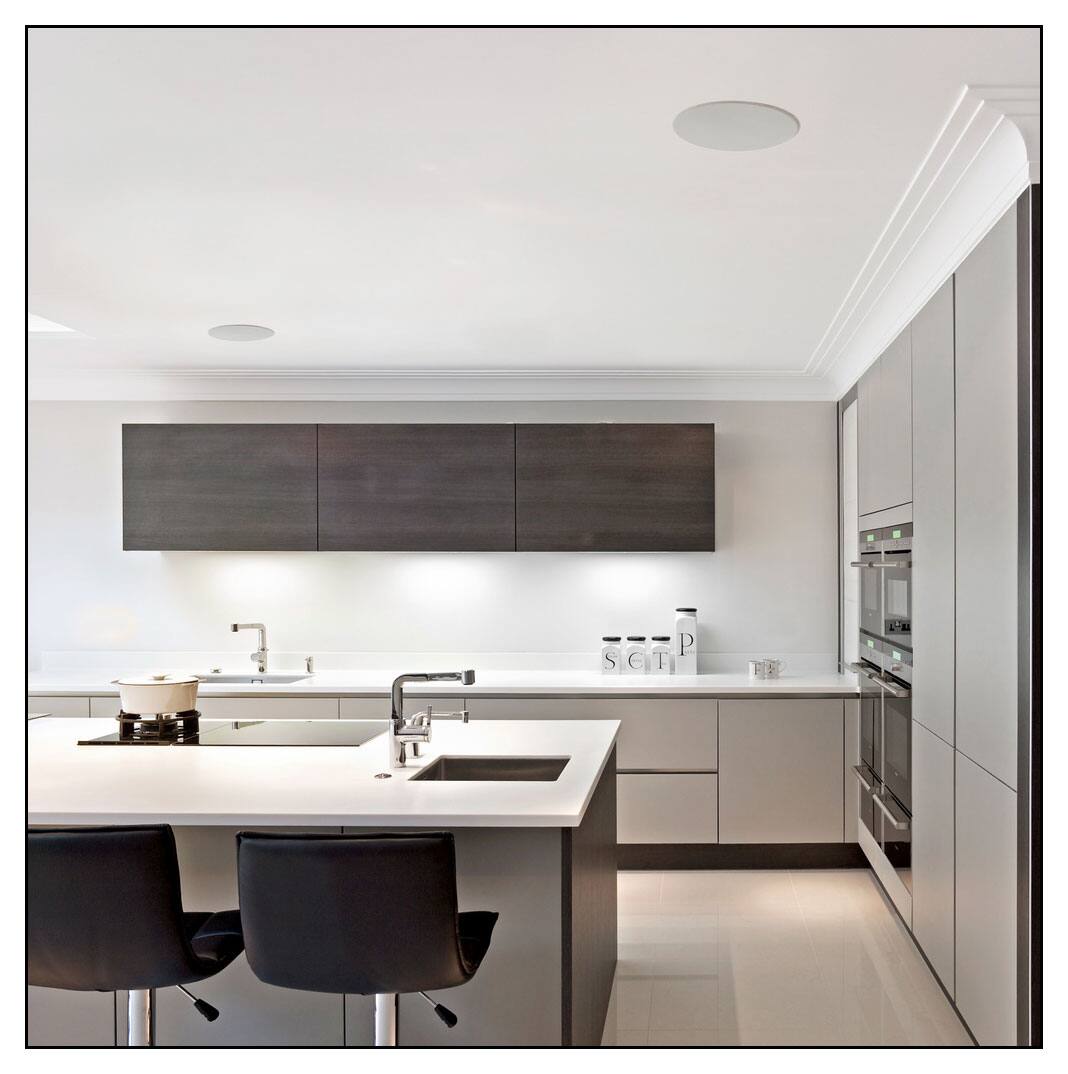

Helos 22 features dual tweeters and a dual voice coil woofer. This design allows the speaker to provide stereo sound from a single speaker, ideal for use in small rooms such as bathrooms, small offices, entryways, and kitchens. Helos 22 also bridges to deliver mono sound reproduction with wide dispersion. You can use Helos 22 for almost any application.
- Handles up to 200W maximum power: For robust, controlled audio. Designed for use in small rooms, such as a bathroom, kitchen, entryway, small office or hallway. Can be used in multichannel or single-channel sound systems.
- 6-1/2" cast-basket, high-rigidity, aluminum-cone woofer: With dual voice coils, an extended throw-drive assembly and thermal protection provides rich, vibrant sound.
- Dual 3/4" neodymium soft-dome tweeters: Deliver crisp, high tones and can be aimed, so you can easily direct your music toward a specific listening area.

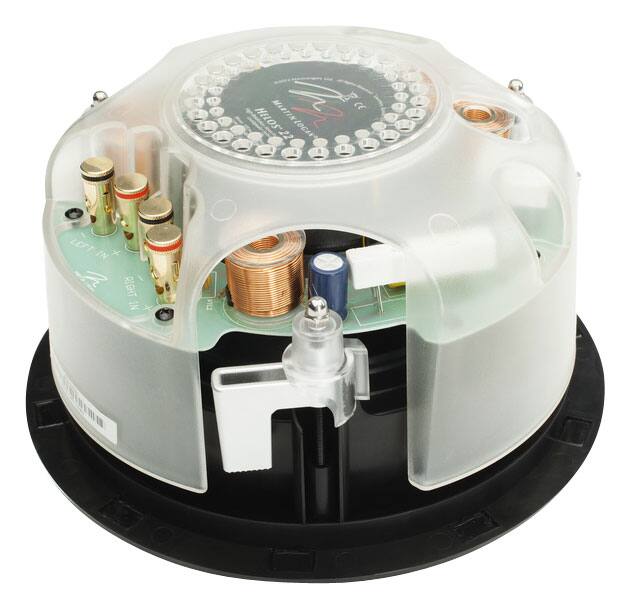

- Advanced-topology Vojtko crossover: With polyester capacitors and air-core coils ensures extremely low distortion and seamless driver integration, as well as preserves sonic nuances while handling a source's full acoustic dynamics.
- Push-style binding posts: Accept bare wires up to 5 AWG, so you can easily connect 2 sets of speaker cables from your amplifier's left and right channels. Compatible with 4-, 6- and 8-ohm-rated amplifiers (not included).
- Ultralow-profile, microperforated grille with no visible bezel: Can be painted, making it easy to integrate the speaker into your ceiling. Magnets secure the grille in place to help reduce the risk of warping or damage during installation.
- 8-3/8"H x 8-3/8"W mounting cutout dimensions: Mounting depth: 4-9/10". An included full-size template features quick-reference instructions and die-cut guides to simplify the process of creating the cutout hole.
- Mounting-lock system: Utilizes constant-control mounting locks to firmly couple the speaker's chassis to the ceiling for quick, easy installation. The mounting locks store within a self-contained housing when not in use.
- 47Hz - 20kHz frequency response (±3dB): Ensures a wide range of accurately reproduced sound.
- 89dB sensitivity @ 2.83V/m: For powerful audio.
- 4 ohms mono nominal impedance (8 ohms x 8 ohms stereo): Ensures efficient conduction of power through the speaker.
Whats Included
- Owner's manual
- Full-size installation template
- Grille cover
- MartinLogan Helos 22 6-1/2" In-Ceiling Speaker (1 speaker)
Q: What is the size of the woofer?
A: The woofer size is 6.5 inches.
Q: What are the dimensions of the speaker?
A: The Helos 22 speaker has a product width of 9.5 inches, a product height of 9.1 inches, and a product depth of 5.13 inches.
Q: How many tweeters does the speaker have?
A: The Helos 22 speaker includes two tweeters.
Q: Are there any additional accessories included?
A: This speaker comes with a full-size installation template and grille cover.
Q: What is the maximum power handling of the speaker?
A: The peak power handling of the speaker is 200 watts.
Compare similar products
Helos 22 features dual tweeters and a dual voice coil woofer. This design allows the speaker to provide stereo sound from a single speaker, ideal for use in small rooms such as bathrooms, small offices, entryways, and kitchens. Helos 22 also bridges to deliver mono sound reproduction with wide dispersion. You can use Helos 22 for almost any application.
Create a home theater with booming audio using this MartinLogan 6.5-inch in-ceiling stereo speaker. The tweeters are cooled and ferrofluid-damped to deliver rich sound across large areas, and the micro-perforated grilles have slim bezels to blend seamlessly into the ceiling. This MartinLogan 6.5-inch in-ceiling stereo speaker comes with a full-size installation template for added convenience.
.content {font-family:verdana;font-size:11px;color:#000000;}.content td a:link,a:visited {font-weight:normal;color:#000;text-decoration: none}.content a:hover {font-weight:normal;color:#c63444;}.content a:visited {font-weight:normal;color:#000000;}#magnolia {padding 0px 5px 0px 5px;}displayImg('/en_US/images/global/pcontent/magnolia/MAG_header_bracket.gif','45','316','From Our Magnolia Premium Home Theater Assortment','') displayImg('/en_US/images/global/pcontent/magnolia/MAG_nav_arrow.gif','8','6','','') displayImg('/en_US/images/global/pcontent/magnolia/MAG_nav_arrow.gif','8','6','','') displayImg('/en_US/images/global/pcontent/magnolia/MAG_box_top.gif','9','316','','') displayImg('/en_US/images/global/pcontent/magnolia/MAG_redline_dash.gif','7','288','','')Ideal for installation in a bathroom, kitchen or other small room, this MartinLogan HELOS12 in-ceiling speaker features a Vojtko crossover, plus a 6-1/2" aluminum-cone woofer and a 1" neodymium soft-dome tweeter, for high-quality audio. displayImg('/en_US/images/global/pcontent/magnolia/MAG_box_bottom.gif','9','316','','')
By far the most popular size for in-ceiling speakers, the MC6 features a 6.5” woofer with higher power handling, greater output capability, and improved bass response over the smaller MC4. This model works without a built-in enclosure to allow the speaker to use more airspace for higher performance. For applications where sound control is desired, an optional retrofittable back enclosure is available separately. As with all Motion series CI speakers, the MC6 uses MartinLogan’s signature Folded Motion Tweeter for precise clarity and incredible realism to meet all your entertainment needs. All MartinLogan Motion CI Series speakers feature our signature Folded Motion Tweeter or FMT. This innovative piece of audio technology provides incredible detail, precise clarity, clean output and high efficiency in a small but mighty package. Pairing this tweeter with lightweight woven fiberglass woofers means that Motion CI delivers a clean and balanced sound that is perfectly suited for any application. Whether you listen to music, movies or a little bit of everything, Motion CI gives you a true high-end audio experience at an affordable price. To round out the assortment, pre-construction brackets are available for all models, and all in-ceiling models have square grilles and retrofittable back enclosures available separately.
| Pros for MartinLogan - Helos 22 6-1/2" In-Ceiling Speaker (Each) - Paintable White | |||
|---|---|---|---|
| There were no pros for this product— | Sound Quality | Sound Quality, Tweeter, Installation | Sound Quality |
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great mono speaker.
Needed to add a speaker in a spot in my house where my other speakers weren’t reaching and this speaker fit the bill. Nice clear sound and an easy install.
djnektario Posted
- Rated 5 out of 5 stars
Great speakers for Surround Sound
I installed these in wall speakers in a media room for surround sound with a Denon Amplifier and wow they sound awesome! They are a bit expensive but well worth the price. They are easy to install and look real good and flat in the ceiling.
LuisAgustin Posted
