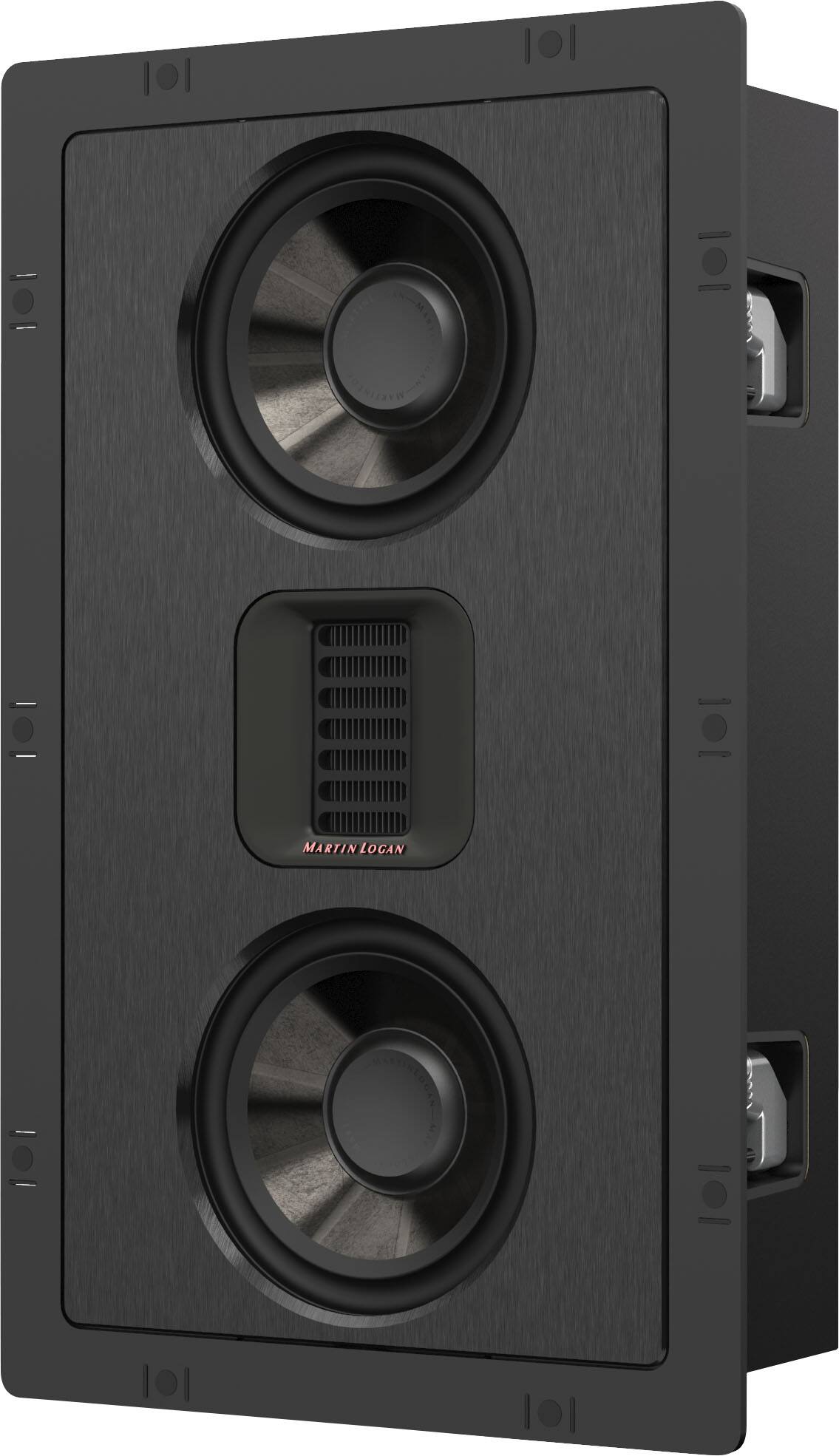

MartinLogan - Masterpiece CI Series Icon 3XW, 2-Way In-Wall Speaker with Dual 5.25" Drivers, and FMT XT Obsidian Tweeter - Black

Model: ICON3XW
SKU: 6402428
$2,199.99
or
$91.67/mo.
suggested payments with24-Month Financing
Show me how
Finance OptionsView your offers
Sold by Best Buy
Specifications
  • Speaker Type
    In-Wall
    RMS Power
    125 watts
  • Key Specs
    • Speaker Type: In-Wall
    • RMS Power: 125 watts (The maximum amount of continuous power the device is able to handle.)
  • General
    • Brand: MartinLogan
    • Model Number: ICON3XW
    • Product Name: Masterpiece CI Series Icon 3XW, 2-Way In-Wall Speaker with Dual 5.25" Drivers, and FMT XT Obsidian Tweeter
    • Color: Black
  • Audio
    • Speaker Type: In-Wall
    • Enclosure Type: Sealed
    • RMS Power: 125 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 250 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
    • Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
    • Minimum Frequency Response: 78 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Sensitivity: 94 decibels
    • Tweeter Type: Folded motion
    • Midrange Type: Cone
    • Tweeter Size: 2.4 inches
    • Midrange Size: 5.25 inches
    • Woofer Size: 5.25 inches
  • Connectivity
    • Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
    • Audio Only Inputs: No audio only inputs
    • Network Connector(s): No network connectors
  • Dimensions
    • Product Height: 16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 9.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 4.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 15.4 pounds (The out of box weight of the item.)
    • Mounting Dimensions: 5.25 Cut out diameter
  • Included
    • Cable(s) Included: None
  • Other
    • UPC: 810123024452

Fill your home with music using this MartinLogan Icon 3XW in-wall speaker. The Folded Motion XT Obsidian tweeter makes the high-frequency sounds come alive, while the dual 5.25-inch low-frequency drivers deliver clean, thundering bass. This MartinLogan Icon 3XW in-wall speaker features a sealed-back box enclosure to help reduce fidelity-robbing vibrations.

Speaker Buying Guide

  • The MartinLogan Sound: Regardless of the environment, our speakers sound better, more articulate, detailed, and realistic. With Controlled Dispersion and one of the clearest tweeters in the industry, our architectural models can compete with and often exceed the performance of traditional speakers.
  • Folded Motion XT Obsidian Tweeters: Masterpiece CI Series steps up the game with the Folded Motion XT Obsidian tweeters, which advance thin-film transducer technology even further. The result is superior realism and alarming specificity. Folded Motion XT takes tweeter technology to the next level
  • Unidirectional Carbon Fiber Woofers: Icon 3XW features cones using unidirectional carbon fiber, a material that is twice as strong as steel but with a sixth of the density, for exceptional rigidity without the weight. They are designed in multiple sections to take full advantage of this material.
  • Nomex Backers: Each cone is reinforced by a Nomex backer, for added damping that prevents ringing and reduces breakup modes in these extremely rigid cones. The drivers feature powerful, efficient magnet structures, enabling massive excursion and huge sound output, while preserving deep bass details.
  • Advanced Driver Engineering: To deliver more accuracy in the critical midrange, the mid-frequency drivers have their suspensions "stiffened." This raises the driver's resonant frequency and optimizes performance to achieve a natural roll-off, inherently keeping it in an ideal range for mid-frequencies
  • Proprietary Vojtko Crossover Networks: Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.
  • Performance Meets Aesthetics: While there are many choices of CI speakers out there, MartinLogan stands out for bringing unique, high-performance technologies together in a package that perfectly blends discrete sound with noticeable quality. Performance and Aesthetics, both without compromise.
  • Controlled Dispersion: Room acoustics are extremely important. Everything in the listening room has an impact on the sound of your speakers, so we try to minimize the harmful effects by focusing the sound directly on your ears. This increases clarity, and detail regardless of the rooms design.
  • The MartinLogan Sound: Regardless of the environment, our speakers sound better, more articulate, detailed, and realistic. With Controlled Dispersion and one of the clearest tweeters in the industry, our architectural models can compete with and often exceed the performance of traditional speakers.
  • Folded Motion XT Obsidian Tweeters: Masterpiece CI Series steps up the game with the Folded Motion XT Obsidian tweeters, which advance thin-film transducer technology even further. The result is superior realism and alarming specificity. Folded Motion XT takes tweeter technology to the next level
  • Unidirectional Carbon Fiber Woofers: Icon 3XW features cones using unidirectional carbon fiber, a material that is twice as strong as steel but with a sixth of the density, for exceptional rigidity without the weight. They are designed in multiple sections to take full advantage of this material.
  • Nomex Backers: Each cone is reinforced by a Nomex backer, for added damping that prevents ringing and reduces breakup modes in these extremely rigid cones. The drivers feature powerful, efficient magnet structures, enabling massive excursion and huge sound output, while preserving deep bass details.
  • Advanced Driver Engineering: To deliver more accuracy in the critical midrange, the mid-frequency drivers have their suspensions "stiffened." This raises the driver's resonant frequency and optimizes performance to achieve a natural roll-off, inherently keeping it in an ideal range for mid-frequencies
  • Proprietary Vojtko Crossover Networks: Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.
  • Performance Meets Aesthetics: While there are many choices of CI speakers out there, MartinLogan stands out for bringing unique, high-performance technologies together in a package that perfectly blends discrete sound with noticeable quality. Performance and Aesthetics, both without compromise.
  • Controlled Dispersion: Room acoustics are extremely important. Everything in the listening room has an impact on the sound of your speakers, so we try to minimize the harmful effects by focusing the sound directly on your ears. This increases clarity, and detail regardless of the rooms design.
Whats Included
  • MartinLogan Dual 5-1/4" 125-Watt Passive 2-Way In-Wall Speaker (Each)
  • MartinLogan Dual 5-1/4" 125-Watt Passive 2-Way In-Wall Speaker (Each)

Q: What is the weight and dimensions of the speaker?

A: The speaker weighs 15.4 pounds and measures 9.9 inches wide, 16 inches high, and 4.1 inches deep.

Q: How many drivers are included in the speaker?

A: This speaker includes three drivers.

Q: What is the maximum frequency response of the speaker?

A: The maximum frequency response of this speaker is 25 kilohertz.

Q: What is the size of the woofer?

A: The woofer size is 5.25 inches.

Q: What is the sensitivity of the speaker?

A: The sensitivity of the speaker is 94 decibels.

Q: Does the speaker come with any cables?

A: This speaker does not include any cables.
