Monogram - 20.2 Cu. Ft. Bottom-Freezer Built-In Smart Refrigerator with Convertible Temperature Drawer - Custom Panel Ready
Specifications
- Color FinishCustomProduct Height83 1/2 inchesProduct Width35 3/4 inchesHeight To Top Of Door Hinge83.5 inchesTotal Capacity20.1 cubic feetRefrigerator StyleBottom Freezer
- Key Specs
- Color Finish: Custom
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83.5 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 20.1 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Monogram
- Model Number: ZIC363IPVRH
- Product Name: 20.2 Cu. Ft. Bottom-Freezer Built-In Smart Refrigerator with Convertible Temperature Drawer
- Color: Custom Panel Ready
- Color Finish: Custom

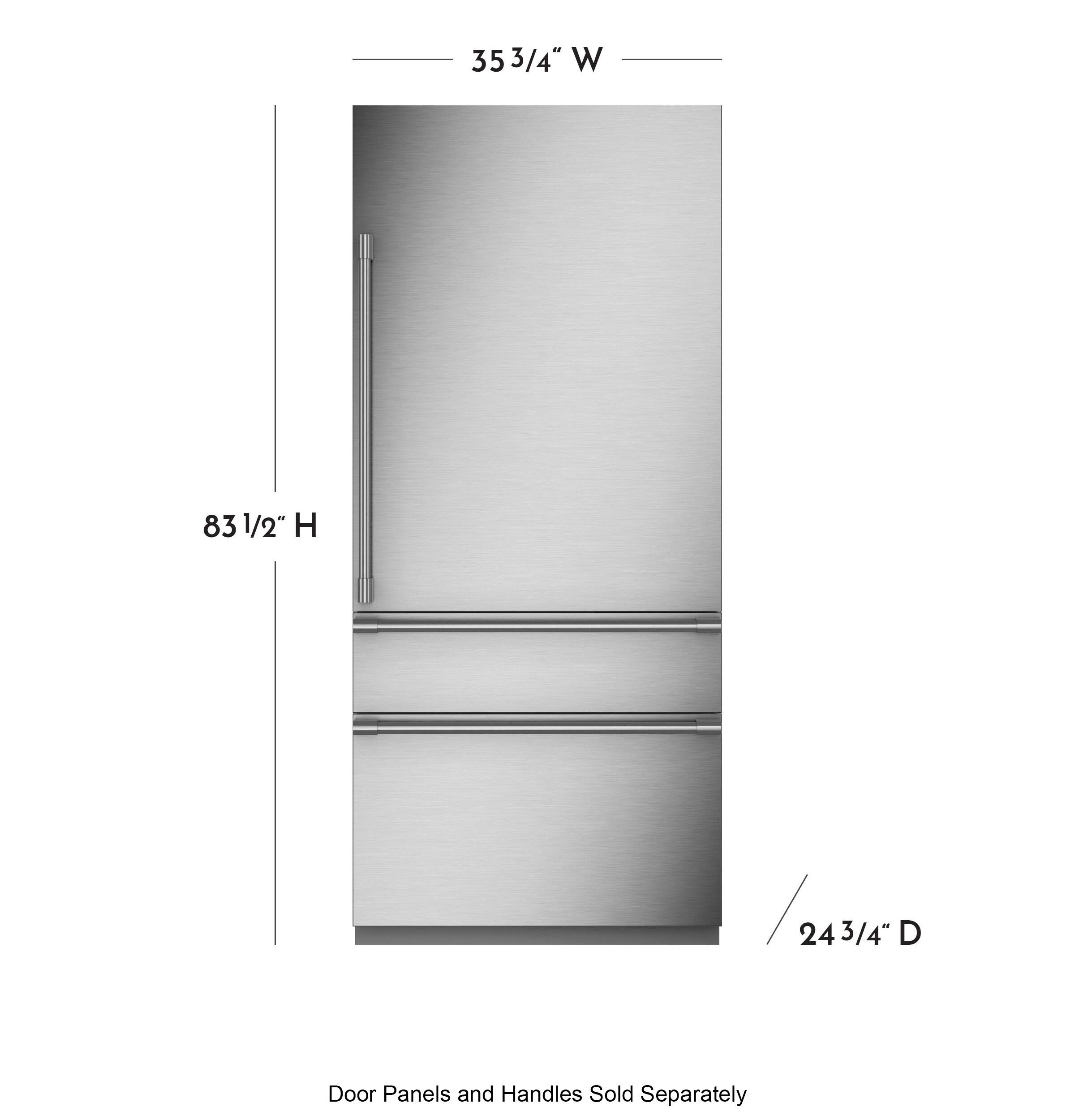

- Dimensions
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83.5 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Product Weight: 586 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.1 cubic feet
- Refrigerator Capacity: 13.7 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 3.5 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 2.9 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)

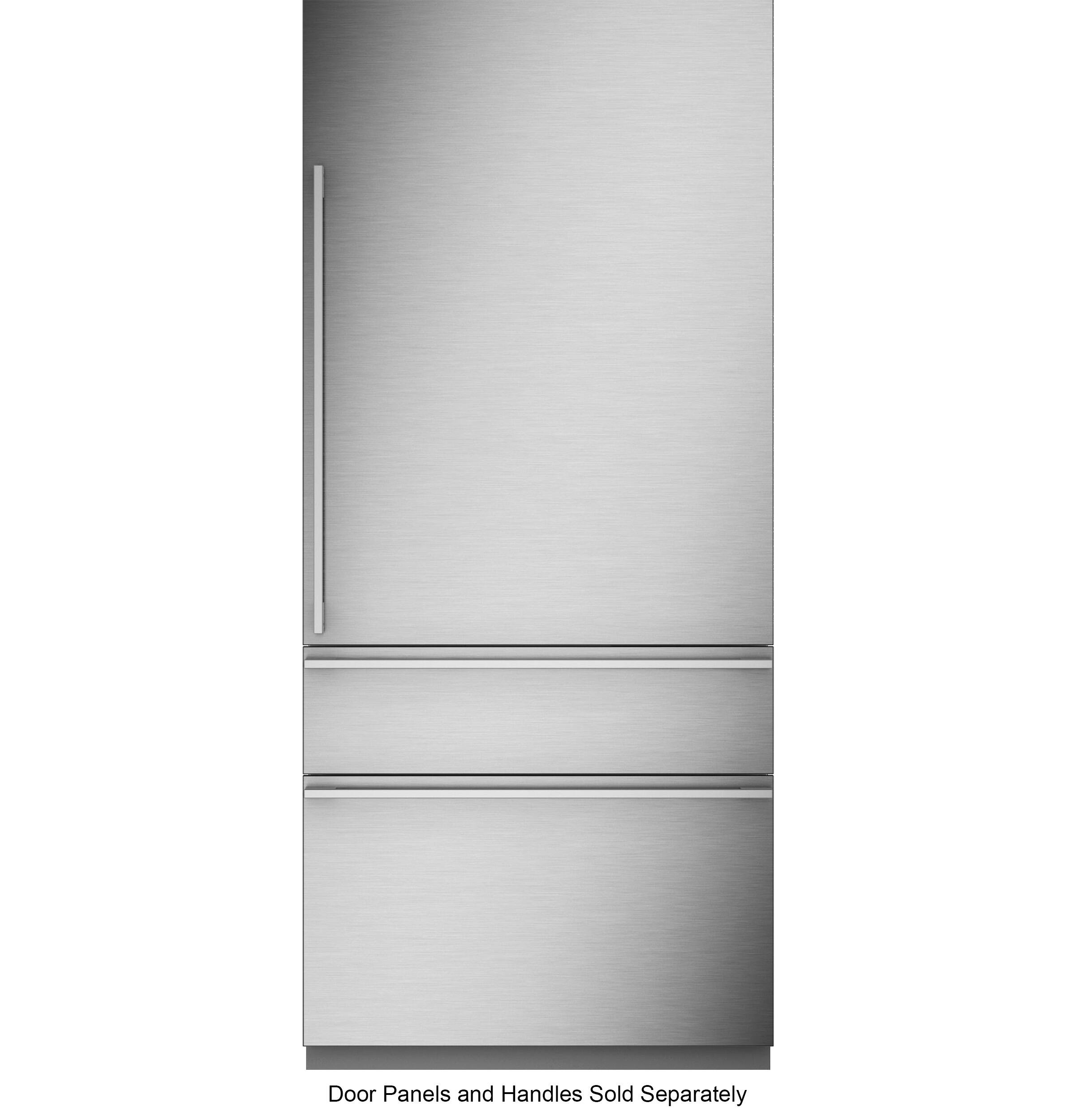

- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Fingerprint Resistant: false
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Location: Middle
- Convertible Temperature Zone Range: 6 temperature settings
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: Internal
- Dispensed Water Type: Cold Water

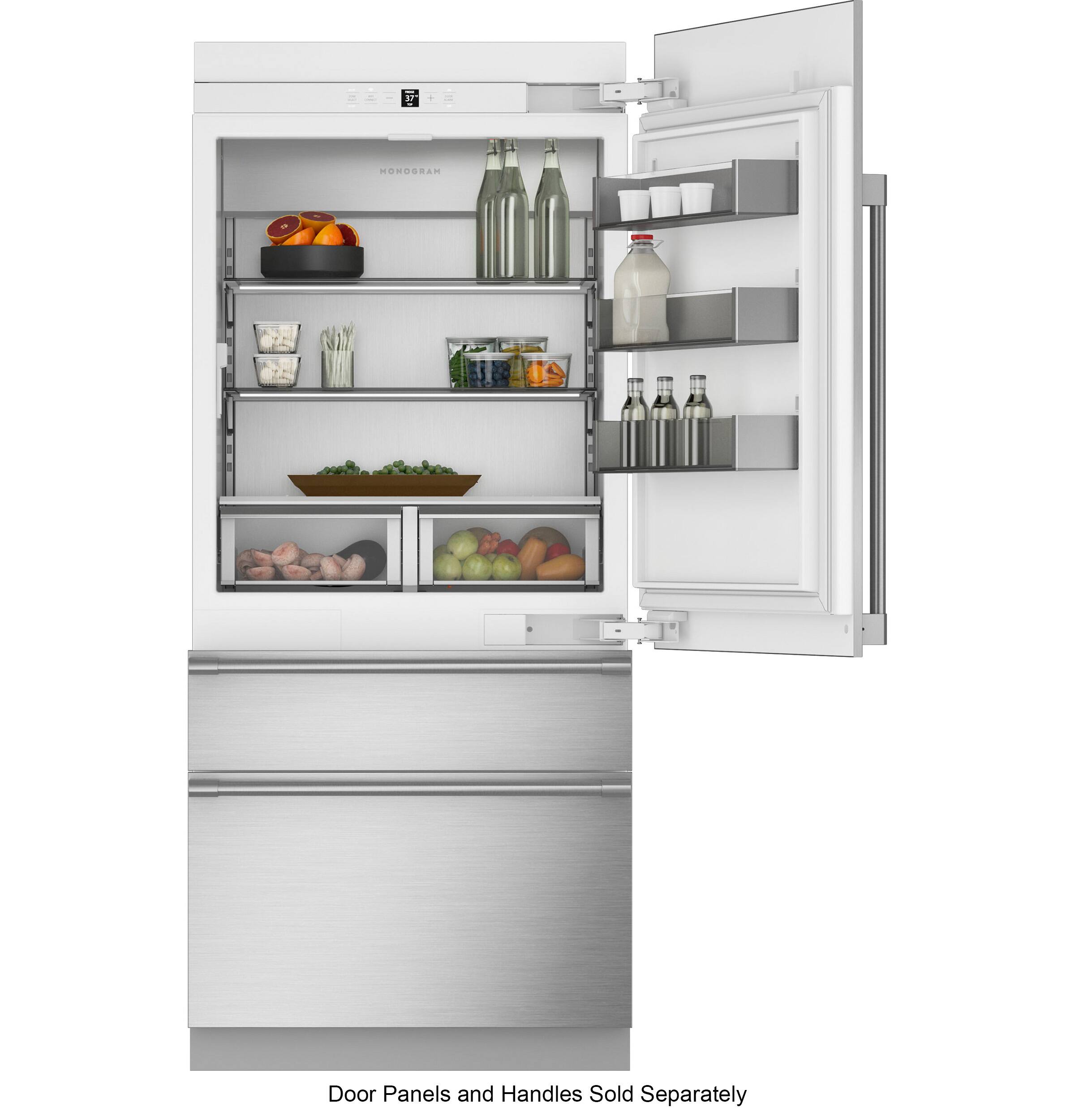

- Storage
- Number of External Doors/Drawers: 3
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Adjustable
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Glass

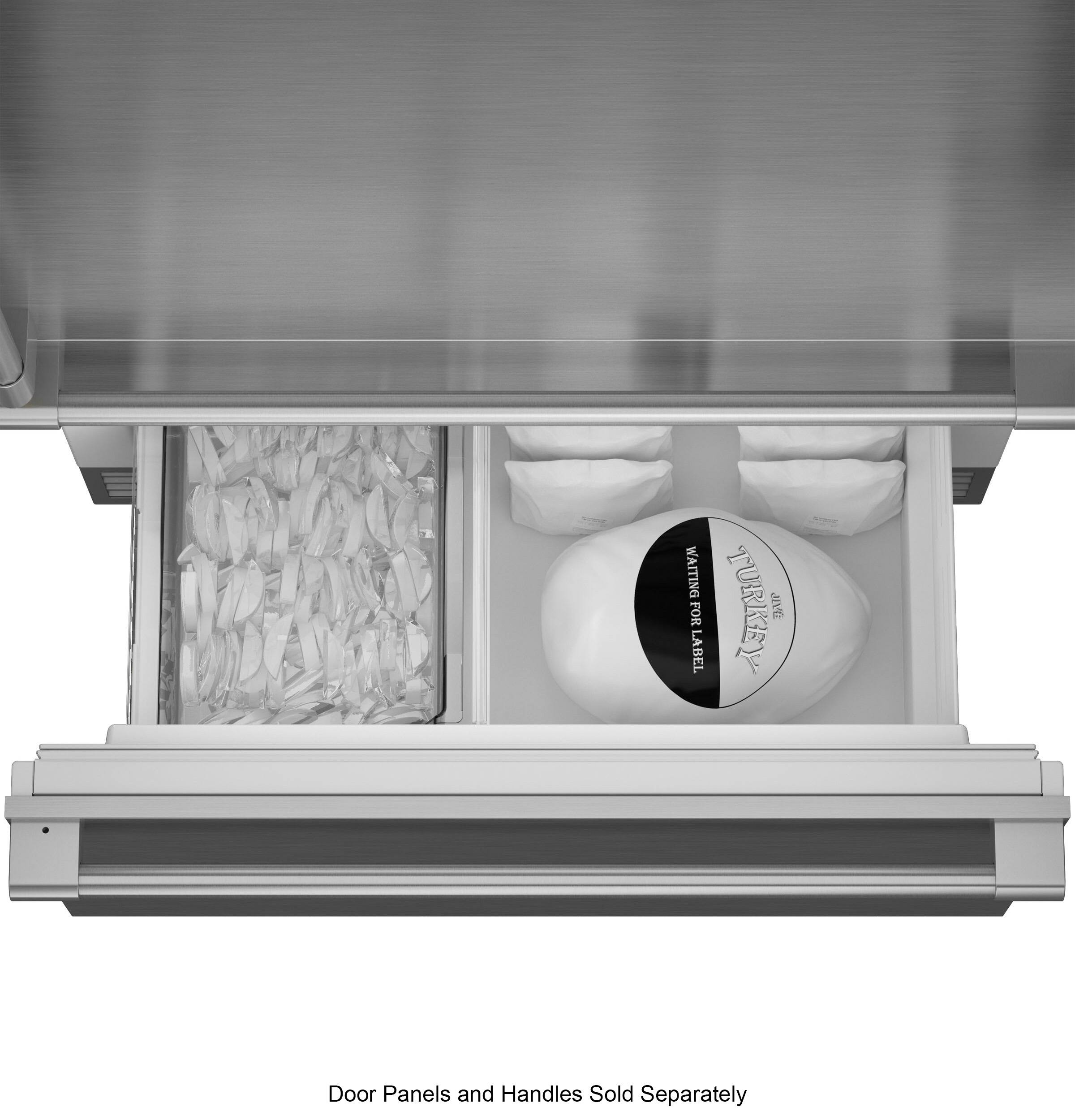

- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Filter Info
- Water Filtration: true

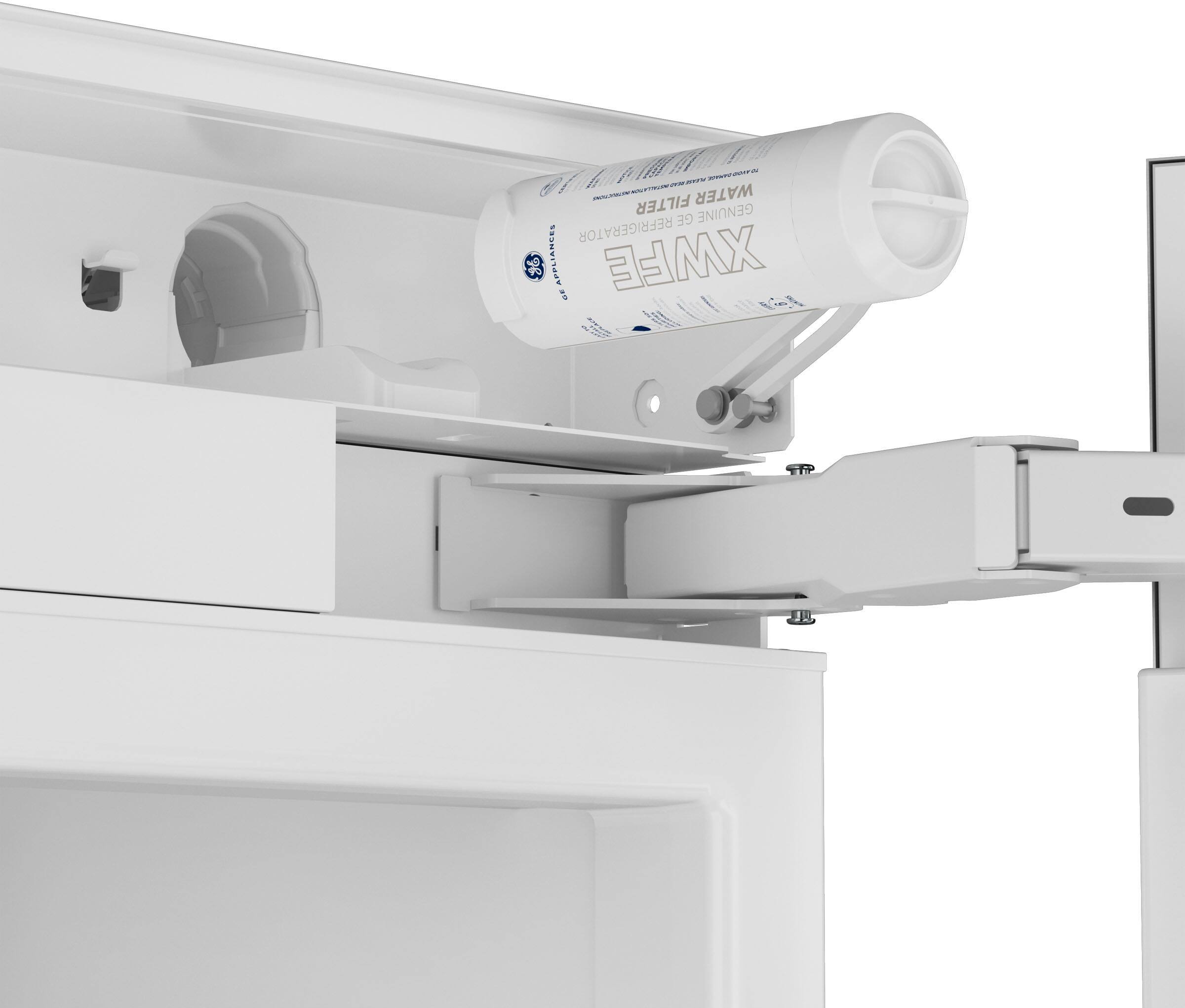

- Water Filter Model Number: XWFE (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Chemical Disclosures: Consumers may visit https://www.geappliances.com/chemical-reports to learn more about chemicals in certain GE Appliances products. Los consumidores pueden visitar https://www.geappliances.com/chemical-reports para obtener más información sobre los productos químicos en ciertos electrodomésticos de GE Appliances. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 084691916185
Through passion and precision, Monogram is redefining the world of luxury appliances one detail at a time. We engineer steel to move as if it’s weightless. We create features that feel anything but ordinary. We select materials that perform and add a luxurious presence. And with two new collections, Monogram appliances complement any style preferences. The Statement Collection features edge-to-edge handles, polished stainless steel and brass accents that unify the overall appearance. The Minimalist Collection’s streamlined appearance and precisely machined metals create a contemporary yet functional aesthetic. Every Monogram bottom-freezer refrigerator is also outfitted with premium features the experts use. These 36” models include upfront electronic controls with digital readout that allow precise temperature settings and are positioned for maximum ease of use. A GE water filtration system provides clean, fresh-tasting water to the freezer's icemaker while six adjustable door bins offer added storage flexibility. And you can choose from free-standing or French door models, with stainless steel or custom panel exteriors. Altogether, Monogram appliances look, feel, and perform as if they were designed perfectly for you.

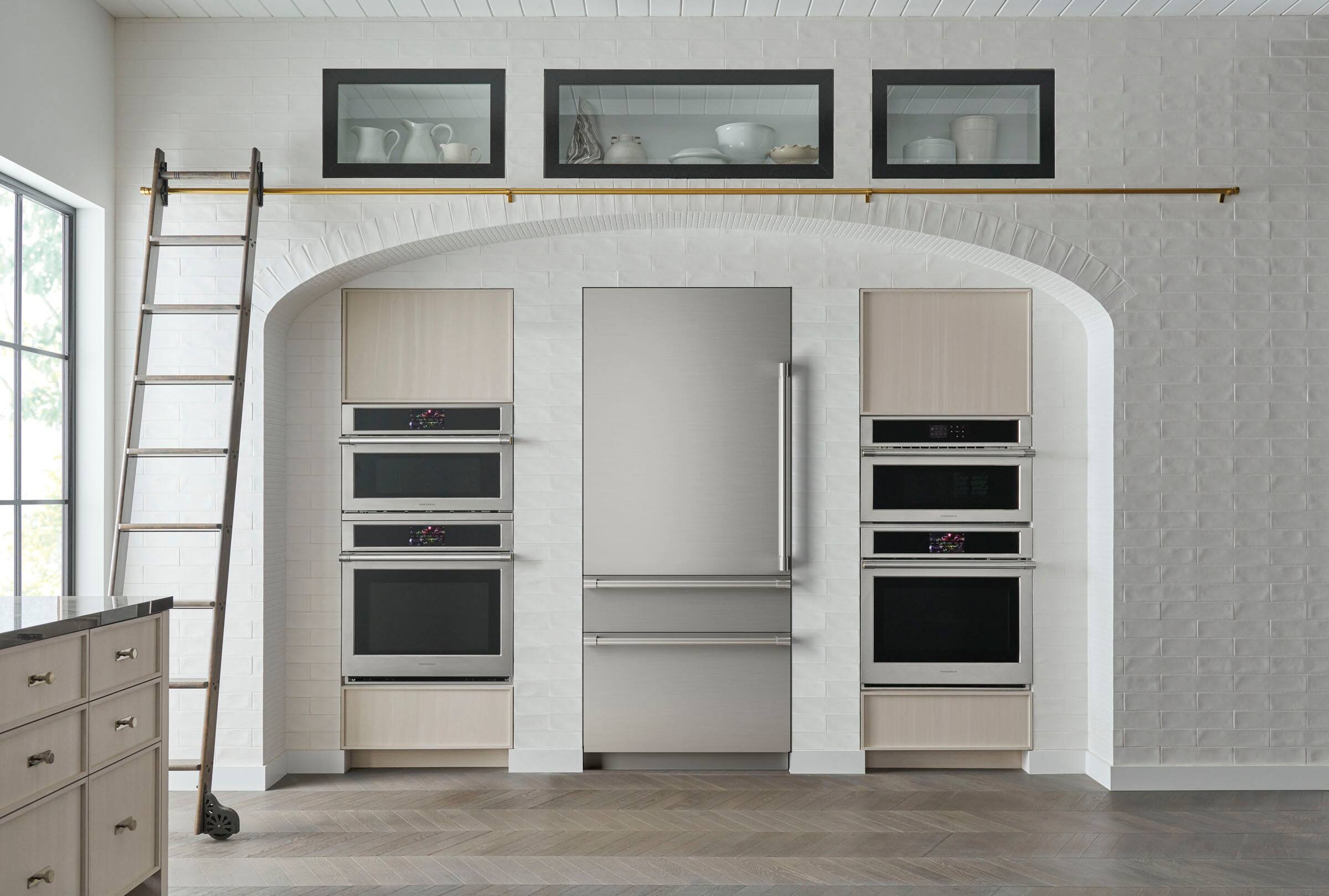

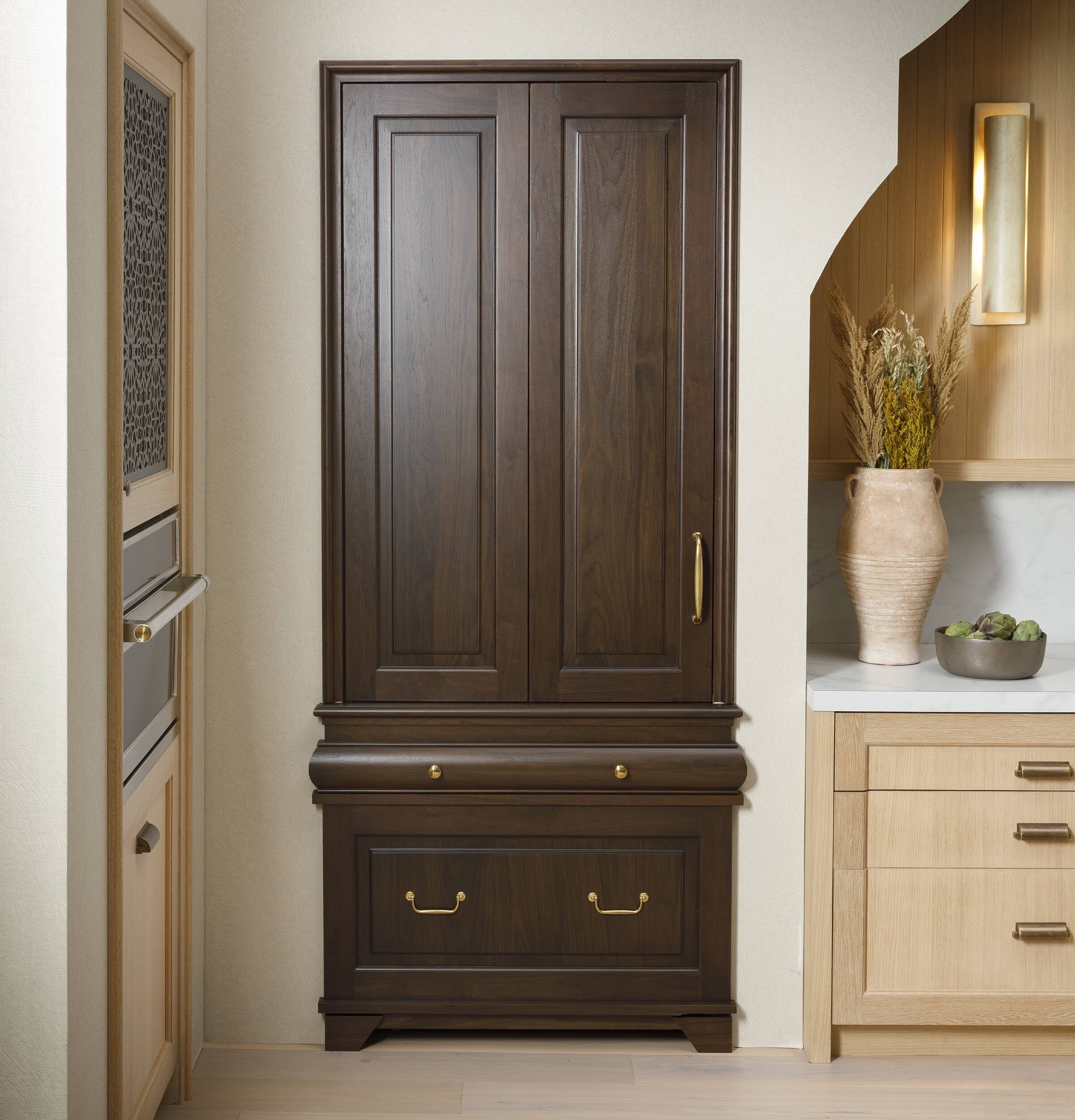

- Bottom Freezer with Flush Inset Installation: Sleek design allows the refrigerator to be installed flush with adjacent cabinetry.

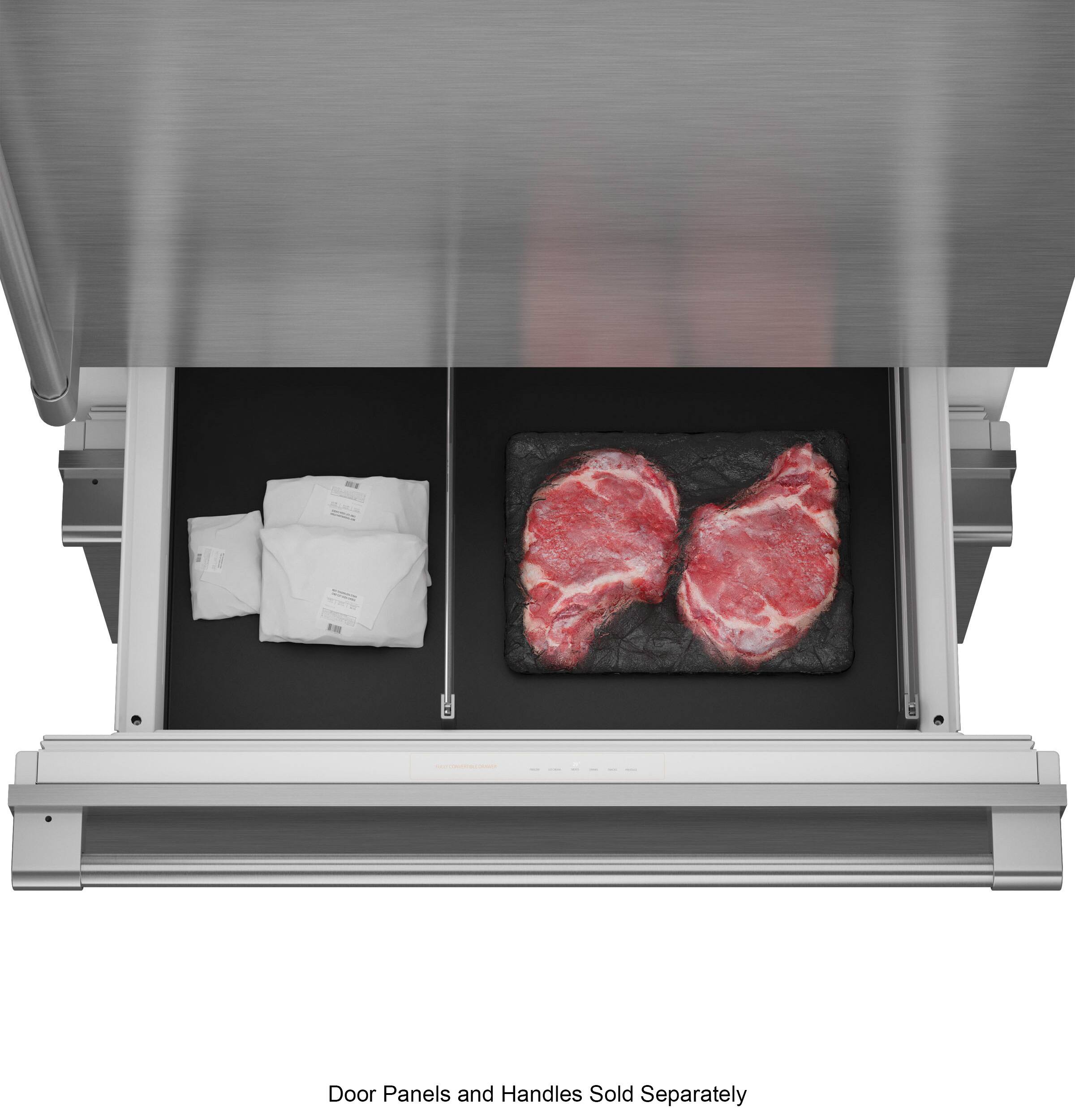

- 6-Temperature Setting Convertible Drawer: The convertible drawer with 6 temperature settings allows you to choose whether the lower drawer is a freezer or a fresh food/wine or beverage refrigerator, with independent temperature controls for storage choice and flexibility.

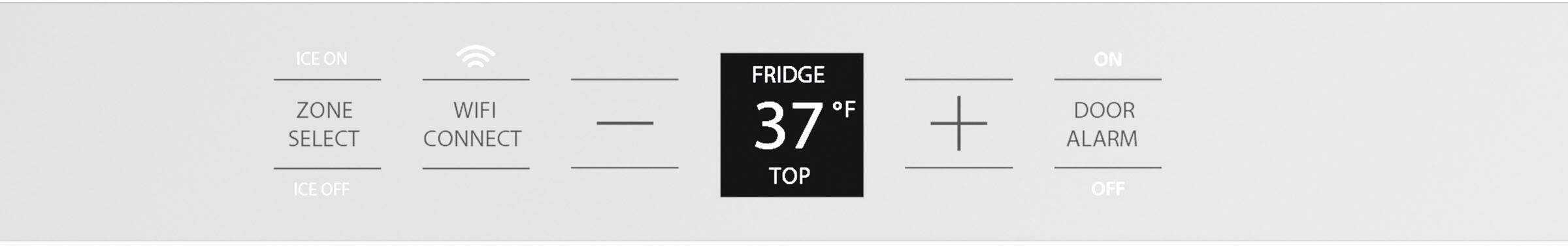

- Wi-Fi Connected Refrigerator: The Wi-Fi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app.
- Two Humidity-Controlled Vegetable Drawers: Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness.

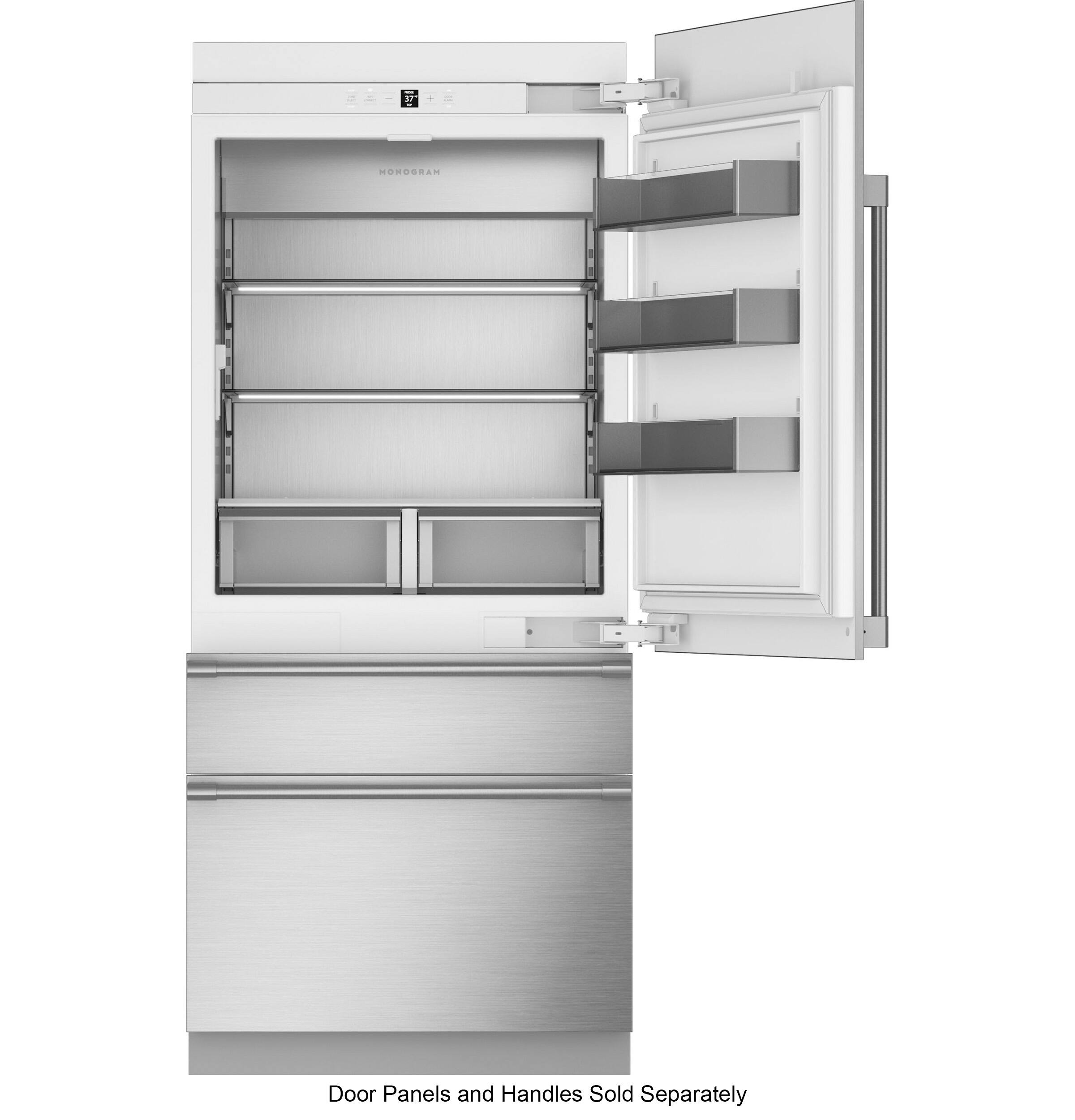

- Glass Front Refrigerator Door Bins: The clear design makes it easy to see and access quick-grab items from refrigerator bins.
- Ramp-Up LED Interior Shelves: Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents.

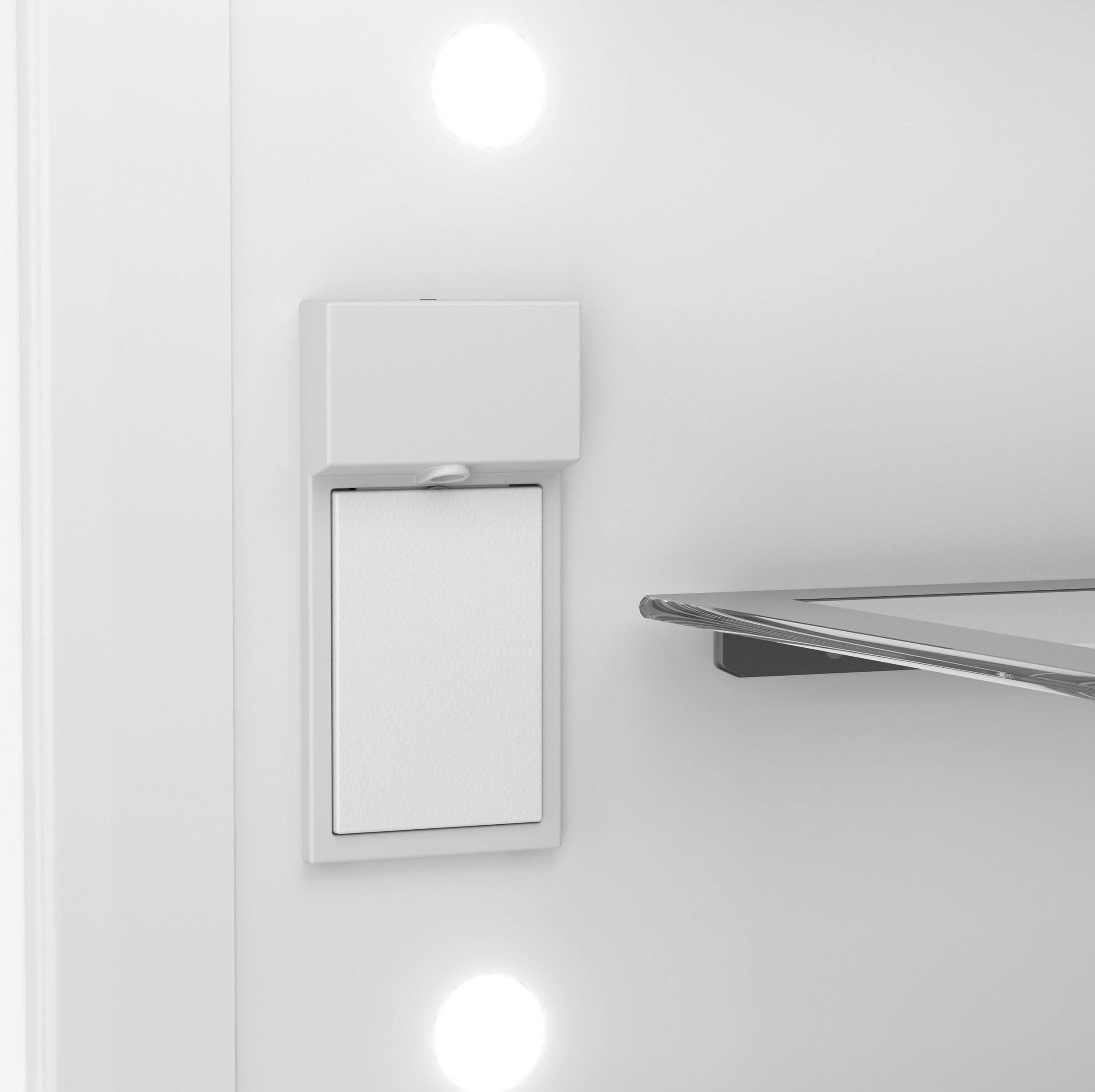

- Built-In Odor Filter: The internal filter acts as a refrigerator deodorizer, keeping strong or bad odors out of the refrigerator.
- Internal Water Dispenser: The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered.
- Factory Installed Ice Maker: Create all the ice you want, anytime you like, with this refrigerator with ice maker.
- Bottom Freezer with Flush Inset Installation: Sleek design allows the refrigerator to be installed flush with adjacent cabinetry.
- 6-Temperature Setting Convertible Drawer: The convertible drawer with 6 temperature settings allows you to choose whether the lower drawer is a freezer or a fresh food/wine or beverage refrigerator, with independent temperature controls for storage choice and flexibility.
- Wi-Fi Connected Refrigerator: The Wi-Fi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app.
- Two Humidity-Controlled Vegetable Drawers: Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness.
- Glass Front Refrigerator Door Bins: The clear design makes it easy to see and access quick-grab items from refrigerator bins.
- Ramp-Up LED Interior Shelves: Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents.
- Built-In Odor Filter: The internal filter acts as a refrigerator deodorizer, keeping strong or bad odors out of the refrigerator.
- Internal Water Dispenser: The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered.
- Factory Installed Ice Maker: Create all the ice you want, anytime you like, with this refrigerator with ice maker.
Product Manuals
- Specification Sheet
- Warranty Manual
- Material Safety Data Sheets
- Installation Guide
- Measurement Guide
- Instructions/Assembly Guide
- Product Datasheet/Brochure
- User Manual
- Specification Sheet
- Warranty Manual
- Material Safety Data Sheets
- Installation Guide
- Measurement Guide
- Instructions/Assembly Guide
- Product Datasheet/Brochure
- User Manual
Q: What is the total capacity of this Monogram refrigerator?
A: The total capacity of the Monogram refrigerator is 20.1 cubic feet. This information can be found in the product specifications section, where it states "Total Capacity: 20.1 cubic feet".
Q: What is the material of the refrigerator shelves?
A: The refrigerator shelves are made of glass. The context mentions "Refrigerator Shelf Material: Glass".
Q: Where is the ice and water dispenser located in this refrigerator?
A: The ice and water dispenser for this Monogram refrigerator is located on the inside of the refrigerator, leaving the outside looking clean and uncluttered.
Q: Is this refrigerator panel ready?
A: Yes, this refrigerator is panel-ready. The product name "20.2 Cu. Ft. Bottom-Freezer Counter-Depth Refrigerator- Custom Panel Ready" and the product specifications "Panel Ready: true" both indicate that this refrigerator is designed to be customized with panels.
Q: What is the voltage required for this refrigerator?
A: The voltage required for this Monogram refrigerator is 115 volts.
Q: What is the height of this refrigerator?
A: The height of the refrigerator is 83 1/2 inches.
Q: What type of lighting does this refrigerator have?
A: This refrigerator features LED lighting. The context mentions "Ramp-Up LED Interior Shelves" and "Exceptional illumination throughout the refrigerator compartment". Therefore, the lighting type of this refrigerator is LED.
Q: What type of water does this refrigerator dispense?
A: This refrigerator dispenses cold water. The product specifications state that the "Dispensed Water Type" is "Cold Water".
