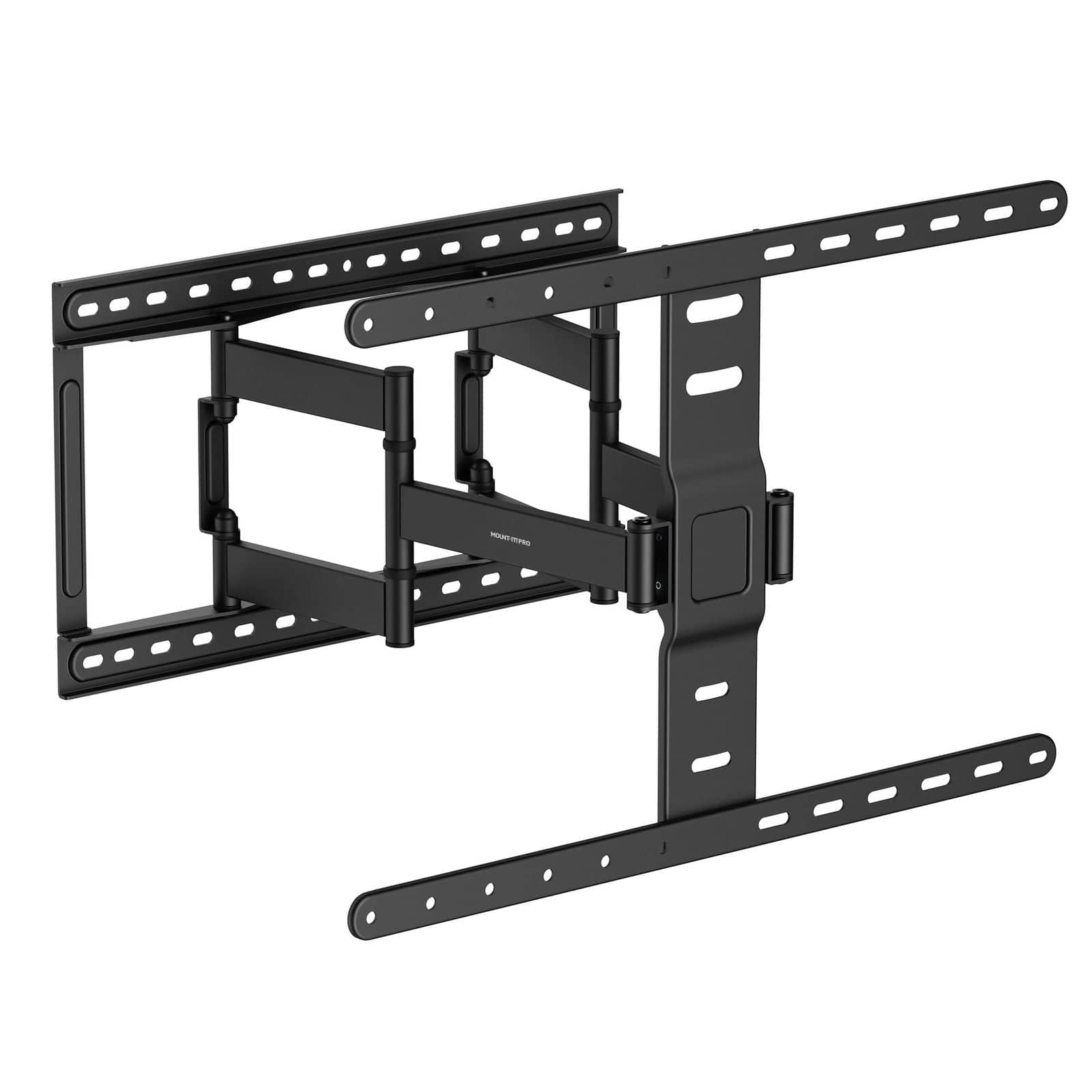

Mount-It! - Ultra-Slim ADA-Compliant Full Motion TV Wall Mount 43–90", 132 lb Capacity, Swivel/Tilt, 1.1" Profile - Black
Related Item
About This Item
- General
- Brand: Mount-It!
- Model Number: MI-309
- Product Name: Ultra-Slim ADA-Compliant Full Motion TV Wall Mount 43–90", 132 lb Capacity, Swivel/Tilt, 1.1" Profile
- Color: Black
- Assembly Required: No
- Features
- Mount Profile: Flush (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion, Arm, Swiveling, Tilting
- Pan: 120 (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: 15 (Angles upward or downward for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Mounts to: Brick, Cement, Drywall, Plaster, Wood (The material or substance the device can attach to.)
- Motorized: false
- Adjustable Height: false
- Cord Storage: false
- Number Of Shelves Included: 0
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 132 pounds (The maximum load that can be supported by the product.)
- Compatibility: Universal
- Mount Location: Wall
- Maximum Television Size: 90 inches
- Minimum Television Size: 43 inches

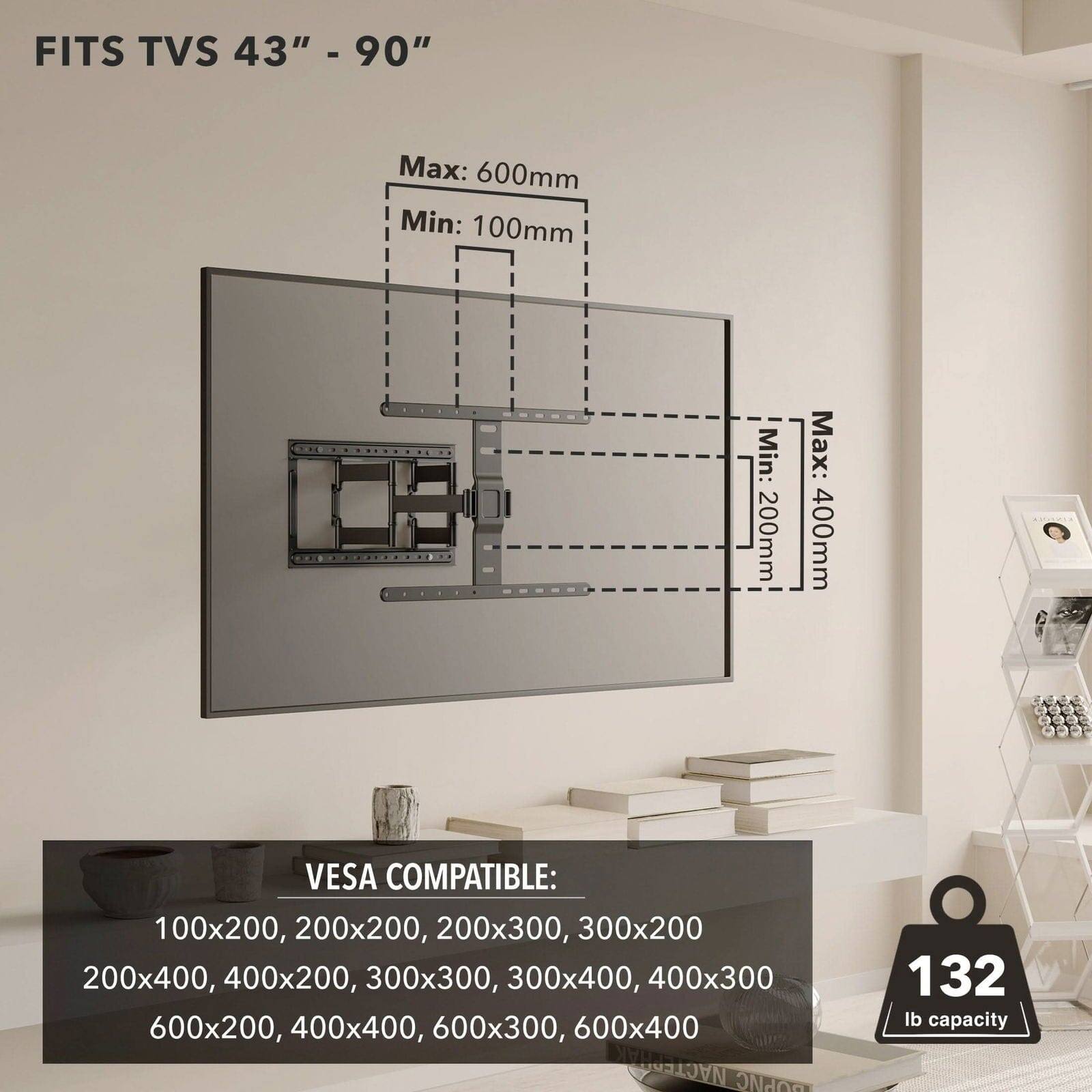

- VESA Wall Mount Standard: 100mm x 200mm, 200mm x 200mm, 200mm x 300mm, 200mm x 400mm, 300mm x 200mm, 300mm x 300mm, 300mm x 400mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)

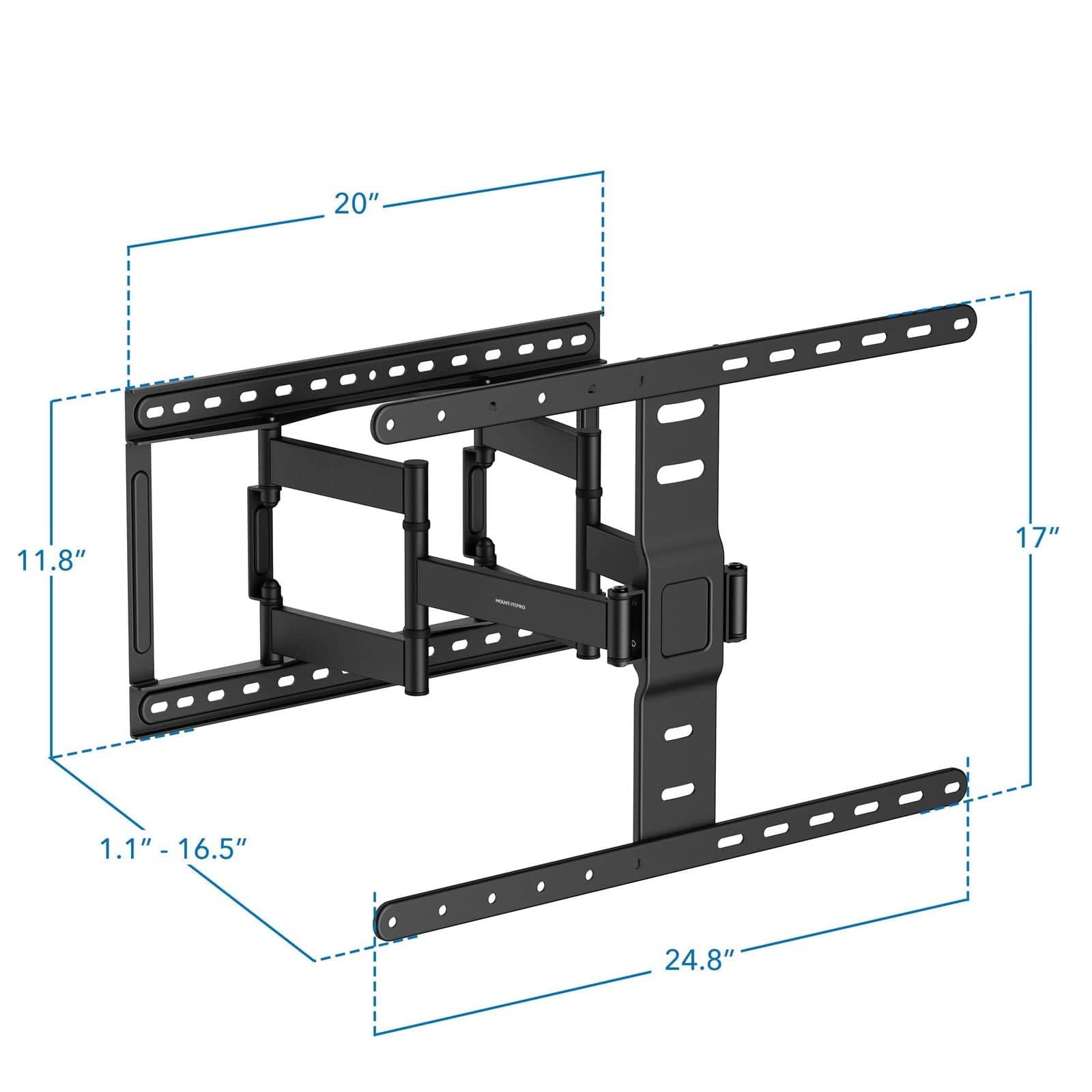

- Dimensions
- Product Height: 17 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 24.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 16.5 inches
- Product Weight: 14.25 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 1.1 inches (The minimum distance from the product to the wall as the product is mounted.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: Limited lifetime
- Warranty - Labor: No warranty
- Other
- UPC: 810164690449

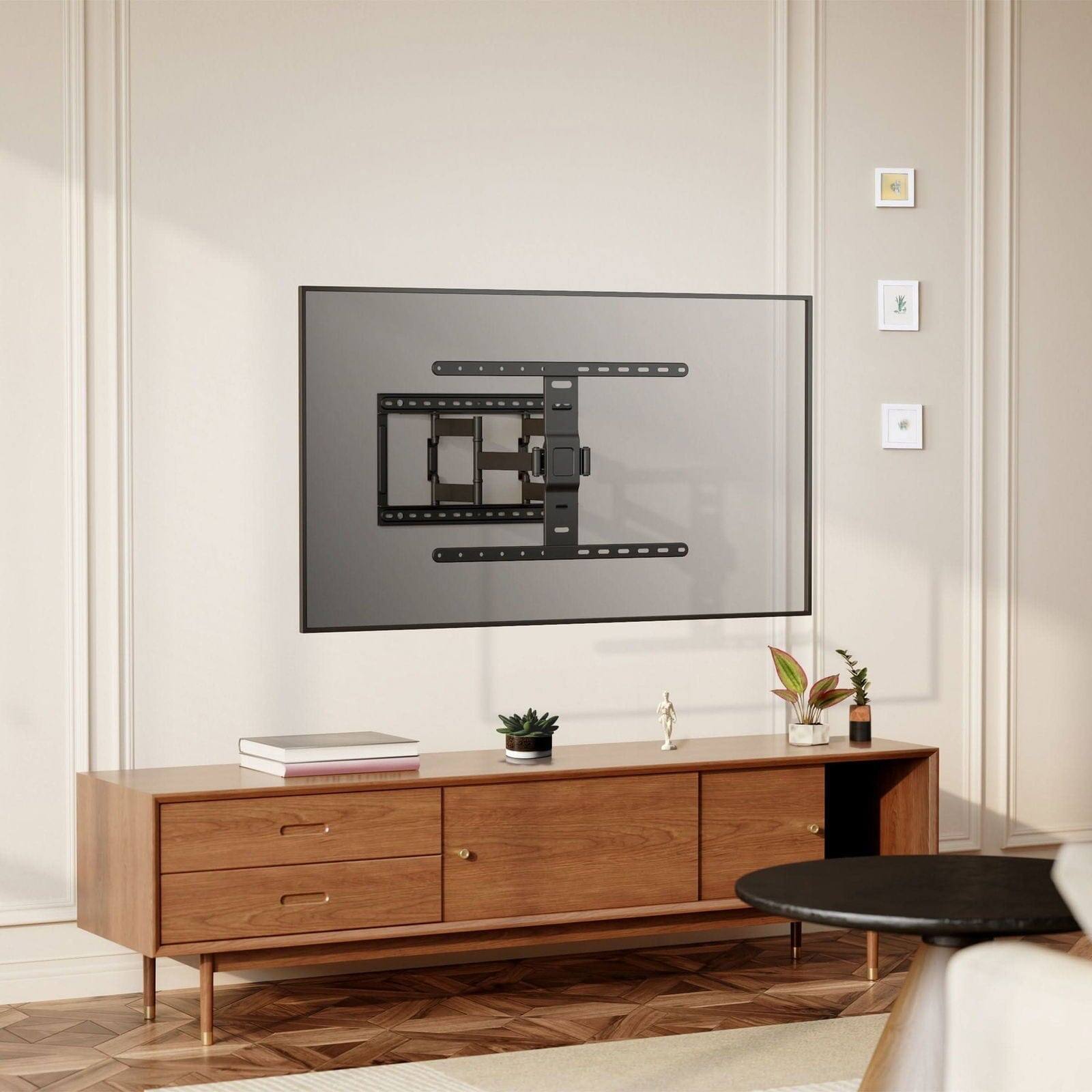

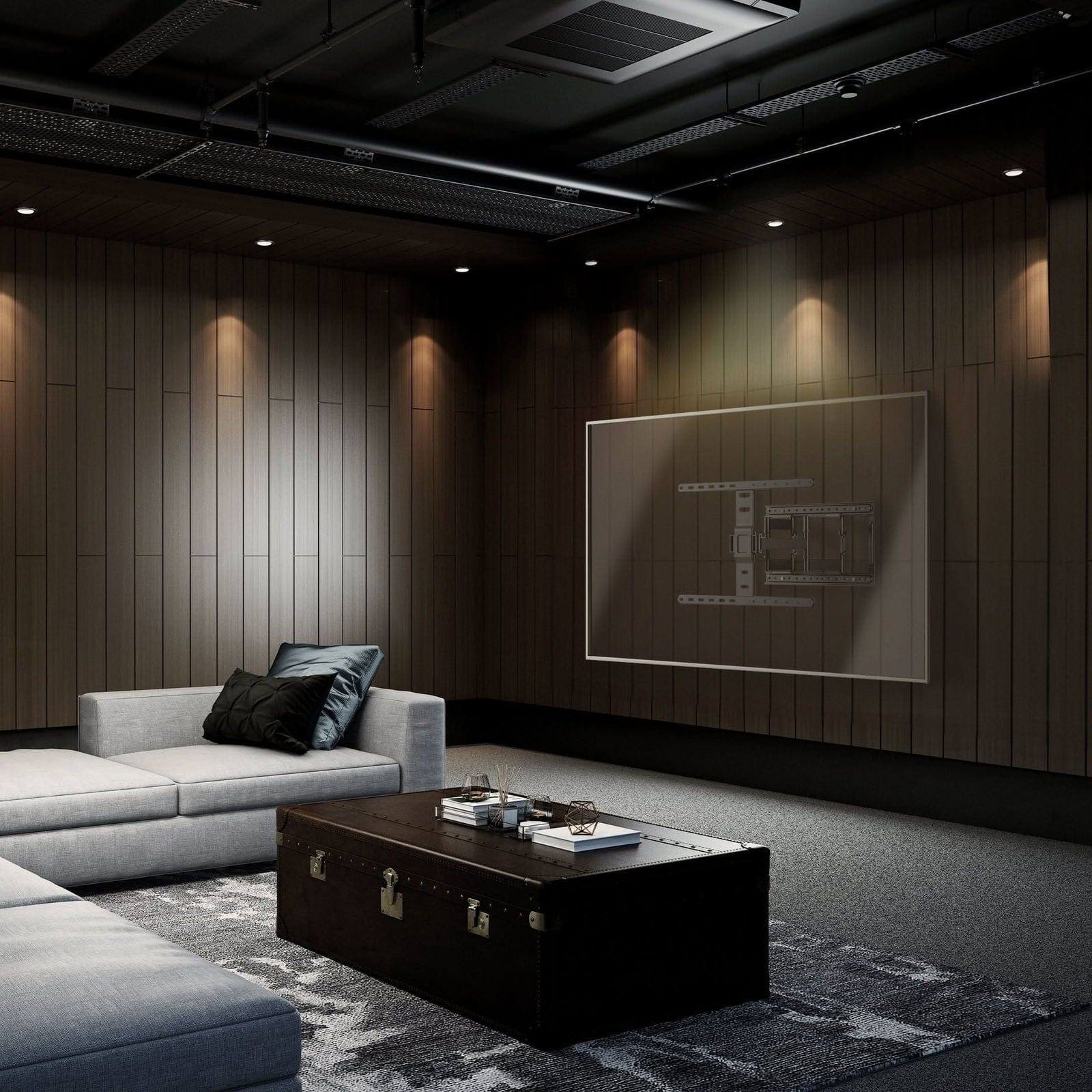

This ADA-compliant full motion TV wall mount blends aesthetic appeal and functionality. Its ultra-slim 1.1" profile allows the mounted display to appear weightlessly suspended like art. This minimalist yet articulating mount offers full motion capabilities for an optimized viewing experience from any angle. Swivel, tilt, and extend the screen with smooth adjustments. Robustly engineered, it securely supports displays up to 90" and 132 lbs. This heavy-duty TV mount provides a stable, long-lasting foundation for large-screen TVs and digital signage installations.

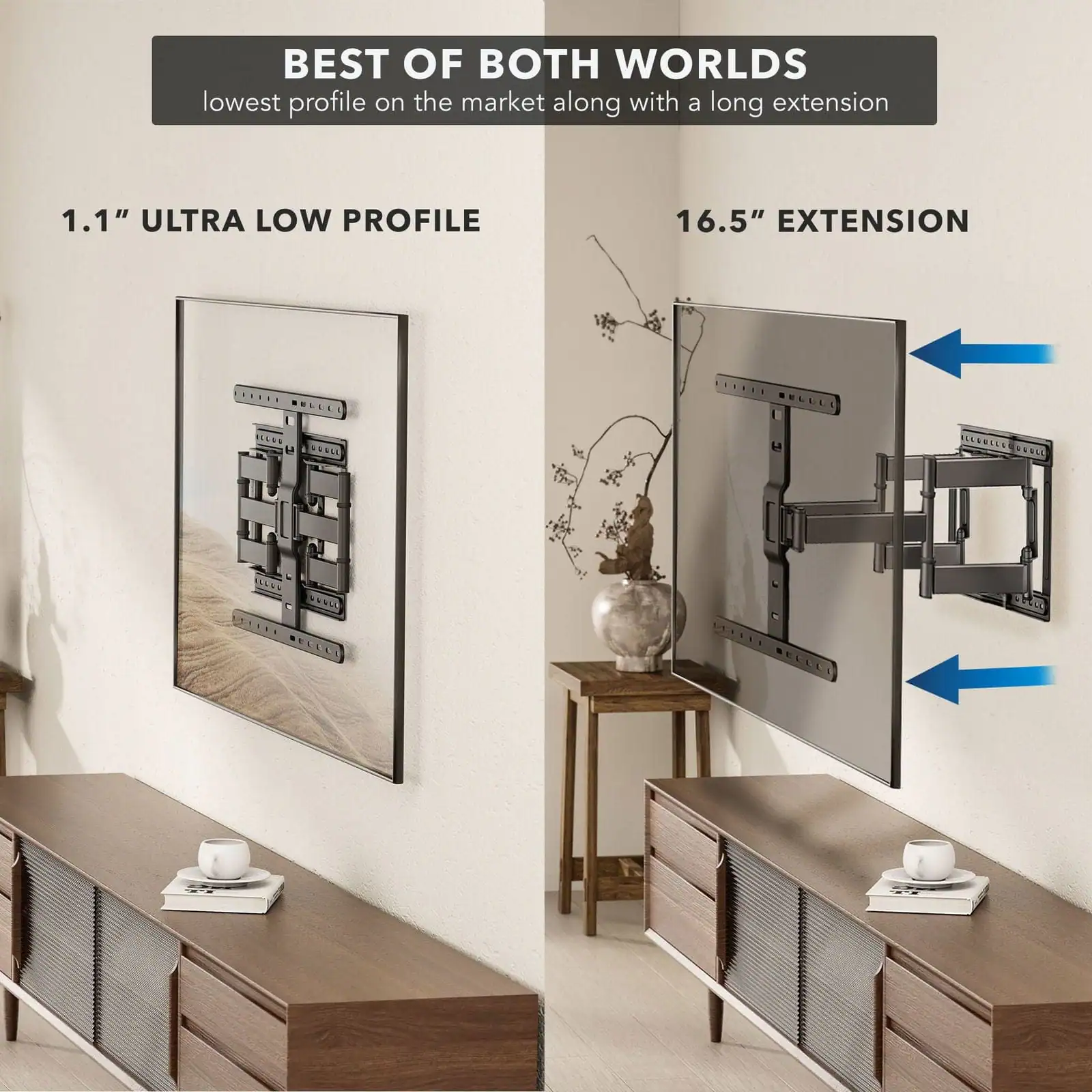

- ADA-Compliant Ultra-Slim Design: Achieve a seamless, weightless look with just a 1.1" profile when retracted—perfect for ADA-compliant applications and modern aesthetics.
- Extensive TV Compatibility (43–90"): Supports flat screens from 43" up to 90" and up to 132 lb, accommodating a wide range of display sizes and setups.

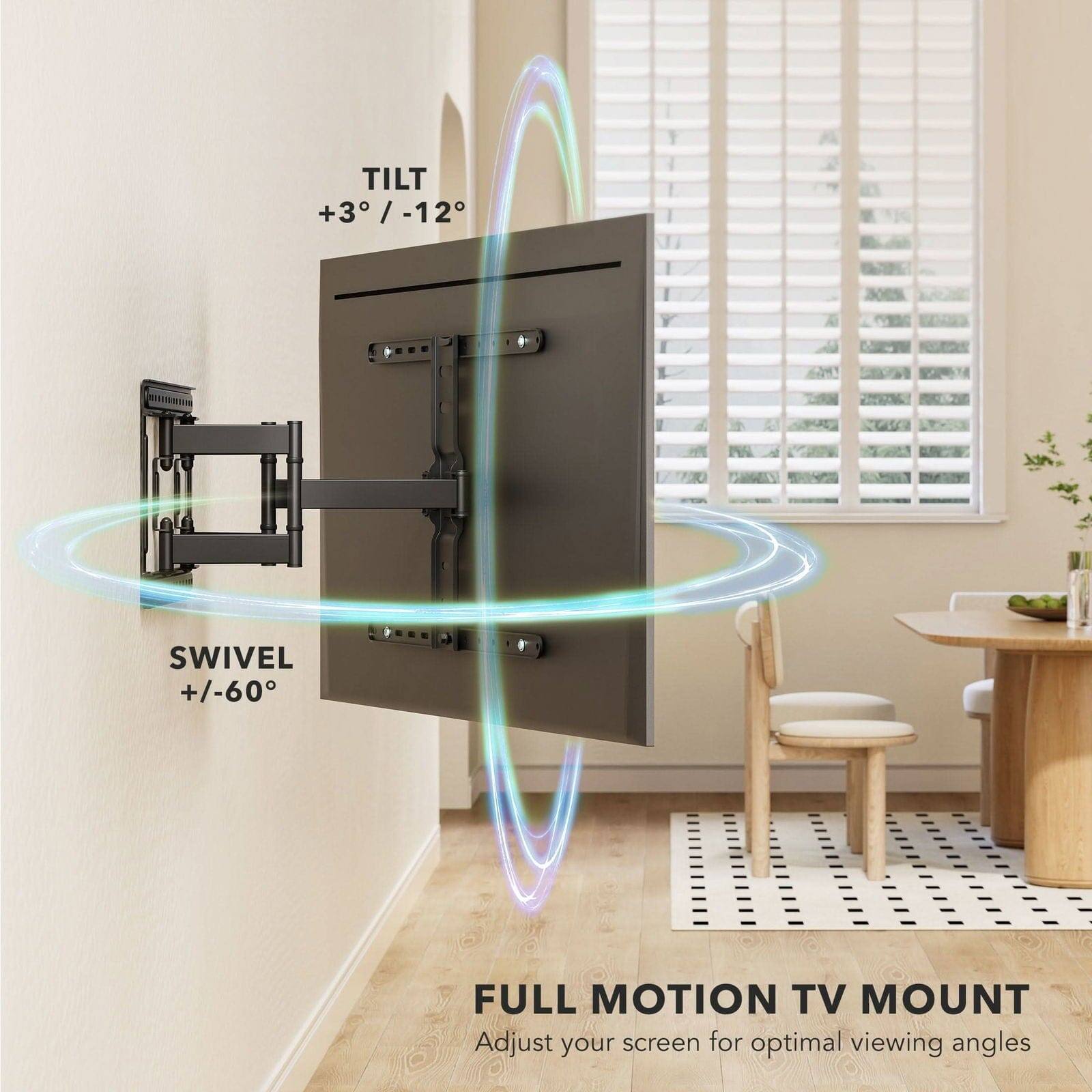

- Full-Motion Flexibility: Smoothly swivel, tilt, and extend your TV—offering versatile viewing and easy access to rear connections.
- Robust & Reliable Construction: Built with premium steel and aluminum for strength and long-lasting performance in high-traffic or commercial spaces.
- Broad VESA Support & Secure Mounting: Compatible with VESA up to 600×400, backed by a limited lifetime warranty—ensuring wide compatibility and confidence in your investment.
Whats Included
- 1 ADA Full Motion TV Wall Mount
Q: CAN THIS PRODUCT BE INSTALLED ON 12 INCH STUDS?
A: Yes, the MI-309 mount can definitely be installed on 12-inch studs. The wall plate is 17 inches wide and specifically designed to accommodate various stud spacings, including 11.8 inches (standard 12-inch spacing) and 15.7 inches. As long as you use a stud finder to center the mount on your 12-inch studs, you will have a secure installation.
A: Dear Customer, This unit does not support 24" studs nor do we sell any extensions. We do have other mounts that can support that spacing and move along the wall plate for centering. Please contact our customer support at 1-855-915-2666 if you would like to have us show you some options.
