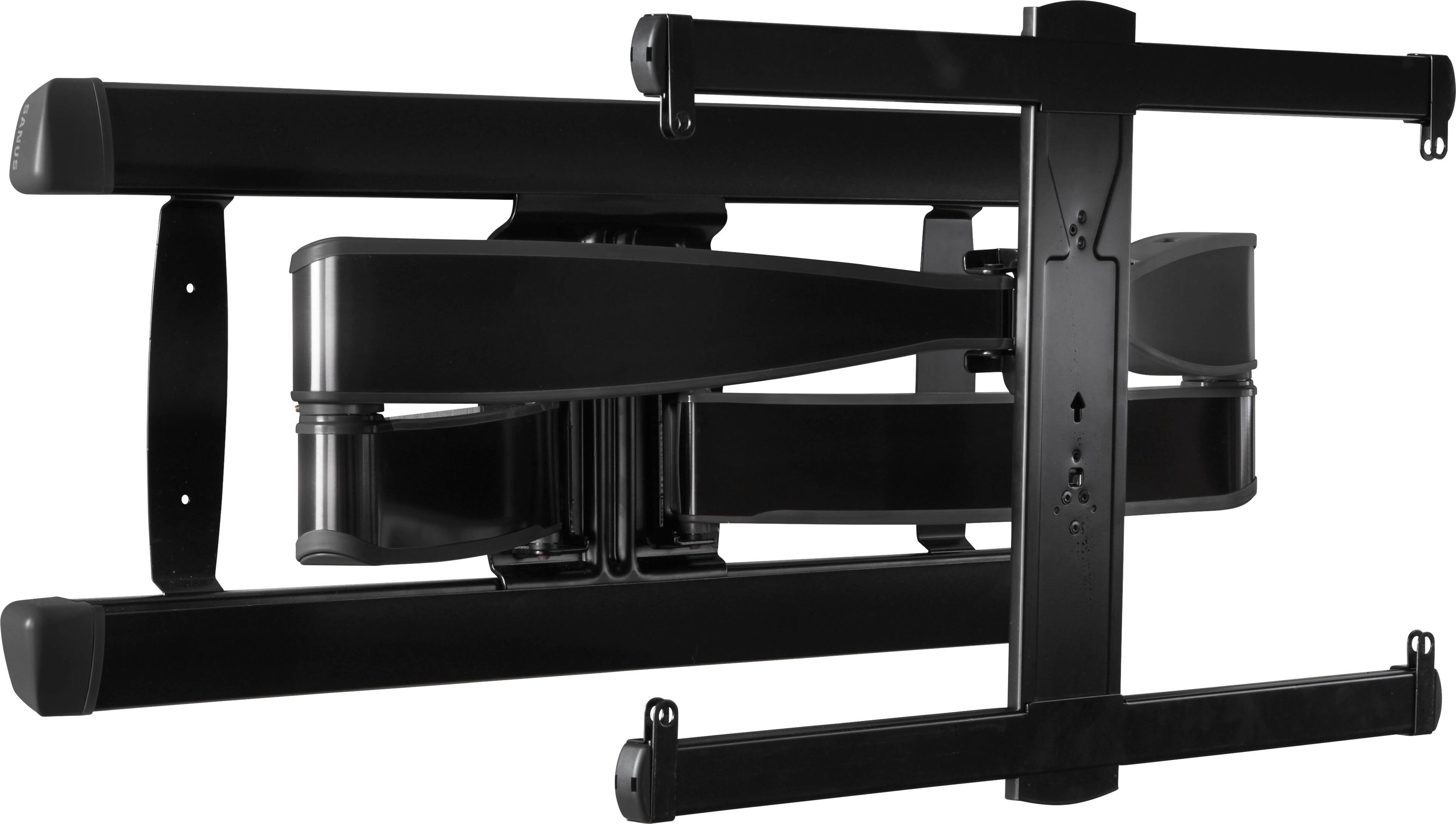

SANUS Elite - Advanced Full-Motion TV Wall Mount for Most 42"-90" TVs up to 125 lbs - Tilts, Swivels, and Extends up to 28" From Wall - Black Brushed Metal
About This Item
- General
- Brand: SANUS Elite
- Model Number: BLF328-B1
- Product Name: Advanced Full-Motion TV Wall Mount for Most 42"-90" TVs up to 125 lbs - Tilts, Swivels, and Extends up to 28" From Wall
- Color: Black Brushed Metal
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion, Tilting, Swiveling
- Pan: 57° to -57° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: 5° to -15° (Angles upward or downward for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Cord Storage: true
- Compatibility
- Maximum Weight Capacity: 125 pounds (The maximum load that can be supported by the product.)
- Compatibility: 42"-90"
- Mount Location: Wall
- Maximum Television Size: 90 inches
- Minimum Television Size: 42 inches
- VESA Wall Mount Standard: 200mm x 200mm, 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 17.68 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 33.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)

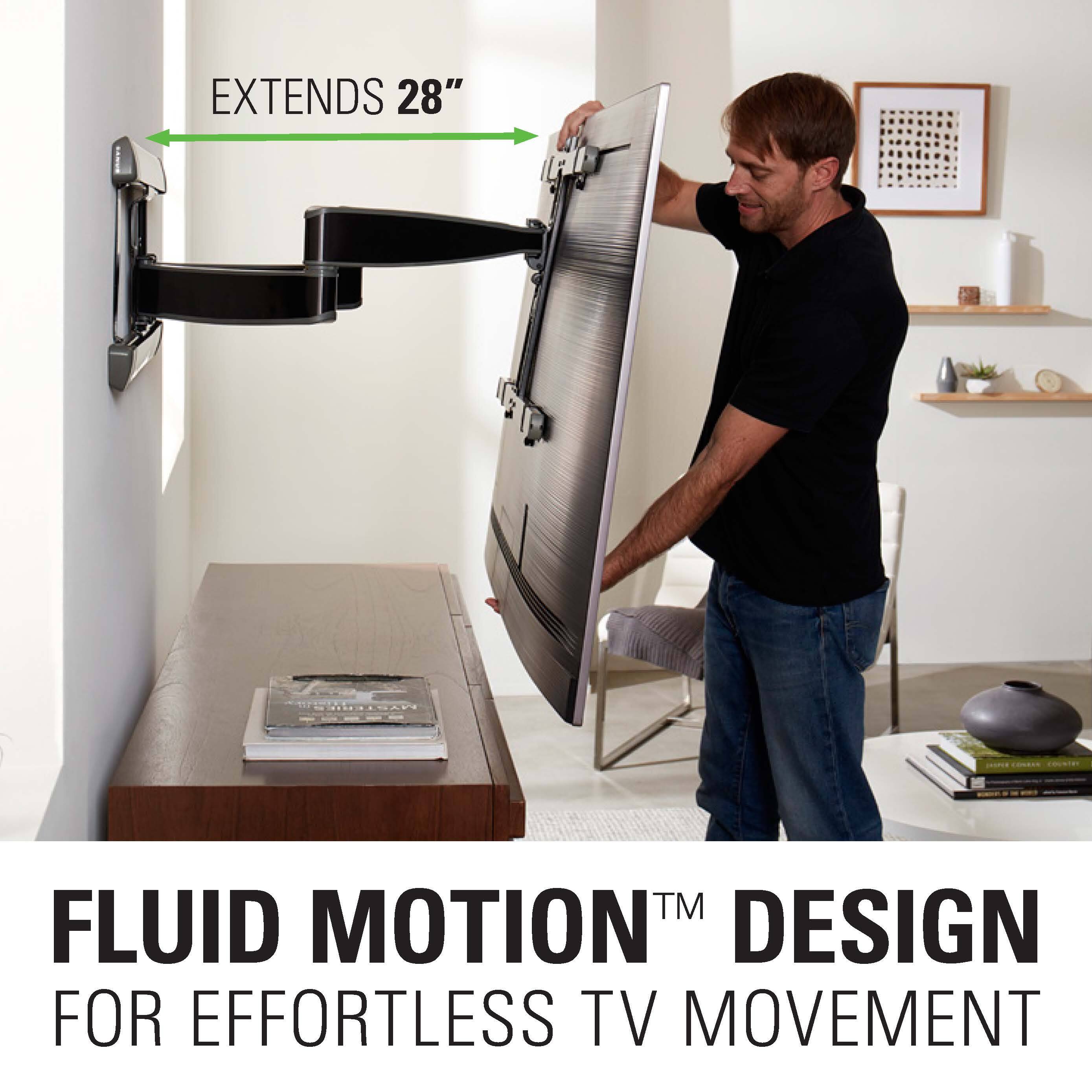

- Maximum Extension: 28 inches
- Product Weight: 37.7 pounds (The out of box weight of the item.)

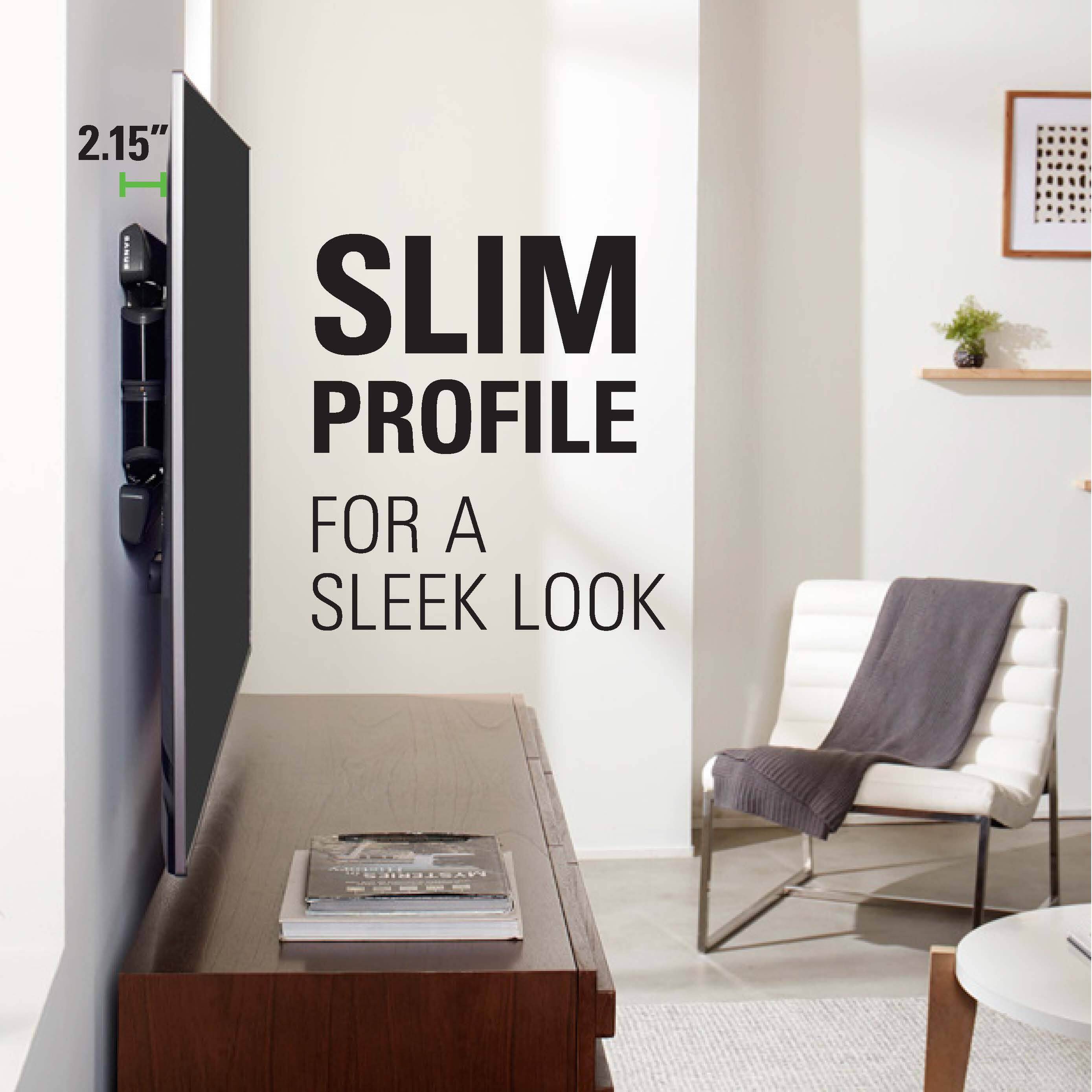

- Minimum Mounted Distance from Wall to Television/Monitor: 2.15 inches (The minimum distance from the product to the wall as the product is mounted.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal, Plastic
- Other
- UPC: 793795533395

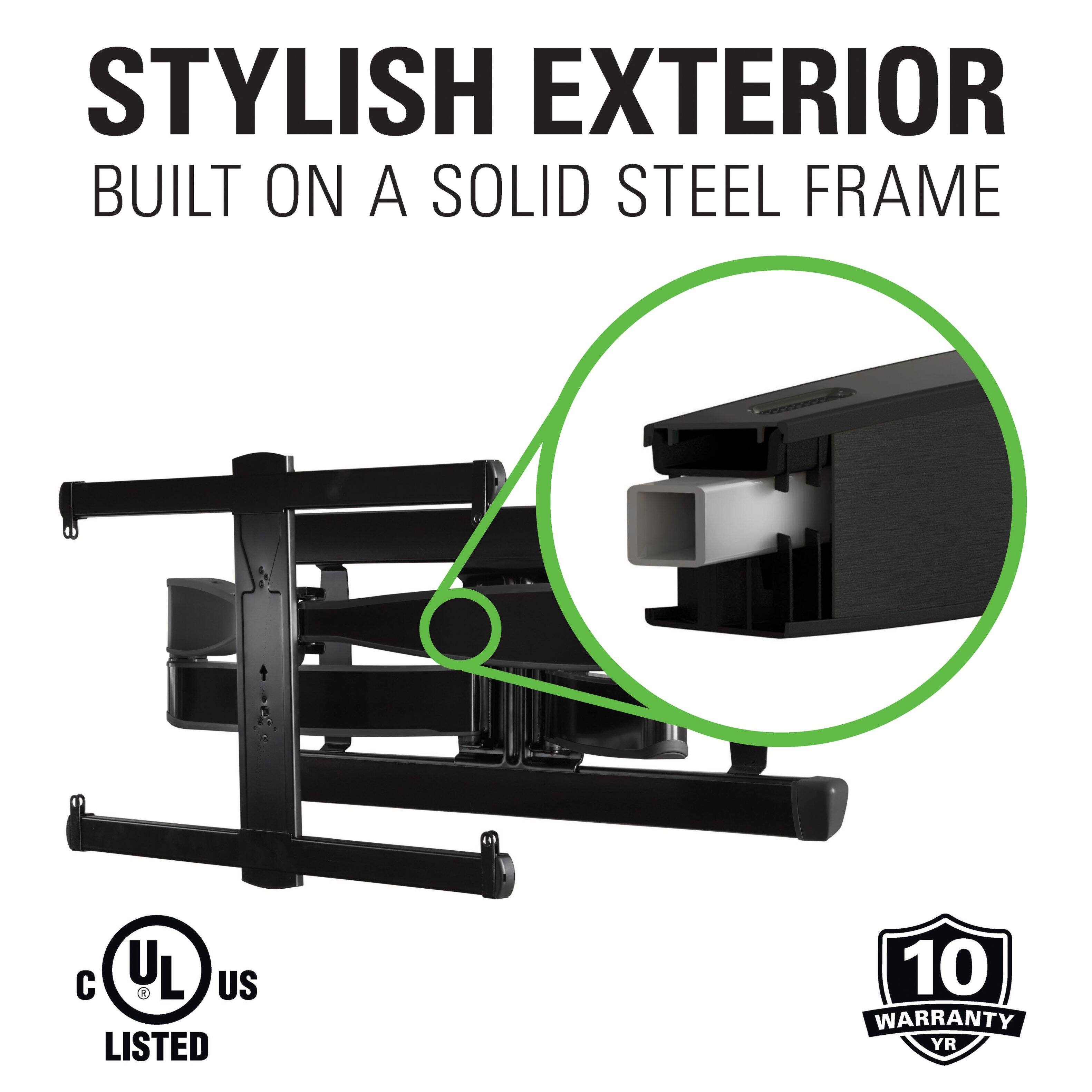

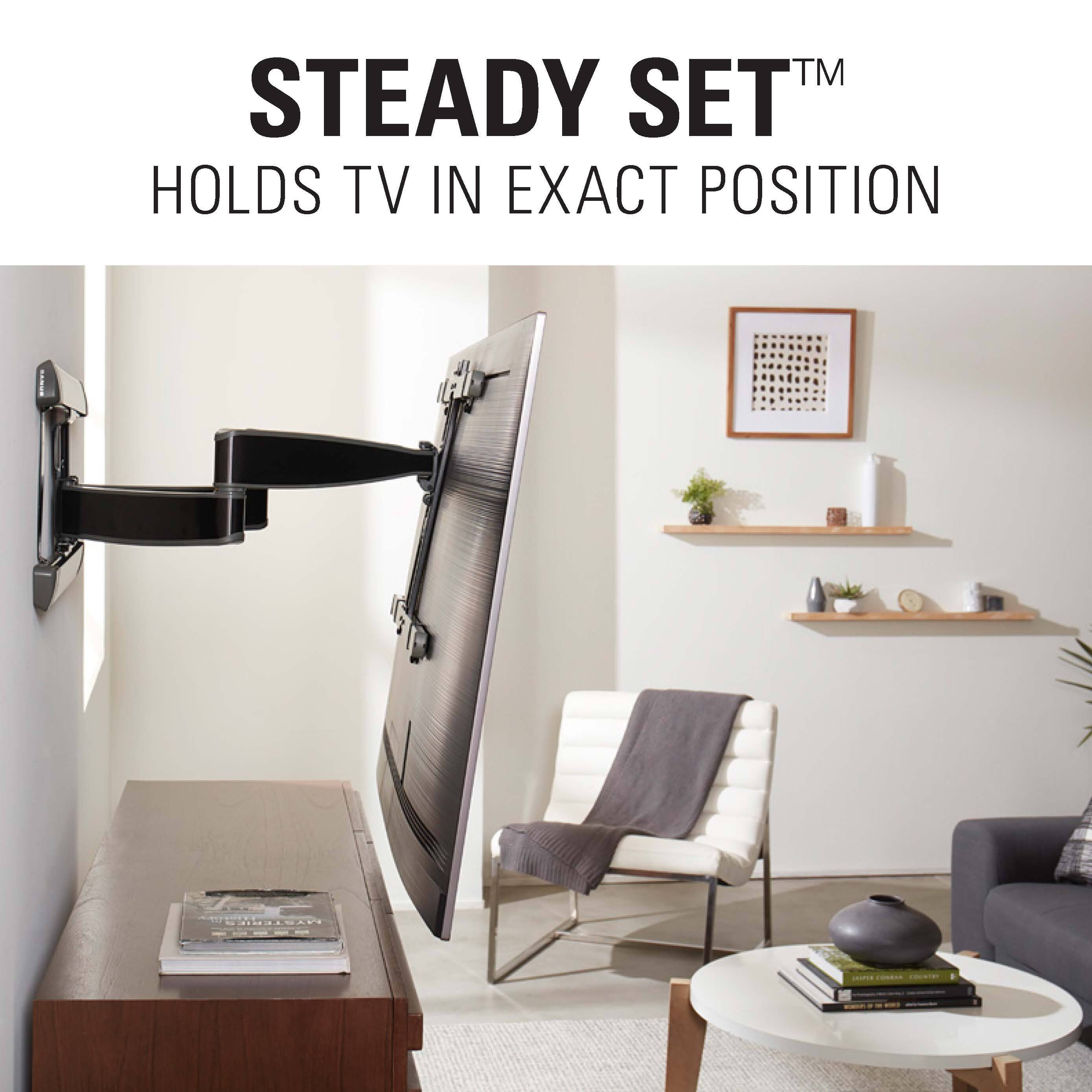

Sanus Elite products are engineered to deliver unparalleled performance that will elevate your TV and audio experience. Expertly engineered with FluidMotion design, the Elite Advanced Full-Motion Mount provides unparalleled smoothness. Effortlessly extend, tilt and swivel your TV regardless of its weight or thickness. The mount’s included Steady Set functionality ensures your TV will stay exactly where you want it – no drifting, shifting or unwanted movement ever. With its simple and intuitive design, the Elite Advanced Full-Motion Mount ensures a clear and hassle-free 30-minute installation.
- Full-Motion TV Wall Mount Compatible with most 42 - 90 inch TVs: Up to 125 lbs. for sturdy support.

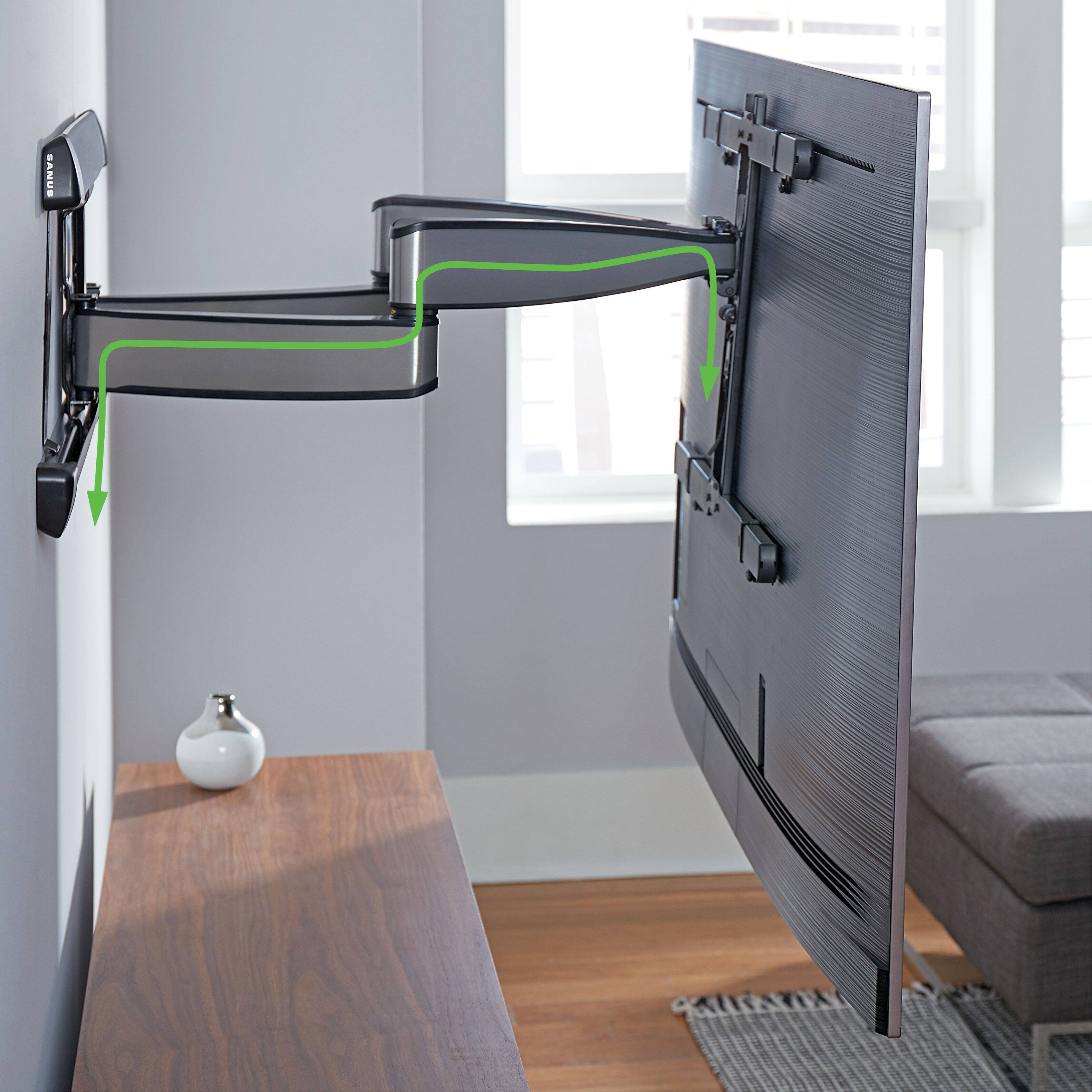

- Easy to hide and access cable management: Built-in cable management makes it easy to achieve a neat, clutter-free TV setup.

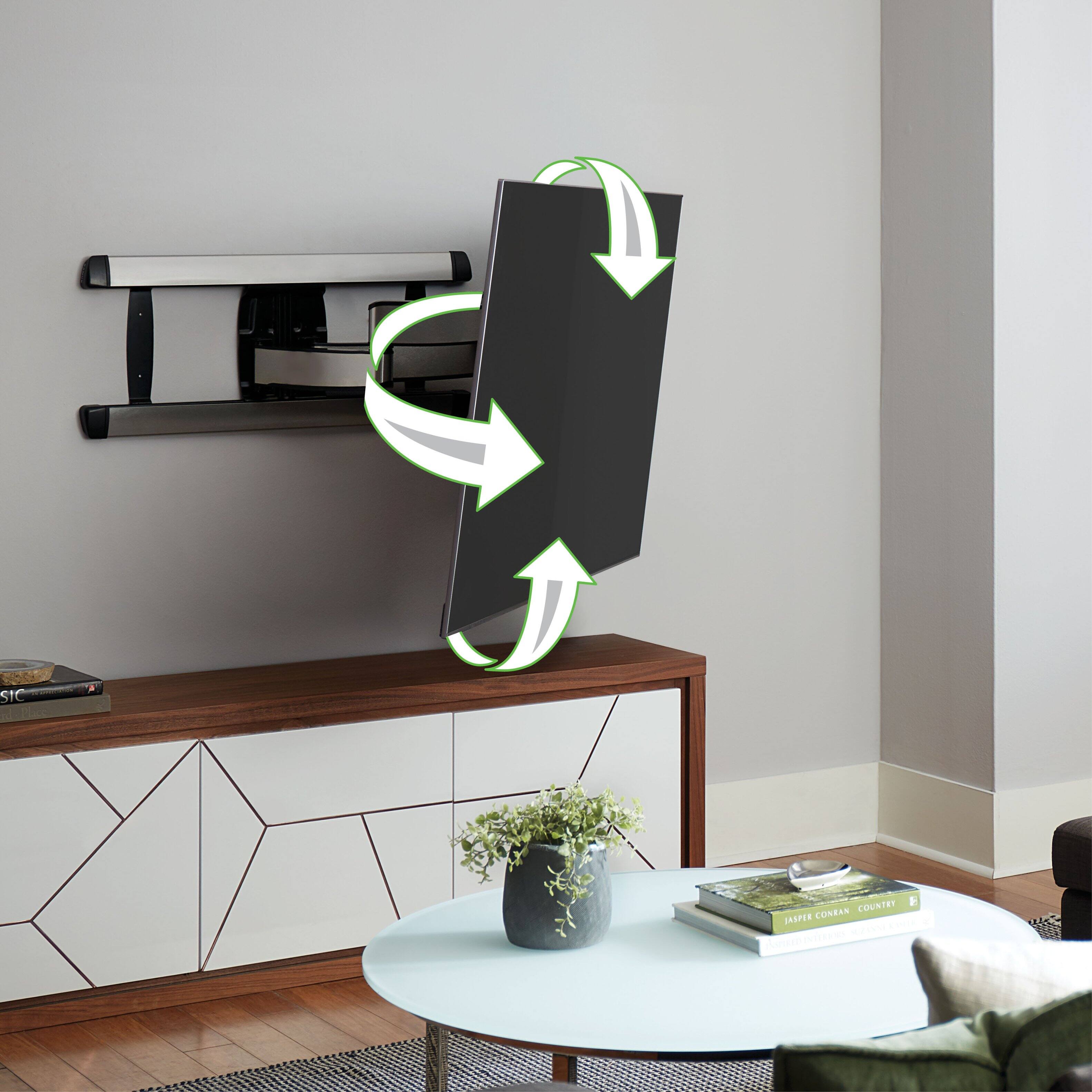

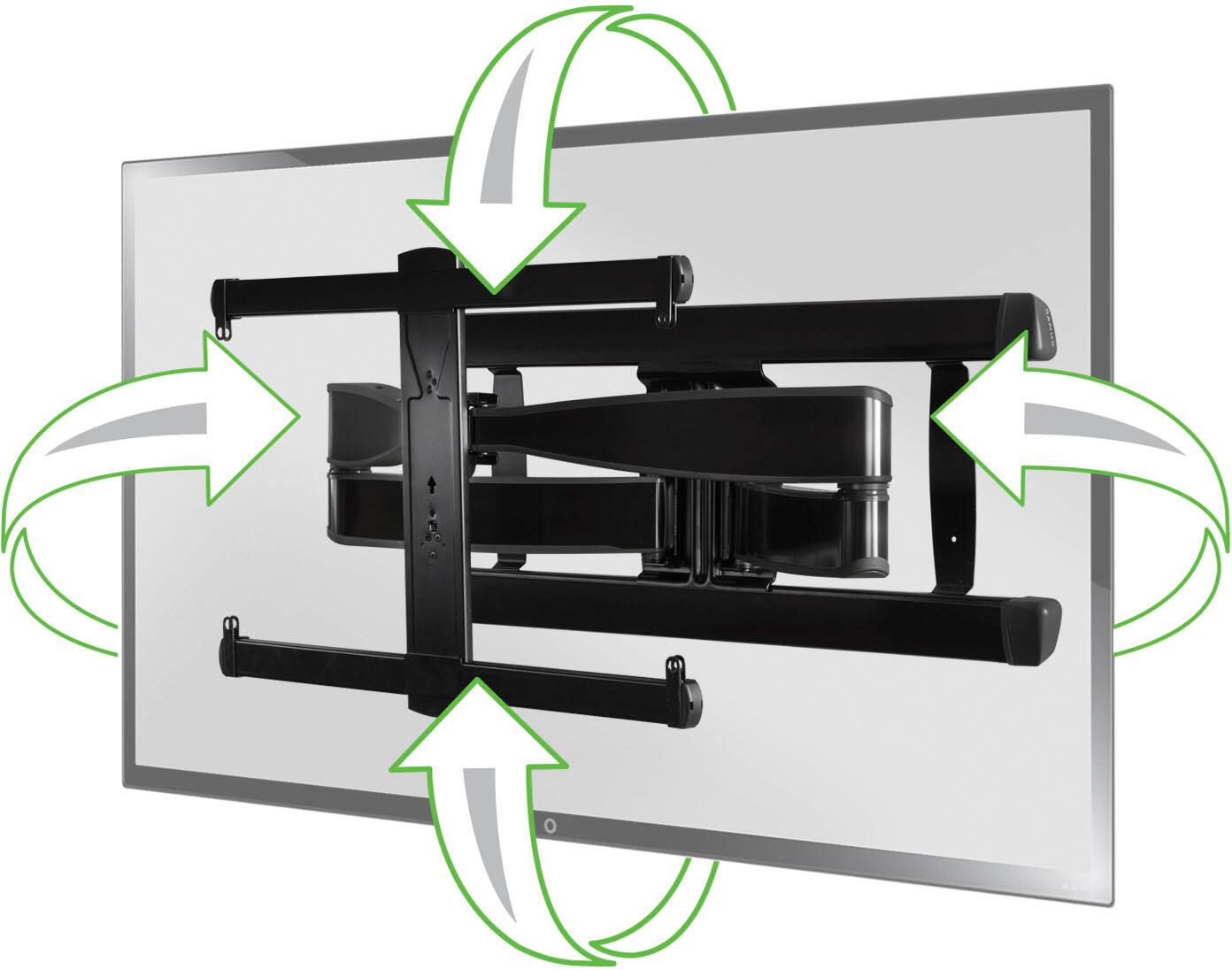

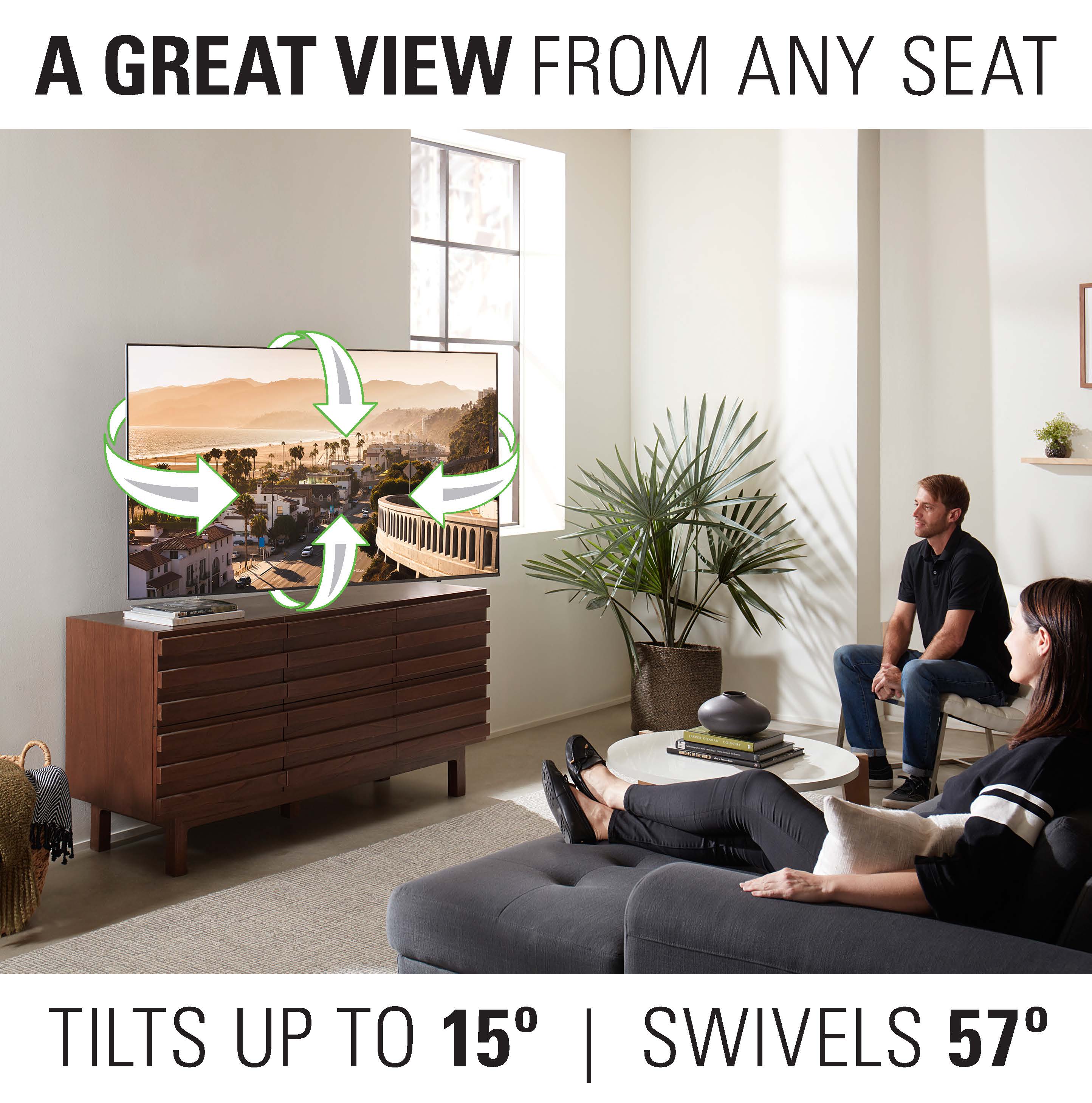

- Tilt, swivel and extend: Tilts 5° to -15°, swivels 57° to -57° and extends up to 28" to adjust viewing angles to suit your preferences.
- Universal TV Interface - Perfect for 50, 55, 65, and 75 inch TVs and more: From VESA 200mm x 200mm through 600mm x 400mm for a variety of mounting options.
- Corner Mounting: With 28" of extension, you will be able to place your TV in the corner.
- Full-Motion TV Wall Mount Compatible with most 42 - 90 inch TVs: Up to 125 lbs. for sturdy support.
- Easy to hide and access cable management: Built-in cable management makes it easy to achieve a neat, clutter-free TV setup.
- Tilt, swivel and extend: Tilts 5° to -15°, swivels 57° to -57° and extends up to 28" to adjust viewing angles to suit your preferences.
- Universal TV Interface - Perfect for 50, 55, 65, and 75 inch TVs and more: From VESA 200mm x 200mm through 600mm x 400mm for a variety of mounting options.
- Corner Mounting: With 28" of extension, you will be able to place your TV in the corner.
Whats Included
- Advanced Full-Motion TV Wall Mount
- Mounting hardware
- Instruction manual
- Wall plate template
- Advanced Full-Motion TV Wall Mount
- Mounting hardware
- Instruction manual
- Wall plate template

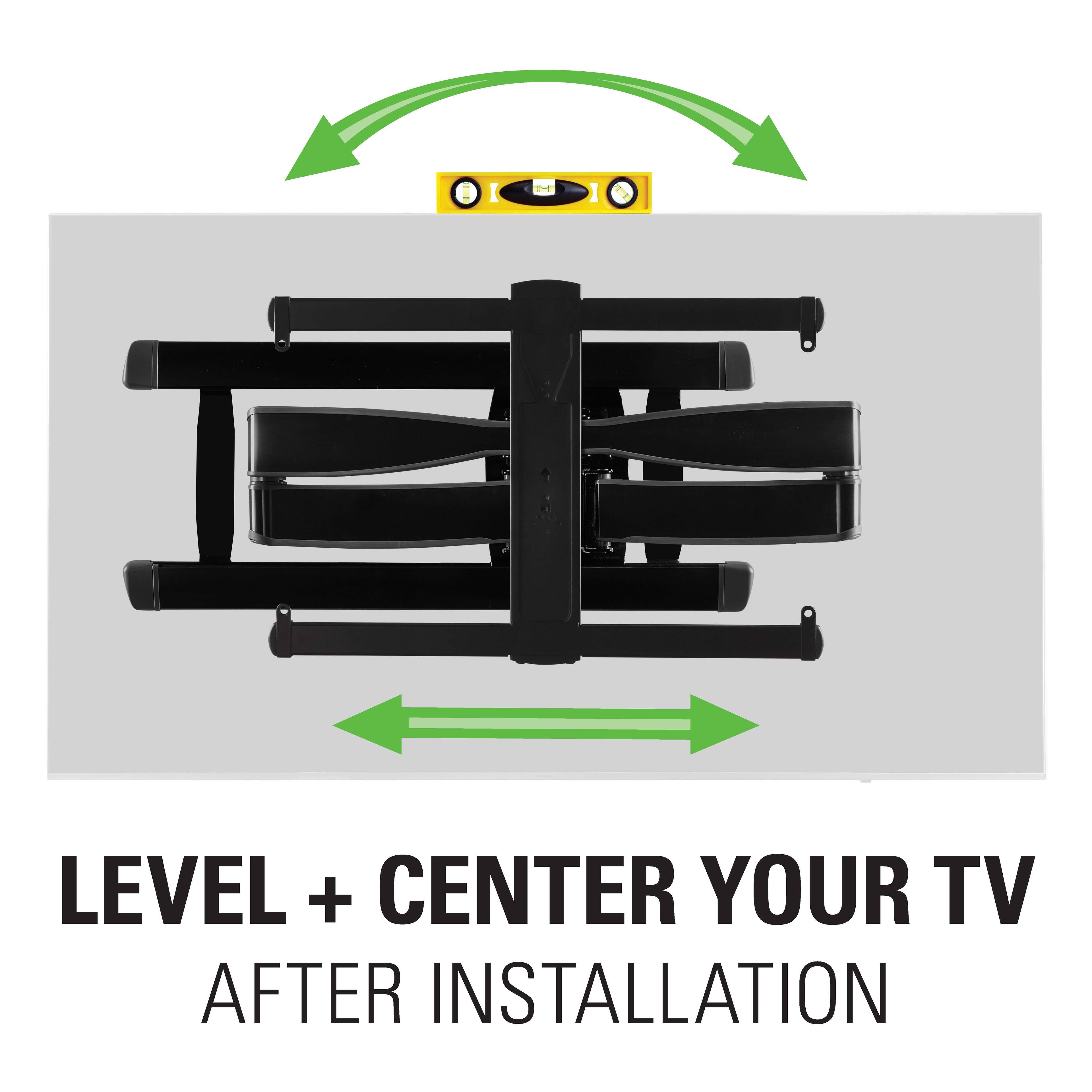

Q: The mount itself is level, but the TV, 75" Samsung, is slightly lopsided. How is this remedied?
A: There are 2 screws- one on top of each of the brackets that you attached to the back of your tv/snapped into the thing that you mounted on the wall. You simply need to tighten or loosen one side, depending what side you want to go up or down. I just turned the screw with a pair of plyers, but I think you need an alan wrench or different kind of bit to turn it with a screwdriver. I attached the picture from the back of the box that shows you what to do.
Q: Can I mount this on a lath and plaster wall?
A: You most certainly can mount this on lath and plaster walls. The key is finding the studs - and honestly finding the center of the studs. The mount itself is really heavy, and then you're putting a heavy television on the end of a long lever. That's a ton of force on those four lag bolts. If you hit the edge of a stud with those bolts, nothing good is going to happen. So drill a bunch of tiny pilot holes to find the two edges of the stud. Lath and plaster makes it really hard to find studs. Just make sure you're anchoring that truly in studs and not just the lath.
Q: What is the difference between swivel and full motion tv mounts?
A: A swivel mount will turn from side to side only. A swivel/tilt mount will turn from side to side, and tilt up and down. A full motion mount will swivel side to side, tilt up and down, and extend from the wall, and retract back to the wall.
A: Yes the mount tilts. The mount has a full range of motion: tilting up, down, left, and right...as well as pulling it out from the wall and pushing it back. The mount comes with several different mounting brackets including VESA mounting hardware and pretty much all new Samsung models adhere to VESA standards. So long as the mount is properly installed, it should support the weight of either of those TV models. The mount is rated to support 125 lbs; the QN75Q70R weighs 79 lbs without the stand and the QN82Q70 weighs 94 lbs without the stand. However, I used this mount for a QN75Q80R that weighs 82 lbs without the stand and it seemed a bit precarious while making angle adjustments. Because of this, I downsized to the QN65Q80R that weighs 56 lbs without stand and it works wonderfully. TLDR: Yes, it tilts. Yes it will fit either of those TV models. However, based on my own experience with this mount, I would recommend a more robust mount for those models despite the mount's weight rating.
A: Hi TomM, This mount, mounts across two studs. If you have any additional questions give us a shout at [email protected] or at 1-800-359-5520. Thanks, - Haydn @ SANUS
A: Hi Jess, When retracted the mount sits 2.15" off of the wall. Thanks, - Haydn @ SANUS
A: Fish the wires or buy a wire hiding kit
A: Good eye, yes these mounts are the same. If you have any additional questions please give our customer support team a shout at [email protected] or at 1-800-359-5520. Thanks, - Haydn @ SANUS
Reviews
Customers are saying
Customers are impressed with the sturdiness, smooth motion, and easy installation of this TV mount, praising its ability to swivel and extend. However, some customers found the price expensive and noted that the weight of larger TVs could cause some tension when extended. A few also mentioned that the size of the mount was larger than anticipated and that the leveling mechanism could be improved.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Compare similar products
Sanus Elite products are engineered to deliver unparalleled performance that will elevate your TV and audio experience. Expertly engineered with FluidMotion design, the Elite Advanced Full-Motion Mount provides unparalleled smoothness. Effortlessly extend, tilt and swivel your TV regardless of its weight or thickness. The mount’s included Steady Set functionality ensures your TV will stay exactly where you want it – no drifting, shifting or unwanted movement ever. With its simple and intuitive design, the Elite Advanced Full-Motion Mount ensures a clear and hassle-free 30-minute installation.
Designed to blend seamlessly with TVs and décor, the Super Slim Full-Motion TV Mount has a slim profile of 1.6" positioning TVs closer to the wall for a sleek look. Expertly engineered with FluidMotion design, the Super Slim Full-Motion Mount provides unparalleled smoothness. Effortlessly extend, tilt and swivel your TV regardless of its weight or thickness. This mount features post installation adjustments to ensure your TV is perfectly placed after your TV is on the wall. Route your cables throught the mount arm for a clean and orgranized look. With its simple and intuitive design, the Super Slim Full-Motion Mount ensures a clear and hassle-free 30-minute installation.
A mounted TV doesn’t just look better—it gives more flexibility in positioning your TV. With the Best Buy essentials Full Motion TV Wall Mount for 47–84" TVs, choose your viewing angle with full-motion capabilities. An 18-inch arm moves your TV away from the wall, and a 90-degree swivel mechanism offers multiple positioning options. Tilt technology allows simple adjustments from -8 to +12 degrees. Plus, it also grants easy access to the ports behind your TV. This steel wall mount can hold up to 110 lbs. and is VESA compliant to work with most 47" to 84" TVs. It also has a locking system that ensures your TV will always be secure on the wall. Backed by Best Buy, this mount will improve the way you watch TV with support and materials you can trust.
The SANUS Elite Advanced Full-Motion 4D + SHIFT TV Wall Mount for TVs 42"-90" presents the newest technology from Sanus to bring your TV viewing experience to new heights. With the 4D + SHIFT height adjustment feature, you can enjoy 4" up or 4" down of movement for precision TV positioning on the wall, making this mount an ideal solution for when mounting a TV above a fireplace mantle, above a TV console, or even when you have to position around a pre-existing outlet on the wall. This SHIFT feature also allows you to raise your TV at a later time to provide enough space to add in a soundbar or, accommodate seasonal decorations that may interfere with the screen of the TV. If your TV doesn’t happen to end up in the position you hoped it would be, or you accidentally mismeasure during installation, our SHIFT height adjustment feature allows for easy TV height readjustment, either up or down, ensuring that your TV is perfectly positioned where you want it. This height adjusting feature is easily performed with the simple twist of the handle that can be lowered down from behind the TV for easy access, and then placed back behind the TV to remain hidden until next desired use. The SHIFT handle can also assist with moving large TVs with ease. As large TVs may be too big to reach both sides, you can simply grip the SHIFT handle and use to assist with effortlessly moving the TV into the desired position. Designed to blend seamlessly with TVs and décor, the Advanced Full-Motion 4D + SHIFT TV Mount was inspired by the sleek look of modern TVs and ultra-high-end kitchen appliances. Beneath the mount’s stylish exterior is an ultra-strong, solid steel frame that provides maximum support ensuring your TV will stay securely in place. With a lower profile depth than traditional full-motion mounts, this mount positions TVs closer to the wall creating a more streamlined look. Equipped with our signature through-arm cable management feature, simply route your cables through the arms of the TV mount and ensure a clean and organized look for your home entertainment system. Expertly engineered with FluidMotion design, the Advanced Full-Motion Mount provides unparalleled smoothness. Effortlessly extend, tilt and swivel your TV regardless of its weight or thickness. With Virtual Axis, easily reduce glare and reflections caused by lights or windows by tilting your TV up or down with the touch of a finger. If your TV requires any additional leveling once installed, ProSet lets you make micro-adjustments to level after mounting to ensure perfect positioning. This mount’s Steady Set functionality ensures your TV will stay exactly where you want it – no drifting, shifting or unwanted movement. With its simple and intuitive design, the Advanced Full-Motion Mount ensures a clear and hassle-free installation in just 3 easy steps.
| Pros for SANUS Elite - Advanced Full-Motion TV Wall Mount for Most 42"-90" TVs up to 125 lbs - Tilts, Swivels, and Extends up to 28" From Wall - Black Brushed Metal | |||
|---|---|---|---|
| Motion, Installation, Extension, Sturdiness, Swivel | Ease of use, Motion, Installation, Extension, Profile | Ease of use, Installation, Overall Performance, Motion, Price | Ease of use, Installation, Overall Performance, Adjustability, Movement |
| Cons for SANUS Elite - Advanced Full-Motion TV Wall Mount for Most 42"-90" TVs up to 125 lbs - Tilts, Swivels, and Extends up to 28" From Wall - Black Brushed Metal | |||
| Price, Weight, Size, Leveling, Design | Price, Weight, Stability, Screws | Weight, Tilt, Size, Compatibility | Price, Tilt, Cable Management |
