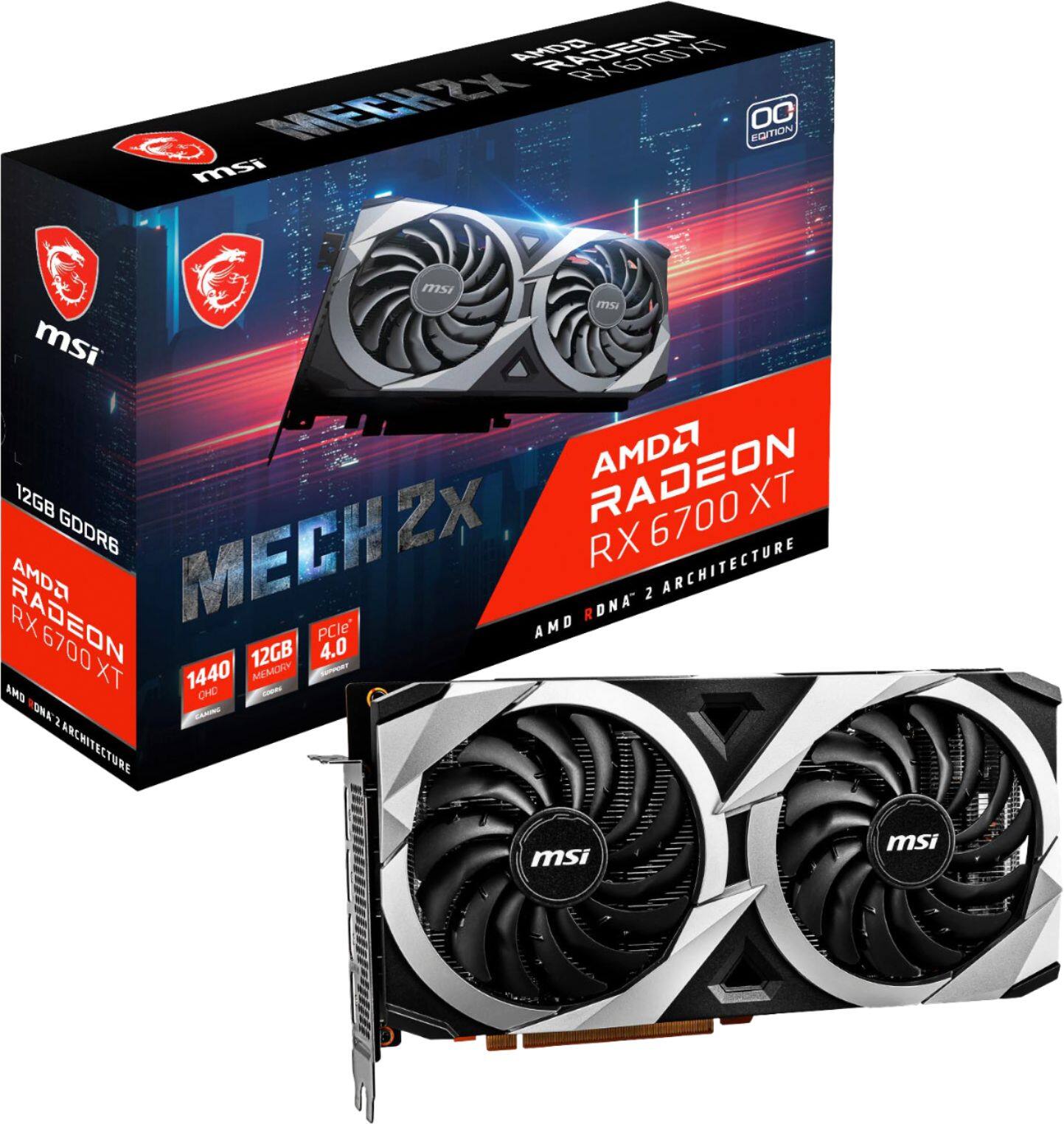

MSI - AMD Radeon RX 6700 XT MECH 2X 12G OC - 12GB GDDR6 - PCI Express 4.0 - Graphics Card - Black
Model: RX 6700 XT MECH 2X 12G OC
SKU: 6457632
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 2.321 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.62 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing, RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 247 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 131 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 51 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 6700 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: MSI
- Model Number: RX 6700 XT MECH 2X 12G OC
- Product Name: AMD Radeon RX 6700 XT MECH 2X 12G OC - 12GB GDDR6 - PCI Express 4.0 - Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 6700 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Performance
- GPU Base Clock Frequency: 2.321 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.62 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Power Connector: 8 pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing, RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 2 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 230 watts
- Recommended Power Supply: 650 watts
- Dimensions
- Product Height: 247 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 131 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 51 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2 pounds (The out of box weight of the item.)
- Other
- UPC: 824142245163
The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, featuring 72 powerful enhanced Compute Units, 128 MB of all new AMD Infinity Cache and 12GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.
- Powered by the AMD Radeon RX 6700 XT 12GB graphics processing unit (GPU): With a MHz clock speed and MHz boost clock speed to help meet the needs of demanding games.
- 12GB GDDR6 (192-bit) on-board memory: Provides the memory needed to recreate game visuals with striking realism.
- PCI Express 4.0 x16 interface: Offers compatibility with a range of systems.
- Virtual Reality Ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience
- DirectX 12 and OpenGL 4.5 support: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity
- Powered by the AMD Radeon RX 6700 XT 12GB graphics processing unit (GPU): With a MHz clock speed and MHz boost clock speed to help meet the needs of demanding games.
- 12GB GDDR6 (192-bit) on-board memory: Provides the memory needed to recreate game visuals with striking realism.
- PCI Express 4.0 x16 interface: Offers compatibility with a range of systems.
- Virtual Reality Ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience
- DirectX 12 and OpenGL 4.5 support: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity
Product Manuals
Q: This item have warranty period?
A: 3 years
A: The HDMI port on the Radeon RX 6700 XT MECH 2X 12G OC is listed as HDMI 2.1 compatible.
