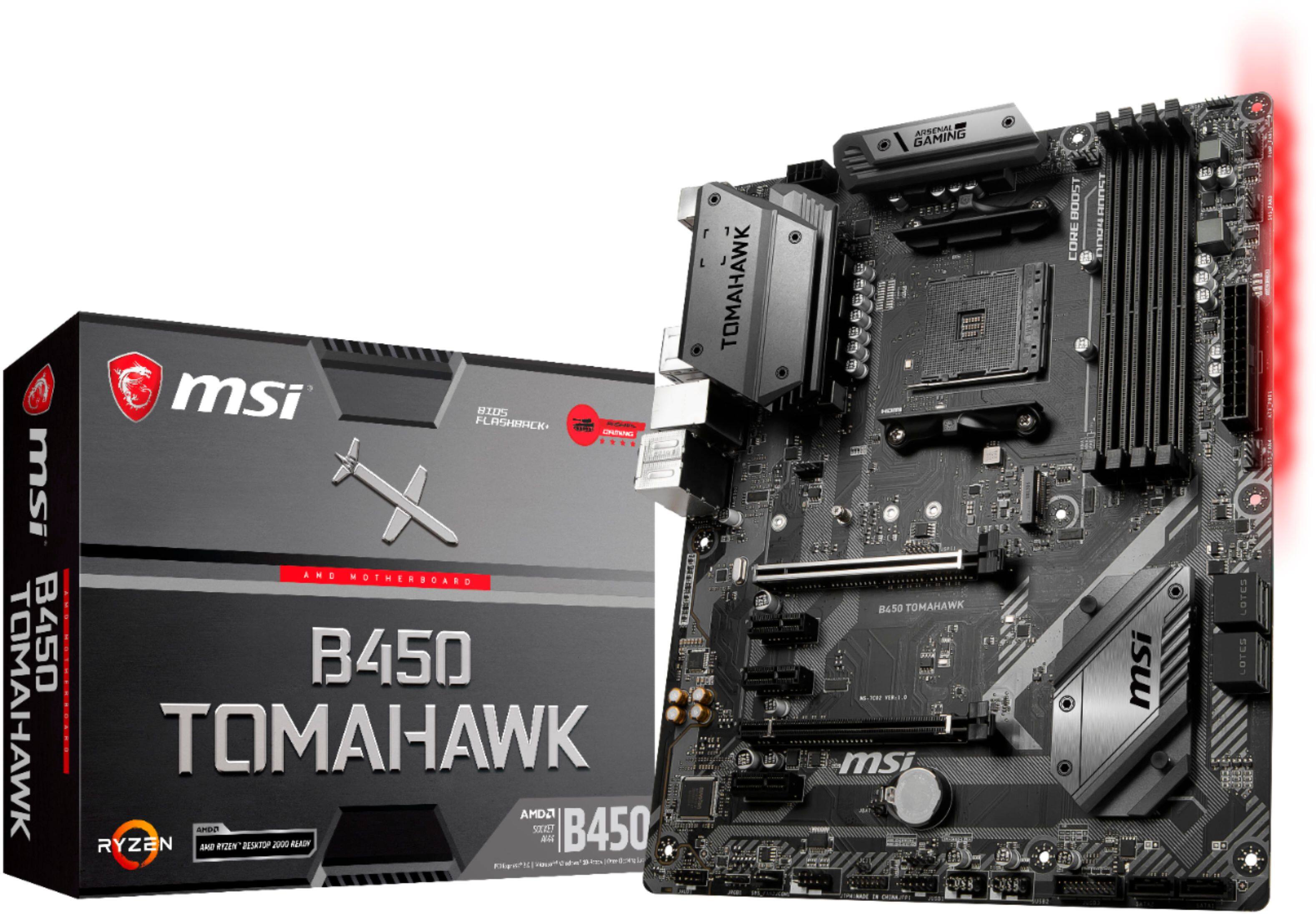

MSI - B450 TOMAHAWK (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- Key Specs
- Chipset: AMD B450
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- General
- Brand: MSI
- Model Number: B450 TOMAHAWK
- Product Name: B450 TOMAHAWK (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- Compatibility
- Chipset: AMD B450
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 7
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 824142167946
Dominate the competition with this MSI Tomahawk gaming motherboard. Plated heat sinks regulate temperature, and the Mystic Light utility's palette lets you pick and personalize your system with 16.8 million colors. This MSI Tomahawk gaming motherboard uses Store MI technology, which maximizes storage and improves performance with an AMD processor and solid-state drive.
- Supports AMD Ryzen 7 and Ryzen processors: In an AM4 socket.
- Up to 3466MHz (OC) system speed: With an AMD B450 chipset for efficient operation.
- AMD CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 2 USB 3.1 Gen 1, 1 PS/2 (mouse/keyboard), 1 audio line-in, 1 audio line-out, 1 microphone, 2 USB 2.0, 1 USB 3.1 Gen 2, 1 HDMI, and more.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 2.0 x16, 3 PCI Express x1.
- Supports AMD Ryzen 7 and Ryzen processors: In an AM4 socket.
- Up to 3466MHz (OC) system speed: With an AMD B450 chipset for efficient operation.
- AMD CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 2 USB 3.1 Gen 1, 1 PS/2 (mouse/keyboard), 1 audio line-in, 1 audio line-out, 1 microphone, 2 USB 2.0, 1 USB 3.1 Gen 2, 1 HDMI, and more.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 2.0 x16, 3 PCI Express x1.
Whats Included
- MSI B450 TOMAHAWK (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- MSI B450 TOMAHAWK (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
Q: Does this support thrid gen ryzen?
A: yes it does support it just have to update the bios which you find on MSI website
Q: How many fans can I plug into this including processor fan
A: MSI B450 Tomahawk board has 1 CPU fan header. 1 coolant pump/fan header, and 4 system fan headers. These are all 4 pin standard headers. So total fans you could plug in including the CPU fan is 6 (six). Hope this helps.
Q: Does this support DDR3 or DDR4 RAM?
A: This will support the DDR4 RAM.
Q: does this have on board wifi and bluetooth
A: No, it does not have wifi and Bluetooth.
Q: Is this a full atx or mid atx size mobo?
A: This is a standard ATX motherboard which will fit in Full ATX and Mid ATX size computer cases.
Q: Does this motheboard support ryzen 5 2600. If yes do this motherboard need bios upadate?
A: Yes. There is a Black sticker on the lower left corner that says it supports Zen+ Ryzen which is the 2600 family. If you see an orange sticker, it will support the Zen 2 architecture without a BIOS update. This is a great motherboard for Ryzen 5 2600 and 3600
Q: Will the Tomahawk b450 fit in a HP h8 1534 ENVY case
A: It will not, most oem cases use proprietary motherboards
Q: Do I need to buy a separate wifi card for my PC or does this come with an antenna?
A: This would need a separate pci-e WiFi card in order to use WiFi
