MSI - EZgo Type1 (J1772), 40A/9.6Kw, Level 1/2 Portable Charger with NEMA 5-15&NEMA 14-50 Plug - Gray
Color
Gray- General
- Brand: MSI
- Model Number: EZ1G
- Product Name: EZgo Type1 (J1772), 40A/9.6Kw, Level 1/2 Portable Charger with NEMA 5-15&NEMA 14-50 Plug, Gray
- Color: Gray
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: NEMA 14-50
- Charging Cable Length: 24.6 feet
- Surge Protection: No
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Display Type: LCD
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Certifications and Standards: CSA
- Environmental
- Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Maximum Operating Altitude: 6562 feet
- Ingress Protection (IP) Rating: IP66 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
- Dimensions
- Product Height: 11.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 824142450604
he MSI EZgo is a high-performance 9.6kW portable Level 2 EV charger that delivers up to 40 amps of power, adding approximately 30 miles of range per hour to any J1772-compatible electric vehicle. Engineered for both home and travel use, it features a rugged IP66-rated weatherproof design and a 24.6-foot cable, ensuring reliability in various outdoor conditions and parking setups. The unit provides intuitive control through a built-in 1.8-inch display and the MSI aConnect app, allowing users to schedule charging, adjust amperage, and monitor real-time data. Safety is prioritized with integrated thermal sensors that detect outlet overheating and a durable construction capable of withstanding heavy pressure, offering a fast and secure charging solution for all North American EVs and plug-in hybrids.
- Rapid 9.6kW Charging Power: Equipped with a 40A output, this Level 2 charger delivers 9.6kW of power, adding roughly 30 miles of range per hour to your electric vehicle. This high-speed performance ensures that even long-range EVs can reach a full charge overnight, providing a significant upgrade over standard household charging.

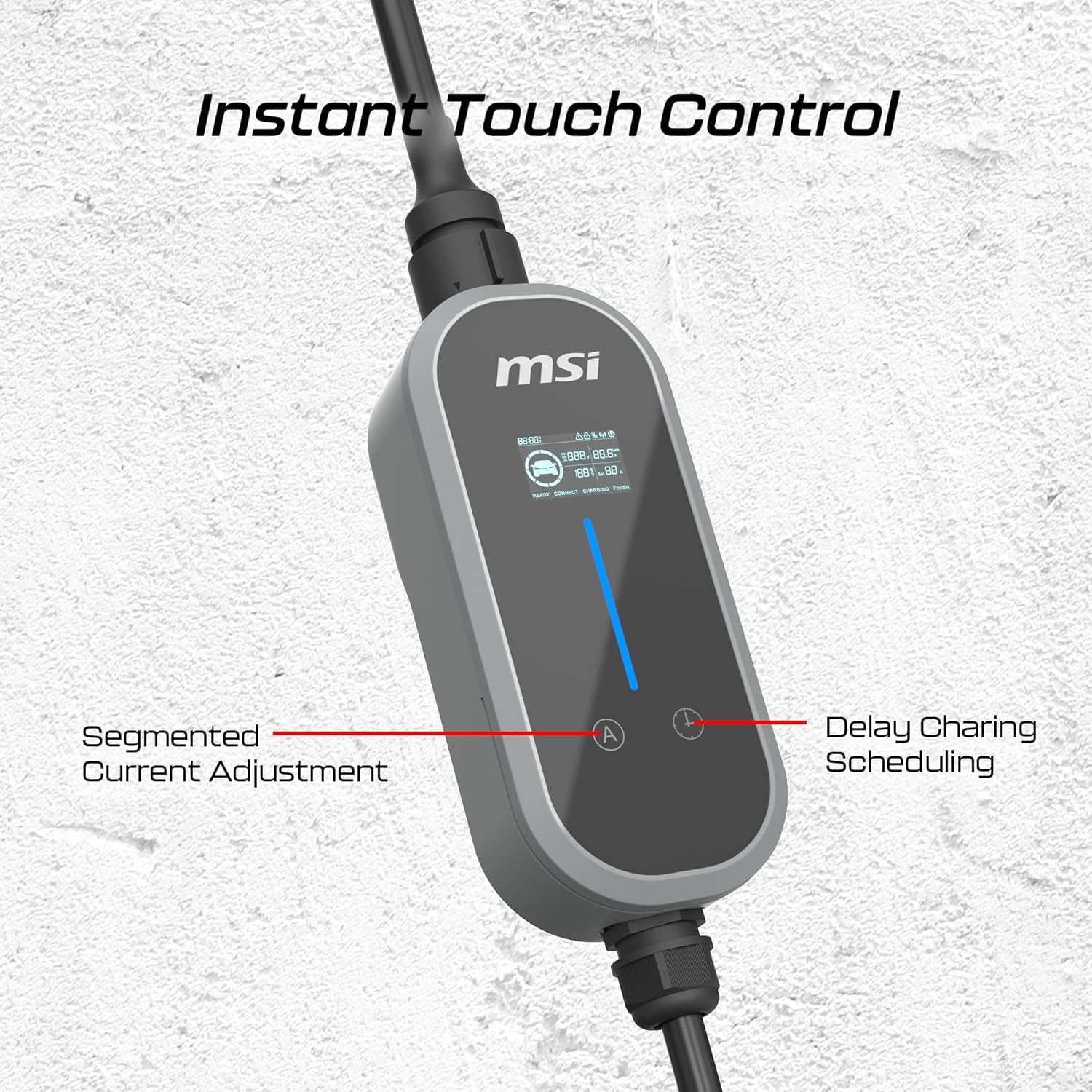

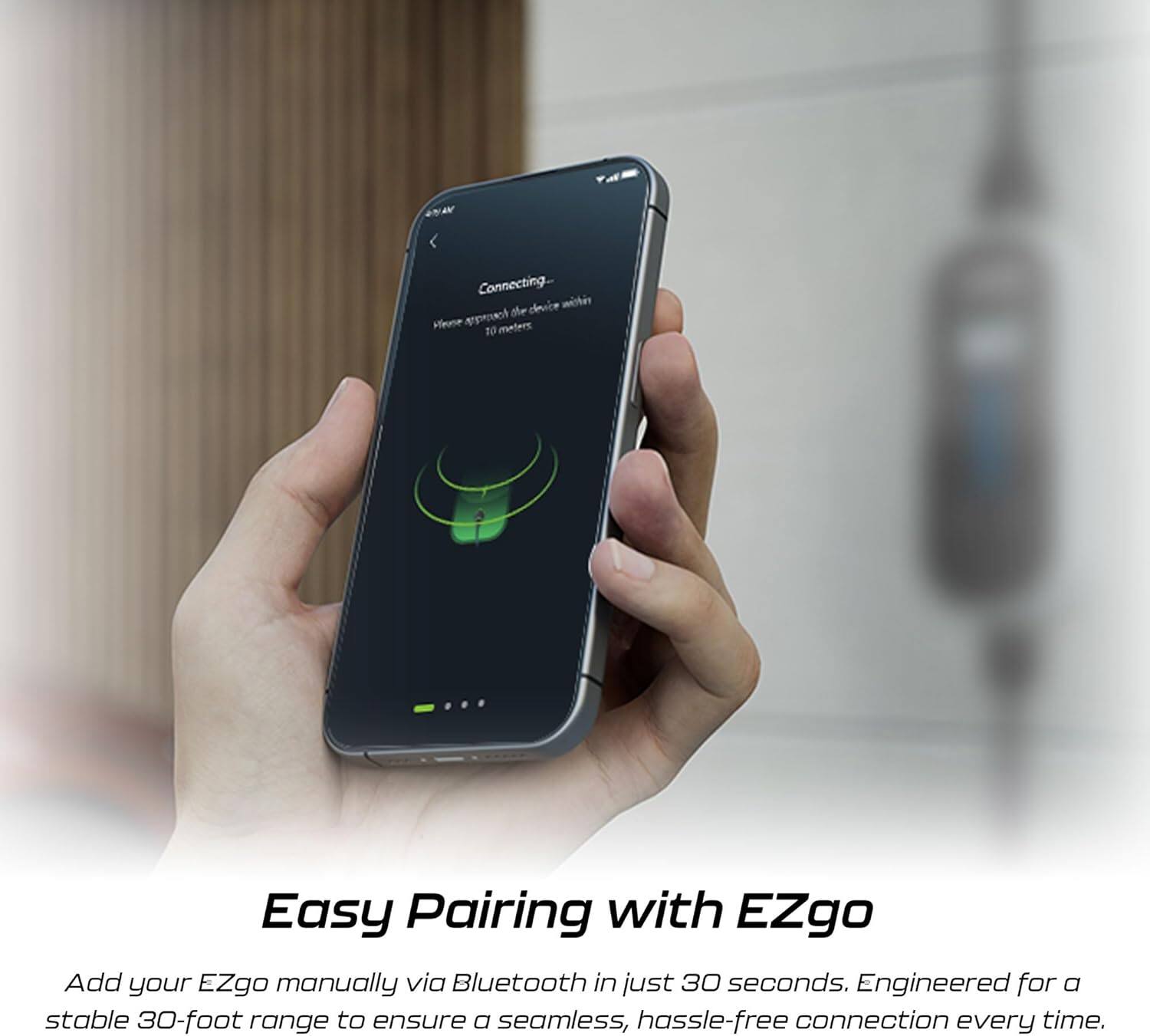

- Smart App Integration & Local Monitoring: The charger features an integrated 1.8-inch display for real-time tracking of voltage, current, and energy consumption. It also pairs with the MSI aConnect app via Bluetooth, allowing you to remotely schedule charging sessions during off-peak hours to reduce electricity costs and manage amperage settings with ease.

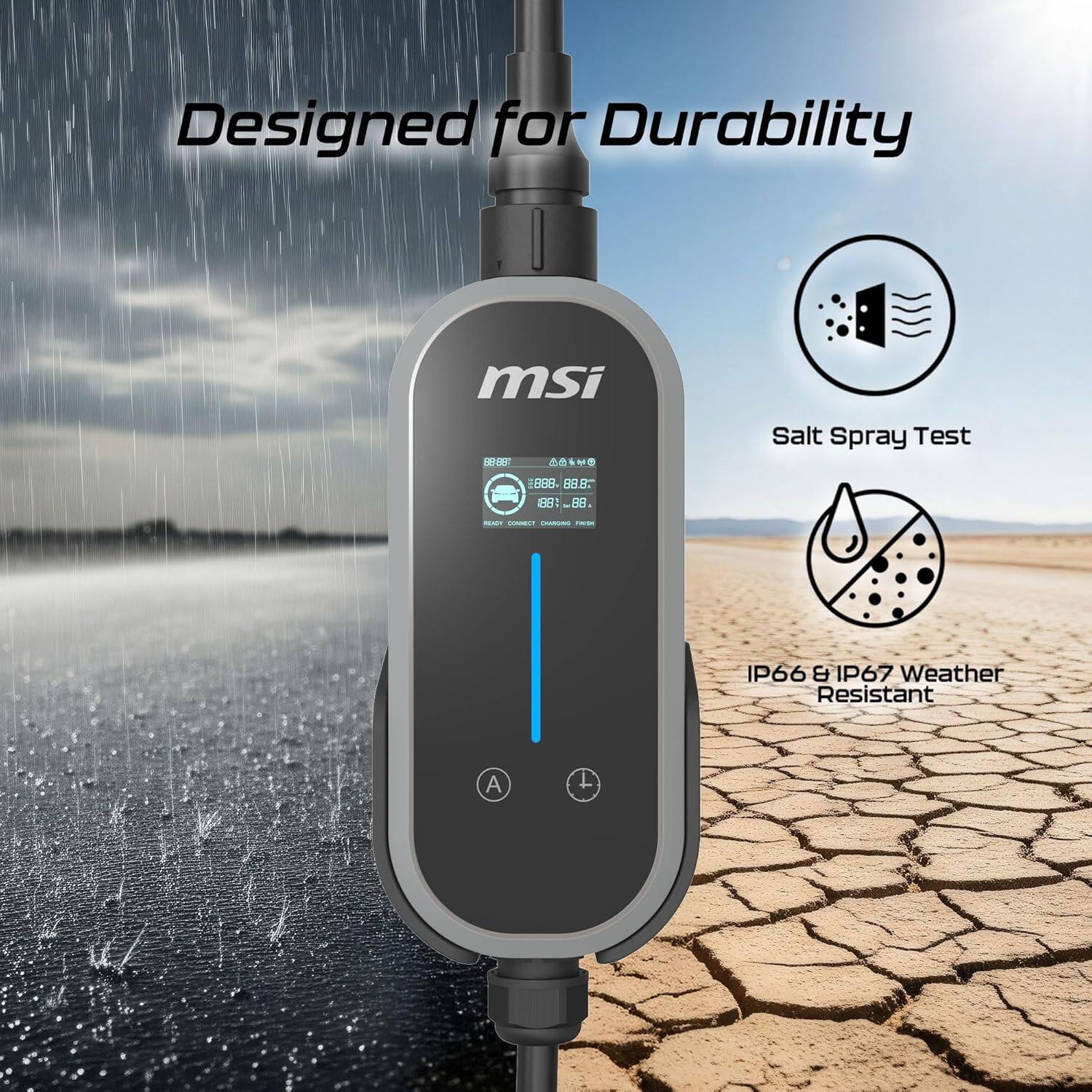

- IP66 Weatherproof & Rugged Build: Designed for maximum durability, the control box features an IP66 rating, offering superior protection against heavy rain, snow, and dust. The ultra-tough construction is engineered to withstand high pressure—including being run over by a vehicle—making it a reliable choice for both indoor and outdoor environments.

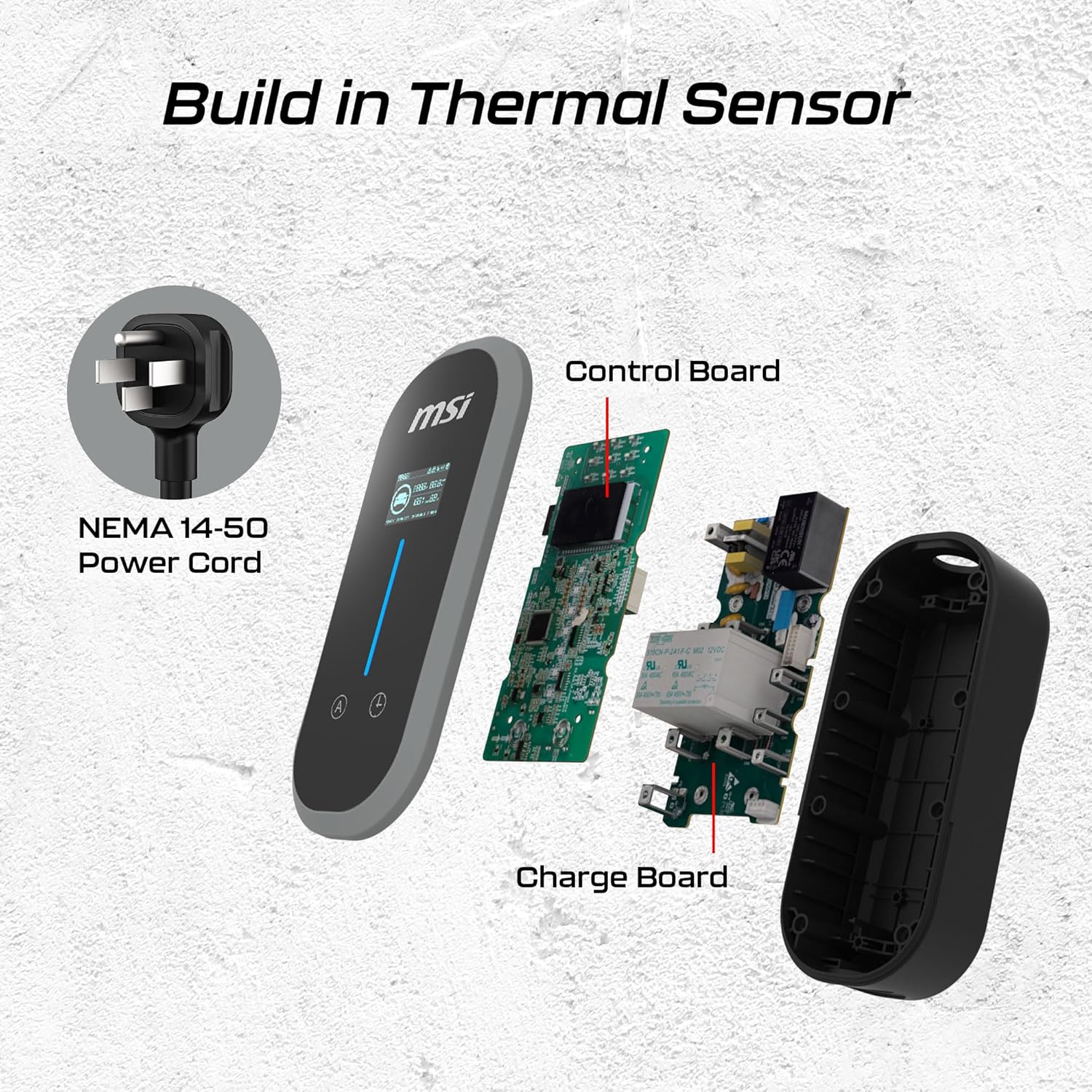

- Enhanced Thermal Safety Protection: For peace of mind, this unit includes a specialized thermal sensor built directly into the plug. This safety feature detects if the wall outlet is overheating and automatically stops the charging process to prevent electrical hazards, supplementing standard protections against overvoltage, overcurrent, and ground faults.
- Universal Compatibility & 24.6ft Reach: Utilizing the standard J1772 connector, the MSI EZgo is compatible with all North American electric vehicles and plug-in hybrids. The generous 24.6-foot (7.5m) cable length ensures you can easily reach your vehicle's charging port even if the outlet is located at the far end of a garage or driveway.
Compare similar products
he MSI EZgo is a high-performance 9.6kW portable Level 2 EV charger that delivers up to 40 amps of power, adding approximately 30 miles of range per hour to any J1772-compatible electric vehicle. Engineered for both home and travel use, it features a rugged IP66-rated weatherproof design and a 24.6-foot cable, ensuring reliability in various outdoor conditions and parking setups. The unit provides intuitive control through a built-in 1.8-inch display and the MSI aConnect app, allowing users to schedule charging, adjust amperage, and monitor real-time data. Safety is prioritized with integrated thermal sensors that detect outlet overheating and a durable construction capable of withstanding heavy pressure, offering a fast and secure charging solution for all North American EVs and plug-in hybrids.
Introducing the Lectron J1772 Level 1/Level 2 Dual Charging Plug (NEMA 5-15 & 14-50) Portable Electric Vehicle (EV) Charger: Your reliable and efficient charging solution. With its interchangeable NEMA 5-15 and NEMA 14-50 plugs, the Lectron EV Charger offers flexible charging options that adapt to your needs. Whether you have access to a standard household outlet or a high-power outlet, this charger has you covered. Say goodbye to long charging times with this 40 Amp EV charger (Level 2). The Lectron EV Charger enables you to charge your electric vehicle from 12 Amp (Level 1) to 40 Amp (Level 2). Minimize vehicle downtime and spend more time on the road, enjoying the exhilarating experience of electric driving. Designed to work seamlessly with all EVs using the J1772 charging standard, including popular models from BMW, Ford, Honda, Hyundai, Kia, Porsche, Nissan, and Chevy, this charger provides the utmost convenience and compatibility for electric vehicle owners. Transporting and storing your charger has never been easier. The lightweight and compact design allows you to take it with you wherever you go. The user-friendly interface, complete with LED indicators, ensures a hassle-free and intuitive charging experience. Simply plug it in, and you're ready to charge your electric vehicle. The Lectron Level 1 / Level 2 EV Charger incorporates multiple safety features to protect your vehicle and charging equipment. With over-voltage, overcurrent, and leakage protection, you can have peace of mind knowing that your vehicle and charging process are safeguarded at all times. Experience the convenience, efficiency, and peace of mind that come with the Lectron Level 1 / Level 2 EV Charger. Say goodbye to range anxiety and enjoy the freedom of electric driving with a reliable and efficient charging solution.
The Tesla Wall Connector is our most convenient charging solution for Tesla vehicles and is ideal for houses, apartments, hospitality properties and workplaces. A faster and Wi-Fi enabled option for your Tesla vehicle, Wall Connector receives over-the-air updates so the charger becomes better over time. Wall Connector adds up to 44 miles of range per hour (or 11.5 kW). Must be installed by a qualified electrician.
Universal Wall Connector is a convenient charging solution for Tesla and non-Tesla electric vehicles alike and is ideal for houses, apartments, hospitality properties and workplaces. With the same speed, power and functionality as Wall Connector, Universal Wall Connector is compatible with Tesla vehicles and non-Tesla EVs. Universal Wall Connector adds up to 44 miles of range per hour (or 11.5 kW). Must be installed by a qualified electrician.
| Pros for MSI - EZgo Type1 (J1772), 40A/9.6Kw, Level 1/2 Portable Charger with NEMA 5-15&NEMA 14-50 Plug - Gray | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Overall Performance, Charging Speed, Ease of use, Installation, Design | Overall Performance, Charging Speed, Ease of use, Installation, Compatibility |
| Cons for MSI - EZgo Type1 (J1772), 40A/9.6Kw, Level 1/2 Portable Charger with NEMA 5-15&NEMA 14-50 Plug - Gray | |||
| There were no cons for this product— | There were no cons for this product— | Price, WiFi Connectivity, Amperage | Price, Adapter, Connectivity |
Specs
Reviews
This product doesn't have any reviews yet.
