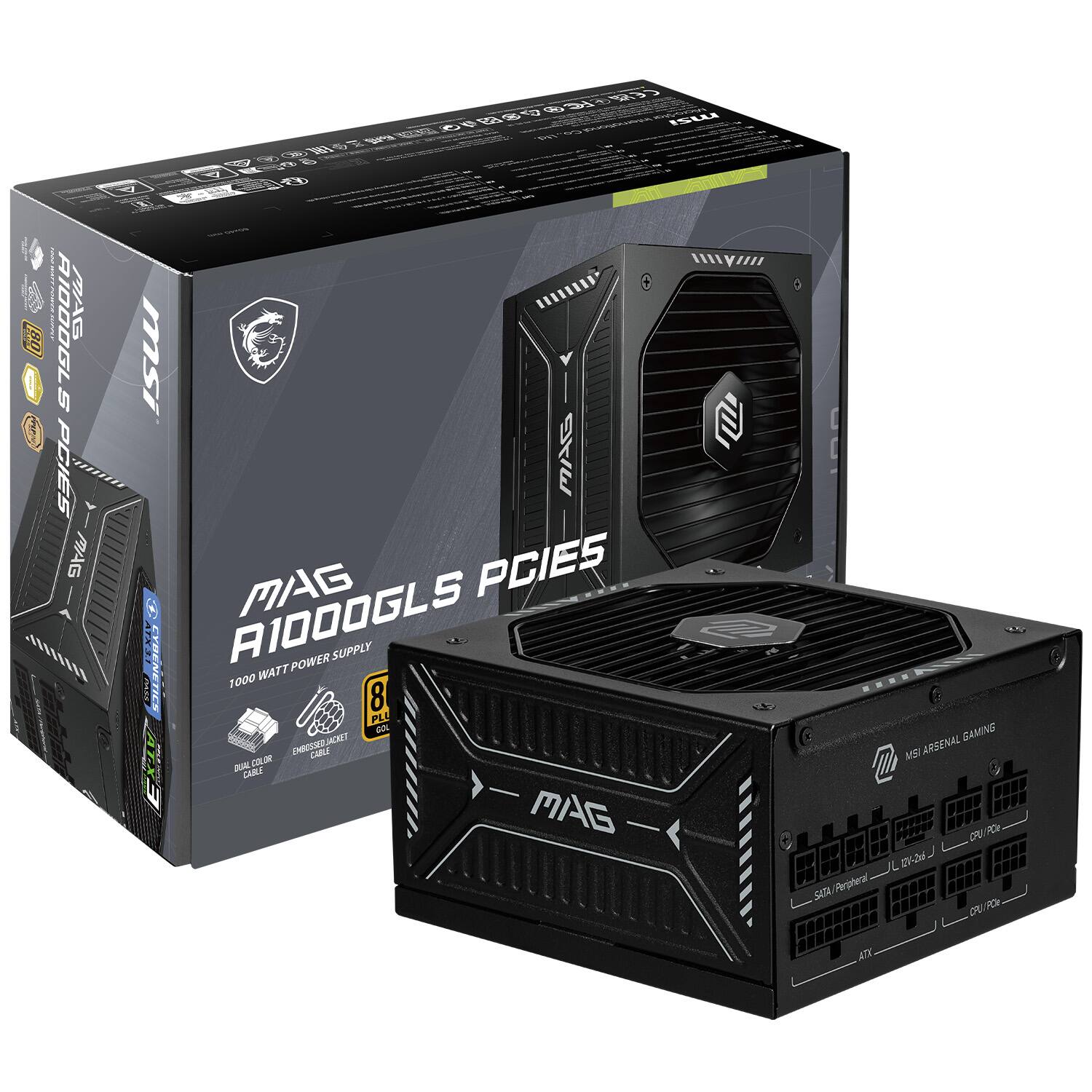

MSI - MAG A1000GLS PCIE5 1000W ATX 3.1 & PCIe 5.1 Ready Full Modular 80 Plus Gold Gaming Power Supply - Black
Wattage
1000 watts
Key Accessories:
- CORSAIR - RS120 ARGB 120mm PWM Case Fans (3-pack) - White$37.99The price was $59.99
More Buying Options from Best Buy and Marketplace sellers
Related Item
Specifications
- Wattage1000 wattsModularFully modularEnergy Efficiency80 PLUS Gold, Cybenetics PlatinumATX Connector1x ATX (24 PIN) CablePCIe Connector4Peripheral Connector4
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 11 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.1
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: MSI
- Model Number: MAG A1000GLS PCIE5
- Product Name: MAG A1000GLS PCIE5 1000W ATX 3.1 & PCIe 5.1 Ready Full Modular 80 Plus Gold Gaming Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX 3.1
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: False (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 11 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.1
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 150 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 117.76 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: Fluid Dynamic Bearing
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 824142398074
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, the MSI MAG A1000GLS PCIE5 is built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
- ATX 3.1 compatible: Fully ATX 3.1 compatible, this power supply ensures next-gen performance, efficiency, and stability for the latest PC builds.
- Level up your game: With native 12V-2x6 connector the power supply is ready for Nvidia GeForce 50/40 Series graphics cards. It has an output port compliant with Intel PSDG ATX 3.1, supporting up to 220% total power and 3x GPU power excursions.
- 80 Plus gold certified: The efficiency of your power supply directly influences your system's performance and your power consumption.
- Midnight Sound Level: This power supply is engineered for quiet operation, delivering ultra-low noise levels comparable to midnight silence, ensuring a serene and undisturbed computing experience.
- DC TO DC & full bridge: DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
Whats Included
- MAG A1000GLS PCIE5
- AC cable
- DC cable set
- Mounting screws
Product Manuals
Q: Are the cables on this power supply modular?
A: Yes, the cables on this power supply are fully modular.
Q: What is the wattage of this power supply?
A: The wattage of this power supply is 1000 watts.
Q: How many EPS12V connectors are available on this power supply?
A: There are two EPS12V connectors on this power supply.
Q: Does this power supply have overload protection?
A: Yes, this power supply features overload protection.
Q: How many SATA connectors does this power supply have?
A: This power supply has eleven SATA connectors.
Q: Is a power cord included with this power supply?
A: Yes, a power cord is included with this power supply.
Q: What ATX version is this power supply compatible with?
A: This power supply is compatible with ATX 3.1.
