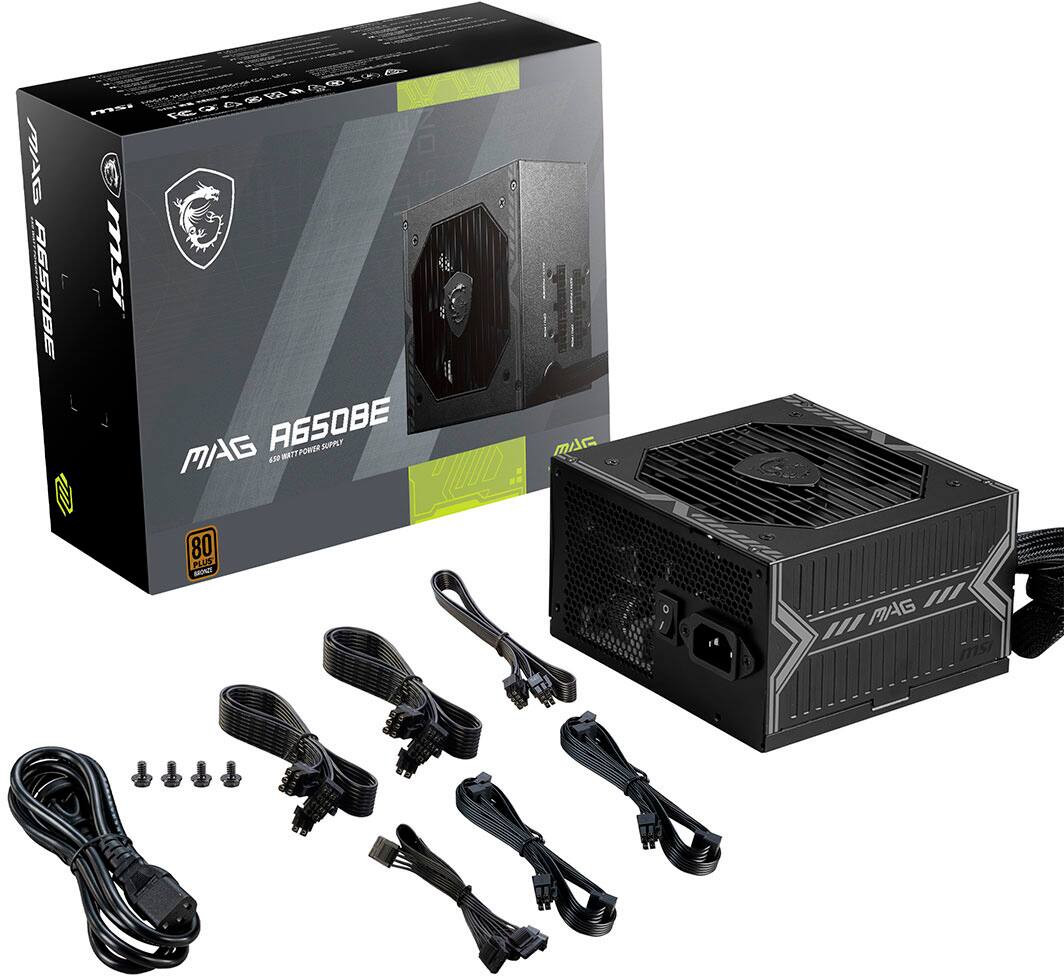

MSI - MAG A650BE 650W Non-Modular 80 Plus Bronze Power Supply - Black
MSI - MAG A650BE 650W Non-Modular 80 Plus Bronze Power Supply - Black
Wattage
650 watts- CORSAIR - NAUTILUS 240 ARGB Liquid CPU Cooler with RS120 ARGB Fans - Black$99.99
More Buying Options
Specifications
- Wattage650 wattsModularNon-modularEnergy Efficiency80 PLUS BronzeATX Connector1x ATX (24 PIN) CablePCIe Connector2Peripheral Connector3
- Key Specs
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 3.0, PCI Express 4.0, PCI Express 3.0, PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: MSI
- Model Number: MAG A650BE
- Product Name: MAG A650BE 650W Non-Modular 80 Plus Bronze Power Supply
- Color: Black
- Power
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: False (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 3.0, PCI Express 4.0, PCI Express 3.0, PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 85.85 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 84.8 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 1
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 824142352854
The MSI MAG A650BE delivers reliable power and efficiency, embodying the resilience of the MAG series. With 80 PLUS Bronze certification, it ensures lower energy consumption and stable performance. Its non-modular design provides a straightforward, hassle-free setup, while flat cables improve airflow and organization. A fluid dynamic bearing fan ensures quiet cooling, and DC to DC with Full Bridge technology maintains stable voltage. The single +12V rail supports high-performance GPUs and CPUs with multiple PCIe and CPU connectors. With built-in protections for stability, the MAG A650BE is a solid and efficient choice for gamers.
- 80 Plus Bronze certified: The efficiency of your power supply directly influences your system's performance and your power consumption.
- Compact size: Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
- All the more organized: Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
- 120mm LOW NOISE FAN: The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
- DC-to-DC + ACTIVE PFC: The utilization of DC-DC circuit design alongside Active PFC technology synergistically enhances power supply stability and efficiency, thereby providing more reliable power delivery while also reducing energy wastage.
Product Manuals
Q: What is the wattage of this power supply?
A: This is a 650 watt power supply.
Q: What type of cable design does this power supply use?
A: This power supply uses a non-modular design with flat cables for easier cable management.
Q: Does this power supply have overload protection?
A: Yes, it has overload protection.
Q: What is the energy efficiency certification of this power supply?
A: This power supply is 80 Plus Bronze certified.
Q: How does this power supply keep cool?
A: It uses a 120mm low noise fan with sleeve bearing to reduce noise and dissipate heat.
Q: How many SATA connectors does the power supply have?
A: It has 6 SATA connectors.
Q: Will this fit into an hp victus 15l desktop
A: Please contact HP to confirm compatibility with their prebuilt system.
