MSI - MAG X670E TOMAHAWK WIFI (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard - Black
Specifications
- ChipsetAMD X670Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots4Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD X670
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: MAG X670E TOMAHAWK WIFI
- Product Name: MAG X670E TOMAHAWK WIFI (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2023
- Compatibility
- Chipset: AMD X670
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

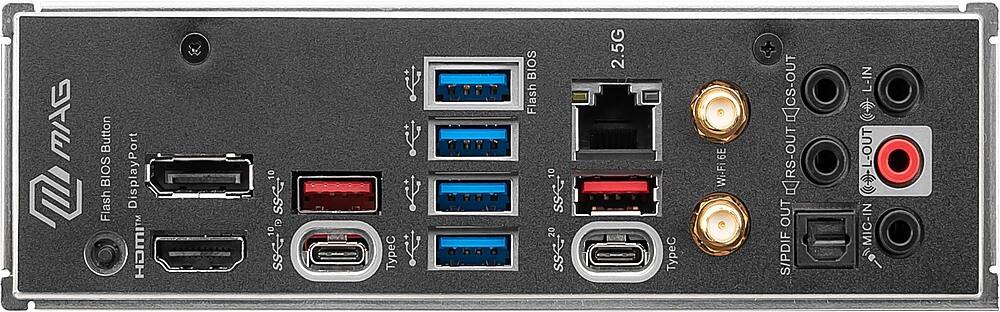

- USB Ports: 4 x USB-A 3.2, 4 x USB-A 3.2, 3 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 48 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 1, RAID 5, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142316559
MAG X670E TOMAHAWK WIFI takes all the essential elements of the latest AMD Ryzen 8000-series processors and combines them with game-ready features and proven durability.
- Processor compatibility: Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
- Speed (memory speed supported): 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MH
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Processor compatibility: Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
- Speed (memory speed supported): 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MH
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Product Manuals
Q: What kind of audio does this motherboard support?
A: It supports 8-Channel (7.1) HD Audio with Audio Boost.
Q: What processors are compatible with this motherboard?
A: This motherboard supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5.
Q: How much memory can this motherboard support?
A: The motherboard can support a maximum of 128 gigabytes of memory.
Q: What is the form factor of this motherboard?
A: The form factor of this motherboard is ATX.
Q: How many M.2 slots are there on this motherboard?
A: This motherboard has 4 M.2 slots.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, the motherboard comes with Wi-Fi 6E.
Q: Does the motherboard need a bios update for a x3d chip?
A: No, but it may depend on the manufacture date. I bought 1 from Micro Center with a 9800x3d and it booted just fine. The only thing to be weary of is that it may not see some nvme drives in m.2_1. I tried to put in a 990pro 4tb into that slot and it can't see it. I have read that other older drives will read in that slot but that is the only gen 5 m.2 slot so that defeats the idea. If your going for a gen 5 m.2 in your board it doesn't work as of 11/2024.
Q: Will this MB support 50 series GPU when it comes out?
A: Absolutely
Compare similar products
MAG X670E TOMAHAWK WIFI takes all the essential elements of the latest AMD Ryzen 8000-series processors and combines them with game-ready features and proven durability.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
ASUS ROG CROSSHAIR X870E HERO AMD X870E AM5 ATX motherboard, Advanced AI PC ready, 18+2+2 power stages, DDR5, PCIe 5.0, 5x M.2, Wi-Fi 7, USB4, AI Overclocking, Core Flex, PCIe Slot Q-Release Slim
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
| Pros for MSI - MAG X670E TOMAHAWK WIFI (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| BIOS, Performance, Price | Overall Performance, Installation Ease, Features, BIOS Usability, Compatibility | Overall Performance, Heat Dissipation | Overall Performance, Installation Ease, Features, BIOS, Connectivity |
| Cons for MSI - MAG X670E TOMAHAWK WIFI (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
| There were no cons for this product— | Driver Support | There were no cons for this product— | M.2 Slots |
Specs
Reviews
Customers are saying
Customers find value in the MAG X670E TOMAHAWK WIFI motherboard, particularly praising its performance and considering it a great product for its price. Users also appreciate the quality of the BIOS. Overall, the motherboard is well-received by customers.
- Performance (8)
- Price (5)
- BIOS (3)
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Solid and Ready to Rock
This mobo is for an upper-mid level video editing machine. MSI did a great job updating this mobo with the latest tech. Housed in a Lian Li 217, paired with a Ryzen 9 7900x and RTX 5060Ti, it kicks booty. Benchmarks are outstanding. With lots of fan and a-rgb connections you have lots of flexibility. OC’ing is straightforward.
JeffB Posted
- Rated 5 out of 5 stars
Amazing MB for the price
Really good mb for the price . Enough usb ports,good and simple design, easy to install a m2, a lot of fans ports. i go for this mb for my amd 7950x3d and was an excellent choice , not issues at all
CarlosR Posted
- Rated 5 out of 5 stars
Pretty awesome X670E motherboard
Awesome motherboard for the price. The best part is that it came 9000 series ready. I was worried that the newer CPU would require BIOS update, but it came ready for that. Awesome features for the prices. Definitely recommend. The only potential improvement is CPU temp digital indicator. :) For the price - it is really good.
Vlad Posted
