product image
MSI

MSI - NVIDIA GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS 16GB GDDR7 PCI Express Gen 5 Graphics Card - White

Model: G506T-16V2CWP
SKU: 6649242
This item is no longer available in new condition. See similar items below
  • Key Specs
    • GPU Base Clock Frequency: 2.407 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
    • GPU Boost Clock Frequency: 2.602 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

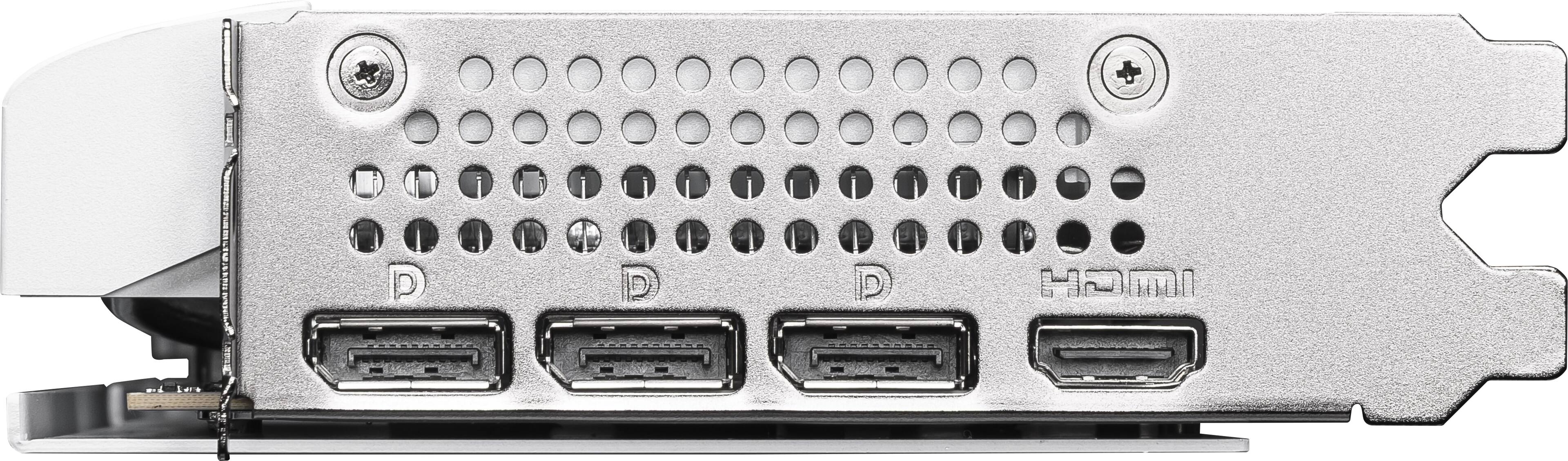

    • DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
    • HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
    • Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
    • Maximum Number of Displays Supported: 4
    • Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
    • GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
    • GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
    • Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
    • PCI Express Version: PCI Express 5.0
    • Product Height: 227 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 41 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
  • General
    • Brand: MSI
    • Model Number: G506T-16V2CWP
    • Product Name: NVIDIA GeForce RTX 5060 Ti 16G VENTUS 2X OC WHITE PLUS 16GB GDDR7 PCI Express Gen 5 Graphics Card
    • Color: White
    • GPU Chipset Manufacturer: NVIDIA
    • Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
    • Year of Release: 2025
  • Performance
    • GPU Base Clock Frequency: 2.407 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
    • GPU Boost Clock Frequency: 2.602 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
    • Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
  • Connectivity
    • DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
    • HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
  • Display
    • Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
    • Maximum Number of Displays Supported: 4
    • Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
  • Memory
    • GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
    • GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
    • GPU Video Memory Base Clock Frequency (RAM): 28 gigahertz
  • Compatibility
    • Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
    • PCI Express Version: PCI Express 5.0
    • Operating System Compatibility: Windows
  • Power
    • Total Graphics Power: 180 watts
    • Recommended Power Supply: 600 watts
  • Dimensions
    • Product Height: 227 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 41 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Weight: 1.32 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: 3 years
  • Other
    • UPC: 824142418536

GeForce RTX 5060 Ti 16G VENTUS 2X OC WHITE PLUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

  • Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 5060Ti graphics processing unit (GPU) with boost clock
  • 16GB GDDR7: 16GB GDDR7 Video Memory.
  • Interface Compatibility: PCI Express Gen 5 offers compatibility with a range of systems.
  • NVIDIA G-SYNC: The Ultimate Gaming Display Technologies

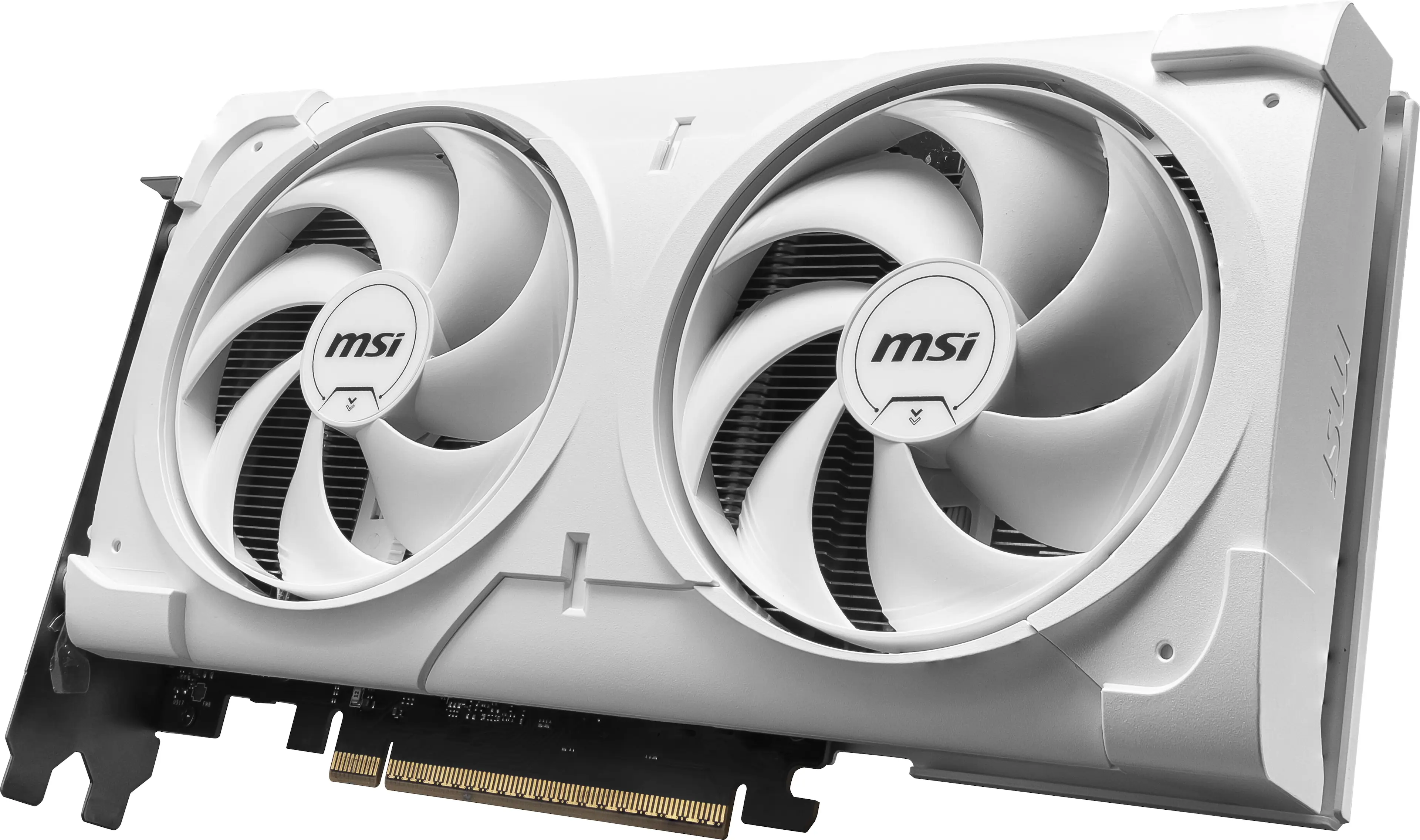

  • STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Whats Included
  • NVIDIA GeForce RTX 5060 Ti 16G VENTUS 2X OC WHITE PLUS 16GB GDDR7 PCI Express Gen 5 Graphics Card
  • Support Stand
  • Adapter Cable
