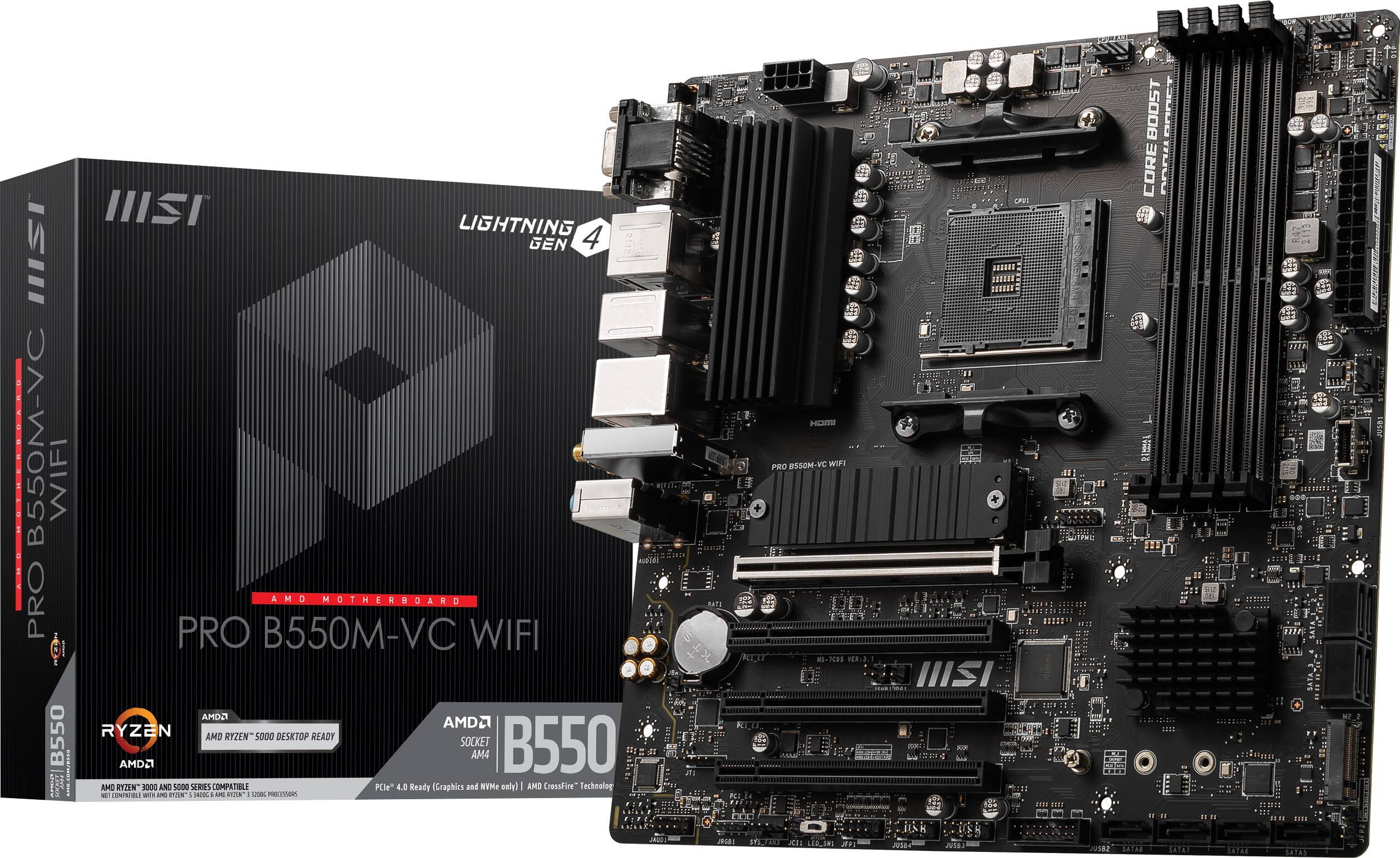

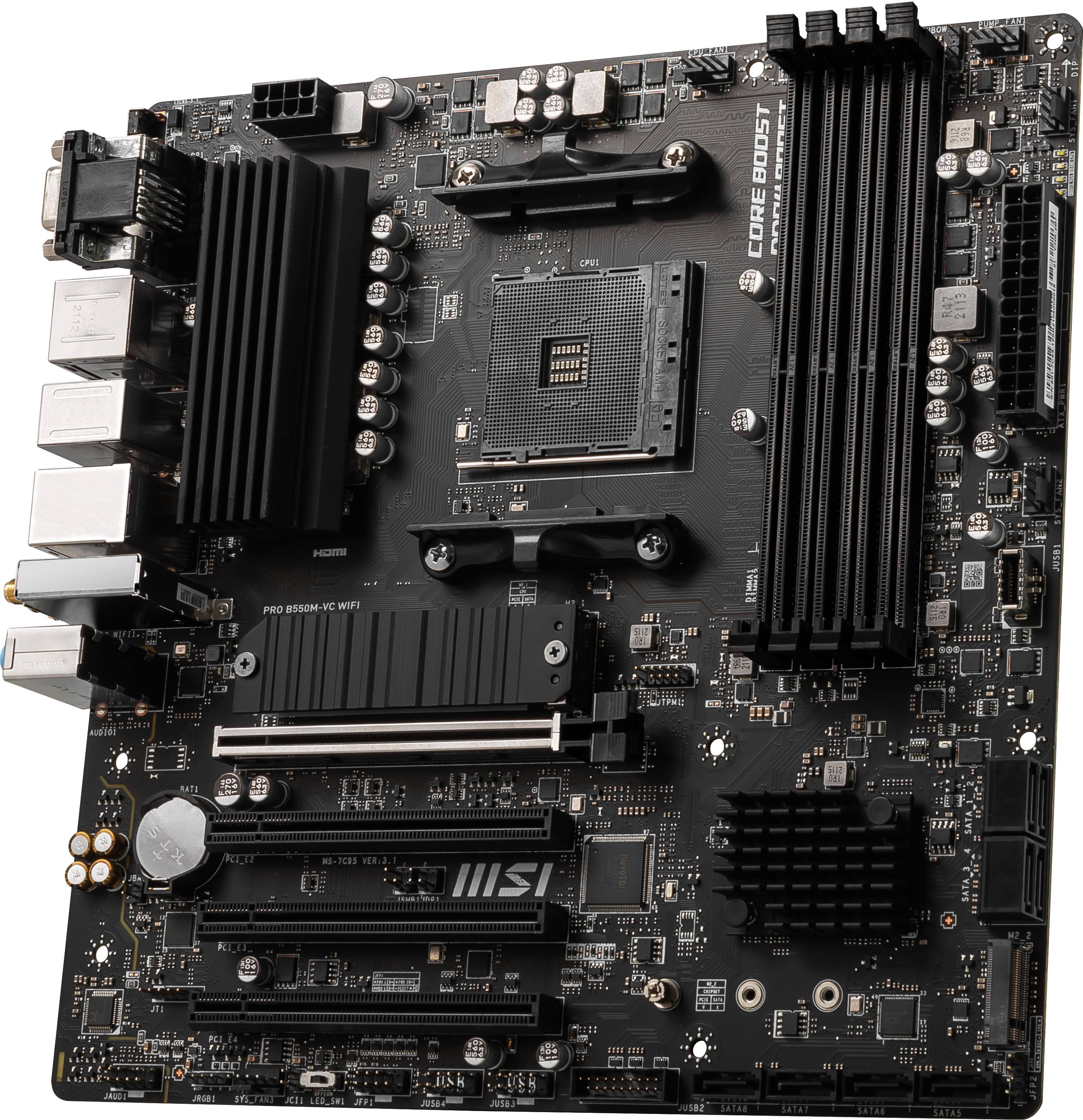

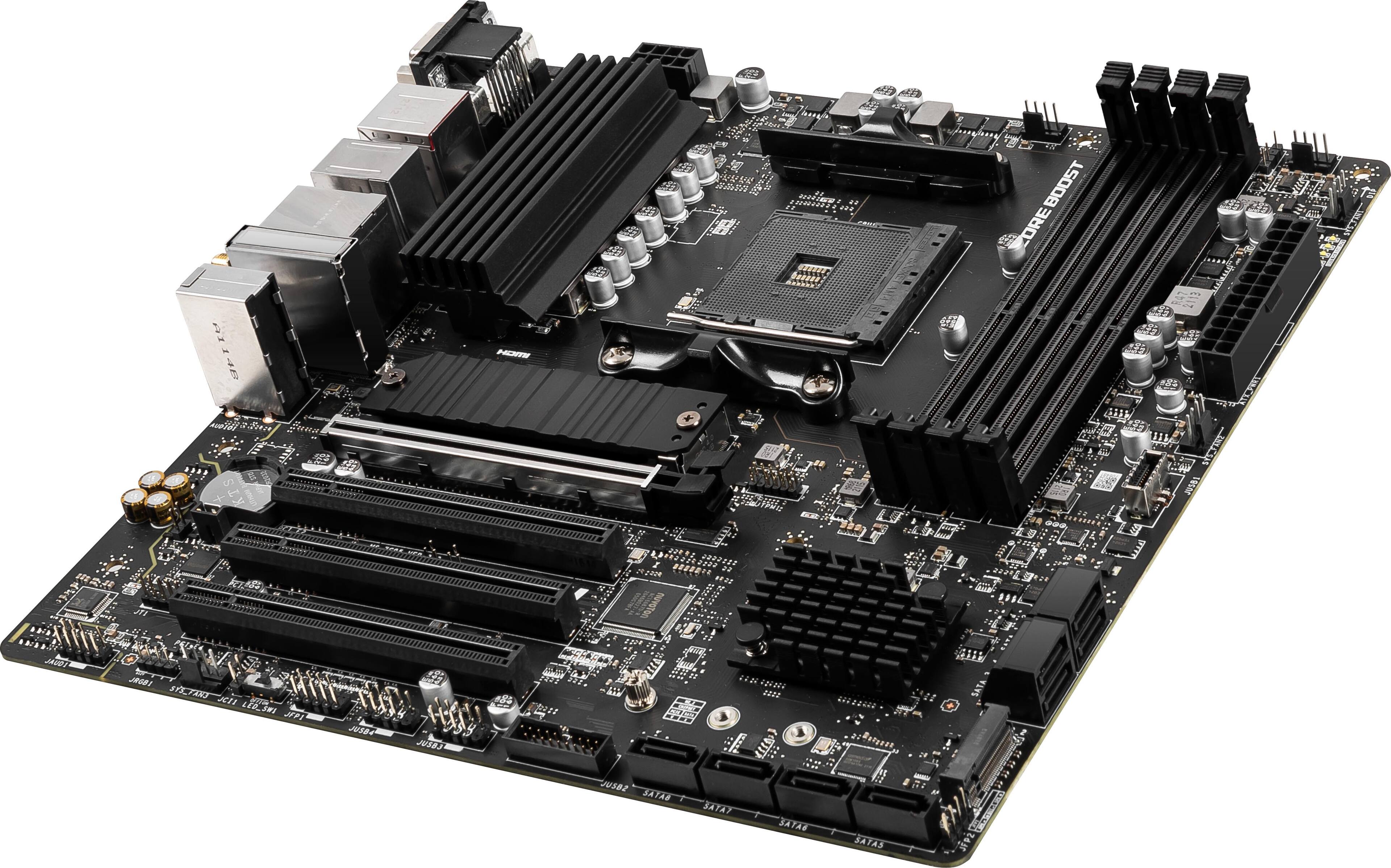

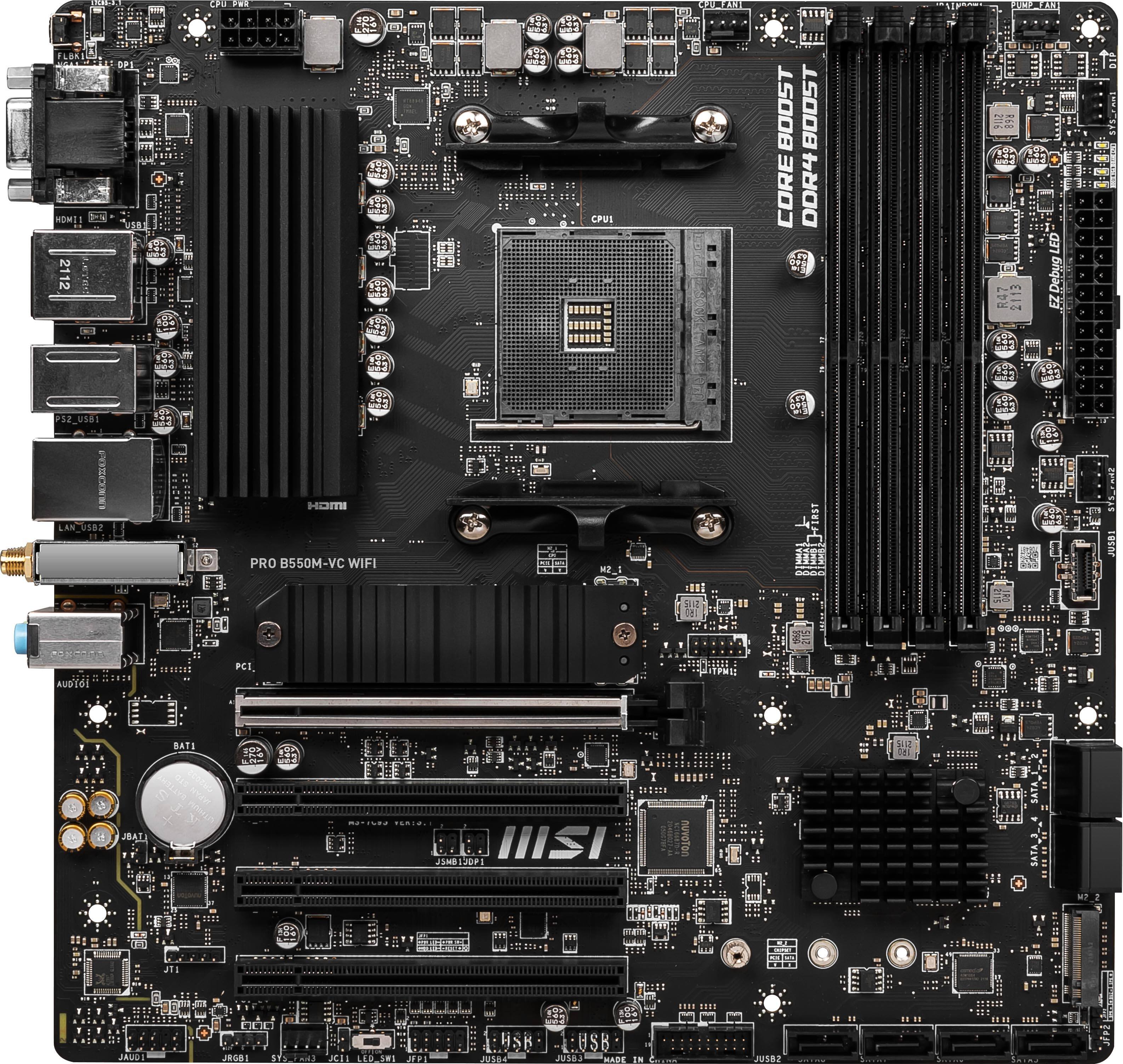

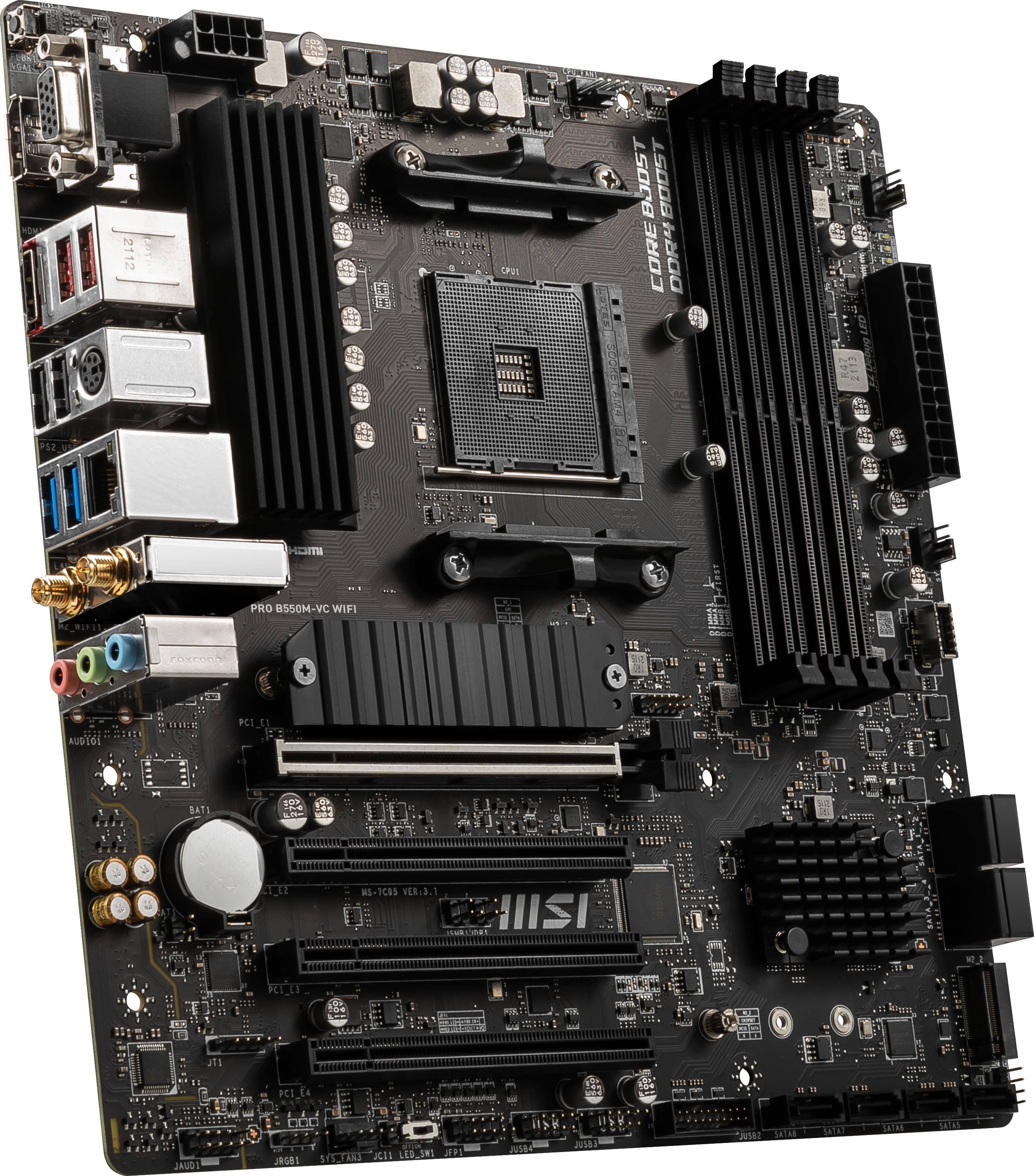

MSI - PRO B550M-VC WIFI (Socket AM4) AMD B550 MATX DDR4 Wi-Fi 6E Motherboard - Black
Thermaltake - SMART 700W ATX 80 Plus Power Supply - Black$54.99$59.99
More Buying Options
Specifications
- ChipsetAMD B550Form FactormicroATXProcessor SocketSocket AM4 (PGA 1331)Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots2Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: AMD B550
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: MSI
- Model Number: PRO B550M-VC WIFI
- Product Name: PRO B550M-VC WIFI (Socket AM4) AMD B550 MATX DDR4 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD B550
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 5000 Series, AMD Ryzen 9 3000 Series, AMD Ryzen 5 3000 Series, AMD Ryzen 7 2000 Series, AMD Ryzen 7 3000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of PCI-E x1 Slots: 2
- Number Of Memory Slots: 2
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 6 x USB-A 2.0, 6 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 243.84 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 30.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR4 memory slots, support up to 128GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142299258
PRO B550M-VC WIFI is built to support 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics desktop processors for Socket AM4, ensuring stable performance and efficient connectivity.
- Processor compatibility: Supports 3rd Gen AMD Ryzen/ 3nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Speed (memory speed supported): 4x DDR4 memory slots, support up to 128GB 1. Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC. Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- Graphics: Integrated Graphics Processor
- DDR4 memory: 4 DIMMs, Dual Channel DDR4 4400+MHz (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Processor compatibility: Supports 3rd Gen AMD Ryzen/ 3nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Speed (memory speed supported): 4x DDR4 memory slots, support up to 128GB 1. Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC. Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- Graphics: Integrated Graphics Processor
- DDR4 memory: 4 DIMMs, Dual Channel DDR4 4400+MHz (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
Product Manuals
Q: What is the maximum memory supported by the motherboard?
A: The PRO B550M-VC WIFI supports up to 128GB of memory.
Q: What is the form factor of this motherboard?
A: It's a microATX motherboard.
Q: Which processors are compatible with this motherboard?
A: The motherboard is compatible with AMD Ryzen 9 5000 Series processors.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, it supports Wi-Fi 6E.
Q: How many M.2 slots are available on the motherboard?
A: This motherboard has 2 M.2 slots.
Q: How many SATA connectors does this motherboard have?
A: It has 4 SATA 6G connectors.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR4 memory.
A: Hello reeman - Yes, it does support but it will depend on the slot being utilized. Here is the link to the full detailed specs for this motherboard. https://www.msi.com/Motherboard/Pro-B550M-VC-WIFI/Specification
Compare similar products
PRO B550M-VC WIFI is built to support 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics desktop processors for Socket AM4, ensuring stable performance and efficient connectivity.
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. MAG B550 Gaming PLus features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. MAG B550 TOMAHAWK WIFI features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
B550M PRO-VDH WIFI is designed to support 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics desktop processors for Socket AM4, providing reliable performance and versatile connectivity.
| Pros for MSI - PRO B550M-VC WIFI (Socket AM4) AMD B550 MATX DDR4 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| WiFi Performance | Price, Ease of use, Performance, BIOS, RGB | Ease of use, Price, Overall Performance, Motherboard, Wi-Fi | There were no pros for this product— |
| Cons for MSI - PRO B550M-VC WIFI (Socket AM4) AMD B550 MATX DDR4 Wi-Fi 6E Motherboard - Black | |||
| There were no cons for this product— | Size, WiFi, Manual | Size, RAM | There were no cons for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Super compatible and feature rich
Very easy to setup, fully compatible with everything I have and the built in wifi and overclocking helped put my system into top-tier performance. The 4 slots for sata cables and a plethora of plugins for fans was my favorite part! Exceptional purchase, very much worth it's price.
Posted by SOLOMONP
- Rated 5 out of 5 stars
Tracy
I recently upgraded my PC with this motherboard, and I’m genuinely impressed with how smooth the process was. As someone who’s not a tech expert, I really appreciated how easy it was to install — everything was clearly labeled and fit perfectly. The build quality feels solid, and it booted up without any issues on the first try. I've noticed a significant improvement in overall system performance and speed, especially when multitasking or gaming. The power efficiency is also great; my system runs cooler and quieter now. Overall, it’s a reliable and user-friendly board that exceeded my expectations.
Posted by TracyL
- Rated 5 out of 5 stars
Good value
I paired this with a Ryzen 7 5700X and didn’t need a BIOS update out of the box. It’s a great value motherboard with solid features—4 RAM slots, RGB support, and fast built-in Wi-Fi. With 32GB of DDR4 3200MHz RAM and a 12GB RTX 3060, it runs games smoothly. I liked it enough to buy a second for another build. AMD might release more AM4 CPUs, and this board should support them with a BIOS update. Great all-around choice.
Posted by Haley
