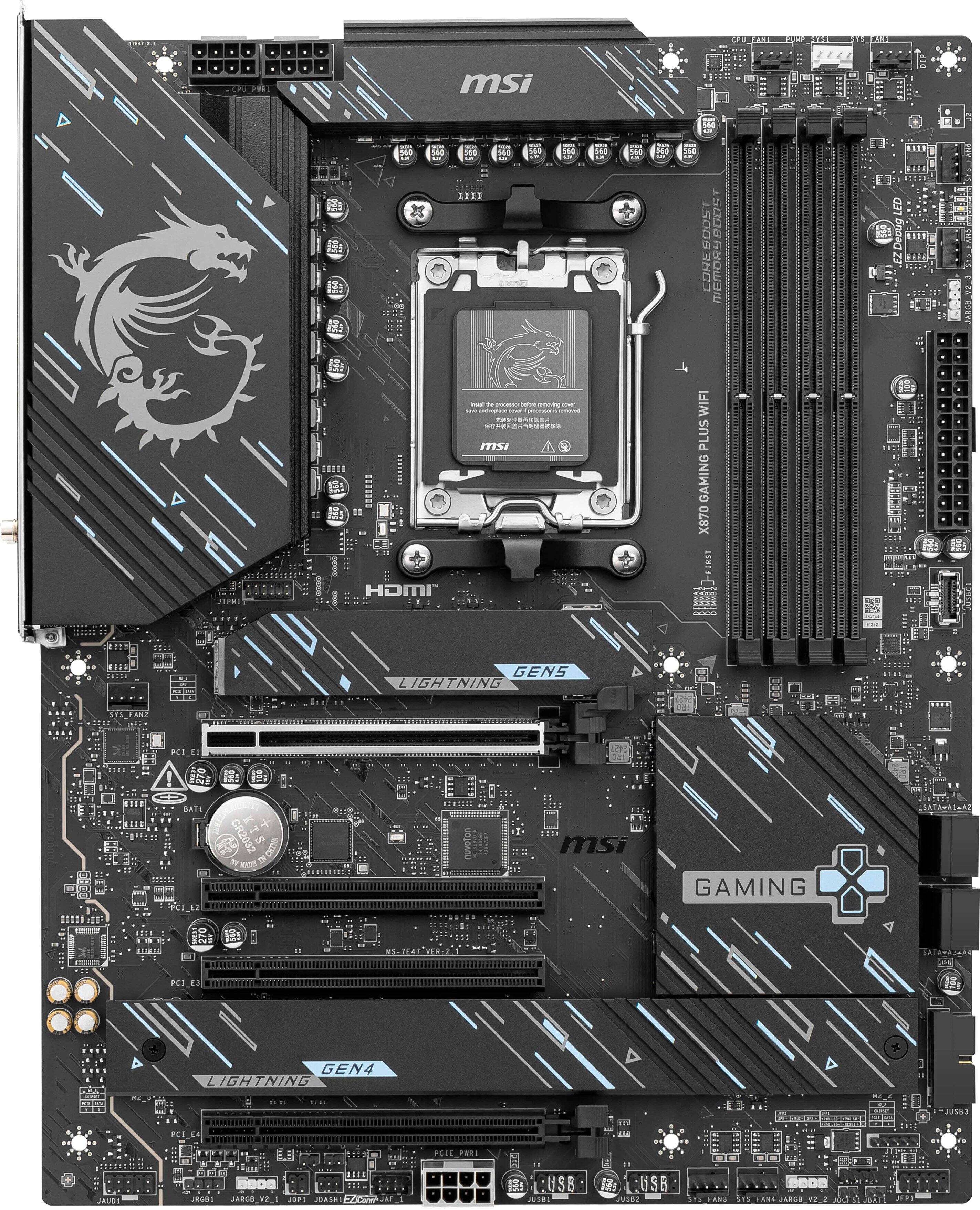

MSI - X870 GAMING PLUS WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
CORSAIR - iCUE LINK H100i RGB Liquid CPU Cooler with QX120 RGB fans - White$143.99$159.99
More Buying Options
Related Item
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: X870 GAMING PLUS WIFI
- Product Name: X870 GAMING PLUS WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 5 7000 Series
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)

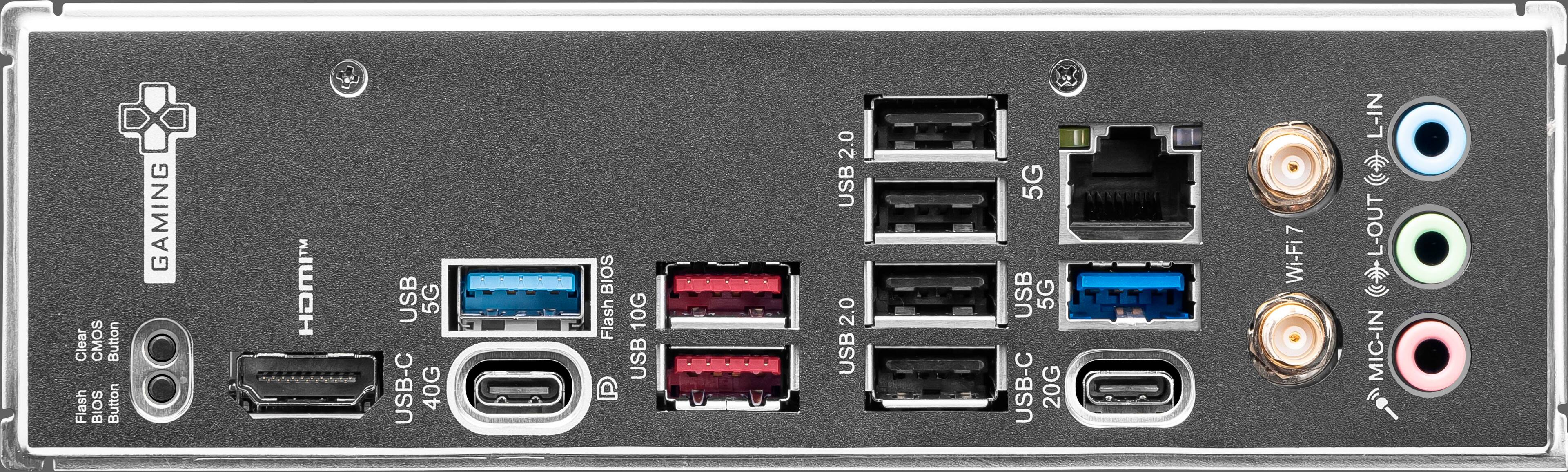

- Ports
- USB Ports: 8 x USB-A 2.0, 1 x USB-C 4, 1 x USB-C 3.2, 2 x USB-A 3.1, 1 x USB-C 3.1, 4 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.9 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.85 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 49 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142390528

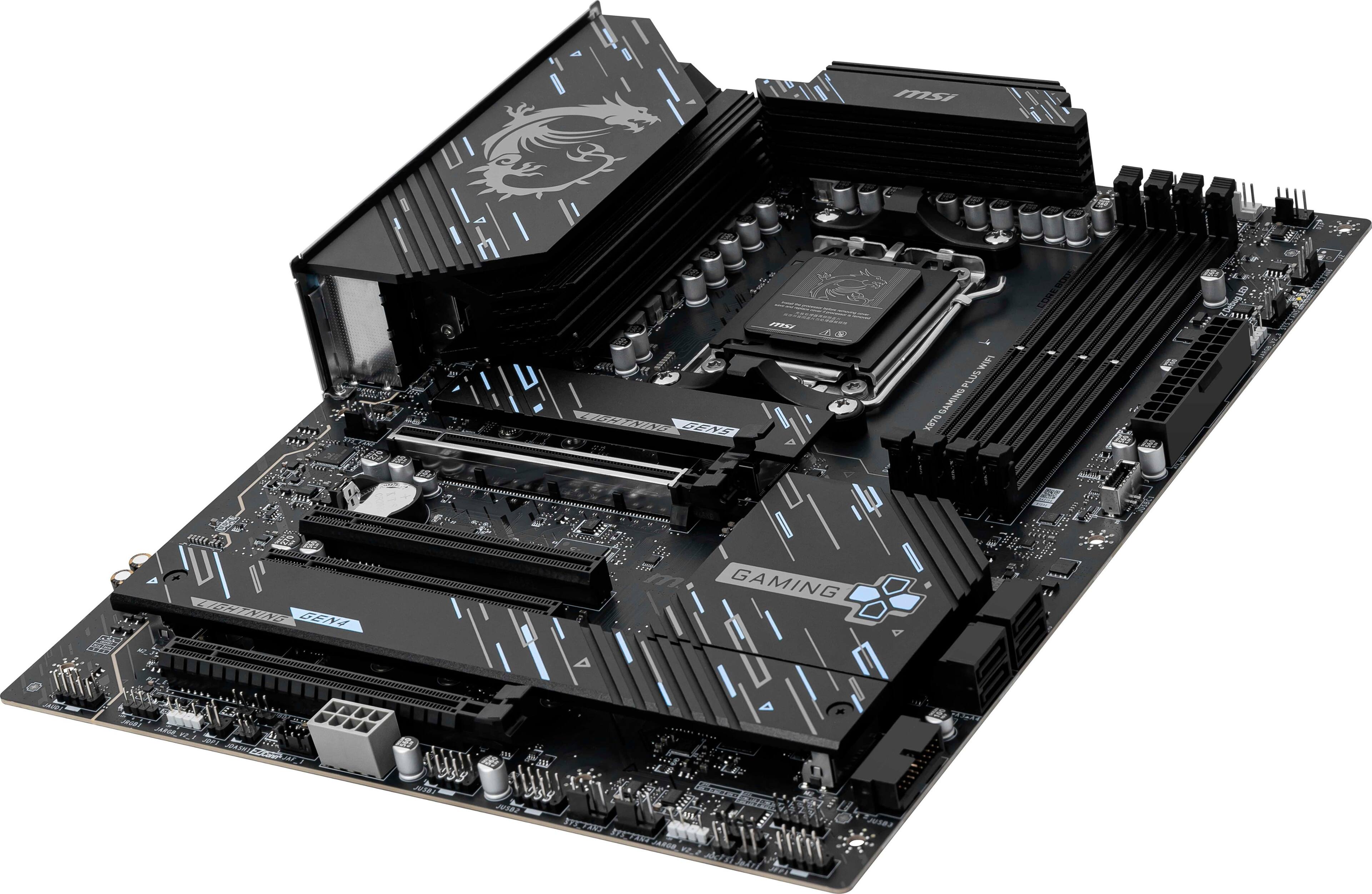

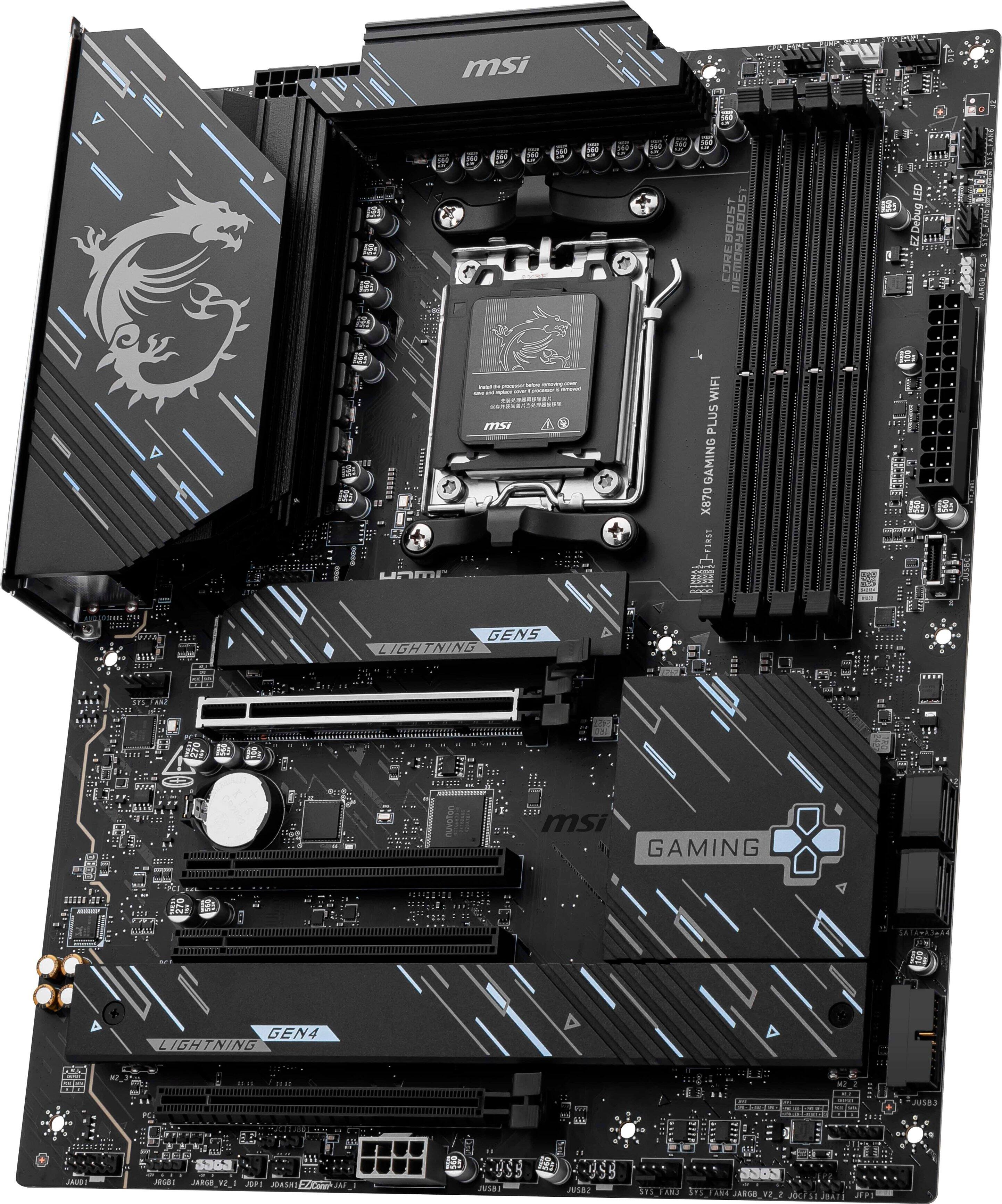

X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor Socket AM5
- Speed (memory speed supported): 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
- Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor Socket AM5
- Speed (memory speed supported): 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
- Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
Product Manuals
Q: What is the maximum speed supported by the USB 4 port on this motherboard?
A: The built-in USB 4 port offers a speed of 40Gbps.
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 3 M.2 slots.
Q: Does this motherboard support RAID?
A: Yes, it supports RAID 0.
Q: What type of memory does this motherboard support?
A: It supports DDR5 memory.
Q: Which processor series is compatible with this motherboard?
A: This motherboard supports AMD Ryzen 9000/7000 Series Desktop Processors.
Q: What is the maximum memory capacity supported by this motherboard?
A: The maximum memory capacity supported is 256GB.

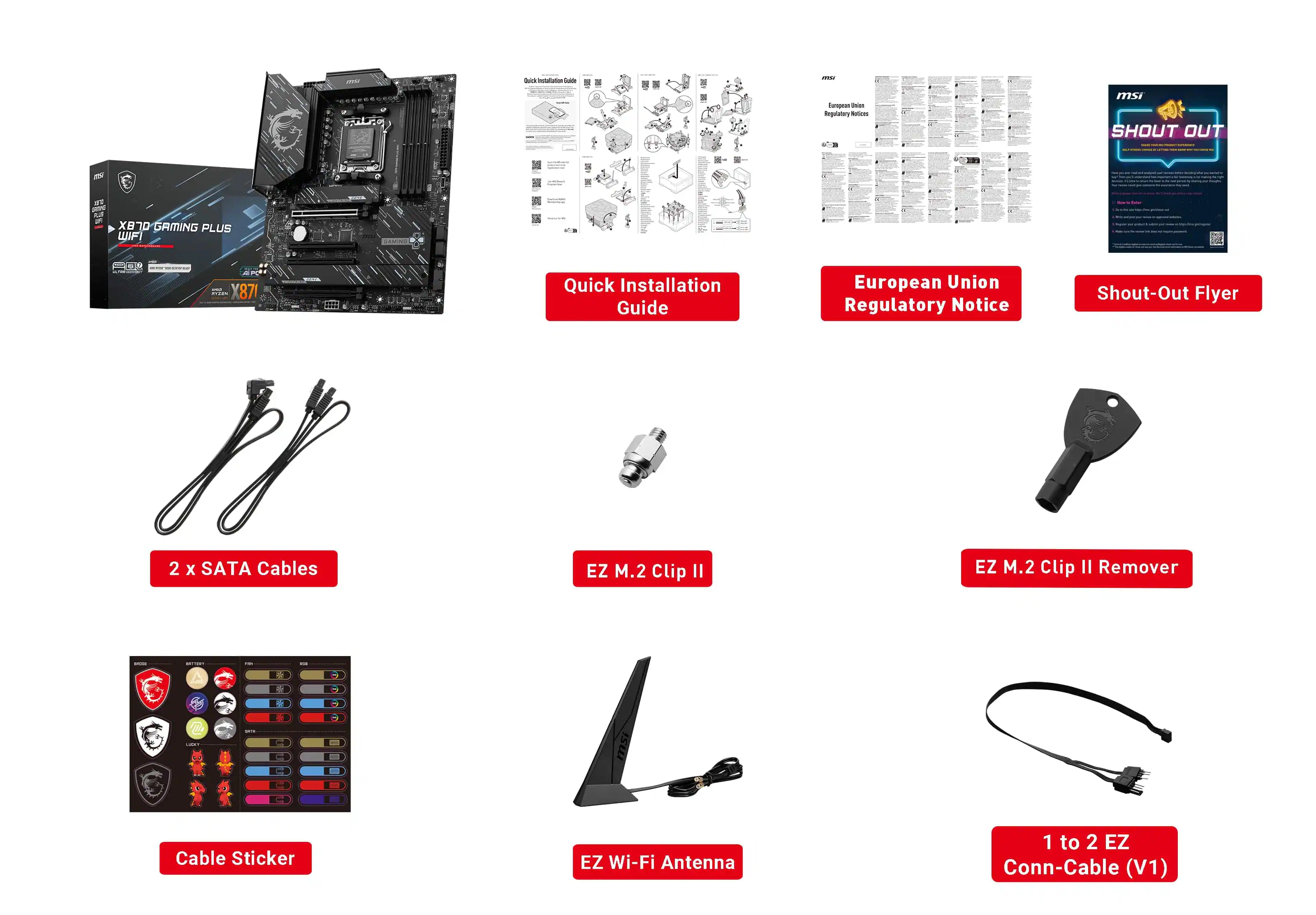

Q: does the motherboard come with its own SATA cable or am I supposed to buy it separately
A: Hello lilrex - this motherboard comes with 2 SATA cables included.
Q: what is the Ethernet speed? it's not listed
A: Hello Grigswall - this system includes a Realtek® 8126 5G LAN connection.
Compare similar products
X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience.
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience.
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.
| Pros for MSI - X870 GAMING PLUS WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| Overall Performance, BIOS, Connectivity | There were no pros for this product— | There were no pros for this product— | Overall Performance |
Specs
Reviews
Customers are saying
Customers are positive about the X870 GAMING PLUS WIFI motherboard. Many appreciate its excellent performance, ease of installation, and extensive connectivity options, including the Wi-Fi 7 and numerous USB ports. The intuitive BIOS interface also receives praise for simplifying setup and overclocking. Overall, the feedback highlights a positive user experience.

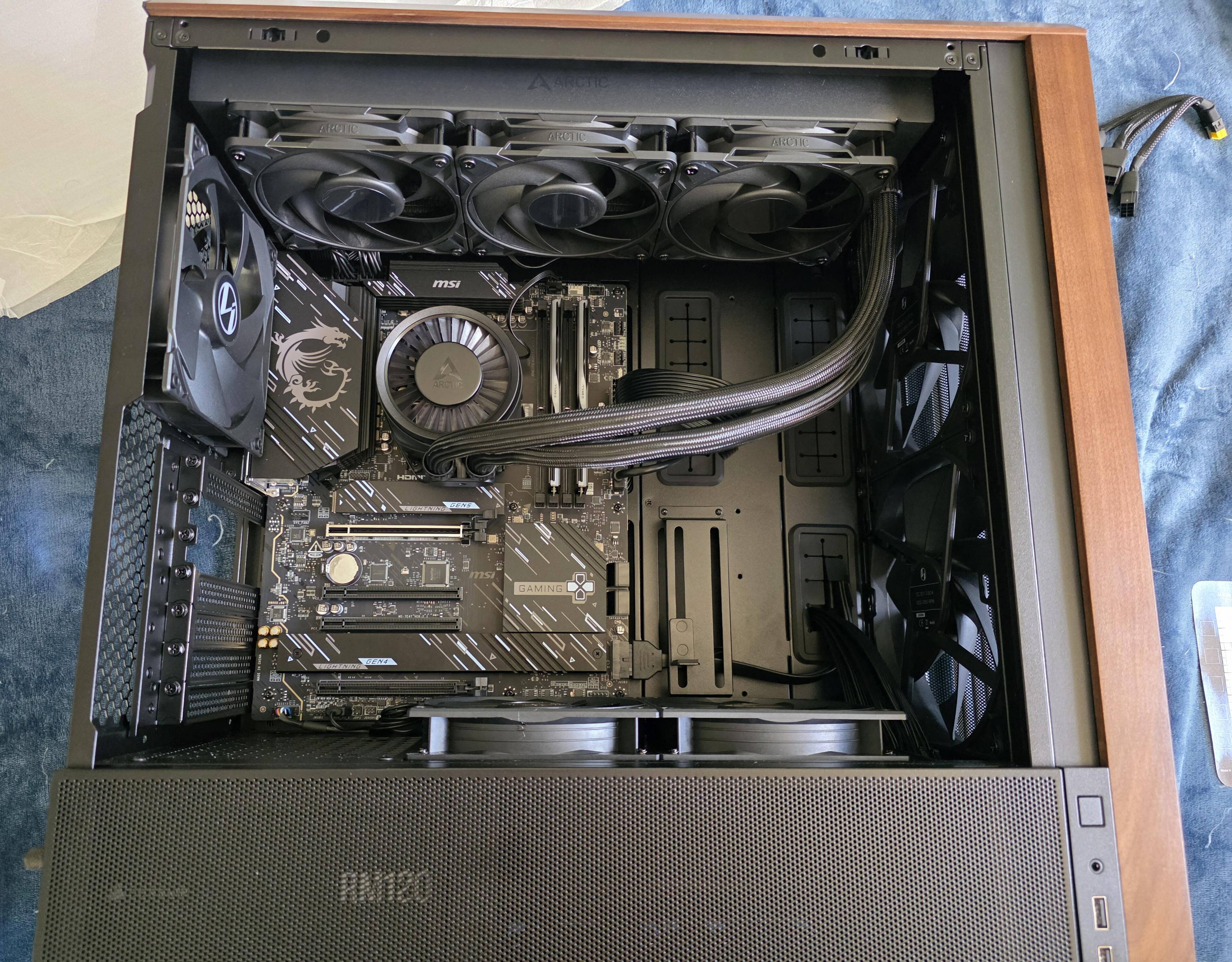

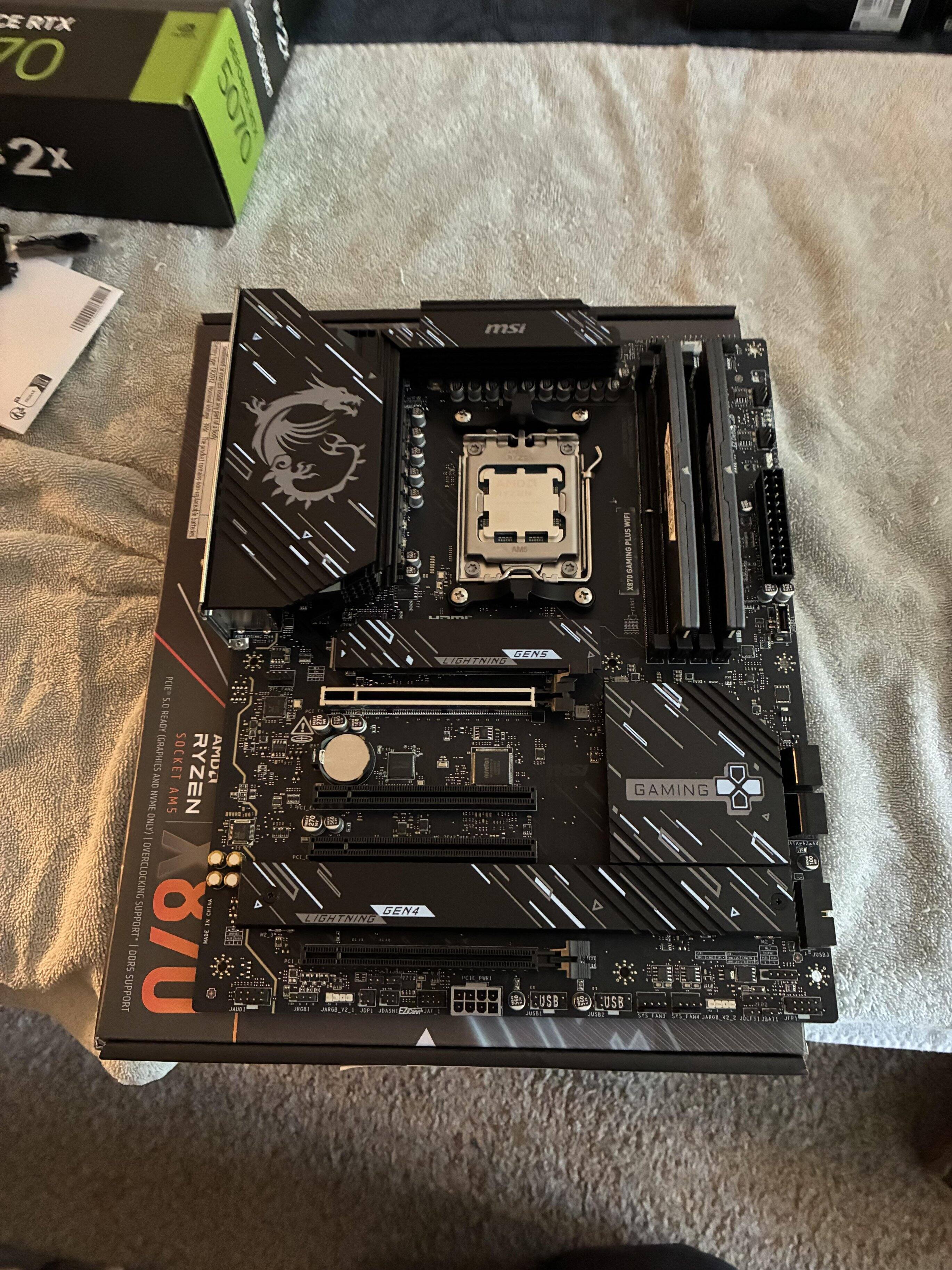

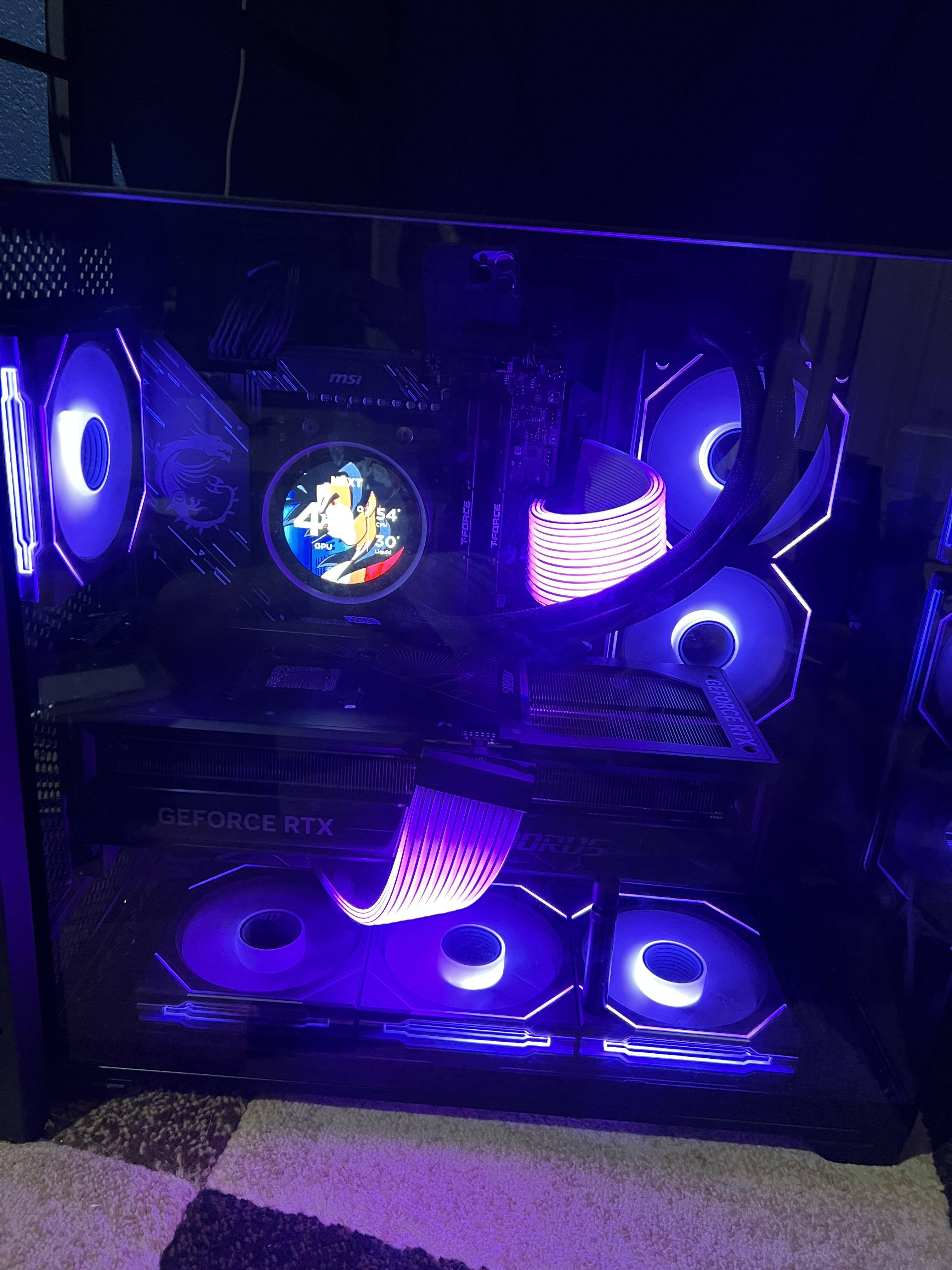

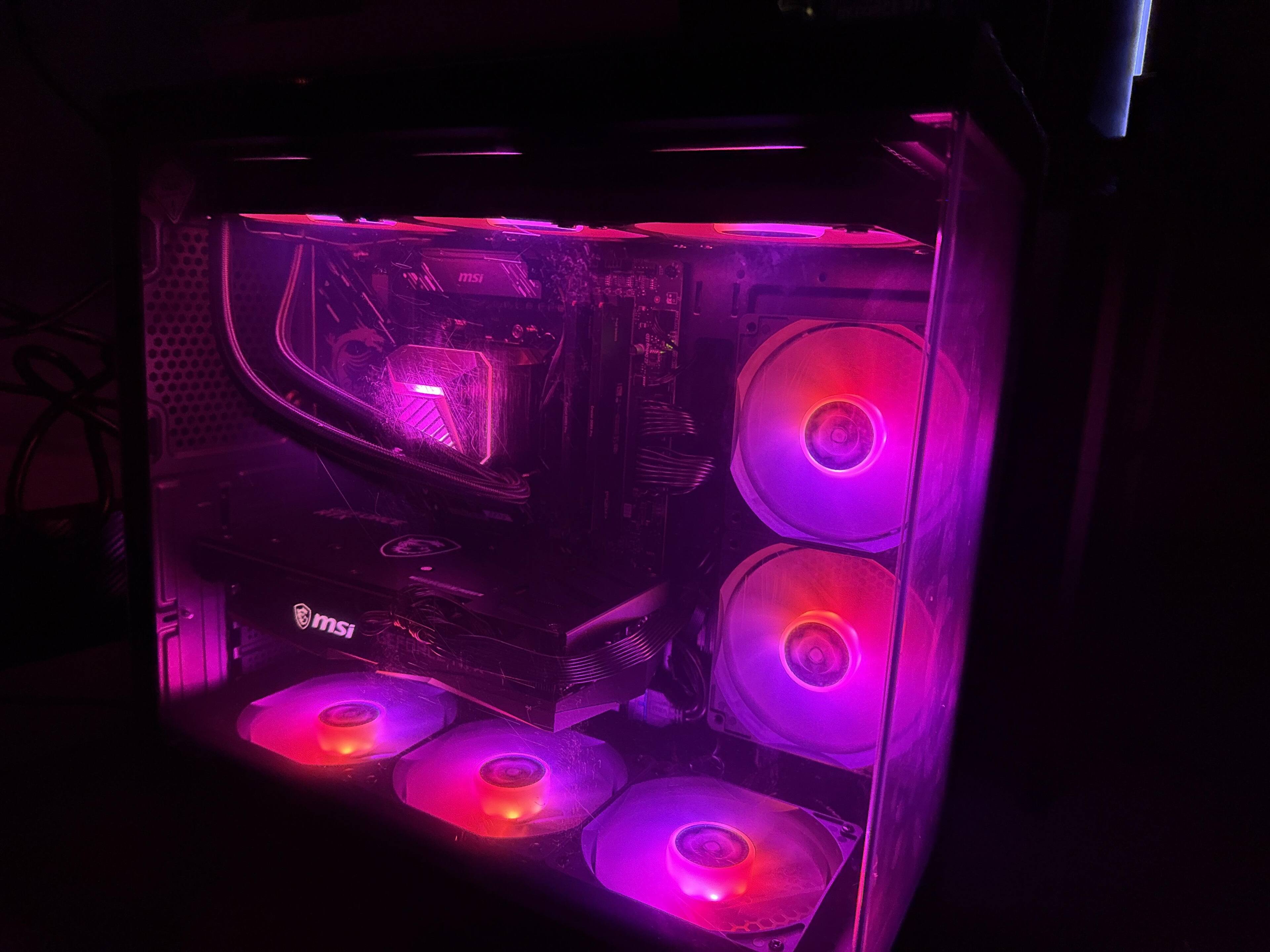

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great motherboard
This motherboard offers excellent power delivery amazing smooth pbo functions and an a convenient bios all for a great price, msi did awsome on this revision.
Posted by TheDude
- Rated 5 out of 5 stars
Good motherboard for gaming.
Just built a new gaming pc. This motherboard was a good deal. I’ve used MSI motherboards in the past and never had issues. Great performance for the price compared to higher end motherboards.
Posted by Nicholas
- Rated 5 out of 5 stars
Great motherboard for budget gaming PC
Very happy with this motherboard. Does the job. It’s also really clean looking. I love it!
Posted by MichaelG
