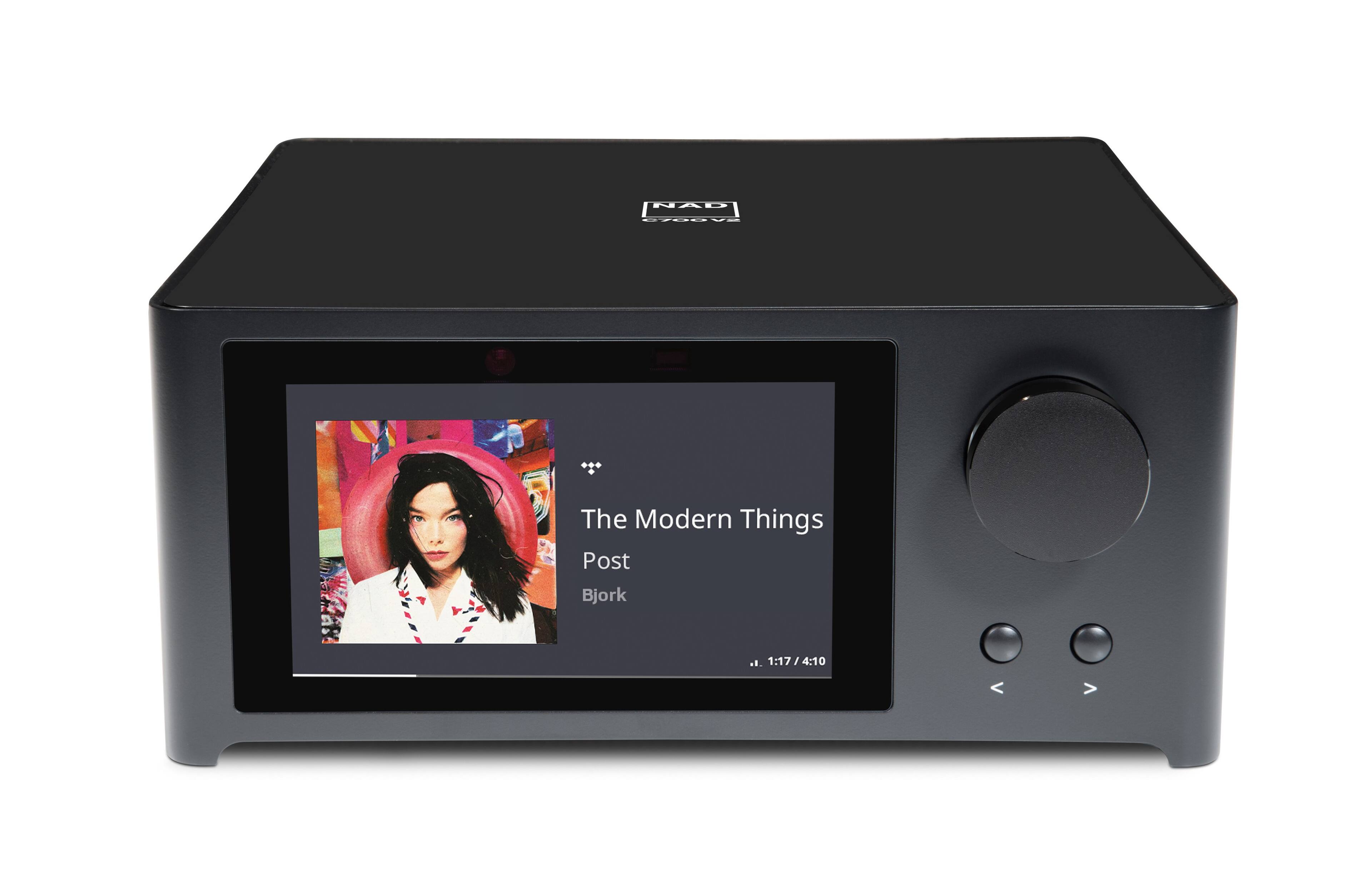

Name: NAD - C700 V2 BluOS Streaming Amplifier,110-240V - Black
Brand: NAD
SKU: 6596961

Key Specs
- Continuous Watts x Channel @ Ohms: 80 Watts X 2 Channels into 8 Ohms and 4 Ohms
- Number of Channels: 2.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: 1 x USB-A, 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Network Connector(s): 1 x IR in
- Preamp Outputs: true
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa, Google Home, Apple Home (Compatible with or able to be connected to other smart devices or applications.)
General
- Brand: NAD
- Model Number: C700 V2
- Product Name: NAD C700 V2 BluOS Streaming Amplifier,110-240V
- Color: Black
Audio
- Continuous Watts x Channel @ Ohms: 80 Watts X 2 Channels into 8 Ohms and 4 Ohms
- Maximum Watts x Channel @ Ohms: 120 Watts X 2 Channels into 2 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 2.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.04 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
Inputs
- Audio Only Inputs: 1 x USB-A, 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): 1 x IR in
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
Outputs
- Preamp Outputs: true
- Speaker Connection Type: Banana Jack/Screw Terminals
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: BlueSound, Apple AirPlay 2 (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Compatibility
- Works With: Amazon Alexa, Google Home, Apple Home (Compatible with or able to be connected to other smart devices or applications.)
Dimensions
- Product Height: 3.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.6 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
Other
- UPC: 786357002842

The C 700 V2 BluOS Streaming Amplifier was designed for to make music instantly accessible. Connect your speakers, then use the intuitive BluOS Controller app on your smartphone, tablet, PC, or Mac to select the music you want to hear. It will sound glorious. Through its HybridDigital UcD output stage, the C 700 V2 can deliver 2×80 watts of continuous power and 2×120 watts of instantaneous power, for effortless reproduction of musical transients. NAD’s highly efficient HybridDigital UcD amplifier design is renowned for ultra-low noise and distortion through the entire audioband, regardless of the loudspeaker load. Combine that with an upgrade to the ESS Sabre ES9028 DAC, and the V2 promises a refined listening experience characterized by greater precision and depth, sure to delight audiophiles and music enthusiasts alike. Thanks to its elegant, minimalist design and premium materials, the C700 V2 will engage all your senses — not just hearing, but sight and touch as well. The amplifier is housed in a solid aluminum case, with a sleek front panel and 5″ high-definition colour screen that displays album art, track progress, and system settings. Following menus on the C700 V2’s screen, you can adjust amplifier settings with the control knob and navigation buttons on the front panel or the included BC1 IR remote control. With built-in Ethernet and Wi-Fi, and a network streamer based on the rich, robust BluOS software platform, the C700 V2 has everything you need to play music through your favourite speakers. Using the BluOS Controller app, you can cue up music from dozens of different streaming and Web radio services, or play music stored on an external drive connected to the C700 V2’s USB port. New for V2 is a Moving Magnet phono stage, so you can connect your turntable without needing an external preamp. Like all BluOS-enabled components, the C700 V2 supports high-resolution audio to 24-bit/192kHz, and has full MQA decoding and rendering capability. With these features, you can enjoy lossless and high-resolution audio from services such as Amazon Music Ultra HD, Deezer, Qobuz, and Tidal. The C700 V2 supports Spotify Connect and Tidal Connect, so you can control playback from the apps for those services; and Apple AirPlay 2, so you can stream music from Apple devices and iTunes libraries. You can also cue up music by voice, using the Amazon Alexa or Apple Siri voice control protocols. NAD offers software tools that allow smart-home specialists to integrate the C 700 V2 into home-automation systems from Control4, Crestron, Elan, RTI, and others. This allows control of music playback, along with other home systems like lighting, shades, HVAC, and security. The C700 V2 has a MM phono stage and stereo RCA analog inputs, as well as coaxial and optical digital inputs, for connecting disc players, game consoles, media adapters, and other components. There’s also an HDMI-eARC port for connecting an HDTV with HDMI-ARC support. This allows the C700 V2’s volume setting to be adjusted from the TV’s remote. In addition to the loudspeaker outputs, the C700 V2 has a subwoofer output jack. Using the BluOS app, you can set low- and high-pass crossover settings, for a seamless blend between the subwoofer and main speakers, and add two addition BluOS speakers for a complete 4.1-channel Dolby surround sound system. And to take full advantage of its new Dolby surround-sound capability, the C700 V2 supports optional Dirac Ready room correction. Simply purchase and activate a Dirac Live license to measure the response of your room using a calibrated microphone (sold separately), and you’ll be able to enjoy music and movies from the C700 V2 as intended, with perfectly tuned bass and enhanced clarity. The C700 V2 can store up to five Dirac profiles for different sources or seating arrangements and room conditions. The C700 V2 also has two-way aptX HD Bluetooth, so you can listen to music through wireless headphones, and stream audio from any smart device.

Hi-Res DAC: Jitter-free 32-bit/384kHz ESS Sabre 9028 DAC
Seamless integrations: Smarthome control systems such as Control4, Crestron, RTI, URC, Lutron, and Elan
CI-Friendly: IR remote, 12V Trigger in/out, IR in/out
Multi-Room Streaming: With the BluOS Controller app, you can stream music to up to 63 zones and integrate the C700 V2 with other AirPlay 2 components for whole-home music.
Versatile Connectivity: The C700 V2 has built-in Ethernet and Wi-Fi, two pairs of RCA analog inputs, coaxial and optical digital inputs, an HDMI-eARC port, a USB Type A port, a MM phono input, and two-way Bluetooth aptX HD.
