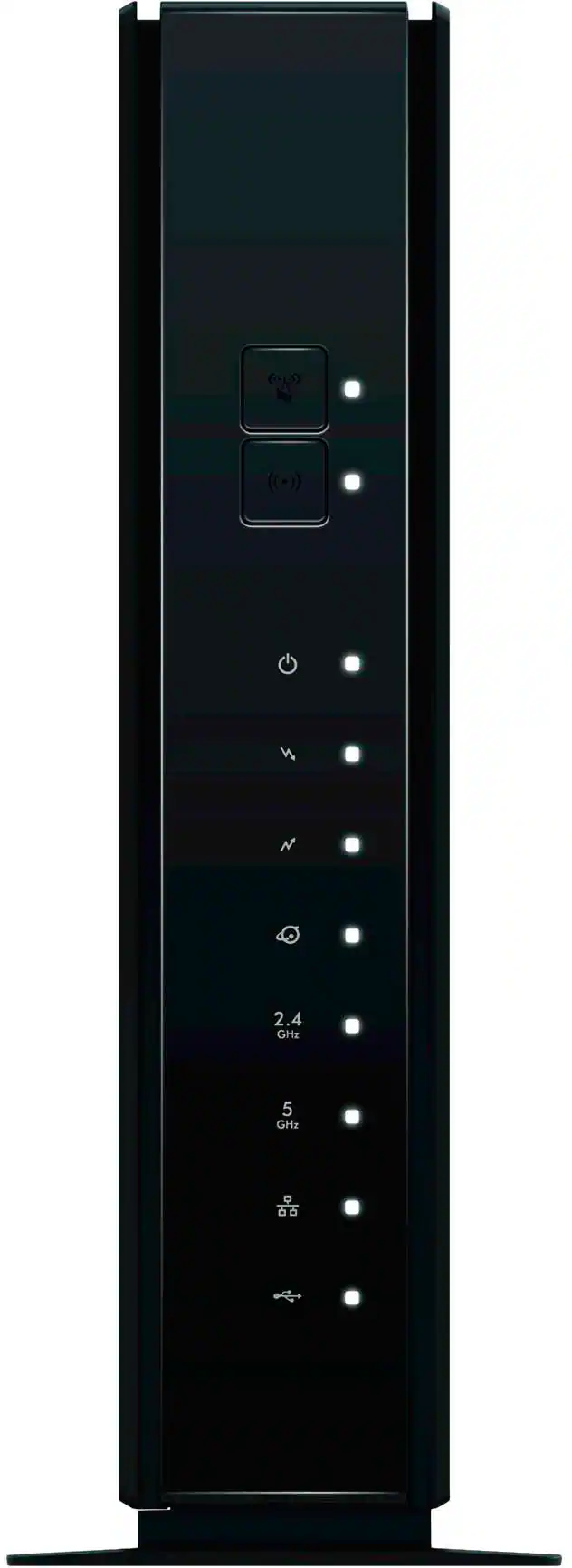

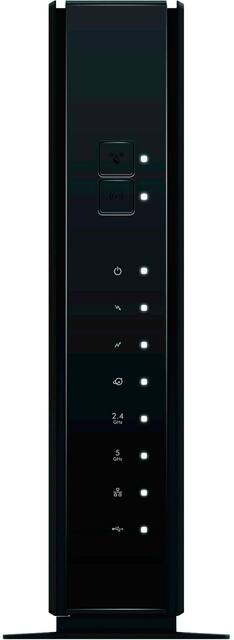

NETGEAR - AC1200 Router with 16 x 4 DOCSIS 3.0 Cable Modem - Black
Model: C6230-100NAS
SKU: 6473371
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Range: 1200 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Channel Bonding: 16 x 4 (The process of combining adjacent channels within a given frequency band to deliver faster broadband speeds. Channel bonding combinations are indicated as "downstream x upstream" e.g. 16x4 (16 channels dedicated for downloading data and 4 channels for uploading). The more channels, the more network traffic the device can support.)
- Number Of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Internet Service Provider (ISP) Compatibility: Cox Communications, Spectrum, XFINITY from Comcast (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- General
- Brand: NETGEAR
- Model Number: C6230-100NAS
- Product Name: AC1200 Router with 16 x 4 DOCSIS 3.0 Cable Modem
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA, WPA2 (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT, SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: 128-bit AES encryption with PSK, double firewall protection, DoS attack prevention, supports WPA/WPA2 wireless security protocols, parental controls, guest network access
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 20
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 1200 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- DOCSIS Compliant: true
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: NETGEAR Nighthawk app
- Integrated Modem: true
- Wireless: true
- Channel Bonding: 16 x 4 (The process of combining adjacent channels within a given frequency band to deliver faster broadband speeds. Channel bonding combinations are indicated as "downstream x upstream" e.g. 16x4 (16 channels dedicated for downloading data and 4 channels for uploading). The more channels, the more network traffic the device can support.)
- Ports
- Port Type(s): Co-Axial, RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Microsoft Windows 2000 or later/Mac OS/UNIX/Linux; Microsoft Internet Explorer 5.0/Firefox 2.0, Safari 1.4, or Google Chrome 11.0 browsers or higher (The software that a product must have for it to be able to integrate with another product.)
- Internet Service Provider (ISP) Compatibility: Cox Communications, Spectrum, XFINITY from Comcast (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- Dimensions
- Product Height: 8.14 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.88 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.91 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.79 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 90 Days
- Other
- UPC: 606449147490
Ensure a reliable internet connection with this NETGEAR two-in-one cable modem and router. Gigabit Ethernet ports and channel bonding provide fast internet speeds of up to 680 Mbps, while the simultaneous dual band minimizes Wi-Fi interference when connecting multiple devices. This NETGEAR two-in-one cable modem and router supports WPA and WPA2 security standards to safeguard your connection, and the support for Nighthawk app enables quick, simple setup.
- Compatible with Xfinity from Comcast, Spectrum, and Cox: Required for fast Internet speed tiers, such as Xfinity from Comcast, Spectrum, and Cox data plans. Not compatible with cable bundled voice services.
- NETGEAR Nighthawk app: Easily set up your cable modem router, and get more out of your Wi-Fi. Includes access from anywhere to manage your network away from home.
- Gigabit Ethernet and USB 2.0 ports: Connect more wired devices for fast file transfers and uninterrupted connections.
- DOCSIS 3.0 cable modem: Features 16 x 4 channel bonding for download speeds up to 680Mbps, backward compatible.
- AC1200 dual-band Wi-Fi router: Provides up to 1.2 Gbps (300Mbps + 900Mbps) wireless speeds for fast data transfers.
- Advanced security standard: Supports WPA2 with the quality Wi-Fi security protocol.
- 128-bit AES encryption with PSK: Protects your network against hackers and eavesdroppers.
- SPI/NAT firewall: Advanced security ensures your private information stays private.
- Wi-Fi 5 technology: Allows more devices to connect and stream simultaneously without impacting the speed or reliability. Backward compatible with Wi-Fi 4 and earlier-generation devices.
- Compatible with Xfinity from Comcast, Spectrum, and Cox: Required for fast Internet speed tiers, such as Xfinity from Comcast, Spectrum, and Cox data plans. Not compatible with cable bundled voice services.
- NETGEAR Nighthawk app: Easily set up your cable modem router, and get more out of your Wi-Fi. Includes access from anywhere to manage your network away from home.
- Gigabit Ethernet and USB 2.0 ports: Connect more wired devices for fast file transfers and uninterrupted connections.
- DOCSIS 3.0 cable modem: Features 16 x 4 channel bonding for download speeds up to 680Mbps, backward compatible.
- AC1200 dual-band Wi-Fi router: Provides up to 1.2 Gbps (300Mbps + 900Mbps) wireless speeds for fast data transfers.
- Advanced security standard: Supports WPA2 with the quality Wi-Fi security protocol.
- 128-bit AES encryption with PSK: Protects your network against hackers and eavesdroppers.
- SPI/NAT firewall: Advanced security ensures your private information stays private.
- Wi-Fi 5 technology: Allows more devices to connect and stream simultaneously without impacting the speed or reliability. Backward compatible with Wi-Fi 4 and earlier-generation devices.
Whats Included
- NETGEAR AC1200 Router with 16 x 4 DOCSIS 3.0 Cable Modem
- Ethernet cable
- Power adapter
- Owner's manual
- NETGEAR AC1200 Router with 16 x 4 DOCSIS 3.0 Cable Modem
- Ethernet cable
- Power adapter
- Owner's manual
Q: Is this modem / router Xfinity compatible ?
A: When I went to Xfinity website for my area it came up. This model number was listed
Q: Is this Spectrum compatible?
A: Will this work with Spectrum or is it Compatible? no answer to the question?
Q: will this work with century link
A: No.
Q: Does this modem/router work with Cox Cable, if not which do you suggest?
A: Yes it will work with COX. I plan to purchase mine tomorrow.
Q: Does this work with Xfinity?
A: Yes, it works and is easy to install.
Q: Is this modem/router Xfinity voice compatible?
A: Yes it is.
Q: Will this model work with Point Broadband?
A: This devise is working perfect. To connect it is very friendly and Netgear support is excelent.
Q: I Can I activate it without talking to my cable company?
A: No, it was somewhat difficult to install properly. I had to call my cable provider a few times.
