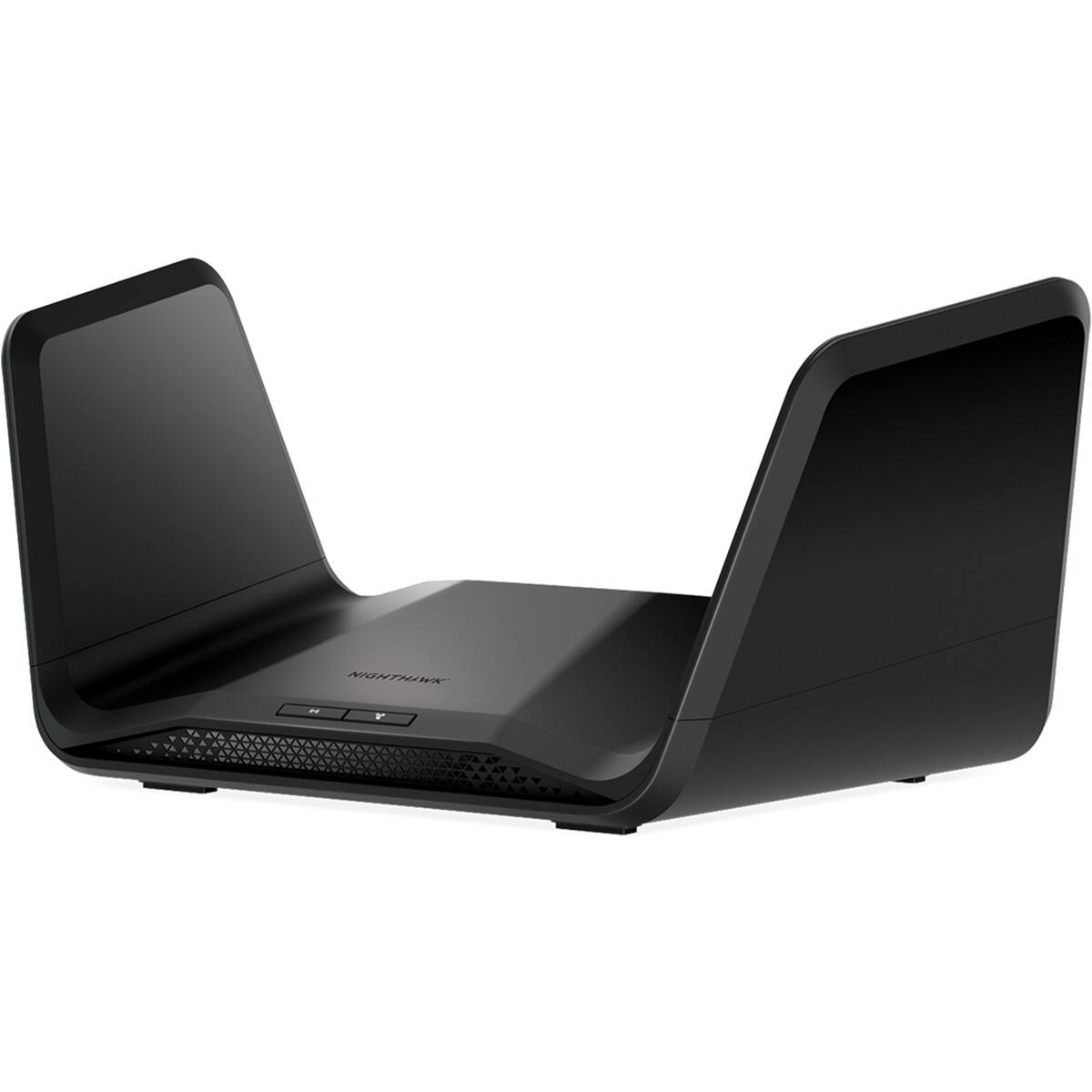

NETGEAR - Nighthawk AX6600 Tri-Band Wi-Fi 6 Router - Black
Model: RAX70-100NAS
SKU: 6425813
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Range: 2500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 6.6 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: NETGEAR
- Model Number: RAX70-100NAS
- Product Name: Nighthawk AX6600 Tri-Band Wi-Fi 6 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: NAT firewall; WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK encryption; VPN support, and more
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 40
- Number of Antennas: 6
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 2500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: NETGEAR Nighthawk App
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000.0 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 6.6 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Windows, Mac, Android and iOS devices (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Dimensions
- Product Height: 8.15 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.19 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 13.66 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.58 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 90 Days
- Other
- UPC: 606449151947
Experience fast, steady wireless performance with this NETGEAR Nighthawk tri-band Wi-Fi router. Six 5GHz and two 2.4GHz streams reduce congestion on your wireless network and enable more bandwidth for UHD streaming and gaming on multiple devices. This NETGEAR Nighthawk tri-band Wi-Fi router features high-powered antennas and amplifiers for reliable connection at long range, while speeds of up to 4.8 Gbps enable fast file transfer. Includes a 1-year NETGEAR Armor all-in-one internet security subscription.
- AX6600 Tri-band Wi-Fi router: Coverage up to 2,500 sq. ft. and up to 40 devices.
- Wi-Fi 6 Technology: Fast 6.6 Gbps speed with Wi-Fi 6 technology for uninterrupted streaming, HD video gaming, and web conferencing.
- Powerful security: NETGEAR® routers have security features enabled out of the box with automatic firmware updates, and industry-leading safety features to help protect you and your family.
- Four Gigabit Ethernet ports: Plug in computers, game consoles, streaming players, and more with 4 x 1G Ethernet LAN ports.
- USB 3.0 port: Share a storage drive with any connected device and create a personal cloud store to access from anywhere using the 1 x 3.0 USB port.
- Essential all-in-one internet security: NETGEAR® Armor™ software provides an automatic shield of security for your WiFi and connected devices for real-time protection against hackers and added privacy with VPN. 30-day trial included.
- AX6600 Tri-band Wi-Fi router: Coverage up to 2,500 sq. ft. and up to 40 devices.
- Wi-Fi 6 Technology: Fast 6.6 Gbps speed with Wi-Fi 6 technology for uninterrupted streaming, HD video gaming, and web conferencing.
- Powerful security: NETGEAR® routers have security features enabled out of the box with automatic firmware updates, and industry-leading safety features to help protect you and your family.
- Four Gigabit Ethernet ports: Plug in computers, game consoles, streaming players, and more with 4 x 1G Ethernet LAN ports.
- USB 3.0 port: Share a storage drive with any connected device and create a personal cloud store to access from anywhere using the 1 x 3.0 USB port.
- Essential all-in-one internet security: NETGEAR® Armor™ software provides an automatic shield of security for your WiFi and connected devices for real-time protection against hackers and added privacy with VPN. 30-day trial included.
Whats Included
- NETGEAR Nighthawk AX6600 Tri-Band Wi-Fi 6 Router
- NETGEAR Nighthawk AX6600 Tri-Band Wi-Fi 6 Router
Q: How many devices can be hooked up to his device without dropping wifi? I have 15 to 20 devices.
A: NETGEAR home routers can accommodate up to 32 clients per wireless band. This is a triband router so 96 connected devices. However, since the router's wireless channel is shared between all the wireless clients, adding clients will inevitably result in slower network access for all clients.
Q: How will this router do with gaming?
A: I got it last week it’s a big difference no lag or anything it’s worth it trust me !!
Q: Does this work with Xfinity WiFi?
A: Yes, I have Comcast/Xfinity and it works perfectly
A: Jason - yes this router improved my connectivity with Charter And I added ROKU to expand viewing options. My 10 year old router had problems with freezing, poor image quality and signal loss. It has also improved my video connection quality with Webex, Zoom and MS Teams.
A: Actually it's 3 bands. 1 band at 2.4G and 2 separate bands at 5G. I think you're getting confused with the number of "antennas" it has inside the fins to broadcast and receive the signals. Or BB screwed up the description. Anyhooo - it's 3 individual bands that you can set up and individually name and give individual passwords to. Hope that helps.
Q: is this router compatible with frontier internet provider
A: The router is Ethernet IP (WAN Interface). If Frontier is using DOCSIS you will need to plug their DOCSIS modem in the WAN interface
Q: Does this model have a USB 3.0 port for nas? I didn't see a photo of the back of the router.
A: Yes it does the usb ports are blue
Q: Is this model (RAX70-100NAS) wall mountable, and if so, how does wall mounting affect the coverage?
A: Yes, the model RAX70-100NAS is wall mountable. Even though I only had ours mounted for a couple of days before taking it down and putting it back on its shelf, we didn't notice any negative changes in speed or performance. (I just didn't like how it looked on the wall because of its size).
