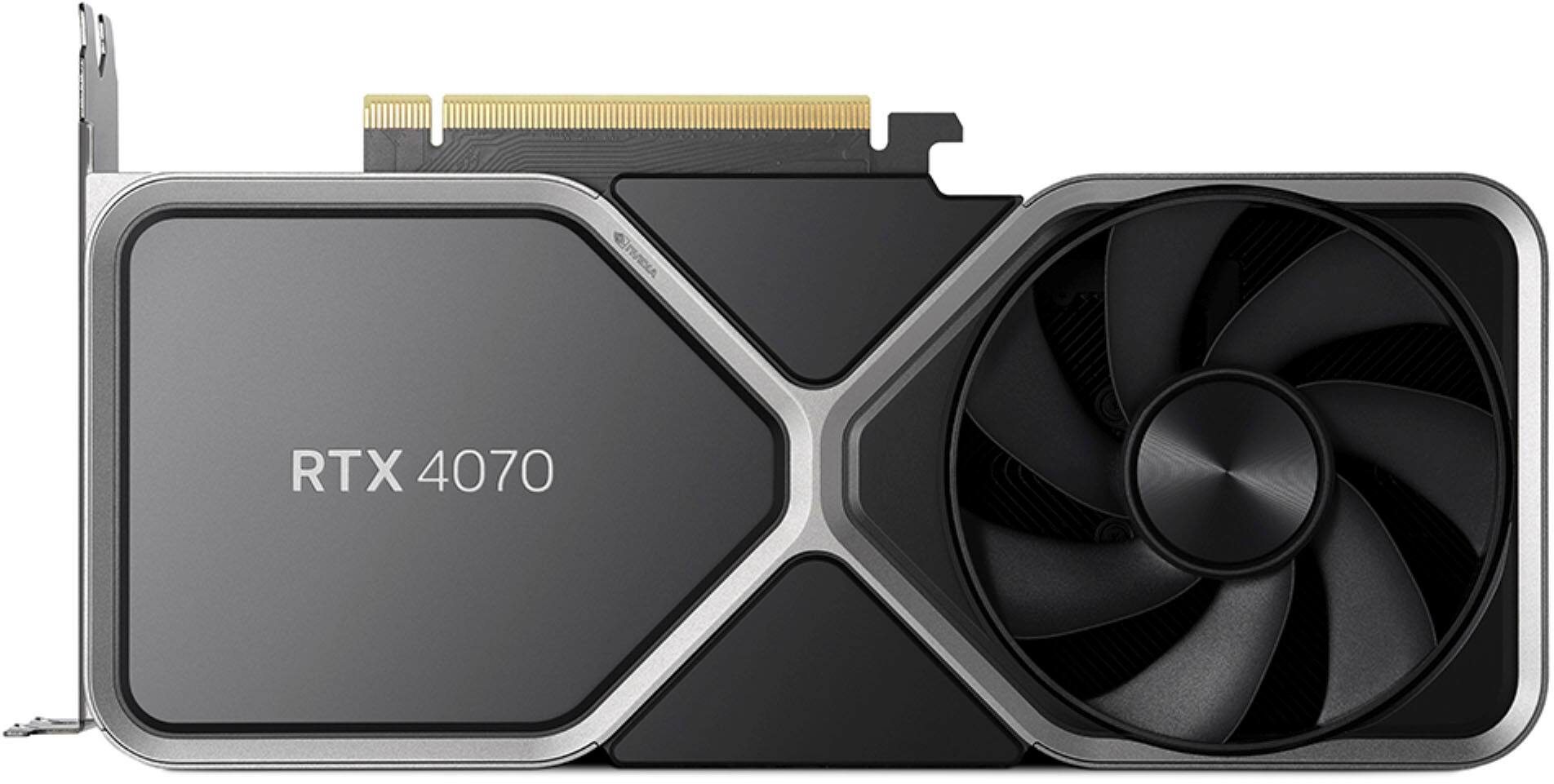

NVIDIA - GeForce RTX 4070 12GB GDDR6 Graphics Card - Titanium/Black
- Key Specs
- GPU Base Clock Frequency: 1.92 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.48 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 40.13 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 112 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4070 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: NVIDIA
- Model Number: 900-1G141-2544-000
- Product Name: GeForce RTX 4070 12GB GDDR6 Graphics Card
- Color: Titanium/Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4070 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
- Performance
- GPU Base Clock Frequency: 1.92 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.48 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Power Connector: 2x PCIe 8-pin cables (adapter in box) OR 300 W or greater PCIe Gen 5 cable. (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 12 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Microsoft Windows 11 64-bit recommended, or Microsoft Windows 10 64-bit April 2018 Update v1803 or newer; Linux, 64-bit (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows, Linux
- Features
- Multi-GPU Support: None
- Technology Support: DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6 support
- Included Software: GEFORCE EXPERIENCE, Game Ready Drivers
- Power
- Total Graphics Power: 200 watts
- Recommended Power Supply: 650 watts
- Dimensions
- Product Height: 40.13 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 112 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 7.54 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Years Limited
- Other
- UPC: 812674025339
Get equipped for stellar gaming and creating with the NVIDIA GeForce RTX 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 4070 graphics processing unit (GPU) with a 2.48 GHz boost clock speed.
- On-board Memory: 12GB GDDR6
- Interface Compatibility: PCI Express 4.0 and earlier PCI Express 3.0. Offers compatibility with a range of systems.
- SFF-Ready Enthusiast GeForce Card: You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
- Technologies: 5,888 NVIDIA CUDA Cores, 2.48 GHz Boost Clock, Dedicated Ray Tracing Cores, Dedicated Tensor Cores, NVIDIA DLSS, Game Ready and NVIDIA Studio Drivers, NVIDIA GeForce Experience, NVIDIA Broadcast, NVIDIA G-SYNC, NVIDIA GPU Boost, GDDR6X Graphics Memory, PCI Express Gen 4
- API (Application Programming Interface) Support: DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6 support
- HDMI and Display Port outputs: Enable flexible connectivity
- Series: NVIDIA GeForce "Ada Lovelace" RTX 40-Series
- System Requirements: Windows 11 64-bit, Windows 10 64-bit, Linux 64-bit
Whats Included
- NVIDIA GeForce RTX 4070 12GB GDDR6X Graphics Card
- Power Adapter
- Quick Start Guide
- Support Documentation
Product Manuals
A: Hi all, I spoke with Nvidia and they stated it is supposed to come with the code. I spoke with Best Buy and they are blaming Nvidia. Nvidia is blaming Best Buy. I am currently awaiting a resolution but I will update once I know!
Q: Now eventually you might have GPUs on your, on your GPU site, right? Hello? yes?
A: Yo Dawg! I heard you like GPUs so I put GPUs on your GPUs so you can GPU while you GPU.
Q: Is this better than a 3080?
A: it actually is because it performs about the same, but in addition it has all the advantages of the 40 series like frame generation support and it uses about half the power. idk why im answering your question (im in school) XD and i got the 4080 fe im bored do you want to play a game?
Q: does anyone have an estimate on when the 4070FE will be back in stock?
A: Probably never. I did this song and dance with the 3070 and Best Buy. They refuse to have some kind of prepay one at a time reserve system they they agree would be better but failed to implement. Now 2 years later the same thing. They got in like 10 cards and sold to who ever happen to be there. They allow people to cut in line. You might have been here first and some fella who has never heard of a 4070 gets lucky 3 weeks from now and gets the card you should have got before him. Why? This is how Best Buy Rolls. (Worst Customer Service Buy)
Q: Does the rtx logo light up?
A: No.
A: One day? How about one minute?! I was checking every 30 seconds starting at 9:00 EDT and I got in line at 9:42, within the first minute of it going on sale. I finished the line fairly quickly, in couple minutes, and pressed the "Add in Cart" button, but by 9:44 it was already not available in my region (New Jersey). I got a message "Not available for pickup and not available for delivery", even though the "Add in Cart" button was still active. Maybe they never released it in New Jersey? This is ridiculous.
Q: Does anyone have a lot of coil whine on their 4070 FE? II have terrible coil whine
A: Get a spent paper towel roll up to your ear and check your system. Make sure it's coming from the GPU itself, and not your PSU. I've sworn in the past I had coil whine on my GPU, so sure I even sent it in for repair, and it was my old PSU. My 4070FE doesn't have any coil whine.
A: It's not available at any brick & mortar BB store, you buy online and they ship to your store of choice. I'm waiting to see if more FEs drop.
