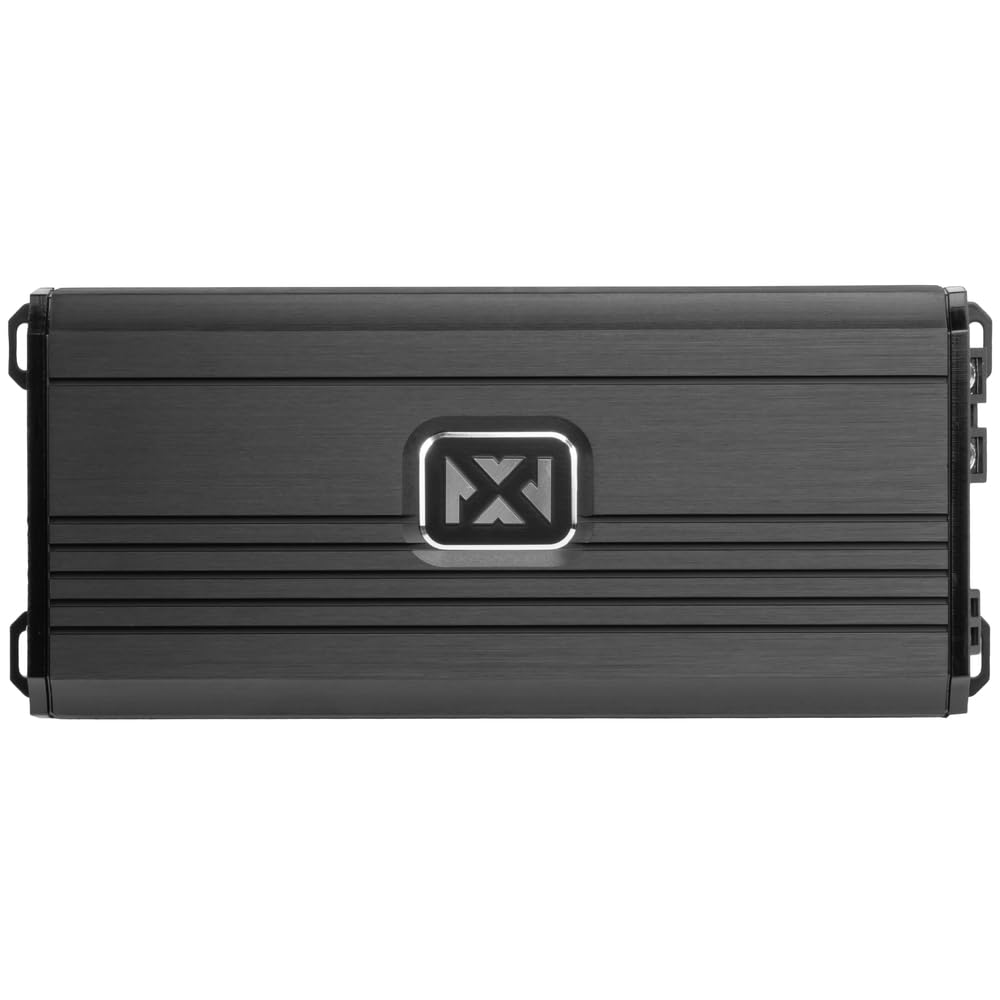

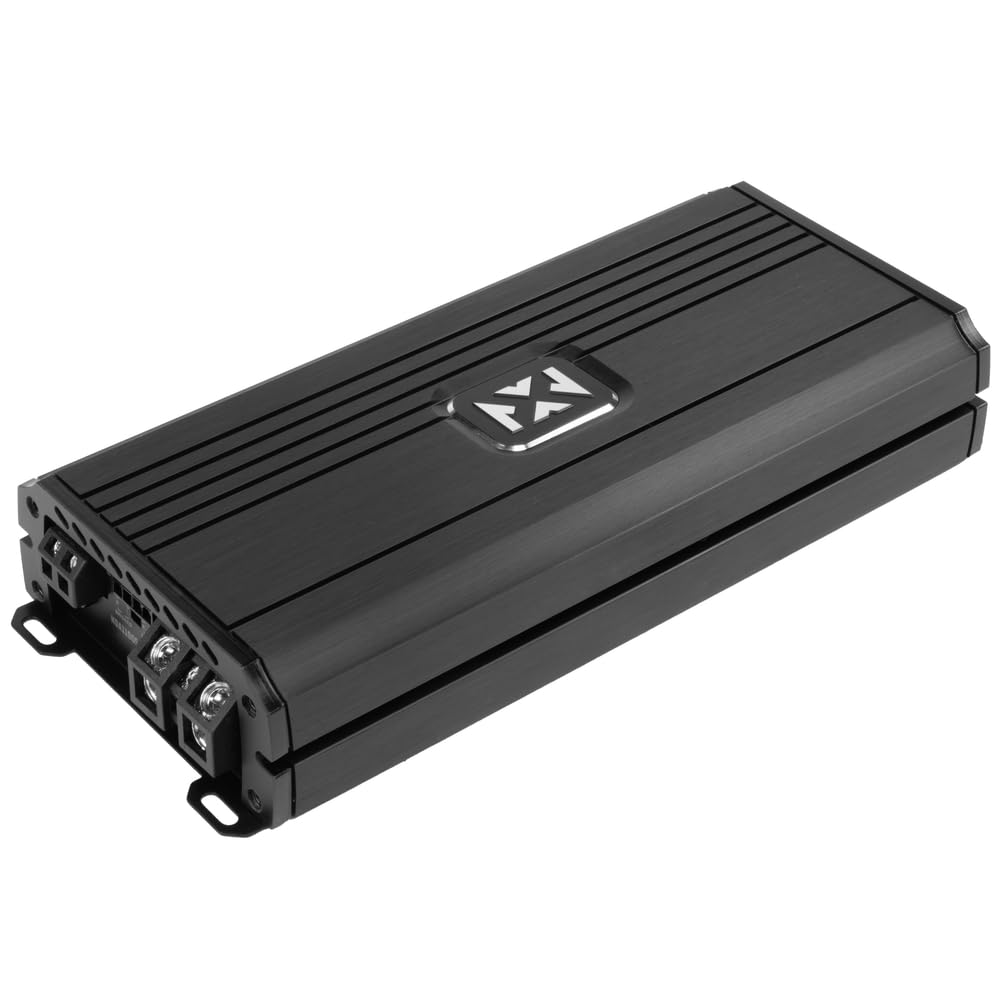

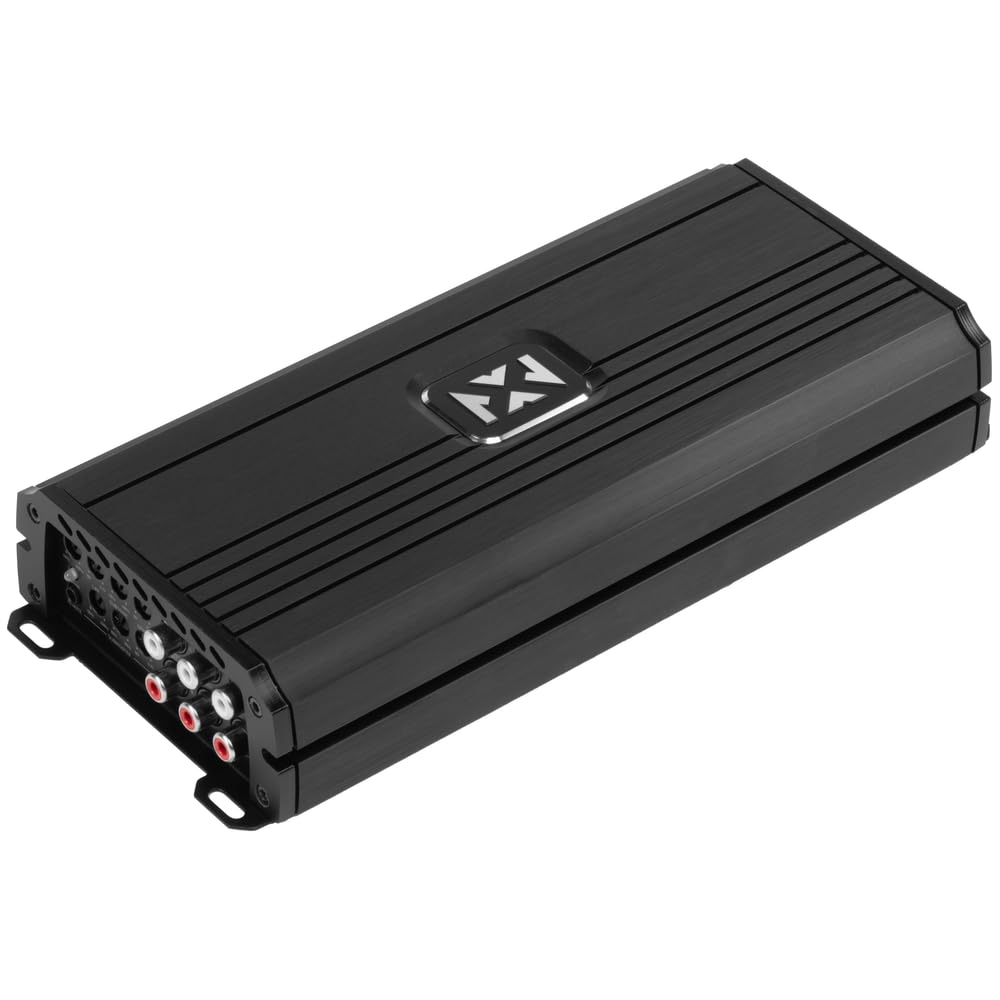

NVX - NDA11005 5-Channel Amplifier 2200W Peak (1100W RMS) N-Series Class-D with Remote Bass Knob
Specifications
- Amplifier ClassDNumber Of Channels5Bass BoostNone
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: NVX
- Model Number: nda11005
- Product Name: NDA11005 5-Channel Amplifier 2200W Peak (1100W RMS) N-Series Class-D with Remote Bass Knob
- Audio Power
- Total Power Handling RMS: 1100 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 96 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Remote Control Included: Bass
- Marine: false
- Dimensions
- Product Height: 1.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.15 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.42 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 90-days Manufacturer's Warranty
- Other
- UPC: 810021845388
The NVX NDA11005 is the ultimate 5-channel amplifier for car audio enthusiasts who demand versatility and power. With a peak output of 2200W and 1100W RMS, this N-Series Class-D amplifier offers a range of configuration options to suit your audio needs. Whether you're looking for a balanced system with 4 ohms (100W x 4 + 315W x 1), a high-output setup with 2 ohms (150W x 4 + 500W x 1), or a bridged configuration (300W x 2 + 500W x 1), the NDA11005 delivers crisp and clear sound with impressive precision. This amplifier is designed for those who value customization and control. It features a variable high-pass filter (40 - 400 Hz) and a subsonic filter (10 - 55 Hz), allowing you to fine-tune your audio experience. The included wired bass level remote control provides convenient on-the-fly adjustments, letting you dial in the perfect amount of bass to match your music and mood. Safety and reliability are at the forefront of the NDA11005's design. It includes comprehensive 4-way protection circuitry, safeguarding against thermal issues, overloads, speaker shorts, and DC offset. This ensures the amplifier operates smoothly and reliably under various conditions, giving you peace of mind during every drive. With its compact and sleek dimensions of 10.15" L x 4.42" W x 1.73" H, the NDA11005 is easy to install in any vehicle. Its efficient design requires a 4 AWG gauge amplifier wiring kit for optimal performance. The NVX NDA11005 is the perfect choice for those looking to elevate their car audio system with powerful, versatile, and reliable amplification.
- Versatile 5-Channel Amplification: Versatile 5-Channel Amplification: The NVX NDA11005 delivers 2200W peak power and 1100W RMS, with multiple configuration options, including 4 ohms (100W x 4 + 315W x 1), 2 ohms (150W x 4 + 500W x 1), and bridged mode (300W x 2 + 500W x 1), providing powerful and flexible audio performance.
- Comprehensive Sound Control: Features a variable high-pass filter (40 - 400 Hz) and a subsonic filter (10 - 55 Hz) for precise tuning, allowing you to customize the sound to your preference and achieve optimal audio quality.
- Advanced Protection and Reliability: Equipped with 4-way protection circuitry, including thermal, overload, speaker short, and DC offset protection, ensuring safe and reliable operation under various conditions.

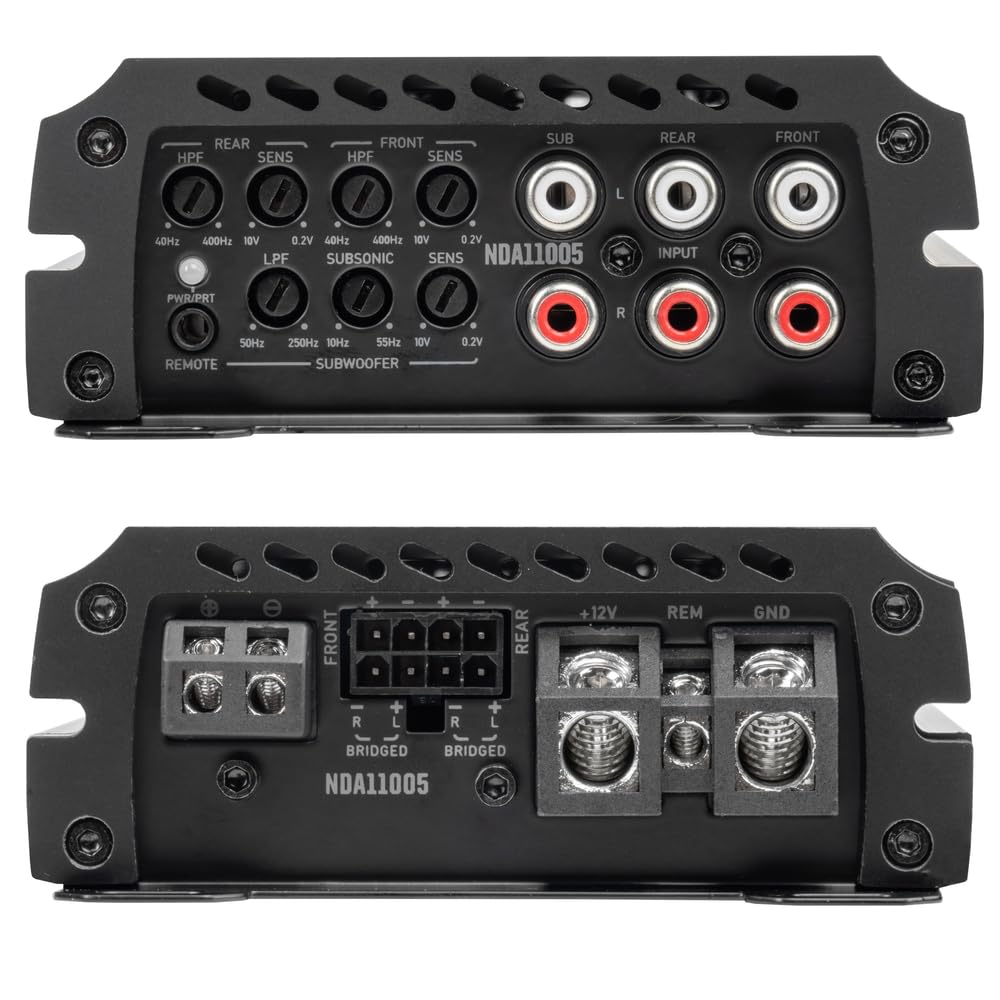

- Convenient Features: Includes a wired bass level remote control for easy bass adjustments and speaker-level (high-level) inputs with signal sensing remote turn-on, making installation and setup straightforward and user-friendly.
- Compact and Efficient Design: With dimensions of 10.15" L x 4.42" W x 1.73" H, this compact amplifier fits seamlessly into your vehicle's audio system. It requires a 4 AWG gauge amplifier wiring kit for optimal installation and performance.
- Versatile 5-Channel Amplification: Versatile 5-Channel Amplification: The NVX NDA11005 delivers 2200W peak power and 1100W RMS, with multiple configuration options, including 4 ohms (100W x 4 + 315W x 1), 2 ohms (150W x 4 + 500W x 1), and bridged mode (300W x 2 + 500W x 1), providing powerful and flexible audio performance.
- Comprehensive Sound Control: Features a variable high-pass filter (40 - 400 Hz) and a subsonic filter (10 - 55 Hz) for precise tuning, allowing you to customize the sound to your preference and achieve optimal audio quality.
- Advanced Protection and Reliability: Equipped with 4-way protection circuitry, including thermal, overload, speaker short, and DC offset protection, ensuring safe and reliable operation under various conditions.
- Convenient Features: Includes a wired bass level remote control for easy bass adjustments and speaker-level (high-level) inputs with signal sensing remote turn-on, making installation and setup straightforward and user-friendly.
- Compact and Efficient Design: With dimensions of 10.15" L x 4.42" W x 1.73" H, this compact amplifier fits seamlessly into your vehicle's audio system. It requires a 4 AWG gauge amplifier wiring kit for optimal installation and performance.
Whats Included
- 1
- 1
