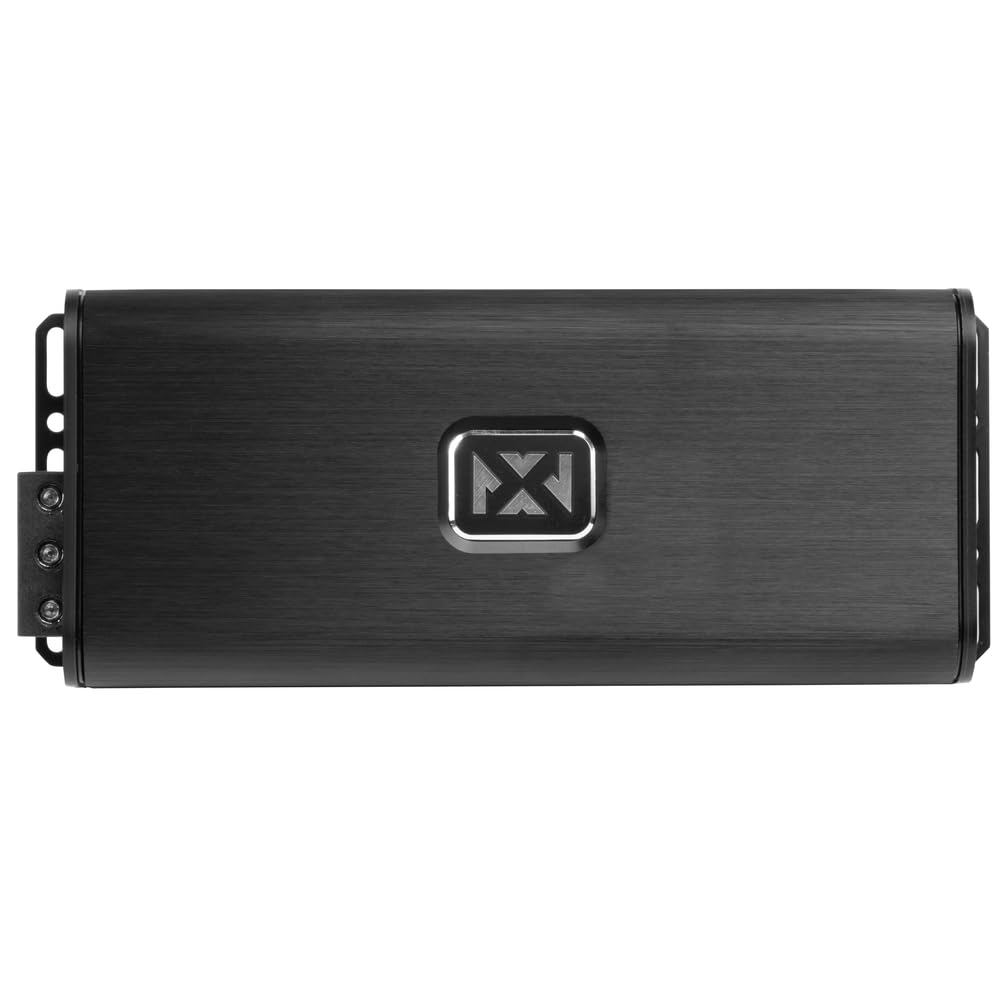

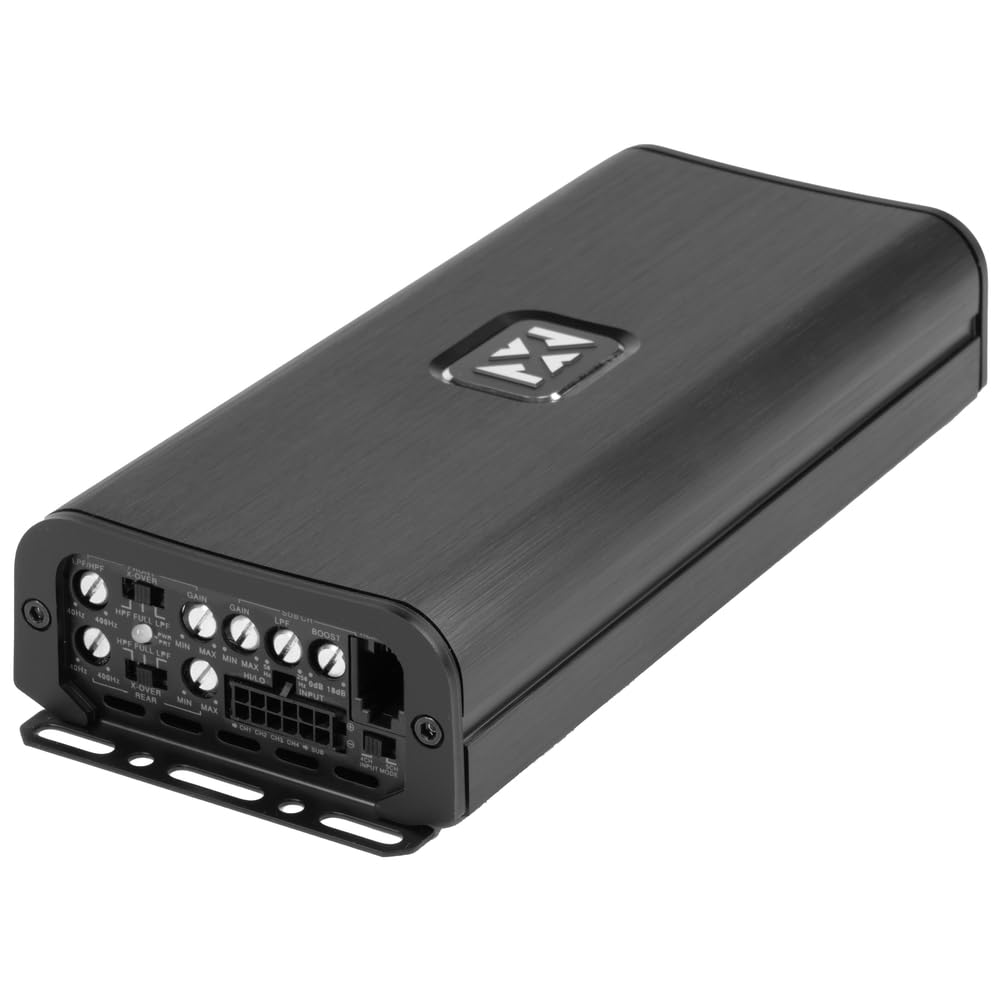

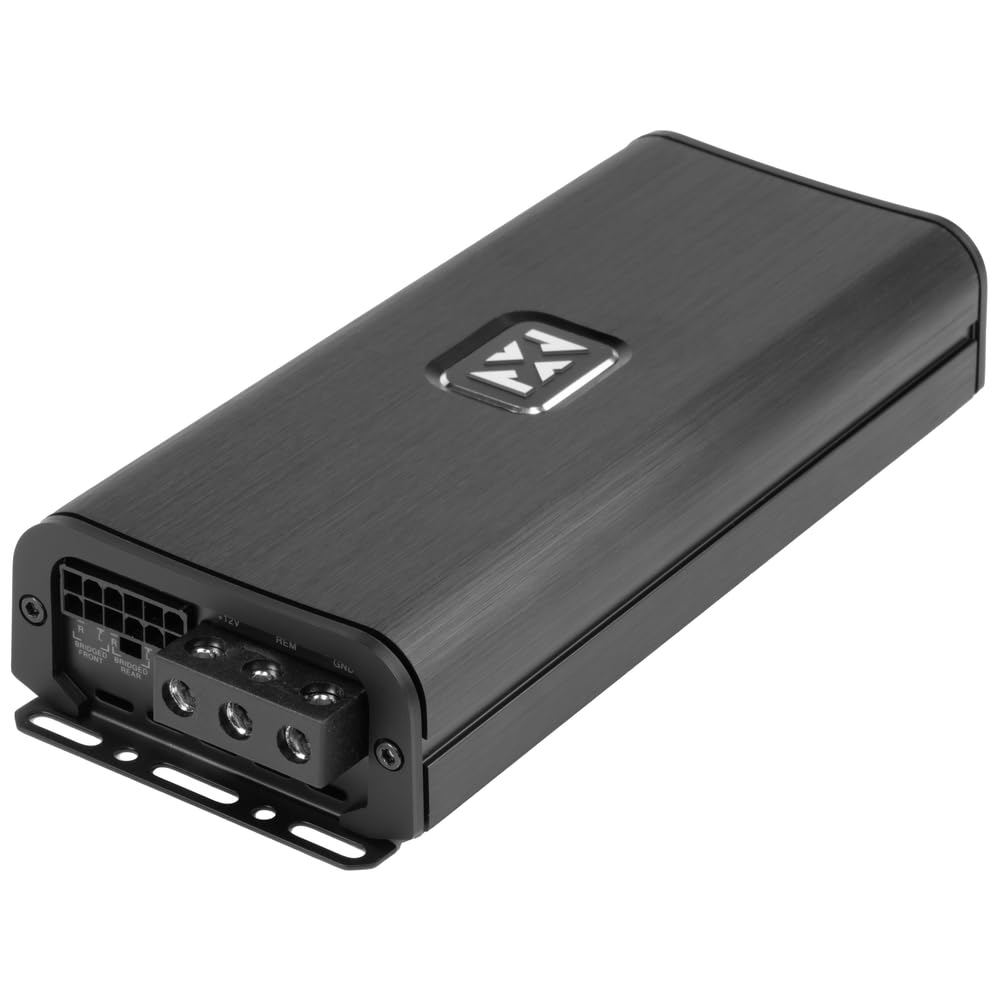

NVX - VADM5 v2 Compact 5-Channel 750W RMS V-Series Micro Full-Range Class D Car/Marine/Powersports Amp with Remote Bass Knob
Specifications
- Amplifier ClassDNumber Of Channels5Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: NVX
- Model Number: vadm5v2
- Product Name: VADM5 v2 Compact 5-Channel 750W RMS V-Series Micro Full-Range Class D Car/Marine/Powersports Amp with Remote Bass Knob
- Audio Power
- Total Power Handling RMS: 750 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 96 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Remote Control Included: Bass
- Marine: true
- Dimensions
- Product Height: 1.48 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.95 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021845357
Experience superior sound quality and powerful performance with the NVX VADM5v2, a 5-channel amplifier designed to elevate your audio system, whether on the road, at sea, or on the trails. With a peak power of 1500W and 750W RMS, this compact yet robust amplifier ensures your music is delivered with precision and clarity, making every note and beat come alive. The NVX VADM5v2 features a Class D design, known for its efficiency and ability to run cooler while using less power. This makes it an ideal choice for installations where space is limited, without compromising on sound quality. Despite its compact size, measuring just 7.95" x 3.3" x 1.48", this amplifier packs a punch, powering four channels at 100 watts each (at 2 ohms) and delivering 350 watts to your subwoofer for deep, resonant bass. Versatility is at the heart of the VADM5v2. With both low-level and high-level inputs, it integrates seamlessly with any audio system, whether factory-installed or aftermarket. The amplifier also comes equipped with a wired remote bass knob, allowing you to easily adjust bass levels to suit your preferences on the go. Built with durability in mind, the VADM5v2 includes 4-way protection circuitry, safeguarding your system against thermal overload, speaker shorts, and DC offset. This ensures reliable performance in even the most demanding environments, making it perfect for cars, boats, and powersports vehicles. Upgrade your audio experience with the NVX VADM5v2, and enjoy the perfect combination of power, efficiency, and compact design. Whether you’re cruising down the highway or navigating the open waters, this amplifier delivers the sound quality you’ve been looking for.
- Compact Powerhouse: Delivers 1500W peak power and 750W RMS with versatile 5-channel configuration options, including 4 ohms (65W x 4 + 230W x 1), 2 ohms (100W x 4 + 350W x 1), and bridged mode (200W x 2 + 350W x 1), for a powerful and clear audio experience.

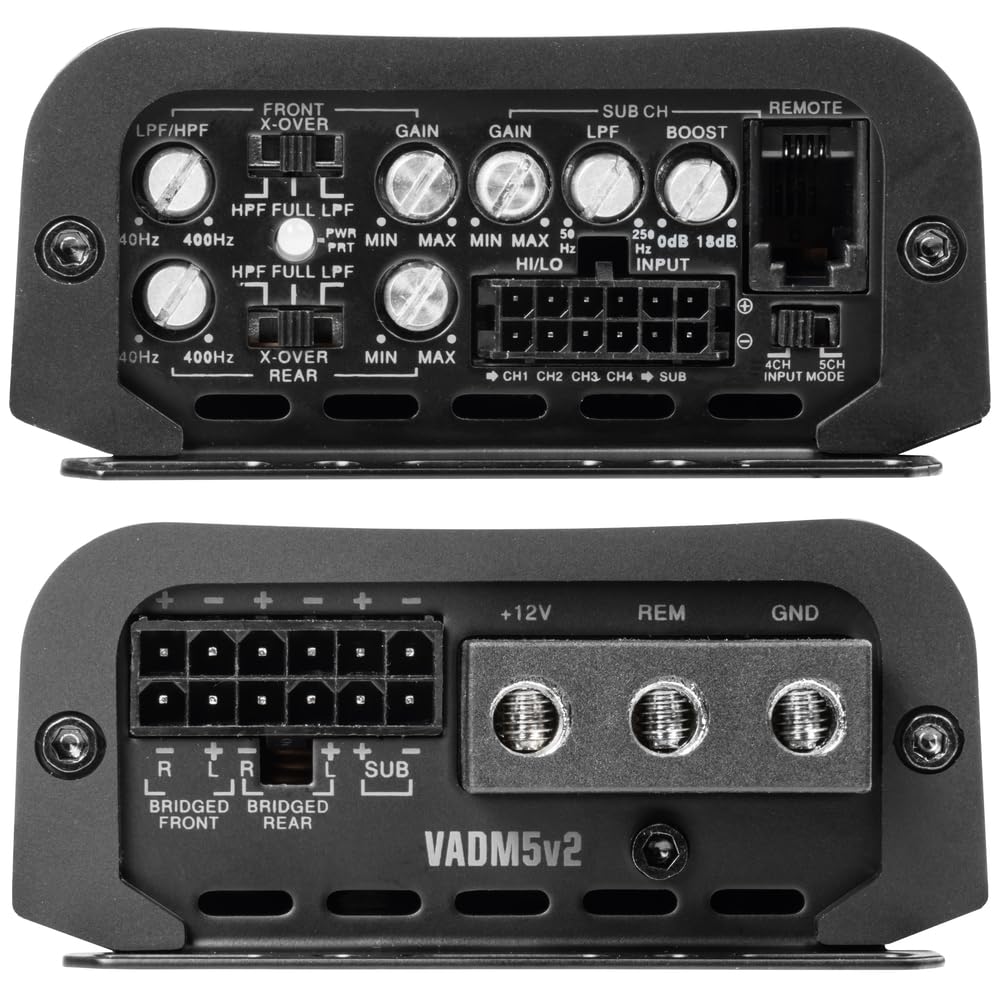

- Precision Sound Control: Precision Sound Control: Features variable high-pass (40 - 400 Hz) and low-pass filters (50 - 250 Hz), along with adjustable bass boost (0 - 18 dB), allowing you to fine-tune your audio for optimal performance.
- Versatile and Reliable: Includes speaker-level inputs with signal sensing remote turn-on and a wired bass level remote control for easy adjustments, with 4-way protection circuitry ensuring safe operation and longevity.
- Clear, Noise-Free Audio: Equipped with balanced differential inputs to minimize noise interference, ensuring clear and high-quality sound output with a total harmonic distortion (THD) of less than 0.1%.
- Compact Design: With dimensions of 7.95" L x 3.3" W x 1.48" H, this amplifier is designed to fit into tight spaces, and requires an 8 AWG gauge amplifier wiring kit for optimal installation and performance.
- Compact Powerhouse: Delivers 1500W peak power and 750W RMS with versatile 5-channel configuration options, including 4 ohms (65W x 4 + 230W x 1), 2 ohms (100W x 4 + 350W x 1), and bridged mode (200W x 2 + 350W x 1), for a powerful and clear audio experience.
- Precision Sound Control: Precision Sound Control: Features variable high-pass (40 - 400 Hz) and low-pass filters (50 - 250 Hz), along with adjustable bass boost (0 - 18 dB), allowing you to fine-tune your audio for optimal performance.
- Versatile and Reliable: Includes speaker-level inputs with signal sensing remote turn-on and a wired bass level remote control for easy adjustments, with 4-way protection circuitry ensuring safe operation and longevity.
- Clear, Noise-Free Audio: Equipped with balanced differential inputs to minimize noise interference, ensuring clear and high-quality sound output with a total harmonic distortion (THD) of less than 0.1%.
- Compact Design: With dimensions of 7.95" L x 3.3" W x 1.48" H, this amplifier is designed to fit into tight spaces, and requires an 8 AWG gauge amplifier wiring kit for optimal installation and performance.
- Compact Powerhouse: Delivers 1500W peak power and 750W RMS with versatile 5-channel configuration options, including 4 ohms (65W x 4 + 230W x 1), 2 ohms (100W x 4 + 350W x 1), and bridged mode (200W x 2 + 350W x 1), for a powerful and clear audio experience.
- Precision Sound Control: Precision Sound Control: Features variable high-pass (40 - 400 Hz) and low-pass filters (50 - 250 Hz), along with adjustable bass boost (0 - 18 dB), allowing you to fine-tune your audio for optimal performance.
- Versatile and Reliable: Includes speaker-level inputs with signal sensing remote turn-on and a wired bass level remote control for easy adjustments, with 4-way protection circuitry ensuring safe operation and longevity.
- Clear, Noise-Free Audio: Equipped with balanced differential inputs to minimize noise interference, ensuring clear and high-quality sound output with a total harmonic distortion (THD) of less than 0.1%.
- Compact Design: With dimensions of 7.95" L x 3.3" W x 1.48" H, this amplifier is designed to fit into tight spaces, and requires an 8 AWG gauge amplifier wiring kit for optimal installation and performance.
Whats Included
- 1
- 1
- 1
