NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - White
Color
White- GIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black$139.99The price was $179.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactorATX, EATX, Mini-ITX, microATXMaximum GPU Length410 millimetersProduct Height18.3 inchesProduct Width8.9 inchesProduct Depth16.9 inchesWindow Panel(s)Left side
- Key Specs
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 410 millimeters
- Product Height: 18.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Left side
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CC-H52FW-01
- Product Name: H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case
- Color: White
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 410 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 1 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 18.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 251.5 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Left side
- Customizable Case Lighting: false
- Lighting Type: None
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 175 millimeters
- Number of Fans Supported: 8
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 2
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074845908
The H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support.
- The Coolest Graphics: Designed for enhanced GPU cooling, the mesh PSU shroud maximizes air intake from bottom-mounted fans.
- Go Big On Cooling: The front supports up to a 360mm radiator, and the top supports up to 240mm—or 280mm if using low-profile RAM—for powerful cooling potential.
- Performance Paneling: Ultra-fine mesh panels optimize airflow for intake and exhaust while doubling as dust filters
- Ready-Made Thermals: Equipped with two 120mm fans—one in front, one in rear—for strong out-of-the-box cooling.
- More Room To Breathe: Holds up to eight total fans-three in front, two on the bottom, two up top, and one in the rear.
- Routing Made Easy: Intuitive cable management system features wide channels, straps, and tie points.
- Get In And out: Tool-less access to front, side, and top panels makes upgrading and tinkering swift and simple.
- Strong And Sleek: The thick steel chassis and tempered glass side panel ensure durability and a clean aesthetic.
Whats Included
- 2 x F120Q Case Version included
Q: Can the case support water cooling?
A: This case offers support for water cooling.
Q: Are there any screwless rails for installing drives?
A: This PC case has a screwless rail design.
Q: Does the case have a window panel?
A: The case has a window panel on the left side.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum CPU cooler height that can be installed is 175 millimeters.
Q: How many fans are included with the case?
A: The case includes two fans.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 410 millimeters.
Q: How many fans are included with the case?
A: The H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case includes two fans.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum CPU cooler height that can be installed is 175 millimeters.
Reviews
Customers are saying
Customers are satisfied with the H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case, especially its excellent airflow and clean build quality. The case provides ample room for cable management and features a beautiful design. Its size is also ideal for an ATX build.

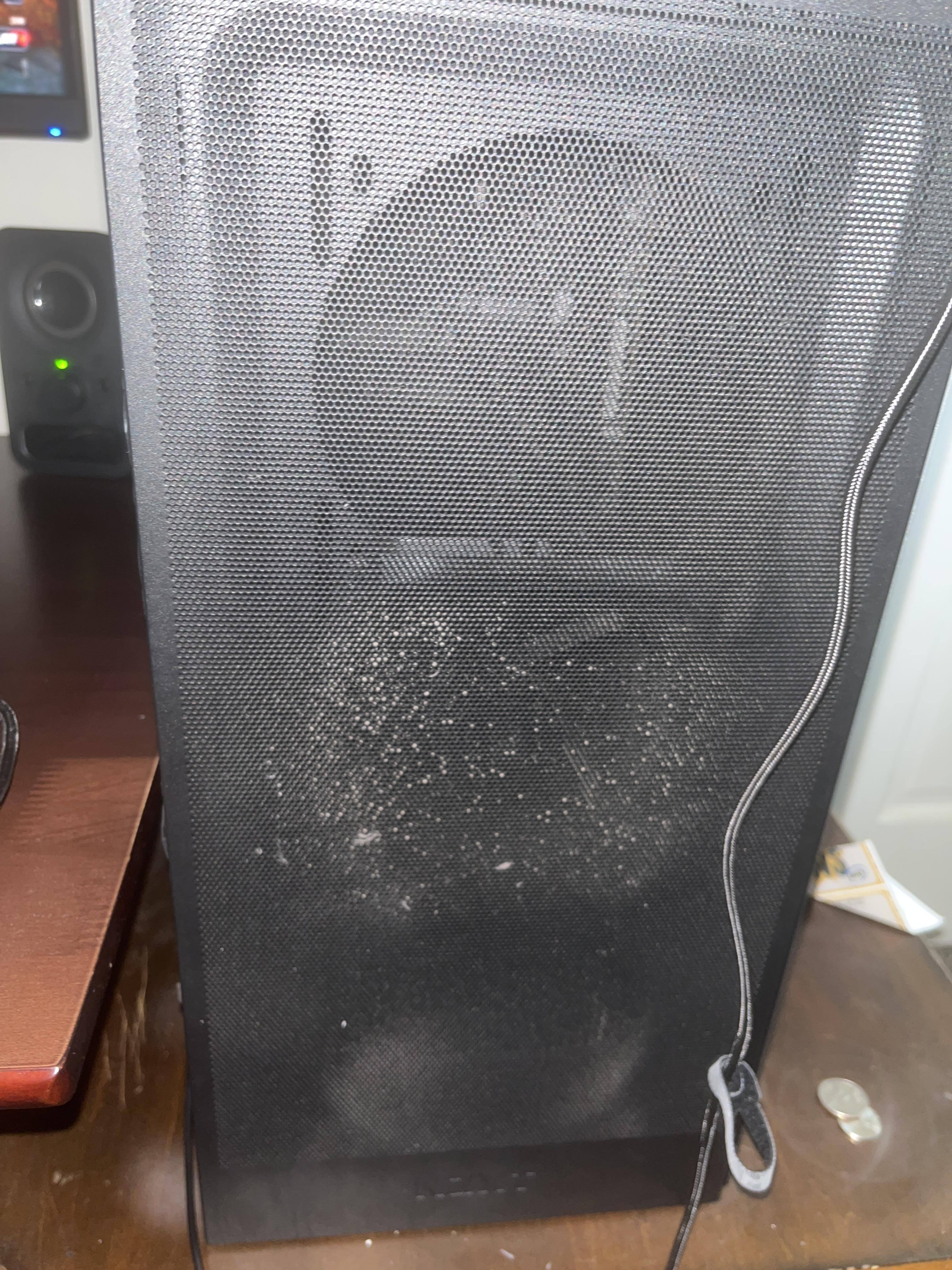

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Sleek, Cool, and User-Friendly
I recently completed a new PC build using the NZXT H5 Flow 2024 in black, and I couldn't be more pleased with how it turned out. This case strikes a perfect balance between aesthetics, airflow, and ease of use — a rare combination at this price point. Design & Build Quality The minimalist design is sharp and modern, making it an excellent match for any setup. The matte black finish gives it a professional and clean look without being flashy. The materials feel solid, and the tempered glass panel is thick and crystal clear, giving a beautiful view of internal components without compromising safety. Airflow & Thermals The standout feature for me is the airflow. The perforated front panel and dedicated bottom fan are game-changers. Even with a high-performance GPU and CPU, my system stays surprisingly cool under load. I was skeptical about the angled bottom fan at first, but it really helps direct air to the GPU, lowering temps significantly during gaming sessions. Ease of Building Cable management was effortless. NZXT clearly thought through the layout, with ample room behind the motherboard tray and a generous number of tie-down points. I appreciated the pre-installed fan setup and easy access to all the internals — no cramped hands or awkward angles. This was easily one of the smoothest PC builds I’ve ever done. What Could Be Better If I had to nitpick, I’d say the top panel doesn’t allow for the thickest radiators. It fits a 240mm AIO just fine, but clearance is tight. Also, more front USB ports would be helpful for those who use a lot of peripherals. Final Verdict The NZXT H5 Flow 2024 is an excellent case for both first-time builders and seasoned enthusiasts. It’s functional, beautiful, and clearly designed with performance in mind. If airflow, cable management, and clean aesthetics are your priorities, this case delivers on all fronts.
This review is from NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - Black
KundanM Posted
- Rated 5 out of 5 stars
NZXT Case is Clean!
Built my son's AM4 PC in this case and it did disappoint. Plenty of room to get things done inside and for a "single chamber" case, it has ton of room in the back to route cables and even has enough room for a low profile fan hub. It also looks very nice.
This review is from NZXT - H5 Flow 2024 Compact ATX Mid-Tower Airflow PC Case - Black
ColtonN Posted
- Rated 5 out of 5 stars
Best Buy! Value for money. Really good pc case
Excellent build quality. Very easy to work with. Building with this case is easy. Lots of space for cable management. Can handle long gpu. Comes with 2 white fans. Only cons that I can see is the psu is mounted with fan on top. But that is not an issue for me but maybe an issue with other people.
FerdinandP Posted
