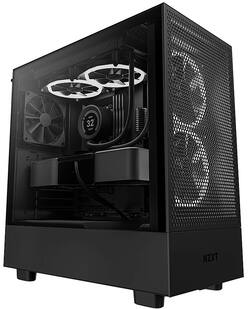

NZXT - H5 Flow ATX Mid-Tower PC Case - Black
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 365 millimeters
- Product Height: 17.56 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.94 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.56 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CC-H51FB-01
- Product Name: H5 Flow ATX Mid-Tower PC Case
- Color: Black
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 185 millimeters
- Maximum GPU Length: 365 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 1
- USB Ports: 1 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 1
- Number Of External 2.5" Expansion Bays: 2
- Number Of External 3.5" Expansion Bays: 1
- Dimensions
- Product Height: 17.56 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.94 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.56 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 247.27 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: false
- Lighting Type: None
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 165 millimeters
- Number of Fans Supported: 6
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 2
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074842419
The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
- Keep it cool: Achieve dedicated GPU cooling with an optimally angled F120Q fan mounted at the bottom. The vented top panel exhausts hot air out of the case and supports up to two 120mm fans or one 240mm radiator. The perforated front panel supports up to two 140mm fans.
- Build with ease: The H5 Series makes building simple with an intuitive and spacious cable management system. Wide channels enable easy routing for thick cables, plus built-in hooks and straps hold them in place. Tool-less access to panels allows for quick modifications.
- Pick the right style: The H5 Flow has a perforated front panel for better cooling potential, and the H5 Elite comes with a glass front panel and built-in RGB for a vivid look. Available color options include All White or All Black.
A: One in the back, and bottom. None on the front
A: Top can support a 240 radiator, front can support up to a 360 radiator.
A: I think it includes 2 fans non rgb and the price dif for the color idk maybe because the demand on the black is higher
A: Not sure if you're asking just about the case or how it's represented in the images, but this isn't a whole computer. It's just a case. However, I'll answer just on the case itself. The H5 was a very popular case when it came out, most NZXT cases are. However, a lot of NZXT cases had glass fronts, meaning very little ventilation for air intake, which would hamper overall cooling. The H5 flow fixes this by utilizing a metal mesh front panel with plenty of airflow, allowing for much better cooling. That, combined with plenty of other vents, mounts for various fans or radiators (AIO or custom built), means this will be a good case from a cooling standpoint.
Q: What size fans could fit in the front?
A: 2x 140mm would do fine max but if you have 120mm fans would do fine also
Q: Does this pc run for windows ?
A: It's just a case...
