NZXT - H5 Flow RGB 2024 Compact ATX Mid-Tower Airflow PC Case - White
Color
White
CORSAIR - 2’ Premium Individually Sleeved 12+4pin PCIe Gen 5 Type-4 600W 12VHPWR Cable - Black$29.99
More Buying Options
Specifications
- Motherboard Form FactorATX, EATX, Mini-ITX, microATXMaximum GPU Length410 millimetersProduct Height18.3 inchesProduct Width8.9 inchesProduct Depth16.9 inchesWindow Panel(s)Left side
- Key Specs
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 410 millimeters
- Product Height: 18.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Left side
- Case Material: Steel
- General
- Brand: NZXT
- Model Number: CC-H52FW-R1
- Product Name: H5 Flow RGB 2024 Compact ATX Mid-Tower Airflow PC Case
- Color: White
- Case Material: Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX, EATX, Mini-ITX, microATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 410 millimeters
- Number of Expansion Slots: 7
- Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 1 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 1
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 18.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 263.8 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Left side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 175 millimeters
- Number of Fans Supported: 8
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 2
- Radiator Support: Yes
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074845922

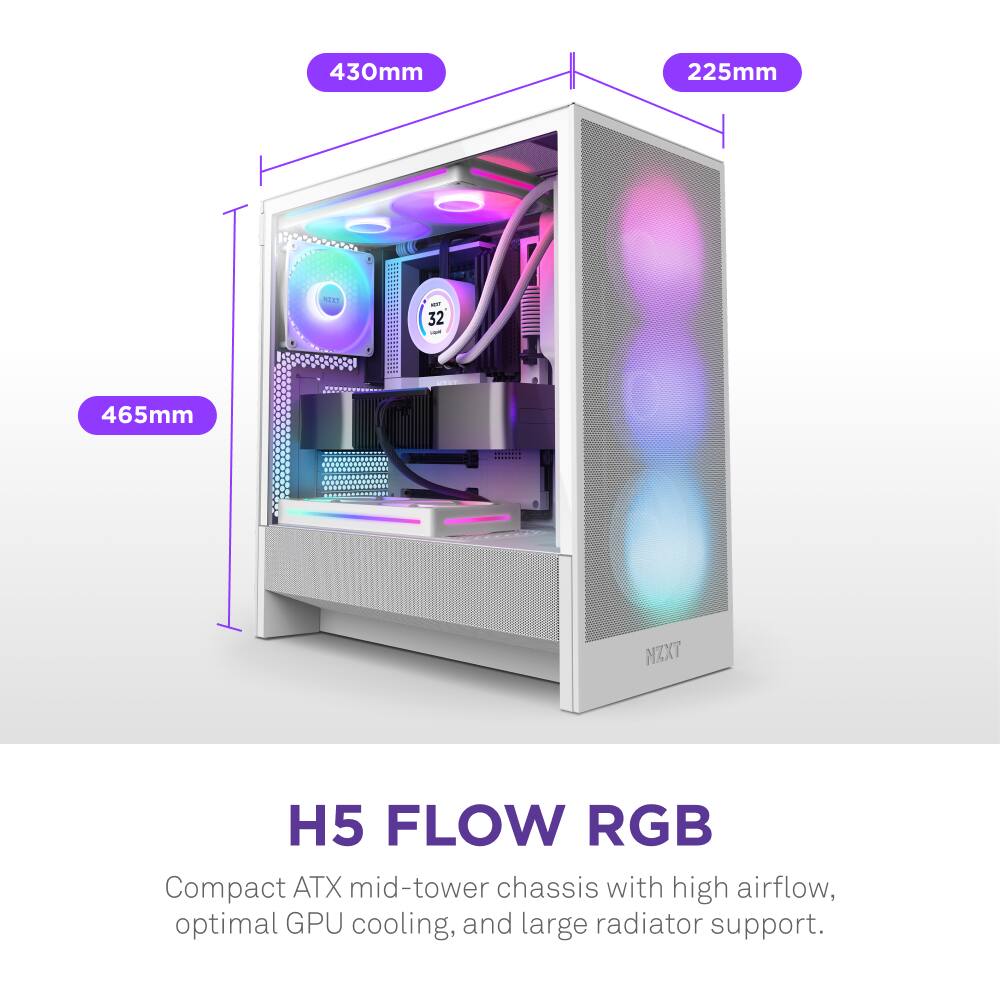

The H5 Flow RGB boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support—all in a compact mid-tower form factor.

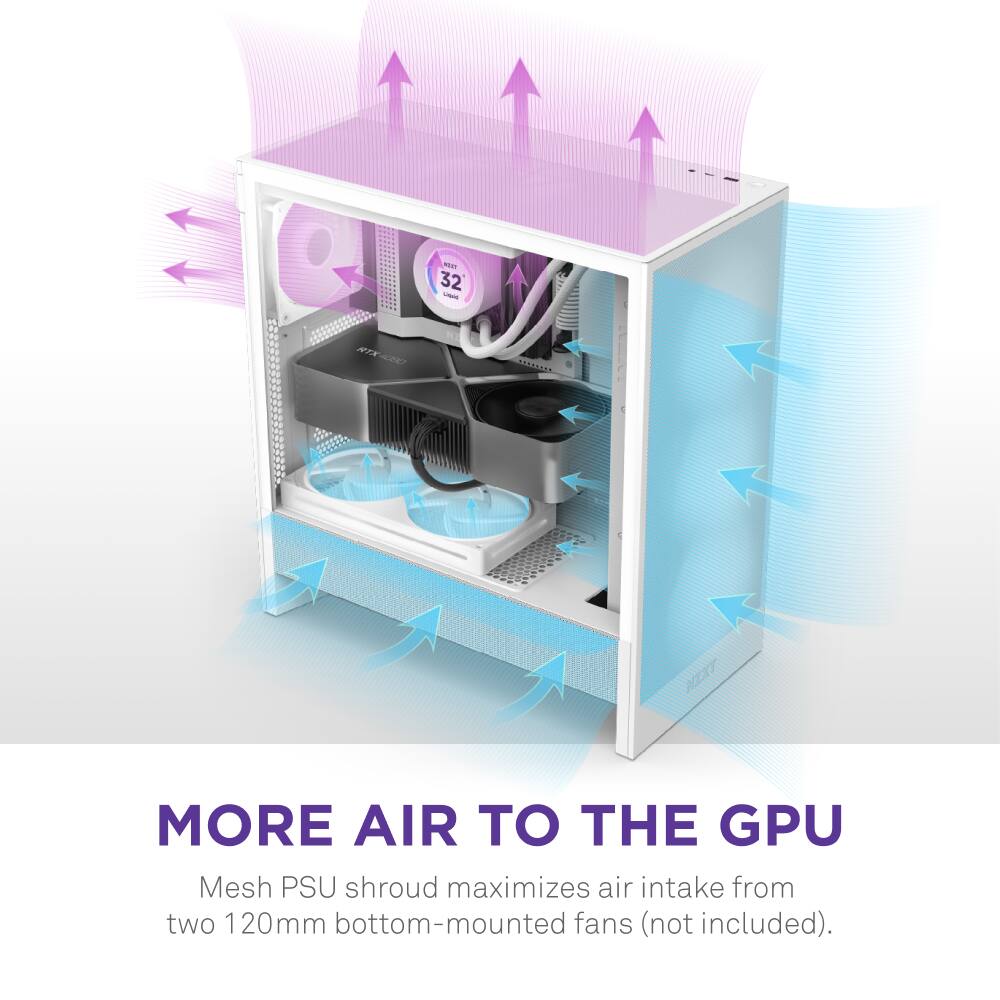

- The Coolest Graphics: Designed for enhanced GPU cooling, the mesh PSU shroud maximizes air intake from bottom-mounted fans.

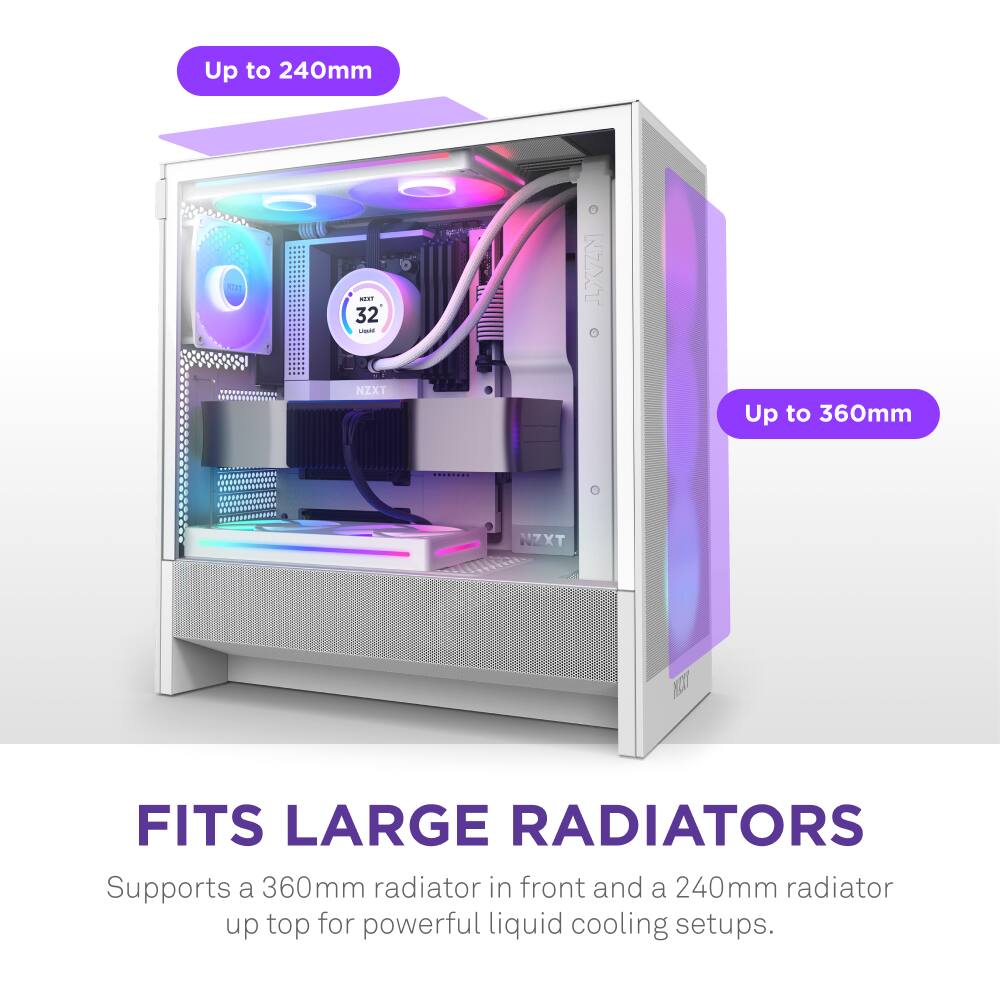

- Go Big On Cooling: The front supports up to a 360mm radiator, and the top supports up to 240mm—or 280mm if using low-profile RAM—for powerful cooling potential.

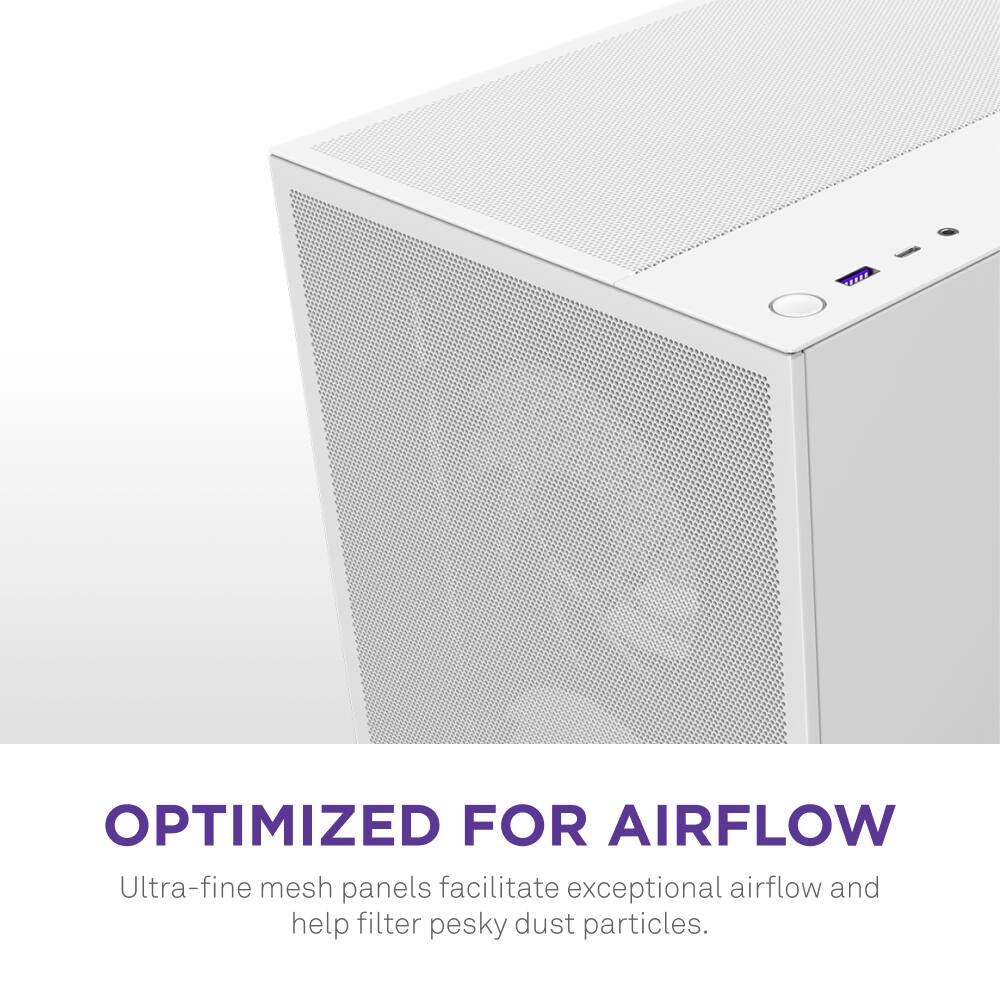

- Performance Paneling: Ultra-fine mesh panels optimize airflow for intake and exhaust while doubling as dust filters.

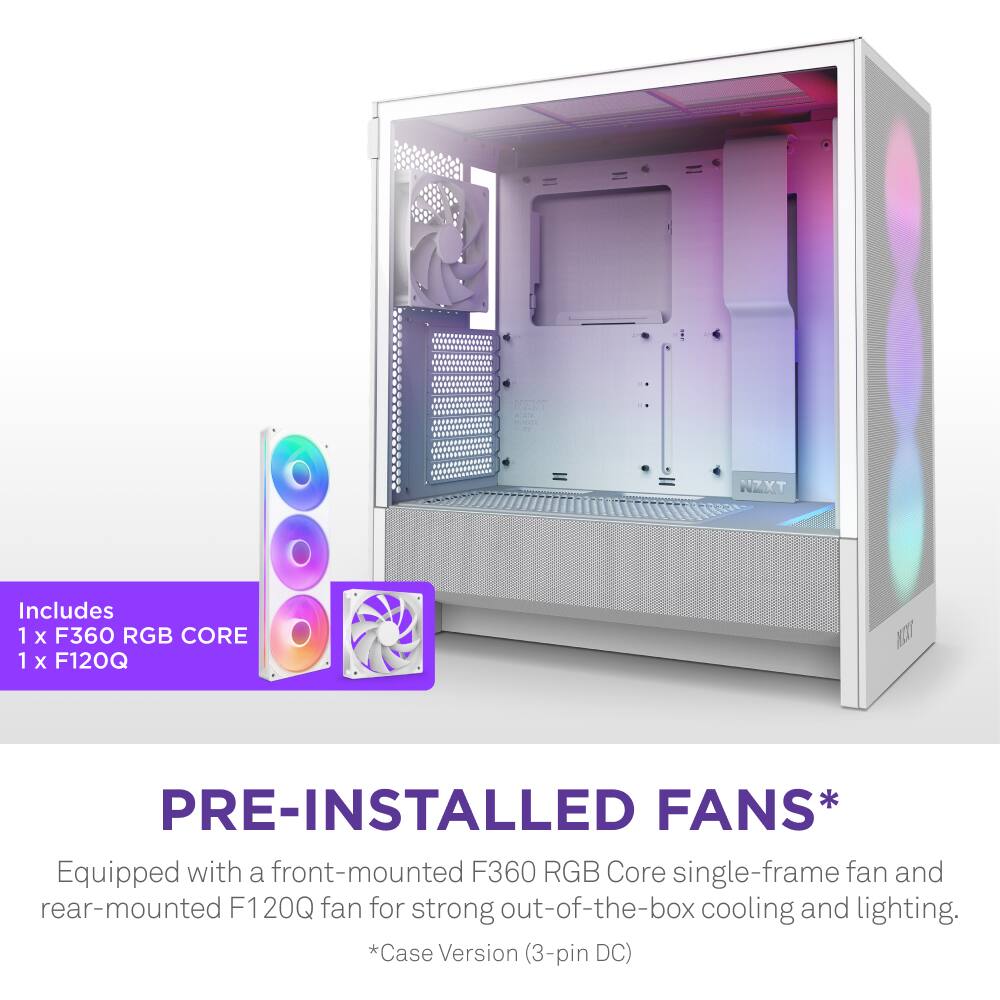

- Ready-Made Thermals: Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and a rear 120mm fan exceptional out-of-the-box cooling and lighting.
- Routing Made Easy: Intuitive cable management system features wide channels, straps, and tie points.

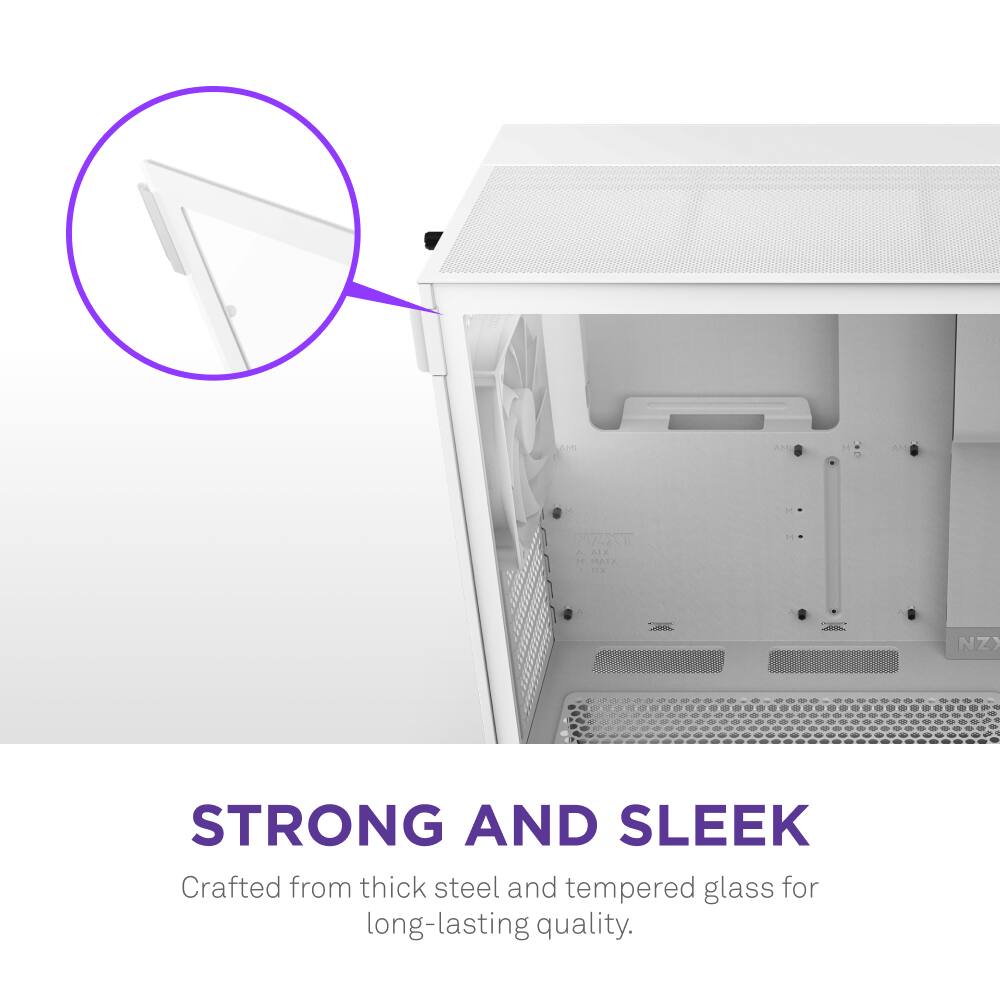

- Strong and Sleek: The thick steel chassis and tempered glass side panel ensure durability and a clean aesthetic.

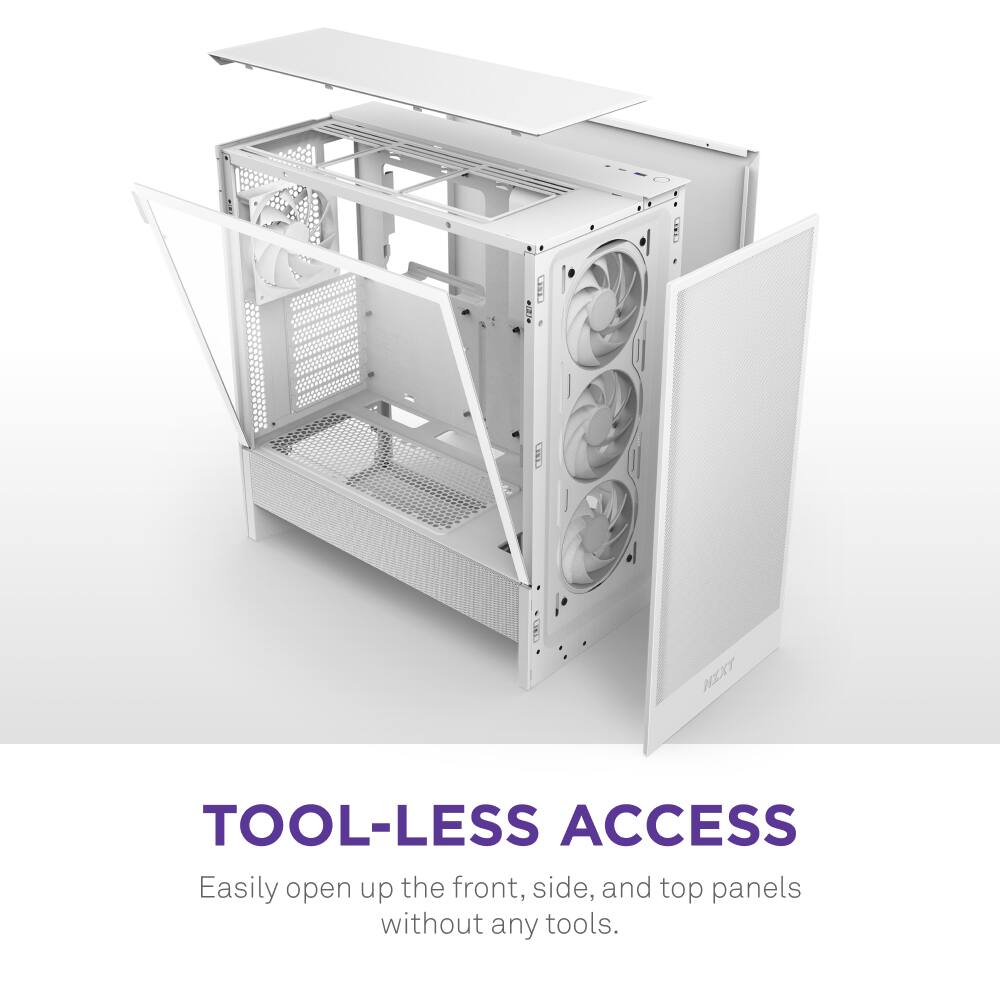

- Get In And out: Tool-less access to front, side, and top panels makes upgrading and tinkering swift and simple.
- More Room to Breathe: Holds up to eight total fans—three in front, two on bottom, two up top, and one in rear.
- The Coolest Graphics: Designed for enhanced GPU cooling, the mesh PSU shroud maximizes air intake from bottom-mounted fans.
- Go Big On Cooling: The front supports up to a 360mm radiator, and the top supports up to 240mm—or 280mm if using low-profile RAM—for powerful cooling potential.
- Performance Paneling: Ultra-fine mesh panels optimize airflow for intake and exhaust while doubling as dust filters.
- Ready-Made Thermals: Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and a rear 120mm fan exceptional out-of-the-box cooling and lighting.
- Routing Made Easy: Intuitive cable management system features wide channels, straps, and tie points.
- Strong and Sleek: The thick steel chassis and tempered glass side panel ensure durability and a clean aesthetic.
- Get In And out: Tool-less access to front, side, and top panels makes upgrading and tinkering swift and simple.
- More Room to Breathe: Holds up to eight total fans—three in front, two on bottom, two up top, and one in rear.
Whats Included
- 1 x F360 RGB Core Case Version included
- 1x F120Q fan (case version)
- CC-H52FW-R1 Case
- 1 x F360 RGB Core Case Version included
- 1x F120Q fan (case version)
- CC-H52FW-R1 Case
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 410 millimeters.
Q: How many fans are included with the case?
A: The case includes one fan.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum CPU cooler height that can be installed is 175 millimeters.
Q: Can the case support water cooling?
A: This case does support water cooling.
Q: Is the case compatible with ATX motherboards?
A: This case is compatible with ATX motherboards.
Q: Does the case have a window panel?
A: The case has a window panel on the left side.
Q: Which graphics card is included?
A: None, it’s a case.
A: This is not a complete gaming PC. This is just a computer case.
