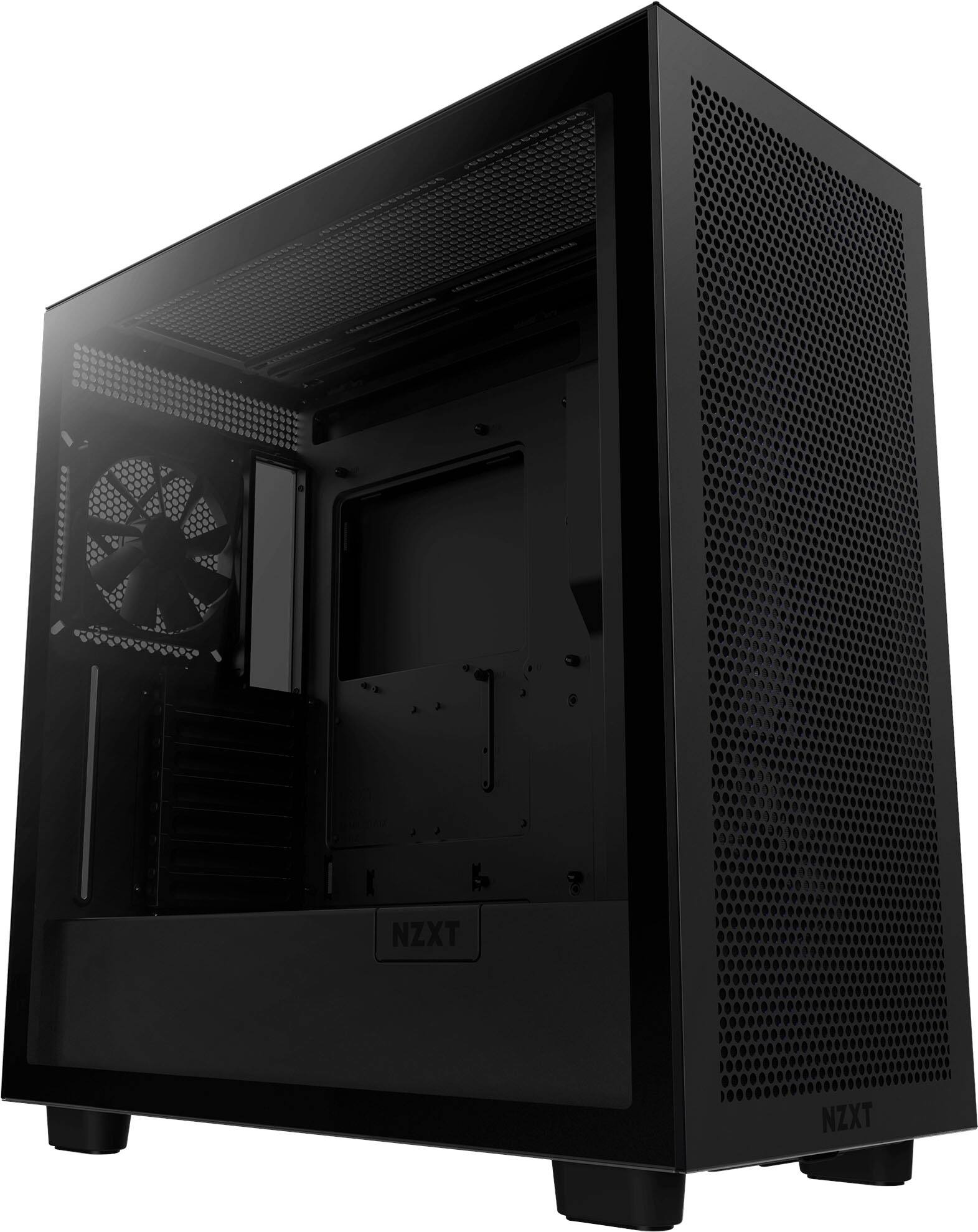

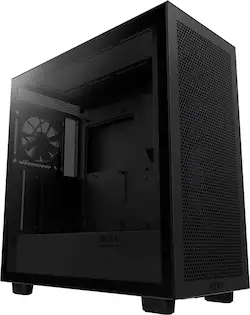

NZXT - H7 Flow ATX Mid-Tower PC Case - Black

Name: NZXT - H7 Flow ATX Mid-Tower PC Case - Black
Brand: NZXT
SKU: 6507395
Rating: 4.8 (634 reviews)

Model: CM-H71FB-01

SKU: 6507395

This item is no longer available in new condition. See similar items below

Key Specs
- Motherboard Form Factor: microATX, ATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 400 millimeters
- Product Height: 19.88 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.06 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Left side, Front
- Case Material: Steel
General
- Brand: NZXT
- Model Number: CM-H71FB-01
- Product Name: H7 Flow ATX Mid-Tower PC Case
- Color: Black
- Case Material: Steel
- Assembly Required: No
Compatibility
- Motherboard Form Factor: microATX, ATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 200 millimeters
- Maximum GPU Length: 400 millimeters
- Number of Expansion Slots: 7
Ports
- USB Port Location: Top
- Number of USB Ports (Total): 2
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Number Of External 2.5" Expansion Bays: 6
- Number Of External 3.5" Expansion Bays: 2
Dimensions
- Product Height: 19.88 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.06 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 361.9 ounces (The out of box weight of the item.)
Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Left side, Front
- Customizable Case Lighting: false
- Lighting Type: None
- Screwless Rail Design: true
Cooling
- Maximum CPU Cooler Height: 185 millimeters
- Number of Fans Supported: 7
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 2
- Radiator Support: Yes
- Liquid Cooling Ready: true
Warranty
- Warranty - Parts: 2 Years
- Warranty - Labor: 2 Years
Other
- UPC: 815671019431

The H7 Flow is an excellent chassis for any ambitious builder looking for optimized thermal performance and superior airflow. It will provide a streamlined building experience and a perforated front panel.

Extremely Cool: The H7 Flow achieves maximized thermal performance with a perforated top and front panel. These airflow-optimized panels improve ventilation, giving users even better temperatures for marathon gaming sessions. The top and front of the case support radiators up to 360mm.
Building Simplified: Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks add stability to hold everything in place.
A Modern Look: The H7 combines the modern look of the H series with new color options that fit in seamlessly with any aesthetic. Each color is paired with glass tinting that complements the respective chassis.

Q: does the case come with the fans

A: It has 2 120mm fans included It will handle up to 3 140mm in the front 3 140mm fans on the top And a 140mm in the rear

Q: Will this fit a RTX 3090 Ti?

A: Yes plenty of room I have my rtx 4080 in it.

Q: Are the fans RGB?

A: The stock fans are not you would have to buy additional fans if you want rgb

Q: Why is NZXT H7 FLOW not for sale anymore?

A: Very popular case that is in and out of stock. Looks great, has plenty of room and competitive price.

Q: Will the MSI Gaming Radeon RX 6800 16GB fit in this?

A: I fit an XFX MERC310 7900 XT without issue, including the Z Bar support. Their website lists maximum GPU clearance of 400mm, and your GPU is probably somewhere in the ~320mm range.

Q: Maybe im missing the specs but how many fans does this case come with if any?

A: Mine came with two, front fan, and back fan, but it can fit a bunch of fans.

Q: has there been issues with the tempered glass side panel exploding? mine did just that this morning!

A: Hello. Sorry to hear about this! Please reach out nzxt.com/support and we will provide a replacement glass panel for you. Thank you

Q: Will the ASRock X870 RIPTIDE WIFI AM5 AMD X870 SATA fit in this?

A: Yes

Customers are saying

Customers enjoy the excellent airflow and ease of building in the H7 Flow ATX Mid-Tower PC Case, praising its ample space and effective cable management. Many appreciate the case's size and design, though some wish for more included fans and a more secure side panel attachment. A few customers noted the case's weight and the lack of RGB lighting as minor drawbacks.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Easy to build in
Quality is top notch - and bought two of them! I was able to fit three-140mm Arctic Fans in the front, one-140mm Arctic fan in the rear and a full 360mm Water-Cooled radiator at the top with three 120mm fans. The RTX 4090, a PNY and Founders Edition GPU with CableMod's wiring fits perfectly with the glass closed. The wiring just barely touches the glass, but enough room for it not to bend. It was really easy mount everything and wiring management tracks makes it easy to clean things up. I removed the HDD bays as I didn't need them. Allowed room for the PSU wiring, but trust me, you can make it work with the HDD bays, it's just going to be a bit tighter. This is one of the few cases I see where the rear is mostly sealed up creating positive pressure. I was afraid this would create turbulence and air pockets where certain components may not get enough air, but given the blower design of the rear part of the RTX 4090 FE GPU, it actually insures it only gets fresh filtered cooled air from the front! My temperatures have improved a lot from my old NZXT H710i. The black case comes with a tinted glass and it is quite dark. So, if you have minimal lighting to no lighting; even on a bright day, you will not be able to clearly see your components. You really do need to have at least the Top Fans to have lighting shining down on your components to see anything. I have attached 3 pictures as I bought two of these (one for work one for personal use). The first two (with Purple light and RTX 4090 FE) only has LED for the WaterPump header and GPU. You can see with the glass on, you can't see anything but the light. The last image (with Green light and PNY RTX 4090) has lighting in the top fans itself shining down; despite the dark glass, with this lighting method you can see the inside better. And also, NO, NZXT will NOT sell you the clear version of this glass to you. They only reserve the glass for warranty purposes.
Posted 2 years ago by StarvMarv
Rated 5 out of 5 stars
Very open for maximum airflow
Recently I heard the company sucks because of NZXT charging huge prices to rent PCs. While that might be questionable behavior, I can say that doesn't apply at all to this case. This N7 Flow case is easily large enough to fit a 4080 SUPER and a Dark Rock Pro 5 CPU fan. The cable management is top notch with lots of cable channels and has dust screens at all entrances. This has been great to catch the cat hair. I have 6 120mm Artic fans that easily remove all the heat. With this case and the CPU fan, the 7800X3D runs at 43C idle and 70C hot. Great! Anyway I would recommend this case for sure if you don't mind it's size.
Posted 10 months ago by JoeZ
Rated 5 out of 5 stars
Roomy, gorgeous, well built, flimsy filter bracket
I got this case as Open Box, and it was like new. The Fans were loosely mounted, but that was all that indicated this case was being unpacked before. Thx to BB for this, a really good purchase. The only gripe I have is a slightly bent front mesh bracket, the is pretty flimsy and not mounted totally flat. Now to the case itself: It is pretty roomy, allowing for two radiators to be mounted simultaneously. Coming from a Lancool II I really appreciate the extra room in the top, enabling me to put my H115i 280mm rad in without the mainboard's VRM heatsinks getting in the way. In the front, I've mounted the 360mm rad of my GPU in a push/pull config (only for the looks, push OR pull alone would have been enough cooling-wise). With the 25mm rad mounted on the outside, it allows to have 25mm fans on the outside as well without the blades touching the mesh - IF the mesh bracket isn't bent, that is (unfortunately mine is, I've helped it with using other screws and washers for the lower fan to push the mesh out slightly). For the GPU I'm re-using my Lian-Li mount that I got for the Lancool II. It does fit when making sure the mainboard is mounted as far away from the back of the case as possible as the bracket is quite thick. Also, I had to leave out the movable part that goes onto the bracket depending on where it is mounted. To give it a bit more stability and prevent sag over time I'm resting the bracket on a fan that is mounted on top of the PSU shroud. This bottom fan is a mod that I created as I was missing some airflow around the chipset, the VRMs, and the backplate of my GPU (which has additional thermal pads so it actually does help with cooling). Since the shroud's hole pattern doesn't match the spacing of a 120mm fan's mounting holes I had to develop an adapter to put a fan there. After printing it I just had to screw it to the fan and then "plug" it onto the shroud. It uses a reverse fan that looks good even though it blows air upwards. The air it gets comes from the front, the PSU is not part of the overall case airflow as its fan is facing down. I really love the looks of the case, and that it makes it easy to build in it. Cable management is great, air flow as well, and the build quality appears to be top-notch, too (well, except for that flimsy front mesh bracket).
This review is from NZXT - H7 Flow ATX Mid-Tower PC Case - White & Black
Posted 2 years ago by MarioF
