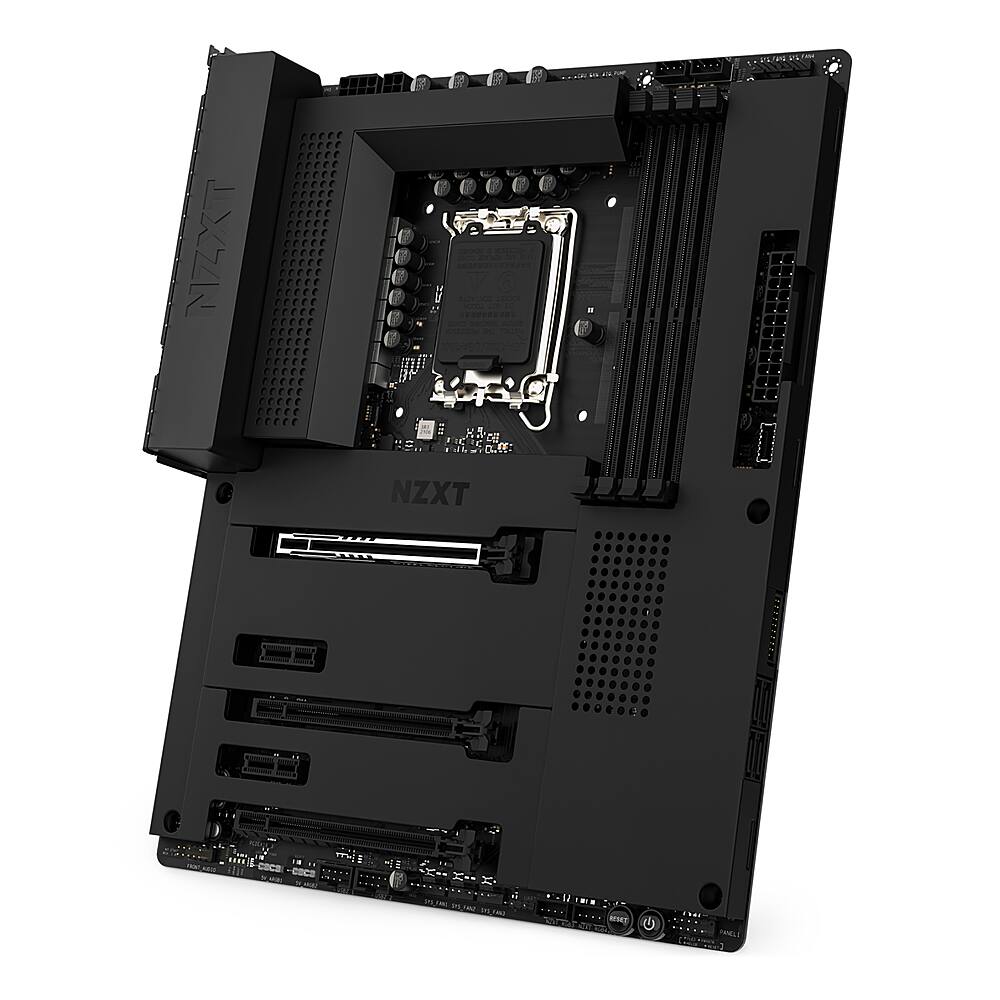

NZXT - Z790 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 6E Motherboard - Black
Model: N7-Z79XT-B1
SKU: 6538046
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: Intel Z790
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 5 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5, DDR5
- General
- Brand: NZXT
- Model Number: N7-Z79XT-B1
- Product Name: Z790 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Compatibility
- Chipset: Intel Z790
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 12th Generation Core i9, Intel 12th Generation Core i7, Intel Core i5 14th Generation, Intel 12th Generation Core i3, Intel 13th Generation Core i3, Intel 13th Generation Core i5, Intel 13th Generation Core i7, Intel 13th Generation Core i9, Intel Core i7 14th Generation, Intel Core i9 14th Generation
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Home in S Mode, Windows 11 Pro
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 5 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x4 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x24 pin, 1x 8+4 pin ATX 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x 4-pin CPU_FAN connector (Up to 24W per channel) (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 2 x USB-A 2.0, 1 x USB-C 3.2, 2 x USB-A 3.2, 3 x USB-A 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 5x rear, 1x optical S/PDIF, 1x front panel audio connector
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 43 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5, DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6000 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 168-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 810074843010
The N7 Z790 supports Intel's latest CPUs and has everything needed to build a modern system. The full black cover blends seamlessly within your build and includes optimally placed headers and built-in fan & lighting controls via NZXT CAM.
- The Latest and Greatest: The N7 Z790 has everything needed to build a modern PC. Get support for 13th and 12th-generation Intel processors with a 16+1+2 DrMOS power phase design, DDR5, and WiFi 6E. The integrated heat spreader for the top-most M.2 slot and thoughtful layout ensure a clean and satisfying build.
- Powerful Control: The N7 Z790 includes key features from the NZXT RGB and Fan Controller, allowing intuitive control of six RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported as well as 5V ARGB.
- Stunning Craftmanship: Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your prized components. The N7 Z790 allows for a great look without sacrificing the build experience with an integrated rear I/O and optimally placed headers.
- Supported RAM: DDR5
- Graphics: Integrated Graphics Processor - Intel UHD Graphics Support
- Memory: 4 xDIMM Max, 128GB DDR5
- Audio: Realtek ALC1220 Codec
- The Latest and Greatest: The N7 Z790 has everything needed to build a modern PC. Get support for 13th and 12th-generation Intel processors with a 16+1+2 DrMOS power phase design, DDR5, and WiFi 6E. The integrated heat spreader for the top-most M.2 slot and thoughtful layout ensure a clean and satisfying build.
- Powerful Control: The N7 Z790 includes key features from the NZXT RGB and Fan Controller, allowing intuitive control of six RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported as well as 5V ARGB.
- Stunning Craftmanship: Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your prized components. The N7 Z790 allows for a great look without sacrificing the build experience with an integrated rear I/O and optimally placed headers.
- Supported RAM: DDR5
- Graphics: Integrated Graphics Processor - Intel UHD Graphics Support
- Memory: 4 xDIMM Max, 128GB DDR5
- Audio: Realtek ALC1220 Codec
Whats Included
- 1x N7 Z790 Motherboard
- 4x SATA cables (2 x 90°, 2 x 180°)
- 3x M.2 screws
- 1x M.2 Standoff
- 2x Wireless Antenna
- 1x manual
- 1x N7 Z790 Motherboard
- 4x SATA cables (2 x 90°, 2 x 180°)
- 3x M.2 screws
- 1x M.2 Standoff
- 2x Wireless Antenna
- 1x manual
Disclaimers
- Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.
- Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.
Q: Does the motherboard support Wi-Fi 6E?
A: This motherboard supports the Wi-Fi 6E wireless networking standard.
Q: What is the form factor of the motherboard?
A: The form factor of this motherboard is ATX.
Q: Can the motherboard support RAID 0?
A: This motherboard supports RAID 0.
Q: What is the maximum memory supported by the motherboard?
A: The motherboard supports a maximum of 128 gigabytes of memory.
Q: What is the warranty on the motherboard?
A: The manufacturer's warranty for parts and labor on the motherboard is 3 years.
Q: How many memory slots does the motherboard have?
A: The motherboard has four memory slots.
