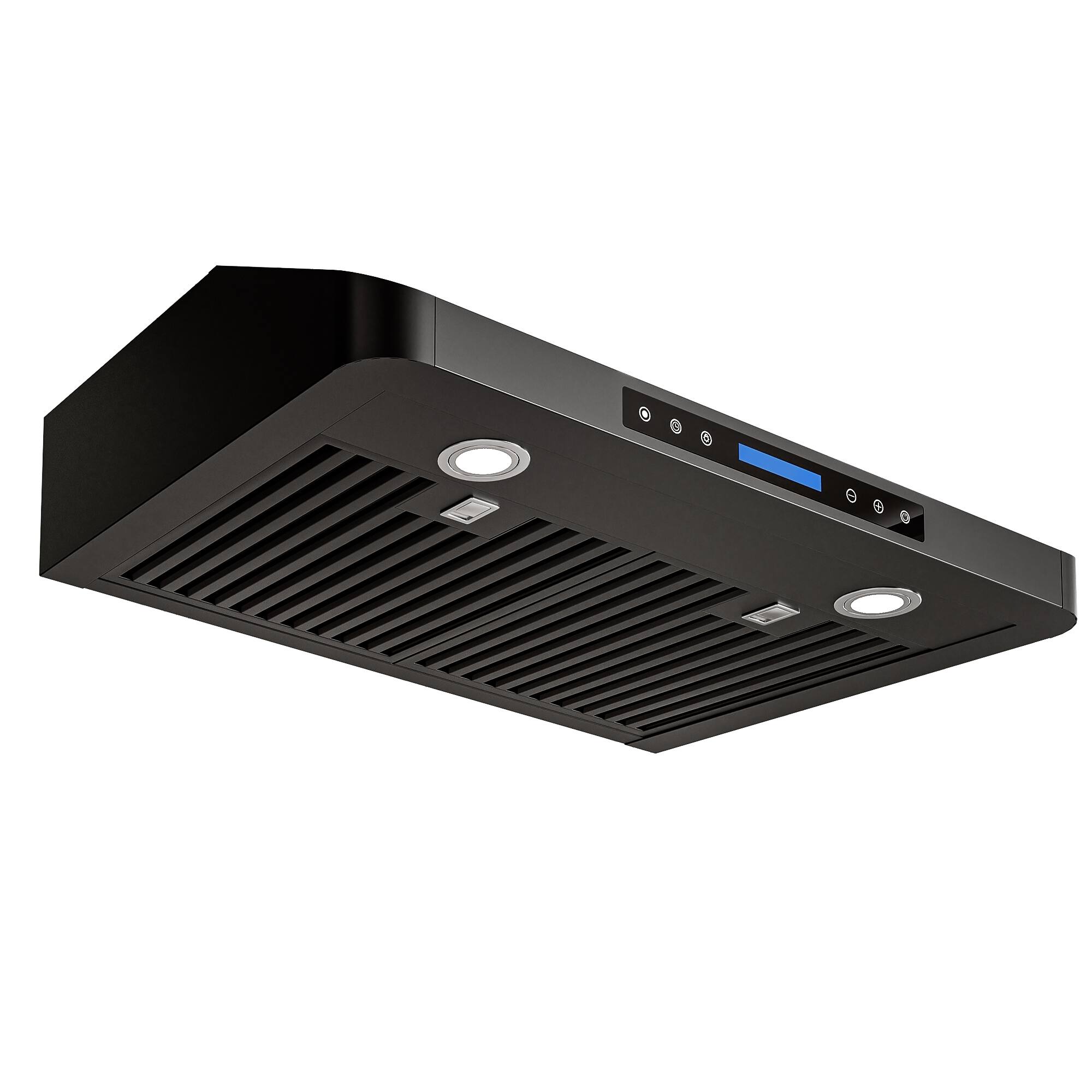

Onefly - 30 inches - Externally Vented - Under cabinet Range Hood - Black Stainless Steel
Color
Black Stainless SteelFREE shipping to
Related Item
Specifications
- Color FinishBlack stainless steelProduct Height5.9 inchesProduct Width29.5 inchesProduct Depth19.7 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 5.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Onefly
- Model Number: OFYC01-30B
- Product Name: 30 inches - Ducted - Under Cabinet Range Hood
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 5.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 30 inches
- Product Width: 29.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 35.4 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Dial
- Display Type: LCD
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: true
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 3 watts
- Performance
- Maximum Air Flow Capacity: 900 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 300 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 7.4 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 2.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 10-year motor, 5-year LED and switch
- Warranty - Labor: 10-year motor, 5-year LED and switch
- Other
- UPC: 768845345426

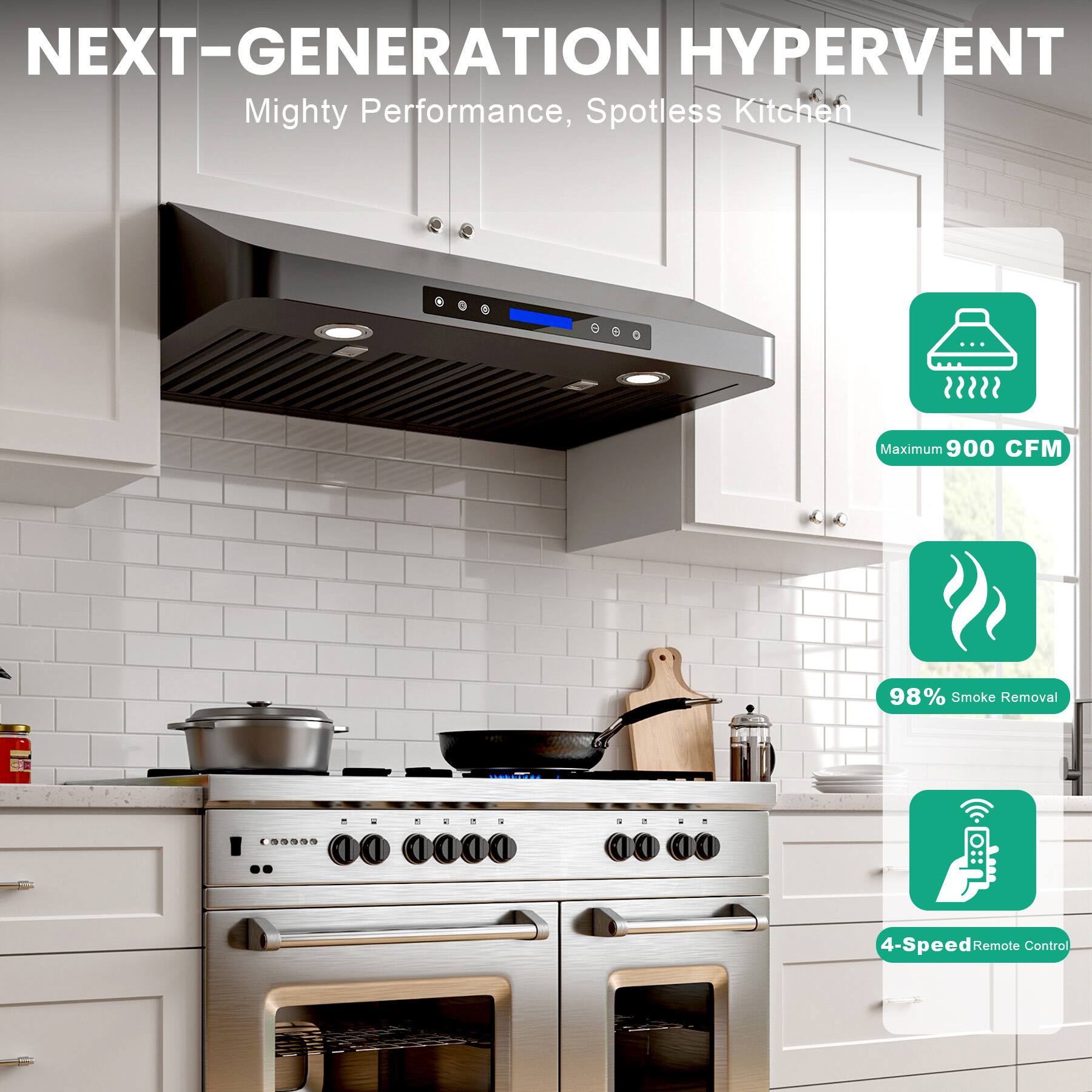

This under-cabinet ducted range hood delivers powerful kitchen air purification with a maximum suction of 900 CFM, easily handling heavy smoke and cooking odors from high-heat frying or large-batch cooking. It features 4-speed adjustable airflow settings, letting you tailor suction strength to match light simmering or intense culinary tasks. With an operating noise range of 46-69 decibels, it maintains a quiet kitchen environment without sacrificing performance. The convenient 1-15 minute delay shut-off function ensures residual fumes and odors are fully cleared even after you finish cooking, keeping your kitchen air fresh and clean.

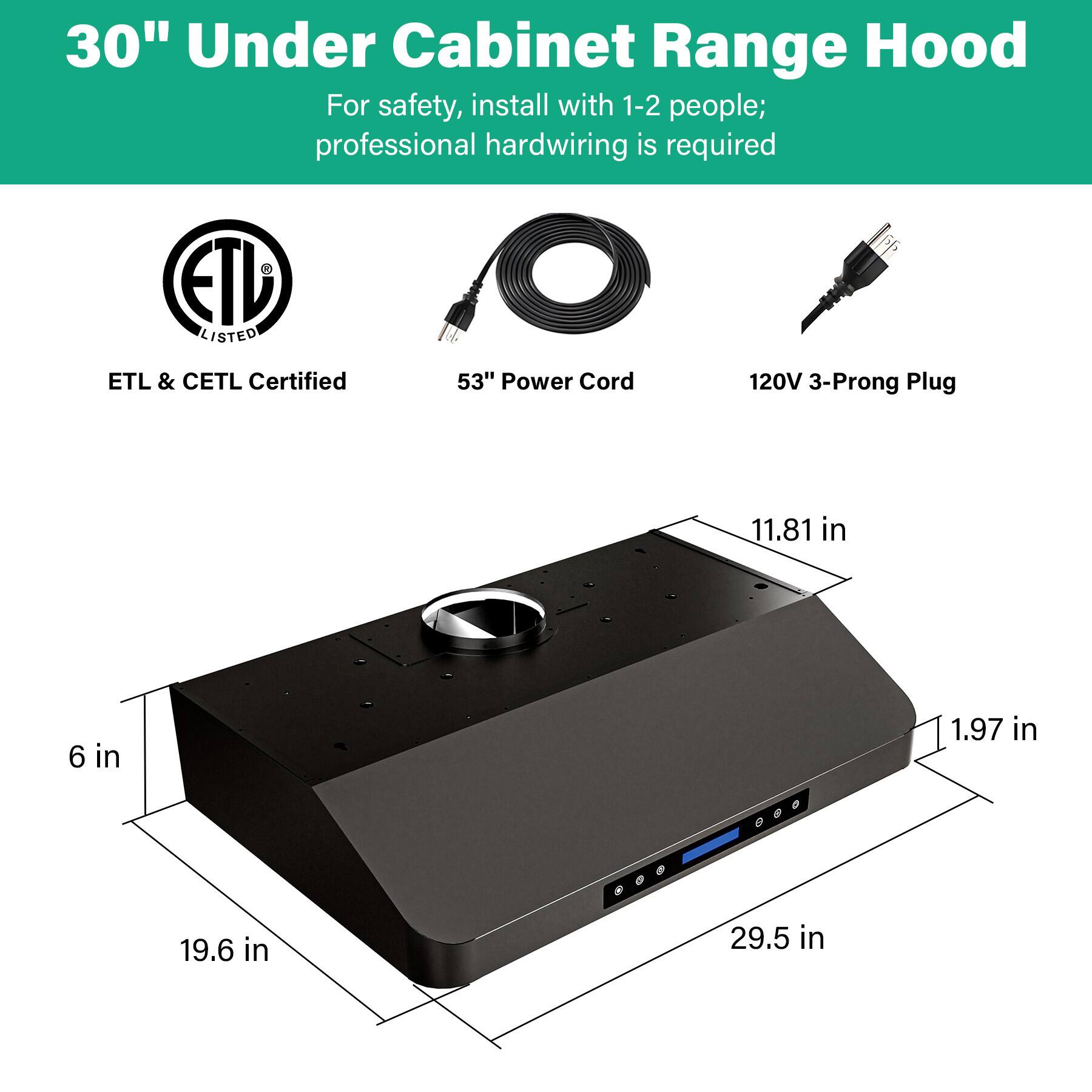

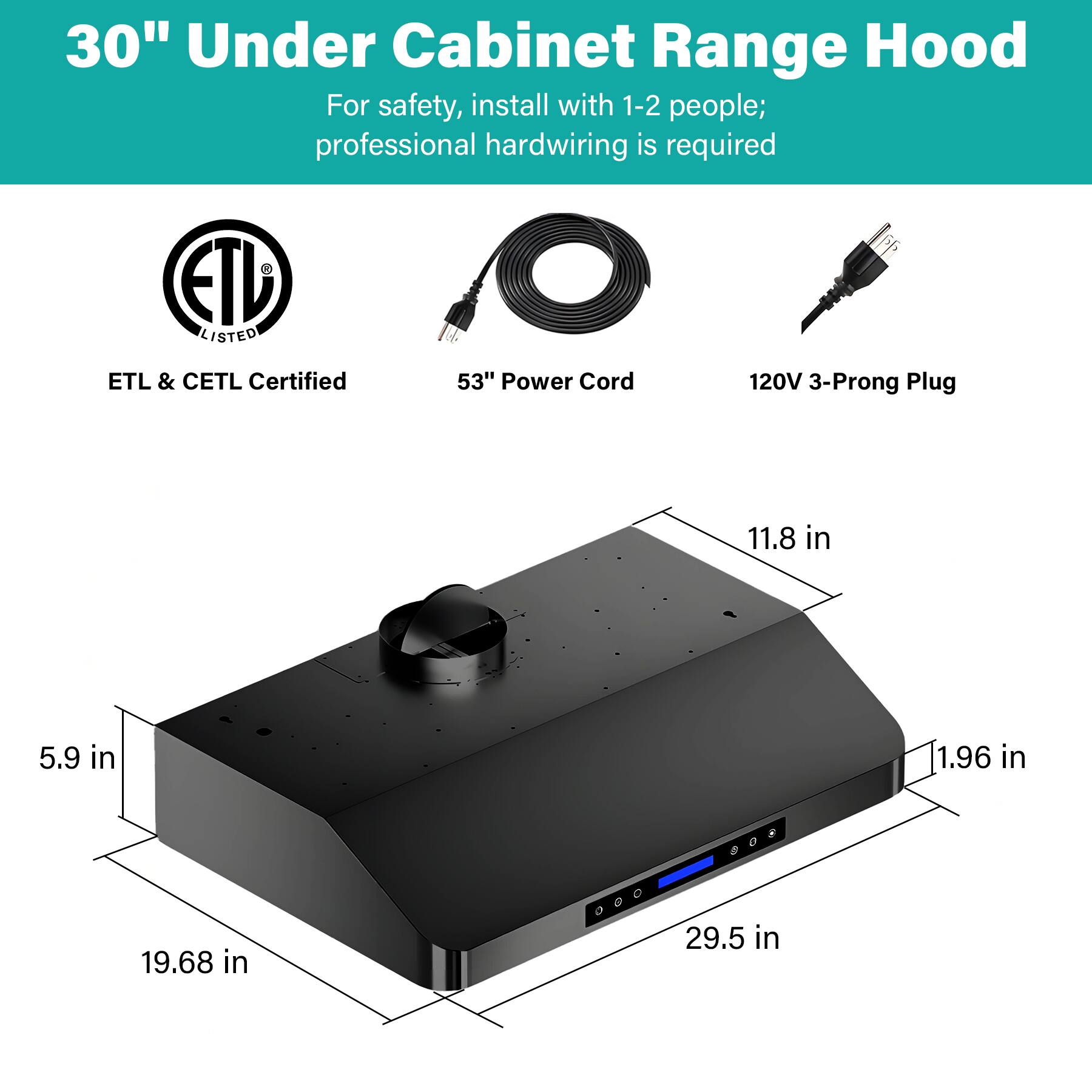

- Wide Compatibility with Precise Dimensions: With dimensions of 19.7"D x 29.5"W x 5.9"H, this range hood has wide compatibility, fitting seamlessly into most standard under-cabinet kitchen configurations and adapting to various kitchen layout needs.

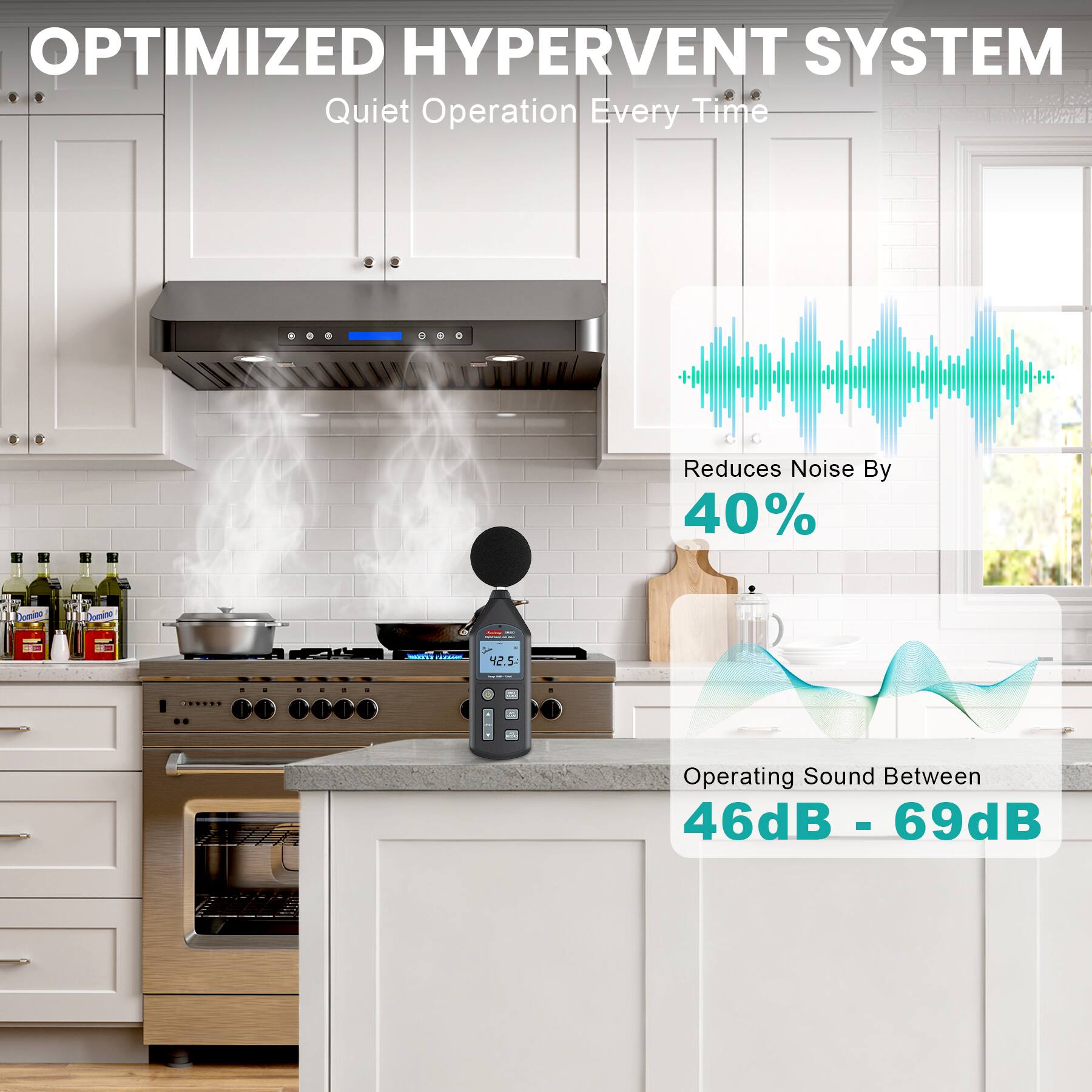

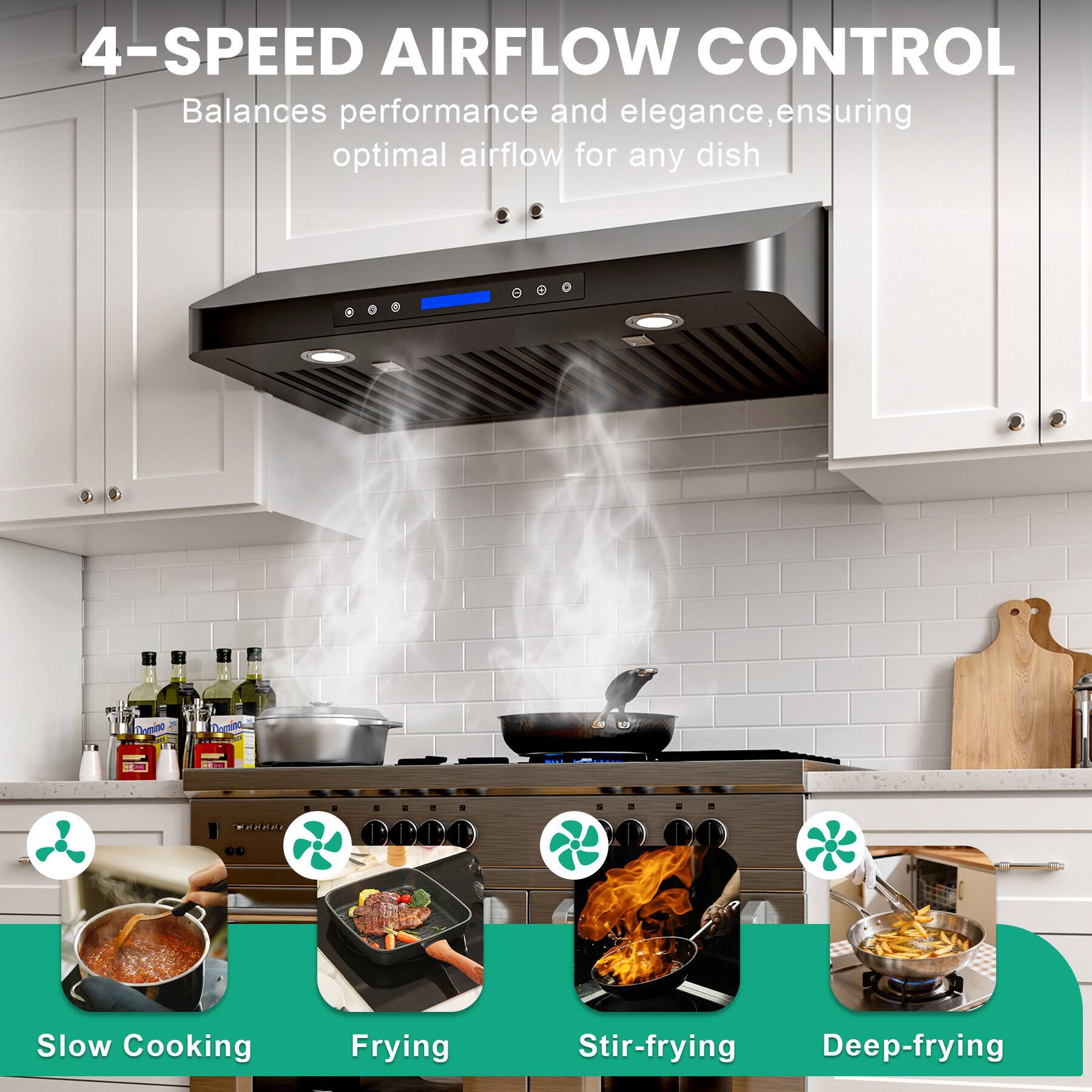

- 4-Speed Control & Low-Noise Operation: Boasts 4 adjustable speed levels to accommodate different cooking fume intensities, with operating noise ranging from 46-69dB for a quiet cooking experience. Settings can be conveniently adjusted via the intuitive touch panel LCD or included remote control, offering flexible operation from anywhere in the kitchen.

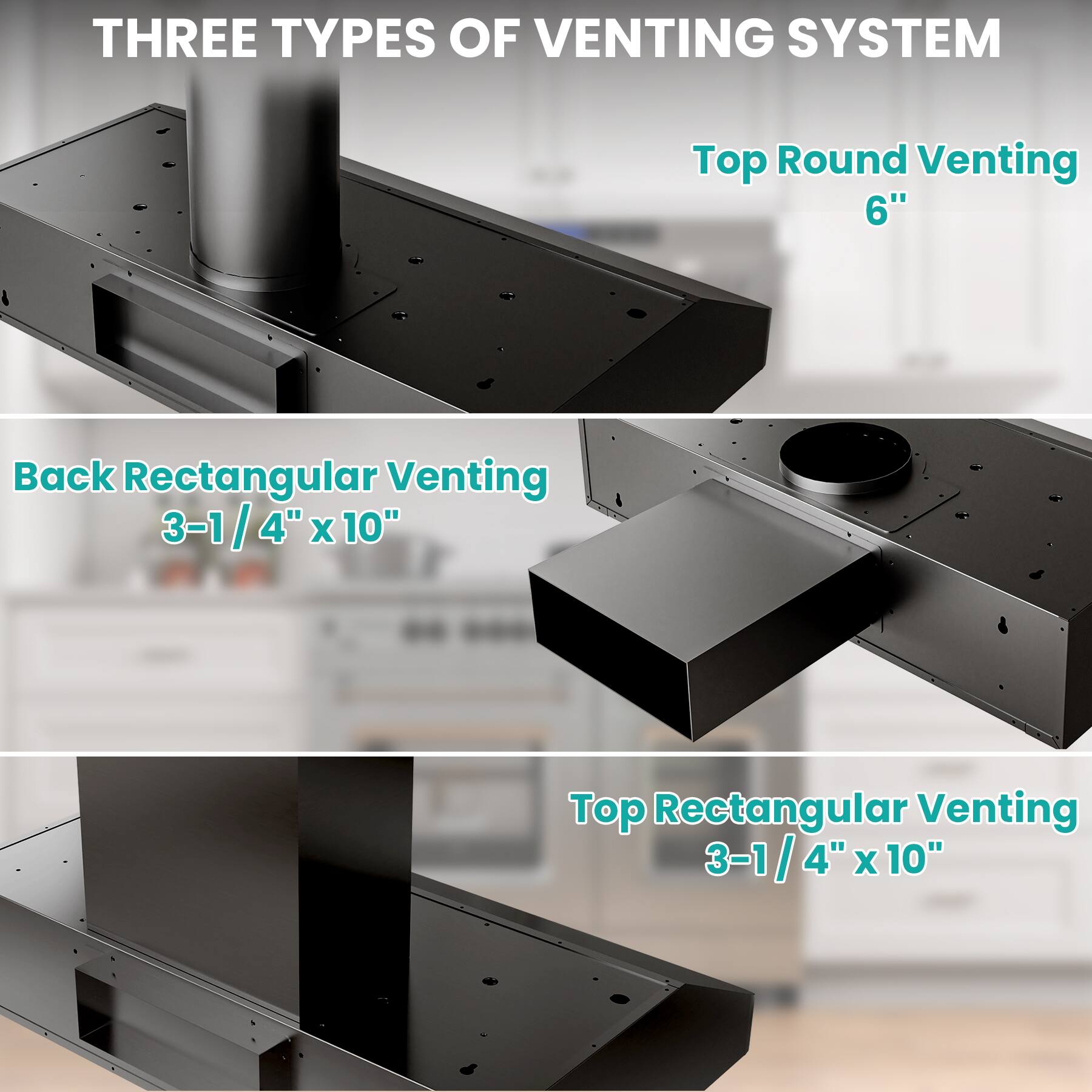

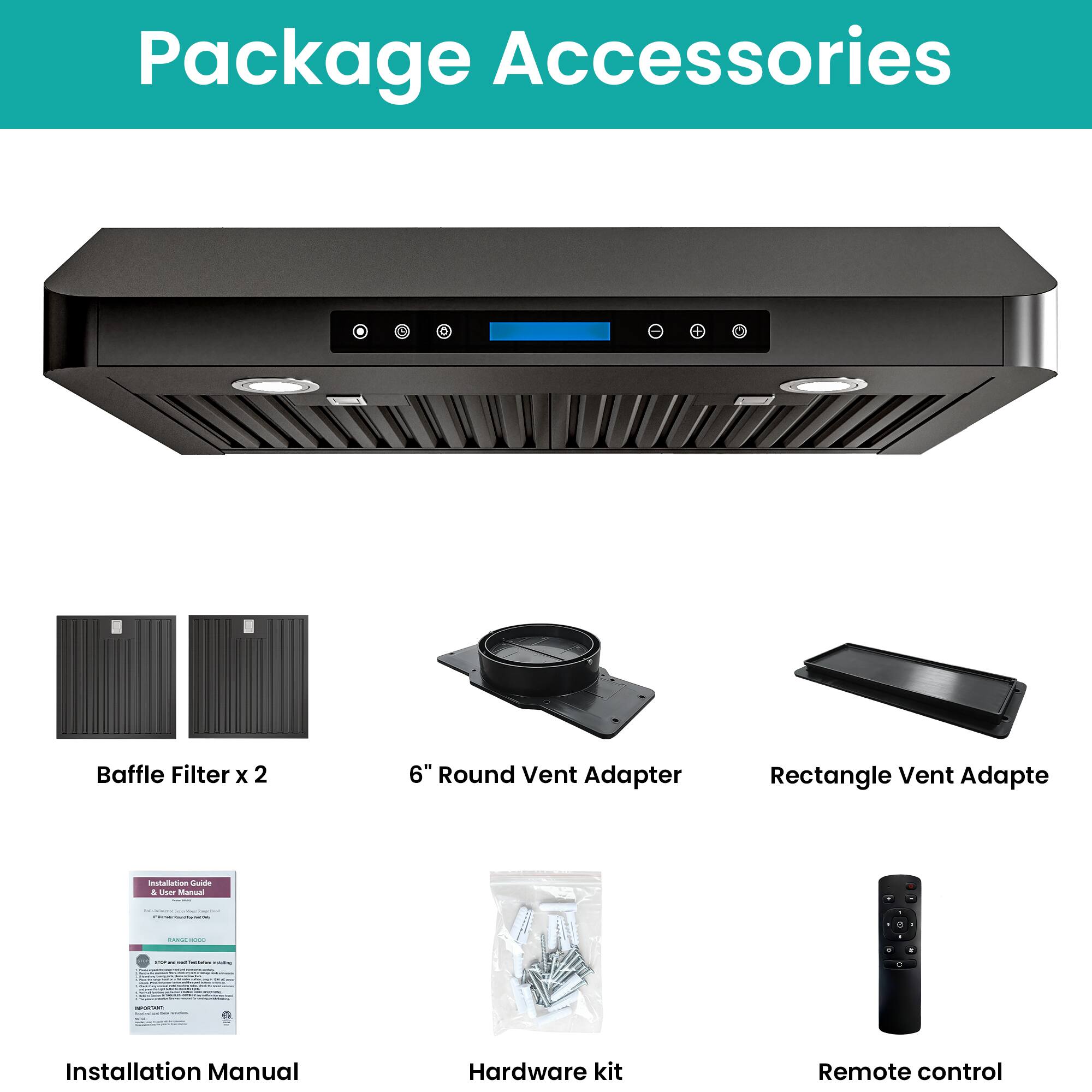

- Three Versatile Venting Options with Specific Duct Sizes: Supports three exhaust methods to match diverse installation requirements: top round venting (compatible with 6” duct), top rectangular venting (compatible with 3-1/4”x10" duct), and back rectangular venting (compatible with 3-1/4”x10" duct), ensuring easy integration with existing kitchen ventilation setups.

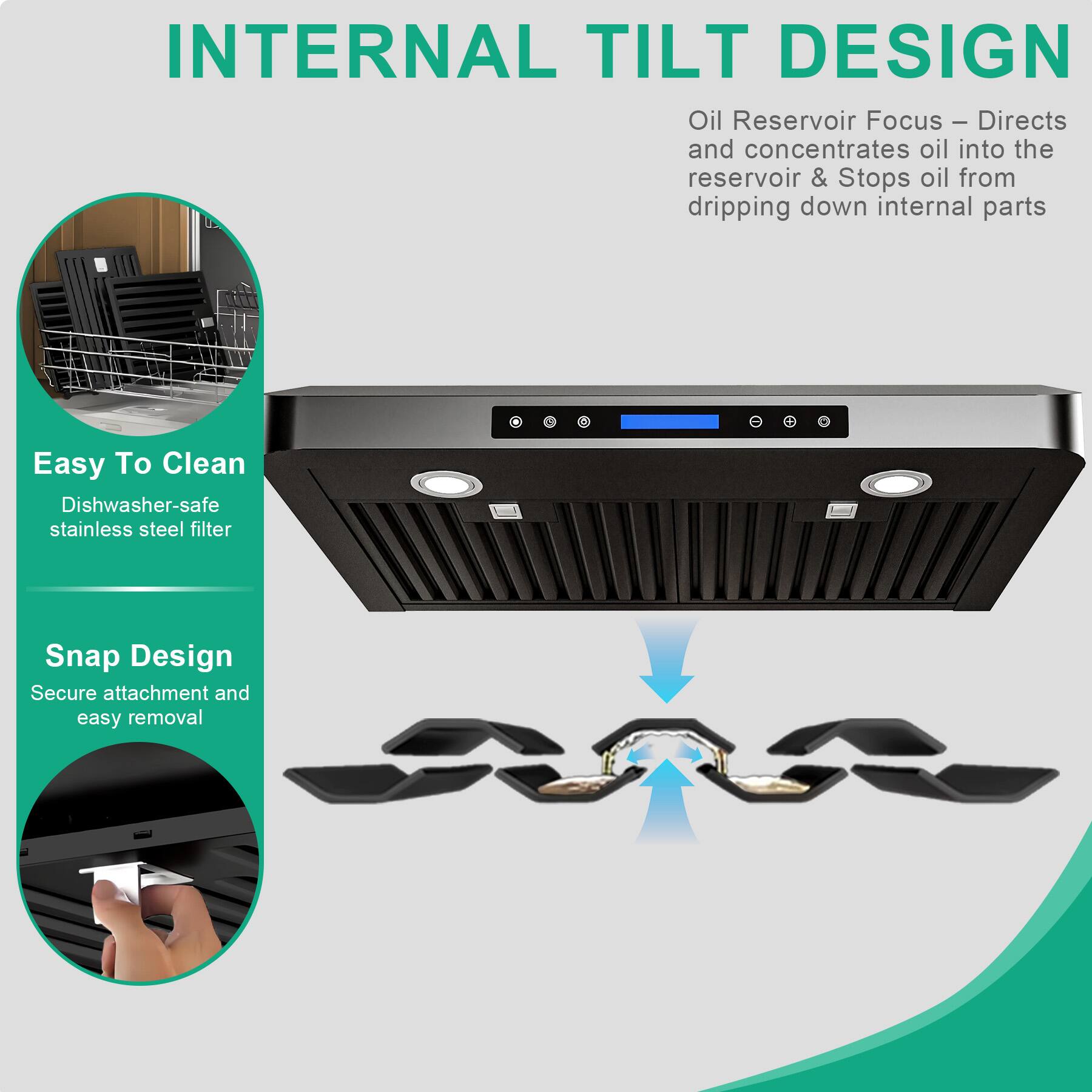

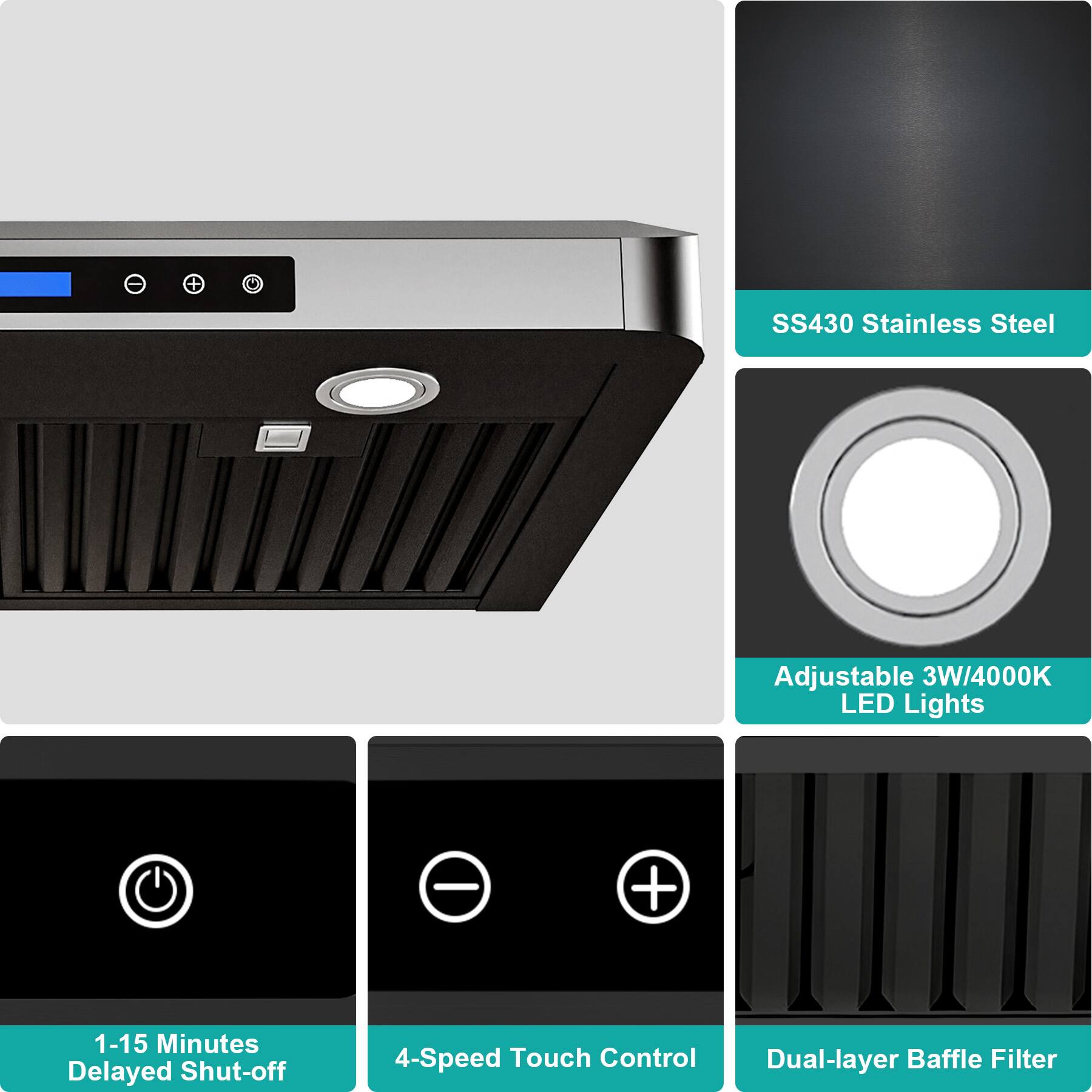

- User-Friendly Functional Add-Ons: Comes with 2 built-in LED lights for bright, focused cooking area illumination, a 1-15 minute delay shut-off function for residual fume clearance, and a detachable baffle filter that is dishwasher-safe for hassle-free cleaning and maintenance.
- Durable Material & Reliable After-Sales Warranty: Constructed with premium SS430 stainless steel for long-lasting durability and corrosion resistance, and backed by reliable safety certifications (ETL and CETL). It also offers a 10-year warranty for the motor and a 5-year warranty for the LED lights and switches, providing long-term usage peace of mind.
